OREI UHDS -102:4K HDMI Splitter 1-In-2-Out with EDID control
Key Features:
HDMI 2.0b & HDCP 2.2 compliant
Video resolutions up to 4K@60Hz
18Gbps video bandwidth
24bit RGB/YCbCr 4:4:4 support
LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio support
Compact design
Plug-and-play setup
EDID switch to toggle between 2 presets:
STD: Set the output to 1080p
TV: Copy the EDID of the display connected to OUT 1
The UHDS-102 HDMI Splitter offers a versatile solution for duplicating media to two displays simultaneously. It supports video resolutions up to 4K@60Hz and is compliant with HDMI 2.0b and HDCP 2.2. Connect any media source—set-top box, DVD player, FireTV stick, Roku, Apple TV, etc.—and view the same content on two TVs or monitors simultaneously. With a switch on the front, easily toggle between two preset EDID settings. Its compact design and plug-and-play features make it ideal for both residential and commercial setups.
[shortdes]
Mirror content to 2 displays
Resolutions up to 4K@60Hz
EDID management
[/shortdes]
[tab]
CONNECTIVITY
INPUT:
1 × HDMI [Type A, 19-pin female]
OUTPUT:
2 × HDMI [Type A, 19-pin female]

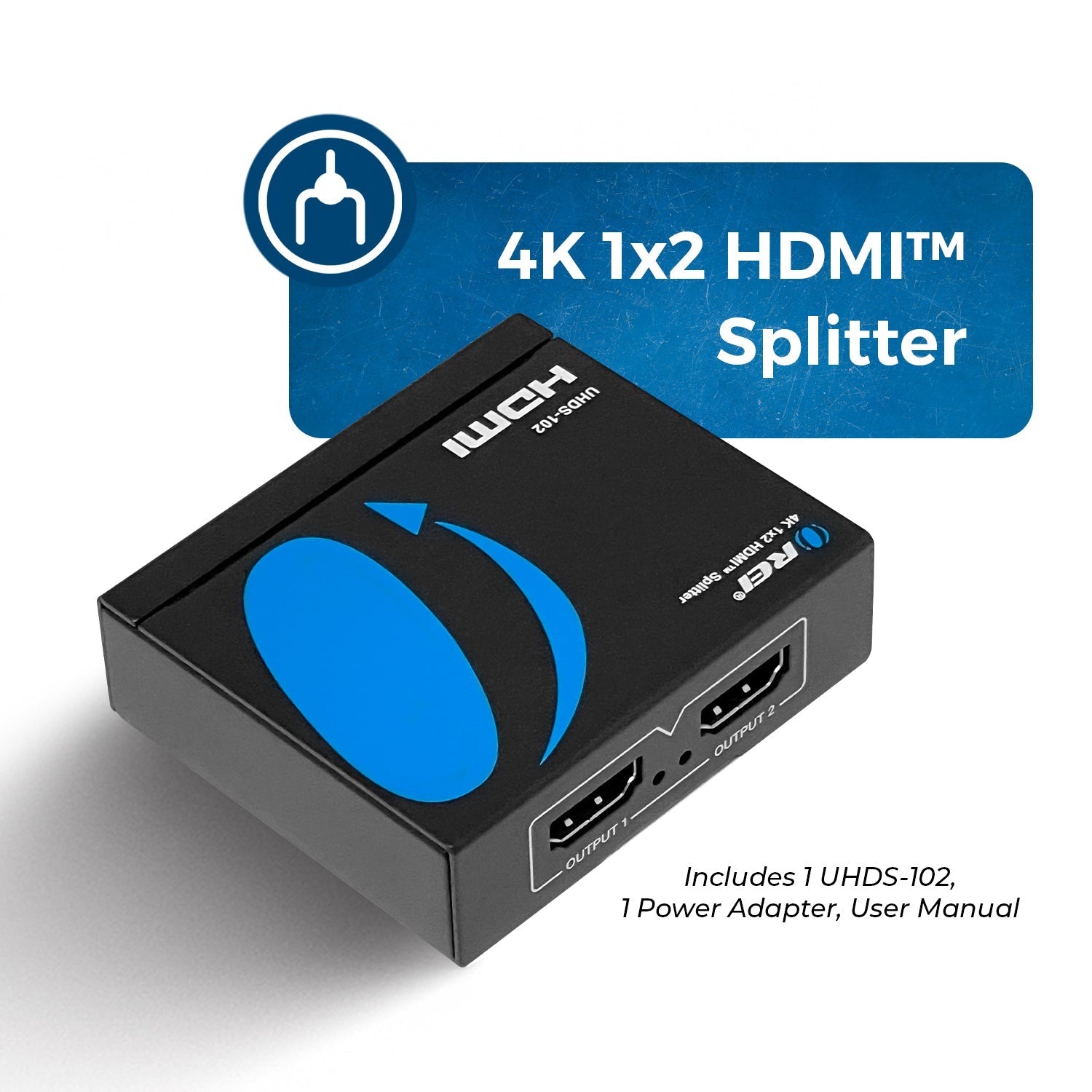

PACKAGE CONTENTS
1x UHDS-102 HDMI Splitter
1x Power Adapter
User Manual
SUPPORTED HDMI CABLES
HDMI 2.0/2.1:
We recommend using high-quality HDMI 2.0/2.1 cables under 30 feet for optimum performance
EXTENDING DISTANCE
4K@60Hz:
30 Feet
VIDEO OUTPUT

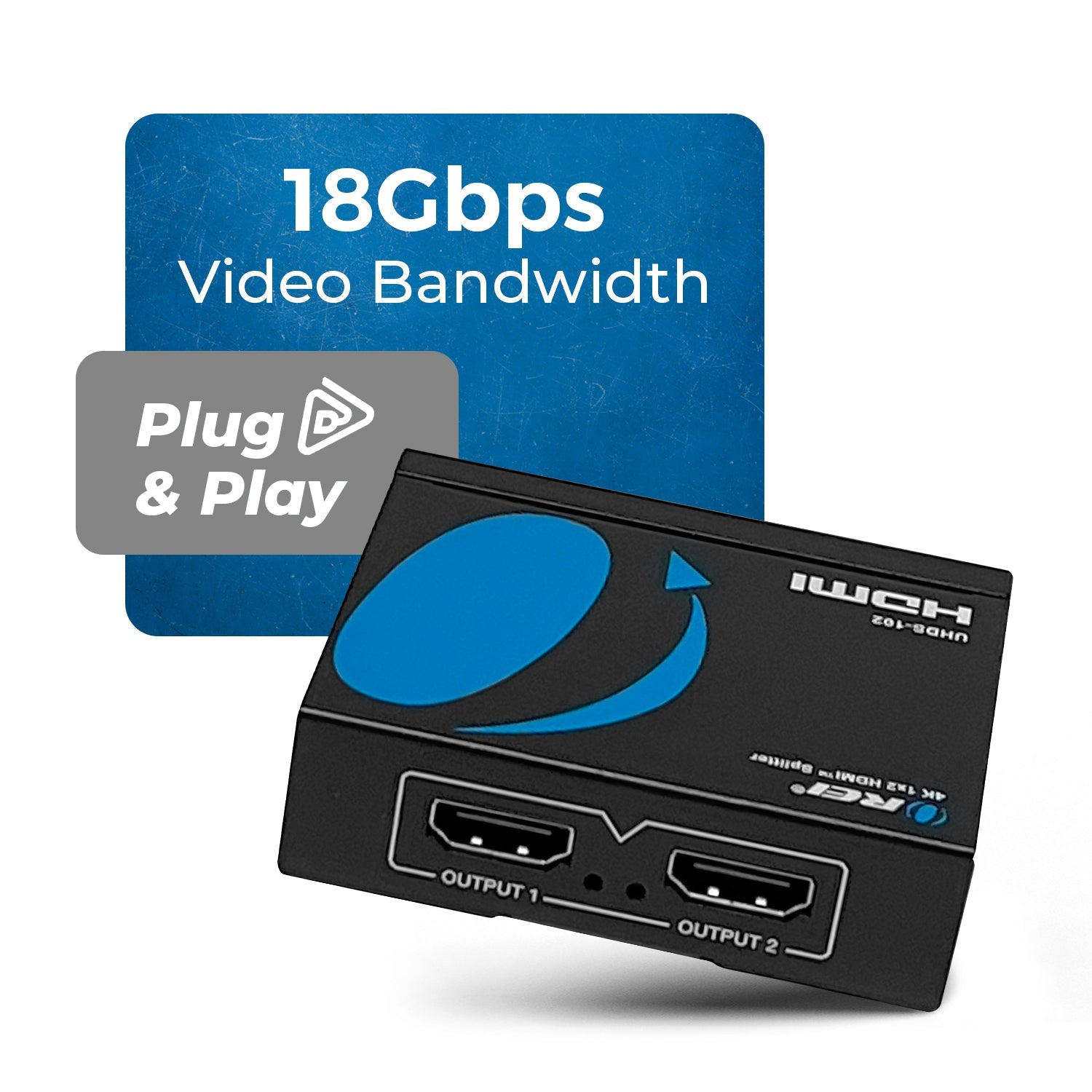

Video Bandwidth:
18Gbps
Video Resolutions:
Up to 4K@60Hz 4:4:4
ADDITIONAL FEATURES
CEC:
No
ARC:
No
USB KVM:
No
PoC/PoE:
No
IR Control:
No
Downmix:
No
Downscale:
No
Over IP:
No
HDBaseT:
No
RS-232:
No
AUDIO SUPPORT
HDMI Audio Formats:
LPCM 2.0/5.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus, DTS HD Master Audio
COMPLIANCES
HDMI Compliance
HDMI 2.0b
HDCP Compliance
HDCP 2.2
POWER
Power Consumption:
2W (Max)
Power Supply:
Input: AC 100-240V 50/60Hz
Output: DC 5V/1A
DIMENSIONS & WEIGHT
Length:
100mm / 3.93in
Width:
56mm / 2.2in
Height:
16mm / 0.62in
Weight:
165g / 5.82oz
PROPERTIES
Color:
Black
Housing:
Metal Enclosure
WARRANTY
1-Year Manufacturer's Warranty
[/tab]
[tab1]
FAQs
Our splitters will not work with capture cards due to the HDCP encryption on the output

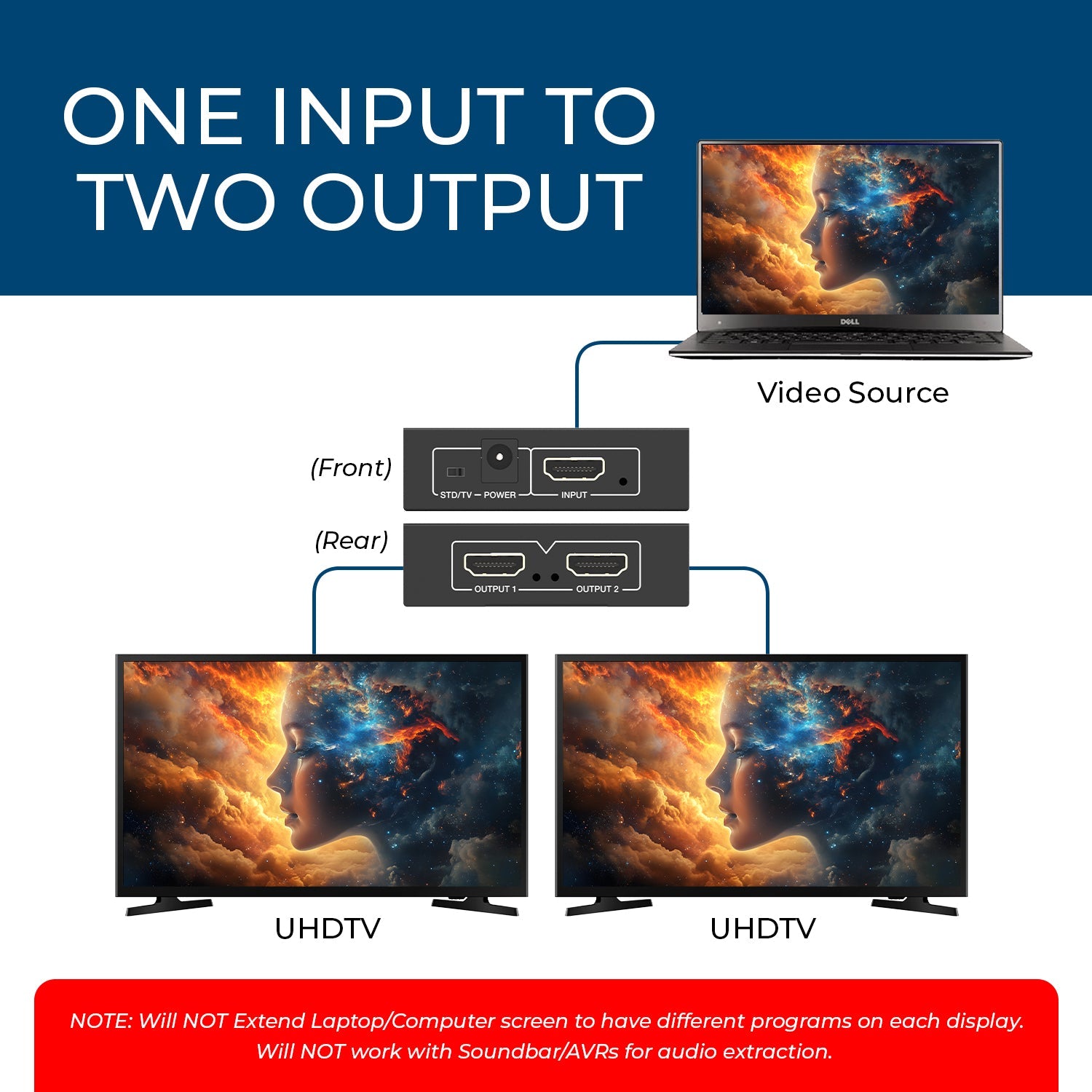

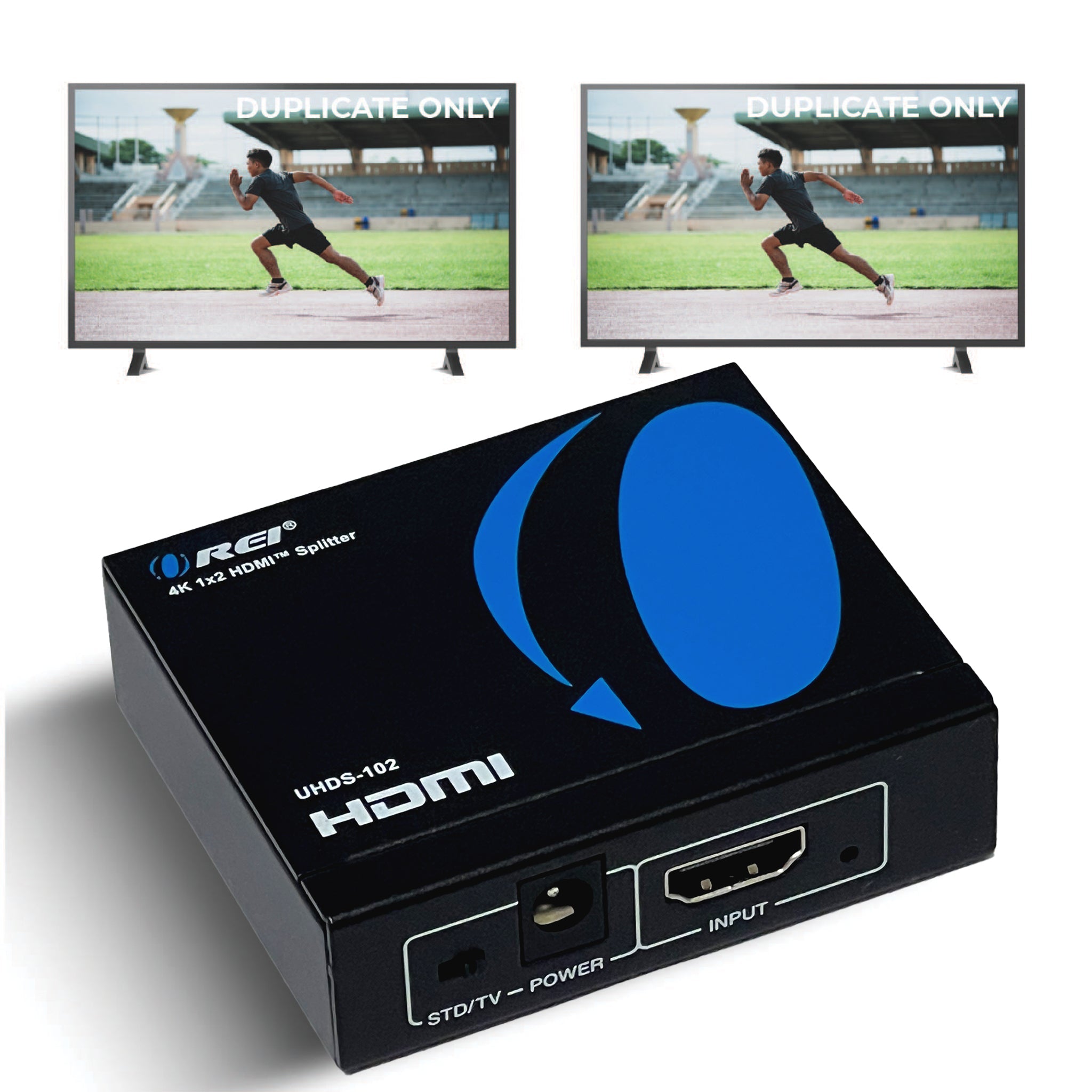

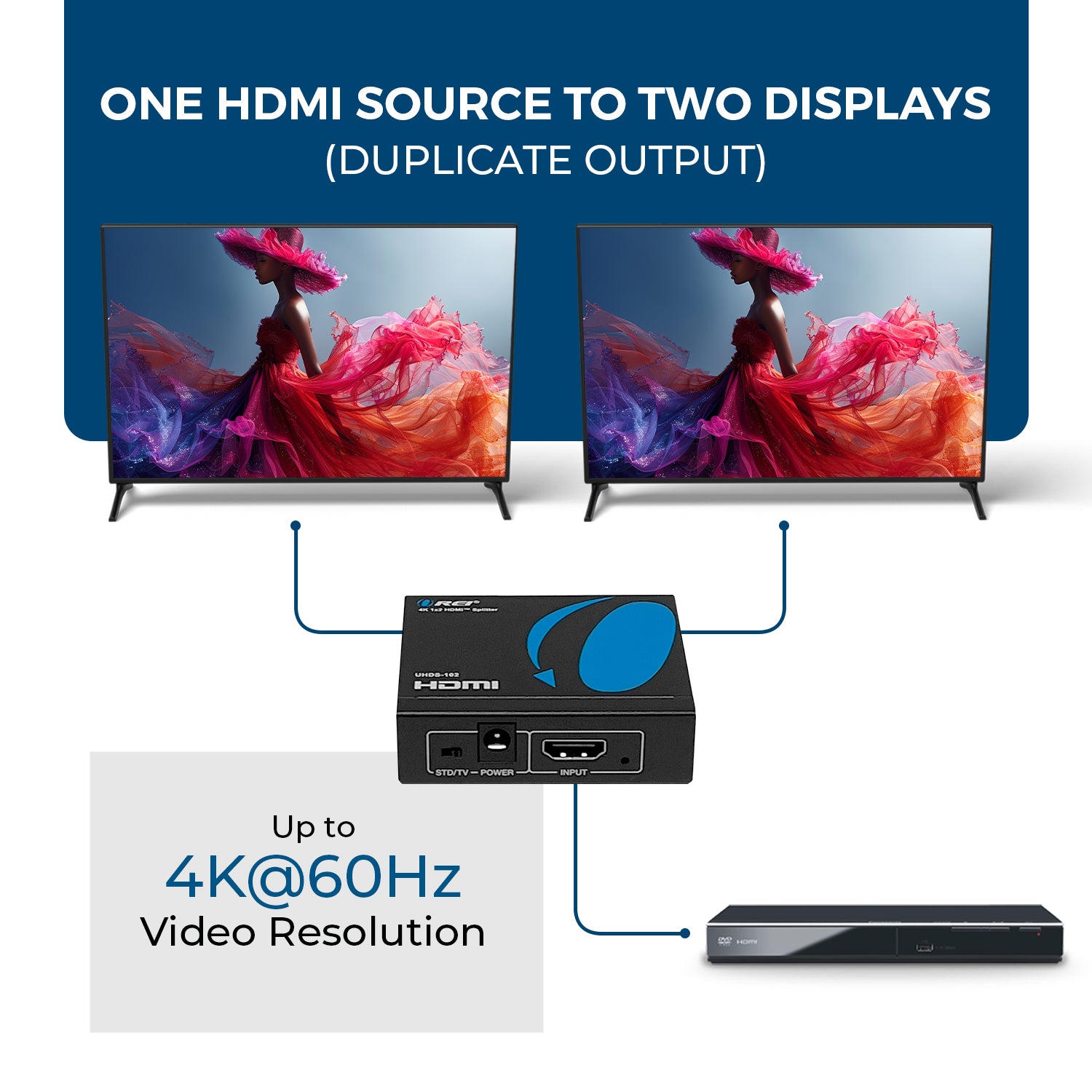

Our HDMI splitter will duplicate or "mirror" a single HDMI source on two HDMI displays. Both displays will show the same video and audio simultaneously
Our splitter does not support extend mode. It only supports mirror/duplicate screen function, each screen will show the same picture
Yes, the power adapter does support 220V
You can use standard HDMI cables up to 15 feet and high quality cables up to 30 feet.
However, you can use fiber optic active HDMI cables up to 200 feet. If it's not a high-quality cable then you may lose the signal in some instances.
No, the HDMI splitters do not support CEC because most customers do not want all the TV's to turn ON as soon as the source is turned on.
[/tab1]
General Information
UPC
854339007755
