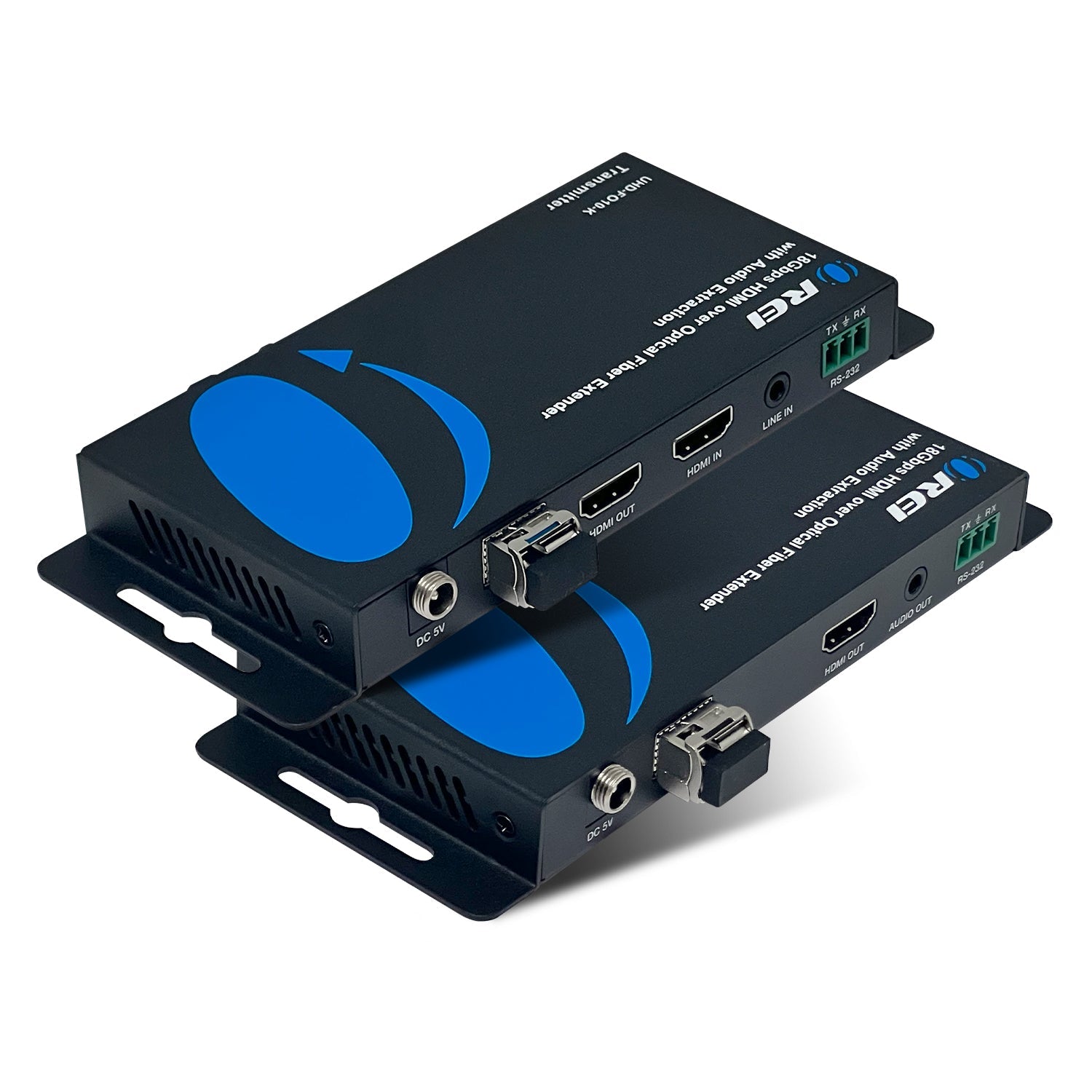

OREI 4K HDMI Extender Balun up to 10 KM
Key Features:
- HDMI 2.0b, HDCP 2.2, and DVI 1.0 compliant.
- 18Gbps video bandwidth.
- Video resolution up to 4K@50/60Hz 4:4:4.
- HDMI audio formats: LPCM2/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD.
- 3D and HDR video support.

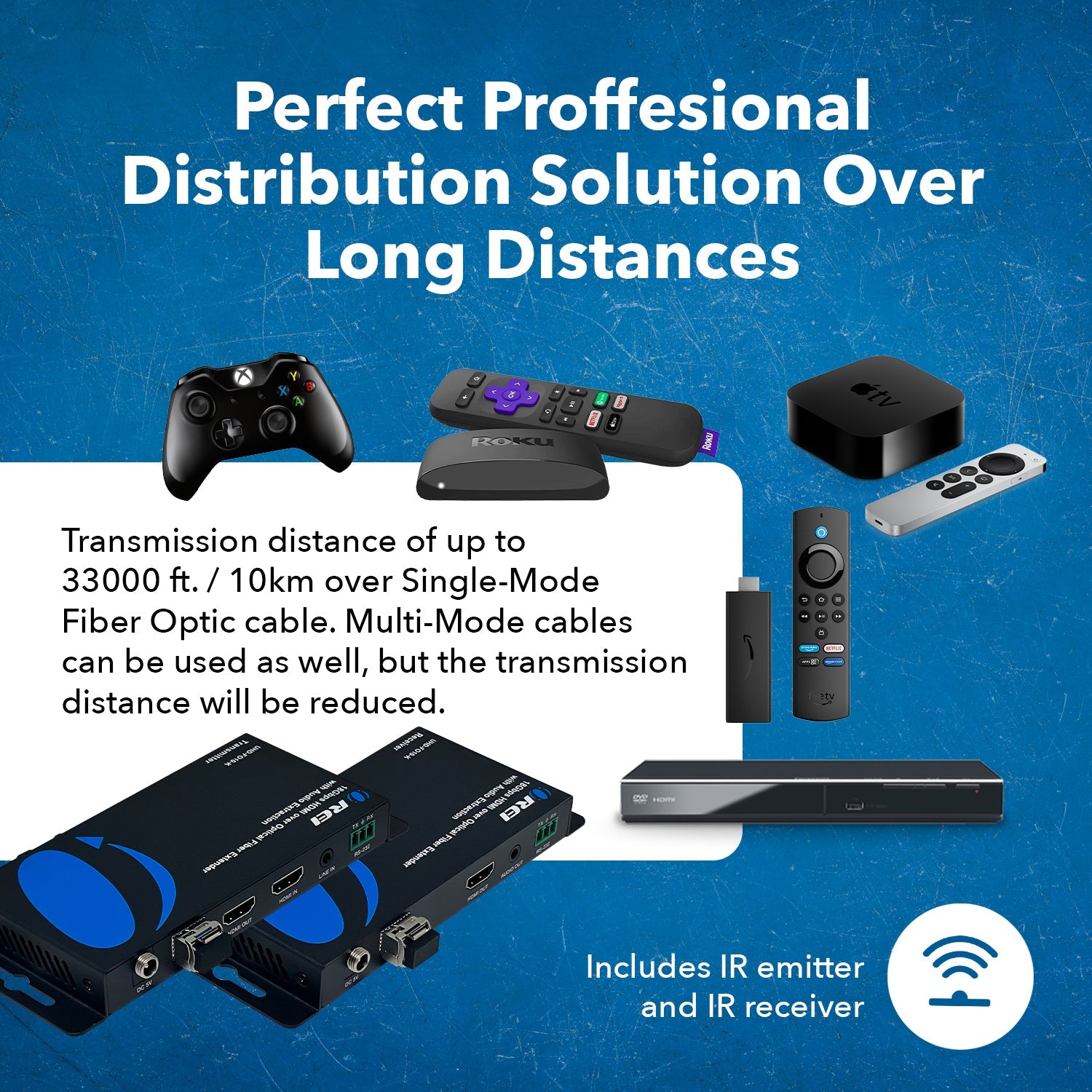

- Transmission distance up to 33000 feet/10km (over single-mode fiber cable).*It is possible to use multi-mode fiber with these SFP modules but the distance can not be guaranteed.
- Bi-directional IR enables control to and from the Transmitter and Receiver.
- RS-232 pass-through and EDID management for simple and convenient control.

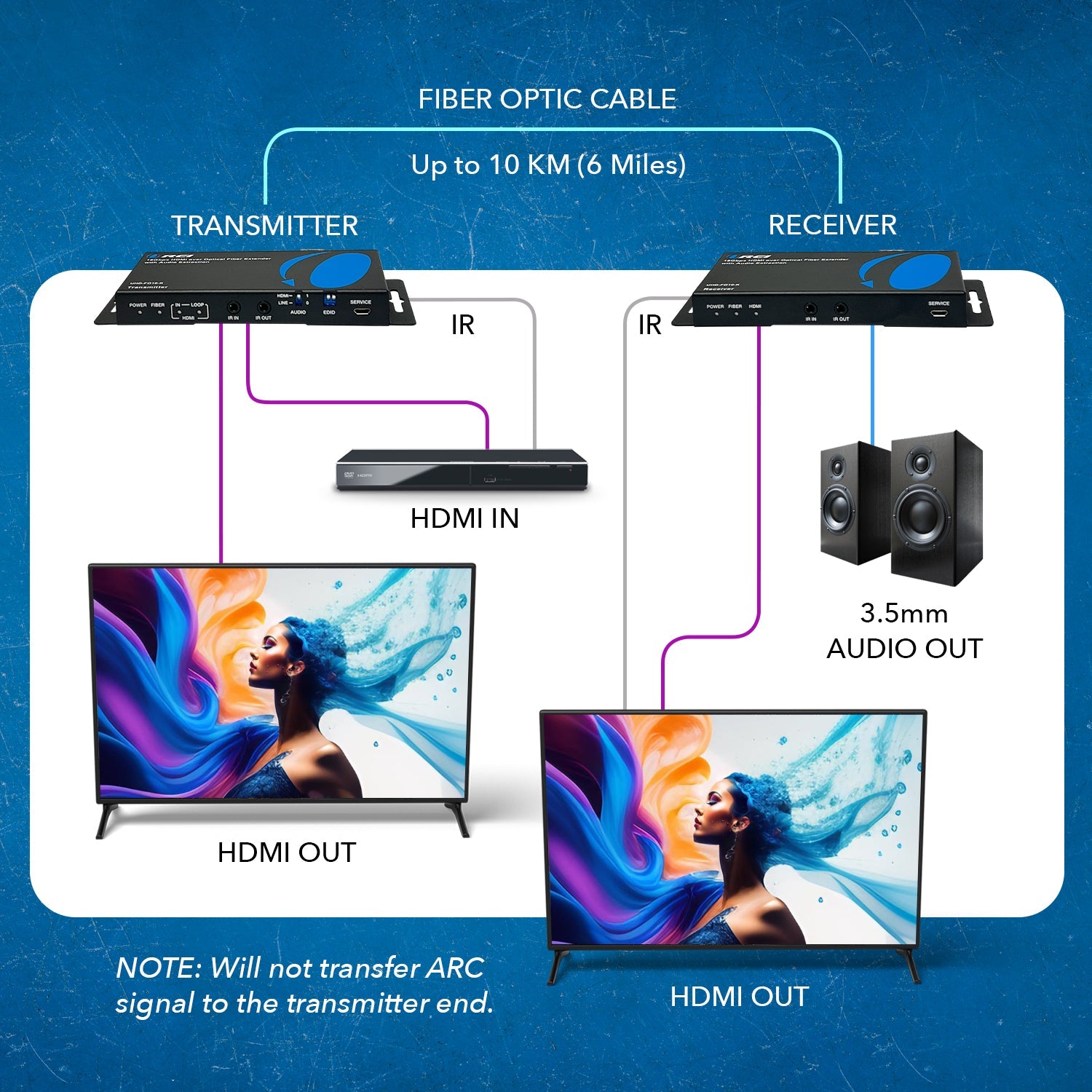

- The transmitter features an HDMI loop output to connect a display near the source.

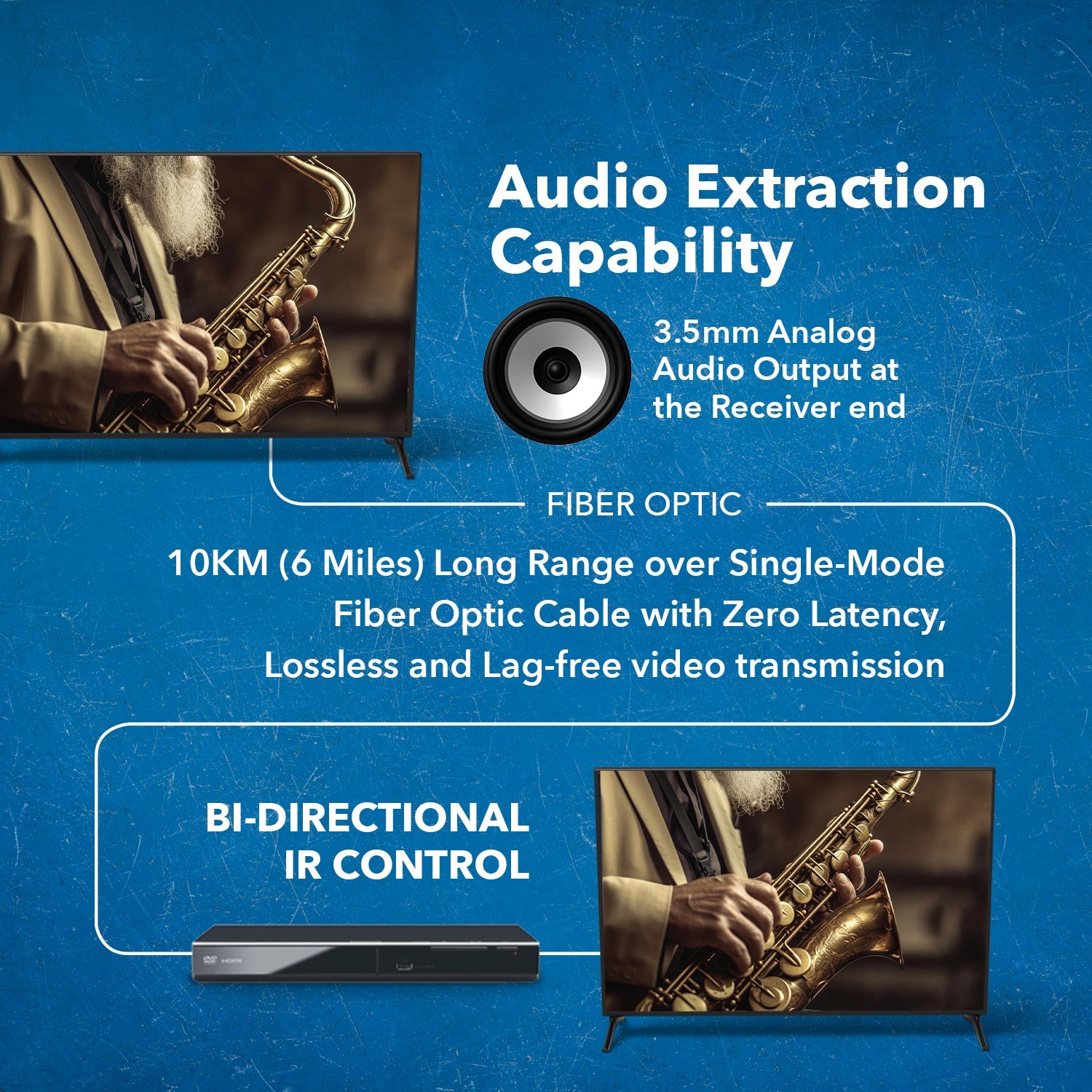

- Audio Extraction through 3.5mm output on the Receiver end.
- Compact design for easy and flexible installation.
Description: The UHD-FO10-K can extend an HDMI signal up to 33000 feet/10km over single-mode fiber cable. It supports video resolution up to 4K@60Hz 4:4:4 with 18Gbps video bandwidth. The transmitter features an HDMI loop output to connect a display near the source. EDID Management through the switches on the Transmitter. Audio Extraction through 3.5mm output on the Receiver end. It features Bi-directional IR which enables control to and from the Transmitter and Receiver. RS-232 pass-through. Metal enclosure for durability and heat dissipation.

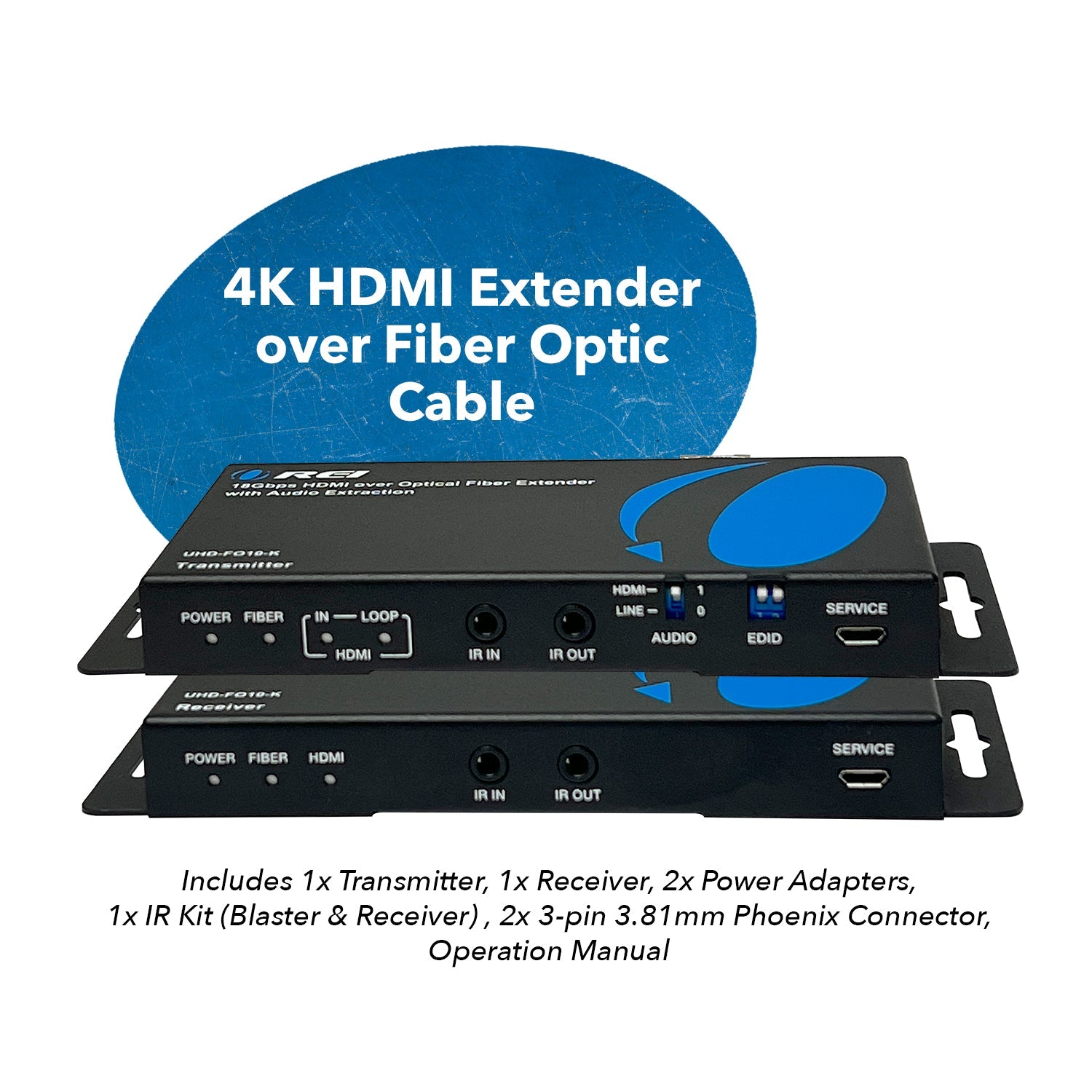

Package Includes UHD-FO10-K(Transmitter and Receiver), 1x IR Kit(Blaster and Receiver), 2x Power Adapter,2 × 3-pin 3.81mm Phoenix Connector, and User Manual.
[shortdes]
- Extend 4K@60Hz Signals up to 10Km(~33000 ft.)
- HDMI 2.0b, HDCP 2.2, and DVI 1.0 compliant
- Features Bi-directional IR and RS-232 Pass through
[/shortdes] [tab]

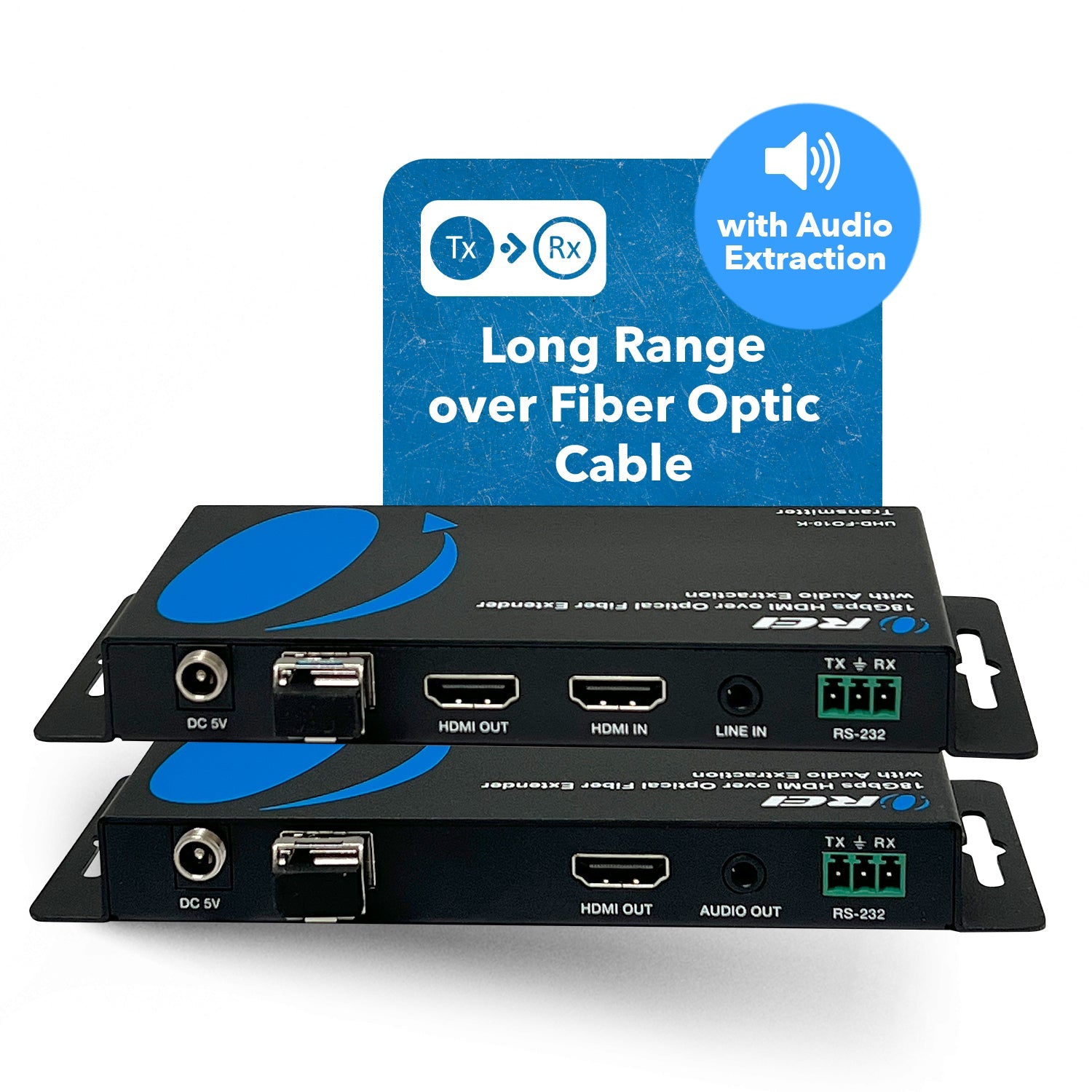

CONNECTIVITY
| Transmitter: |
INPUT PORTS: |
1 × HDMI IN [Type A, 19-pin Female] |
|
|
1 × LINE IN [3.5mm Stereo Mini-jack] |
|
|
1 × IR IN [3.5mm Stereo Mini-jack] |
|
|
1 × RS-232 [3.81mm Phoenix Connector] |
|
|
1 × SERVICE [Micro USB, Update Port] |
|
OUTPUT PORTS: |
1 × HDMI OUT [Type A, 19-pin Female] |
|
|
1 × Optical Fiber Out [LC Female] |
|
|
1 × IR OUT [3.5mm Stereo Mini-jack] |
| Receiver: |
INPUT PORTS: |
1 × Optical Fiber In [LC Female] |
|
|
1 × IR IN [3.5mm Stereo Mini-jack] |
|
|
1 × SERVICE [Micro USB, Update Port] |
|
OUTPUT PORTS: |
1 × HDMI OUT [Type A, 19-pin Female] |
|
|
1 × RS-232 [3.81mm Phoenix Connector] |
|
|
1 × IR OUT [3.5mm Stereo Mini-jack] |
|
|
1 × AUDIO OUT [3.5mm Stereo Mini-jack] |
|
|
AUDIO AND VIDEO
| Video Bandwidth: |
18Gbps |
| Video Resolutions: |
480i ~1080p50/60Hz, 2560x1440@24/30/50/60Hz, 4K@24/30Hz, 4K@60Hz |
| Color Space: |
RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0 |
| Color Depth: |
8-bit, 10-bit, 12-bit |
| HDMI Audio Formats: |
LPCM 2/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD,DTS, DTS-EX,DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
COMPLIANCES
| HDMI Compliance |
HDMI 2.0b |
| HDCP Compliance |
HDCP 2.2 |
SUPPORTED CAT CABLES
| CAT5e, CAT6, CAT7: |
We recommend you to use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance |
EXTENDING DISTANCE
FUNCTIONS
| EDID |
Dial the switch to set EDID |
LOOP-OUT/LOCAL PORT
| Has loop out port: |
Yes |
| Number of Loop out ports: |
1 |
SIGNALS
| TMDS Signals: |
- |
| DDC Signals: |
- |
PROTECTION
| Operation Temperature: |
32~104°F / 0~40°C |
| Storage temperature: |
-4~140°F / -20~60°C |
| Relative Humidity: |
20~90% RH (Non-condensing) |
| ESD Protection: |
Human-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge) |
RJ-45 CONNECTOR Type
POWER
| Power Consumption (Max): |
Transmitter: |
3.85W (Max.) |
|
|
|
|
Receiver: |
2.7W (Max.) |
| Power Supply: |
Input: |
AC 100~240V 50/60Hz |
|
|
|
|
Output: |
DC 5V/1A (US/EU standards, CE/FCC/UL certified) |

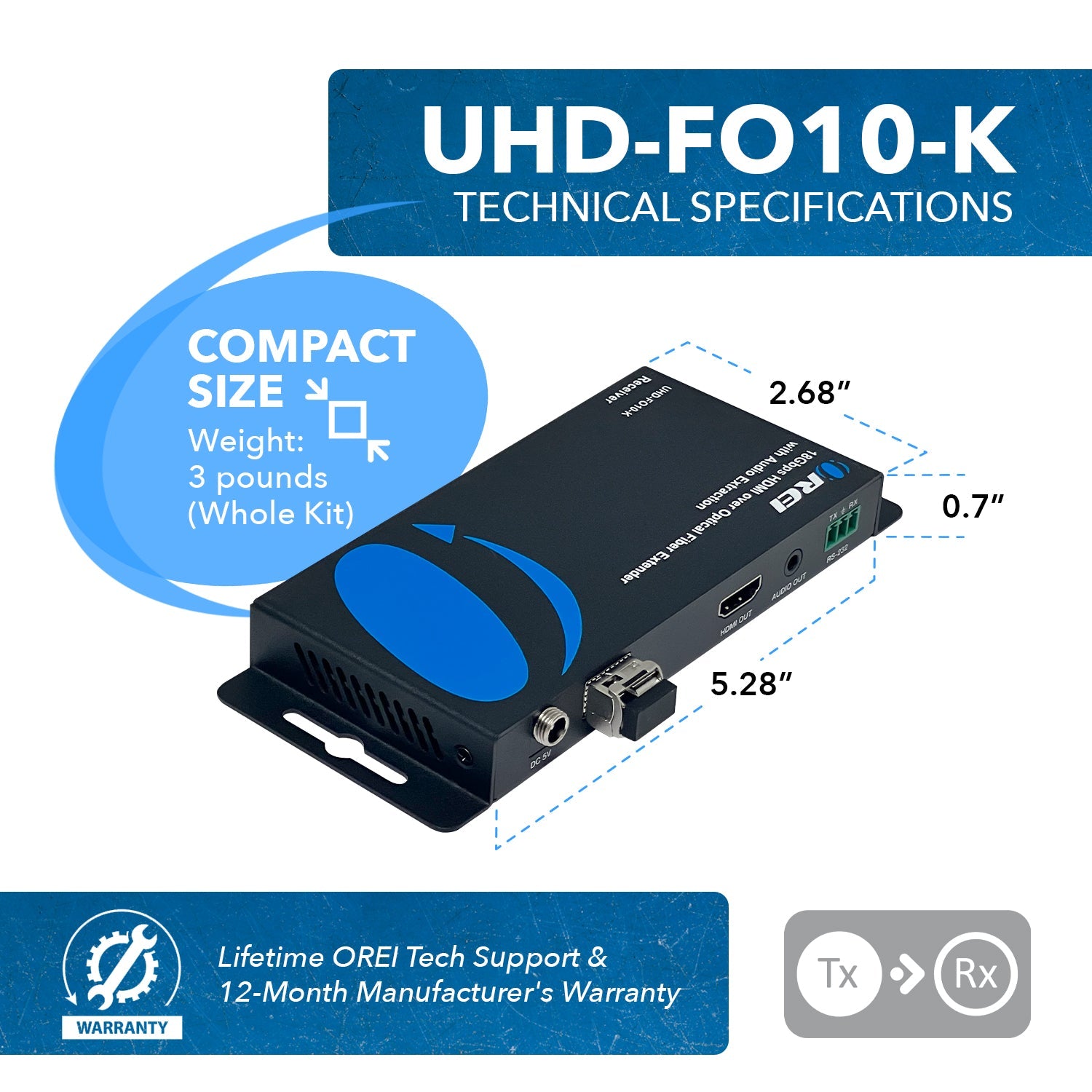

DIMENSIONS & WEIGHT
| Transmitter: |
Height: |
18mm |
|
Width: |
134mm |
|
Depth: |
68mm |
|
Weight: |
280g |
| Receiver: |
Height: |
18mm |
|
Width: |
134mm |
|
Depth: |
68mm |
|
Weight: |
278g |
|
|
PROPERTIES
| Color: |
Black |
| Housing: |
Metal Enclosure |
PACKAGE CONTENTS
| 1 × UHD-FO10-K (Transmitter) |
| 1 × UHD-FO10-K (Receiver) |
| 1 × IR Blaster cable (1.5m) |
| 1 × IR Receiver cable (1.5m) |
| 2 × 5V/1A Power Adapter |
| 2 × 3-pin 3.81mm Phoenix Connector |
| 1 × User Manual |
WARRANTY
| 1 - Year Manufacturer's Warranty |
