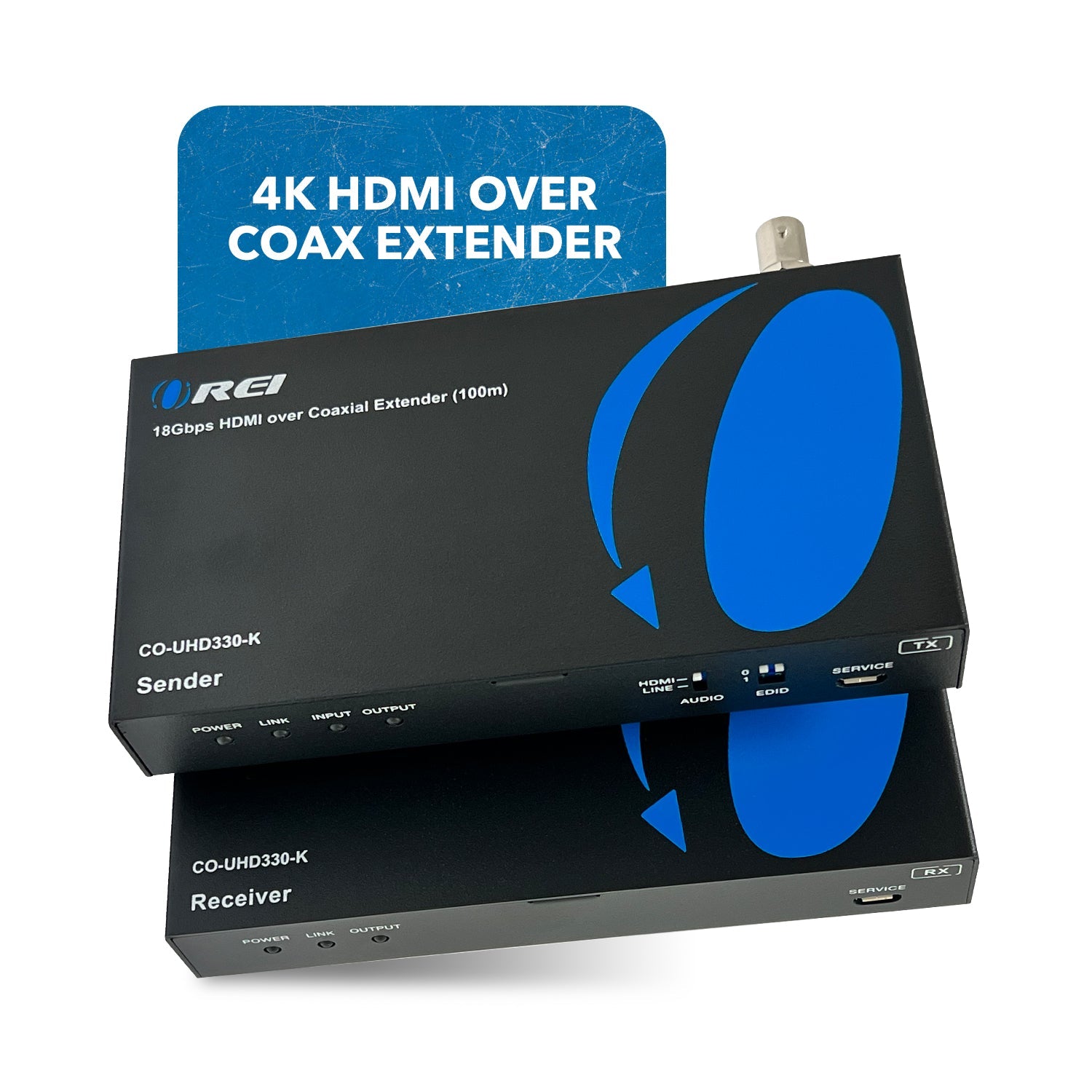

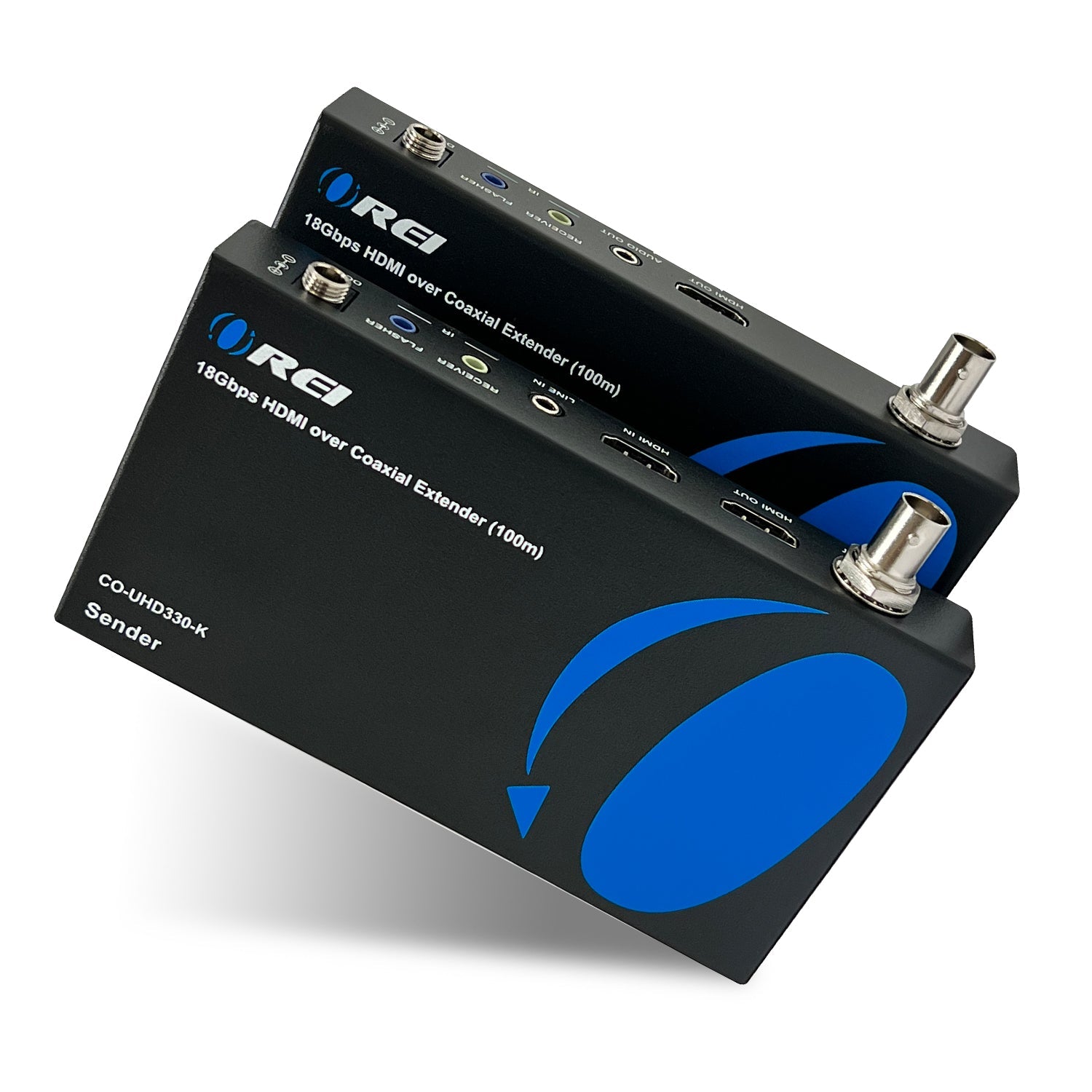

OREI CO-UHD330-K HDMI Over Coaxial Extender up to 330FT
Key Features:
- Flexible extension of high-bandwidth HDMI 2.0
- Transmit 4K@60 Hz up to 330 Feet
- Audio and video are transmitted digitally over the 75 Ohm RG-6 Copper Coaxial cable with zero signal loss
- Compliant with HDMI 2.0, HDCP 2.2 standards

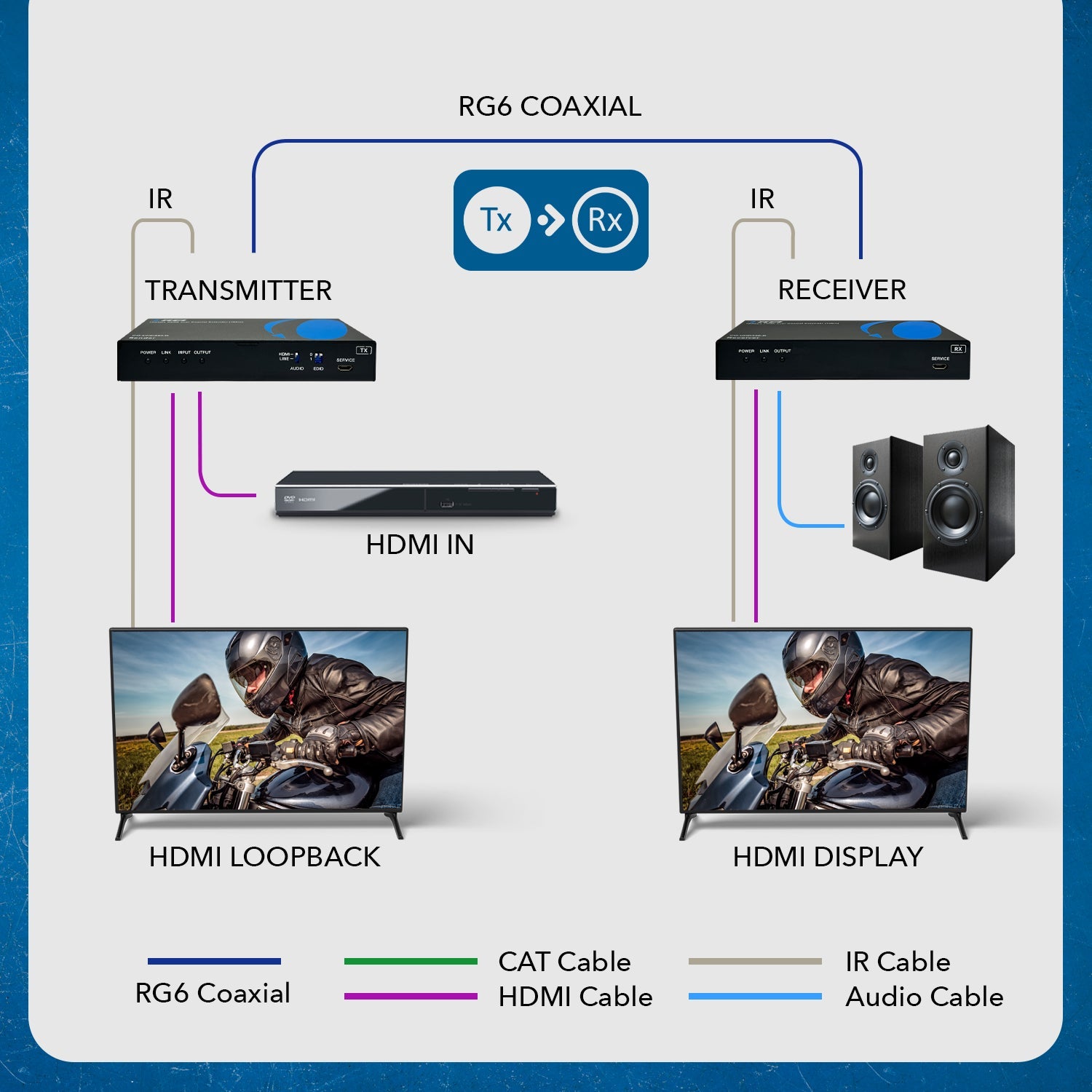

- HDMI Out on the Transmitter side to connect a display at the source
- Supports PCM 48KHz audio
- Up to 5.1-channel audio supported including Dolby Digital, DTS, and PCM
- Features advanced EDID management and Audio De-embedding.
- Supports Bi-directional IR
- Easy to set up and operate
Description:
The CO-UHD330-K sends HDMI signals over just one 75 Ohm RG-6 Coaxial cable up to 330 feet. This Extender is HDMI 2.0 and HDCP 2.2 Compliant. Features advanced EDID management and Audio De-embedding. Supports PCM 48Khz Audio. Up to 5.1-channel audio supported including Dolby Digital, DTS, and PCM (does not support Dolby True HD, DTS-HD, or LPCM). Bidirectional IR allows you to control the source device from the remote location and the remote device from the source location.
This Extender offers the most convenient solution for HDMI extension over a single coaxial cable with long-distance capability and is the perfect solution for any application. The package includes Orei CO-UHD330-K HDMI Extender (Transmitter & Receiver Units), 1x IR Tx Cable, 1x IR Rx Cable, 2x Power adapters, a Mounting kit & user manual.
[shortdes]
- Supports 4K@60Hz up to 330 Feet
- Supports PCM 48Khz Audio
- Supports Bi-directional IR
[/shortdes]
[tab]
CONNECTIVITY
| Transmitter: |
INPUT PORTS: |
1 × HDMI IN [TypeA, 19-pin female] |
|
|
1 × LINE IN [3.5mm audio jack] |
| |
OUTPUT PORTS: |
1 × COAX OUT [BNC connector] |
| |
|
1 × HDMI OUT [TypeA, 19-pin female] |
| |
CONTROL PORTS: |
1 × IR IN [3.5mm Stereo Mini-jack] |
| |
|
1 × IR OUT [3.5mm Stereo Mini-jack] |
| |
|
1 × SERVICE [Micro USB, 5-pin female] |
| Receiver: |
INPUT PORTS: |
1 × COAX OUT [BNC connector] |
| |
OUTPUT PORTS: |
1 × HDMI OUT [TypeA, 19-pin female] |
| |
|
1 × AUDIO OUT [3.5mm audio jack] |
| |
CONTROL PORTS: |
1 × IR IN [3.5mm Stereo Mini-jack] |
| |
|
1 × IR OUT [3.5mm Stereo Mini-jack] |
| |
|
1 × SERVICE [Micro USB, 5-pin female] |
AUDIO AND VIDEO
| Video Bandwidth: |
594MHz/18Gbps |
| Video Resolutions: |
480i ~ 1080p50/60Hz, 4K@24/30Hz, 4K@60Hz |
| Color Space: |
RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0 |
| Color Depth: |
8/10/12-bit |
| Audio Formats: |
PCM 2.0: 32K, 44.1K, 48K, 16/20/24bit Dolby Digital 2.0/5.1: 32K, 44.1K, 48K, 16/20/24bit DTS 2.0/5.1: 32K, 44.1K, 48K, 16/20/24bit |
COMPLIANCES
| HDMI Compliance: |
HDMI 2.0 |
| HDCP Compliance: |
HDCP 2.2 |
SUPPORTED COAXIAL CABLES
| Coaxial Cable: |
75Ohm RG-6 Copper |
EXTENDING DISTANCE
| 4K@60Hz: |
330ft / 100m via RG6 Copper (75 ohm) coaxial cable |
FUNCTIONS
| EDID |
00- Copy RX HDMI OUT port sink EDID (as factory default) 01- Copy TX HDMI LOOP OUT port sink EDID 10- HDMI 1080p@60Hz, Audio 2ch PCM 11- HDMI 4K@60Hz 4:4:4, Audio 5.1ch PCM/DTS/DOLBY |
LOOP-OUT/LOCAL PORT
| Has loop out port: |
Yes |
| Number of Loop out ports: |
1 |
PROTECTION
| Operation Temperature: |
32 - 104°F / 0 - 40°C |
| Storage temperature: |
-4 - 140°F / -20 - 60°C |
| Relative Humidity: |
20~90% RH (Non-condensing) |
COAX CONNECTOR TYPE
POWER
| Power Consumption (Max): |
Transmitter: 7.92W Receiver: 6.72W |
| Power Supply: |
Input: AC 100 - 240V 50/60Hz Output: DC 12V/1A (US/EU standard, CE/FCC/UL certified) |

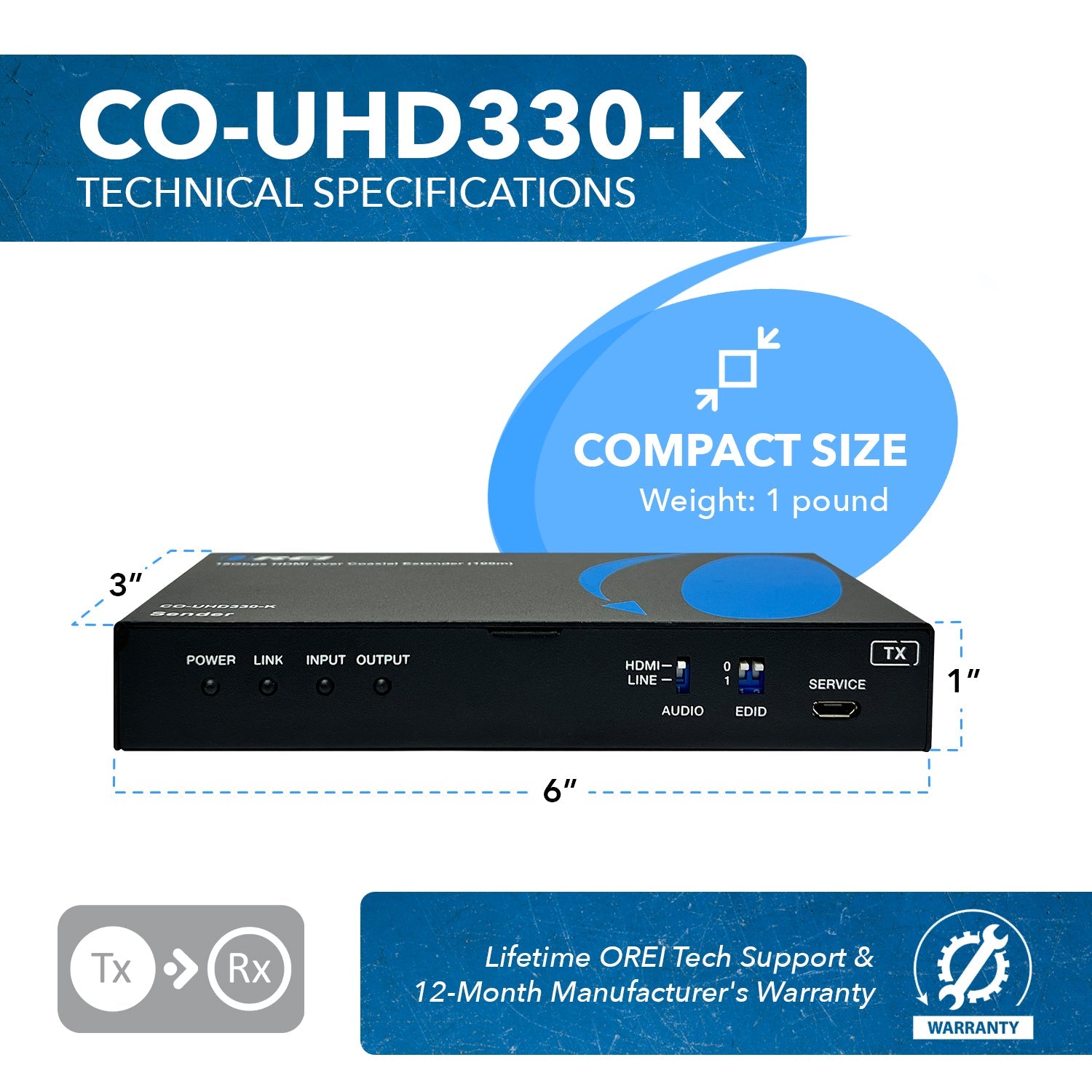

DIMENSIONS & WEIGHT
| Transmitter: |
Height: |
23mm |
| |
Width: |
144mm |
| |
Depth: |
78mm |
| |
Weight: |
288g |
| Receiver: |
Height: |
23mm |
| |
Width: |
144mm |
| |
Depth: |
78mm |
| |
Weight: |
288g |
PROPERTIES
| Color: |
Black |
| Housing: |
Metal Enclosure |

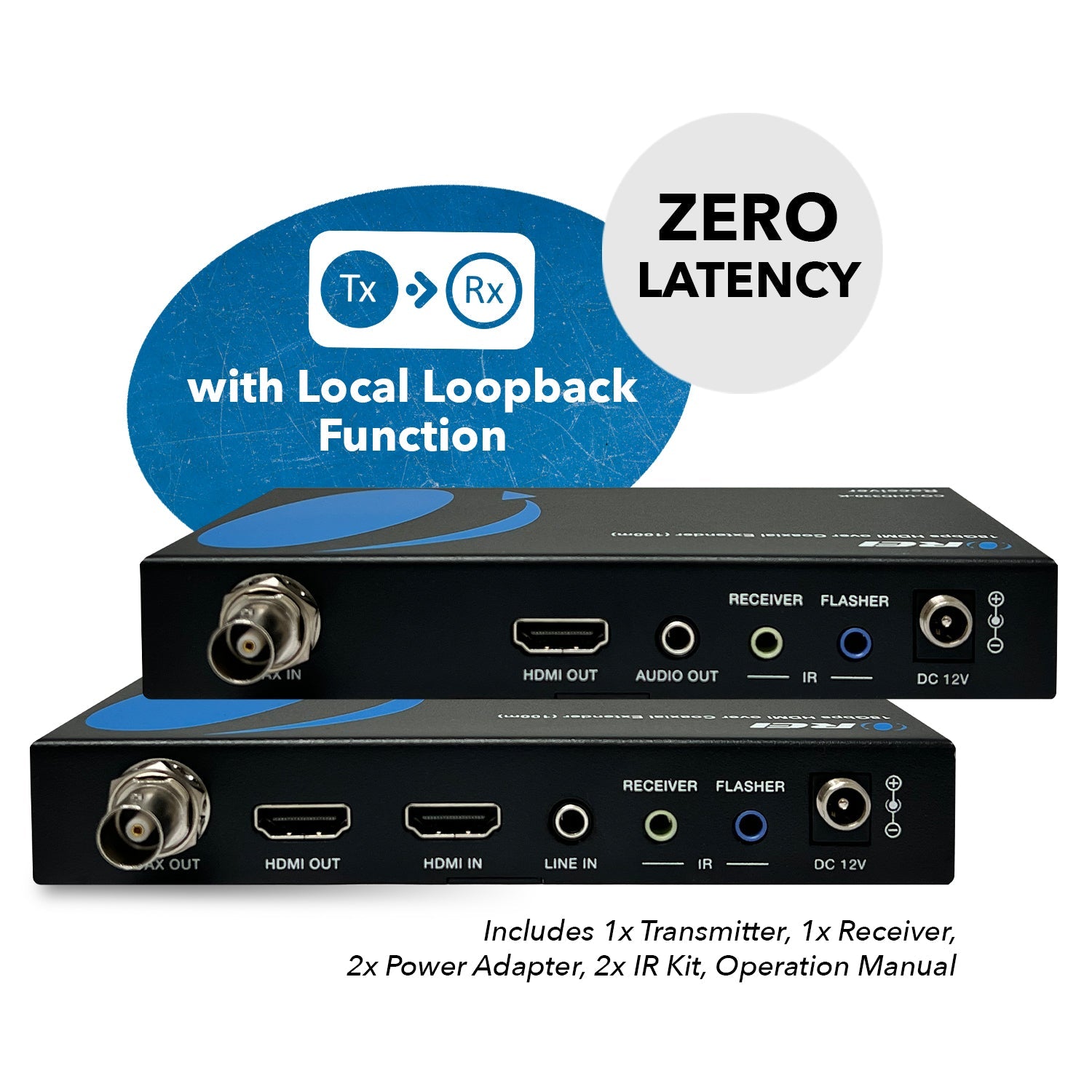

PACKAGE CONTENTS
| 1x HDMI Transmitter |
| 1x HDMI Receiver |
| 1x IR Blaster cable (1.5 meters) |
| 1x IR Receiver cable (1.5 meters) |
| 4x Mounting Ears |
| 8x Machine Screws |
| 2x 12V/1A Locking Power Adapter |
| 1x User Manual |
WARRANTY
| 1 - Year Manufacturer's Warranty |
