OREI UHD-EX230A-K: 4K HDMI Extender Over Ethernet CAT6/7 - With ARC Audio Extraction through Optical - Up to 230 feet
Key Features:
HDMI 2.0b, HDCP 2.2 compliant
Video resolutions up to 4K@60Hz and 2K@60Hz
18Gbps video bandwidth
Signal transmission up to 230 feet at 4K@60Hz and and 2K@60Hz over a CAT 6/7 cable
HDR10+ & Dolby Vision support
Audio extraction from the input source or ARC TV connected to the receiver and output through the optical port
Audio pass-through for formats like LPCM 8.1CH, Dolby True HD, and DTS-HD Master
HDMI loop output to connect a display at the source.
Bi-directional IR control
PoC functionality; only one power adapter is required at either end
Easy installation and robust build

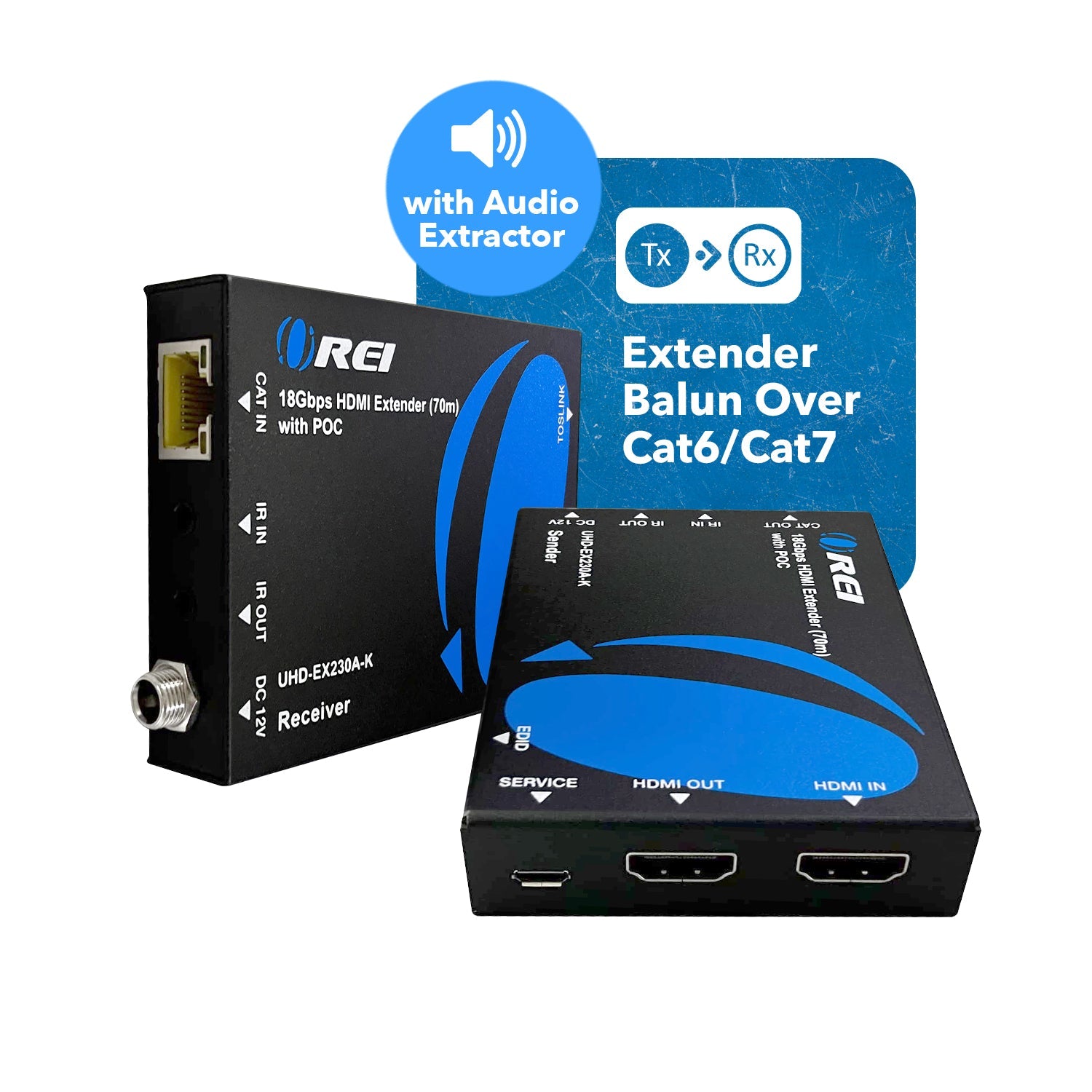

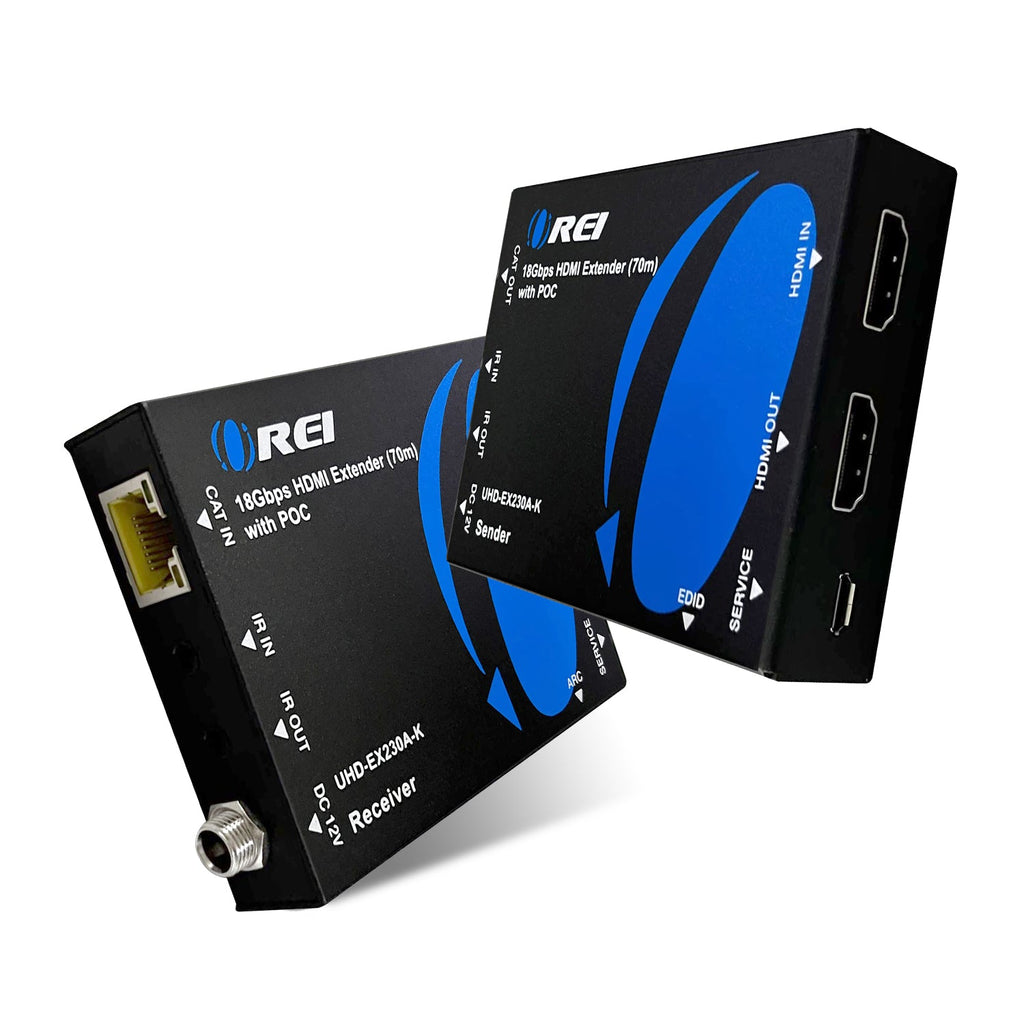

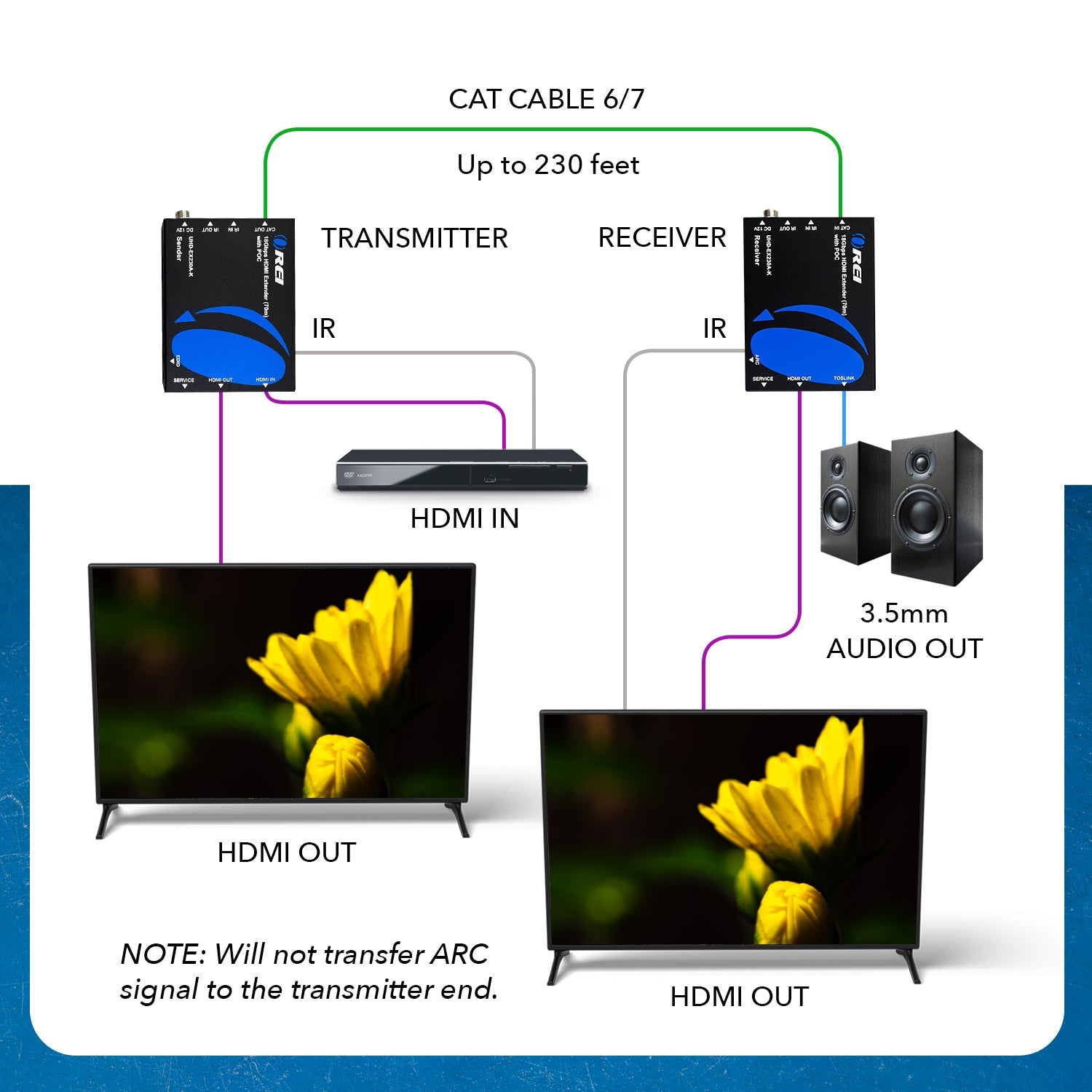

The UHD-EX230A-K is an HDMI extender designed to transmit media signals to a display up to 230 feet away while also extracting audio from either the source or the ARC TV connected to the receiver. Supporting video resolutions up to 4K@60Hz, it is HDMI 2.0b and HDCP 2.2 compliant, with an 18Gbps video bandwidth. The transmitter features an HDMI loop output for an additional display connection near the source. The UHD-EX230A-K includes bi-directional IR functionality, enabling remote control of the source device from the receiver's location and vice versa. ARC support allows audio extraction from the ARC TV through the Optical port. With Power over Cable technology, only one power adapter is needed for the entire setup, making installation straightforward and efficient. This extender is ideal for both residential and commercial setups.
[shortdes]
Loop output
Video resolutions up to 4K@60Hz and 2K@60Hz
ARC support
[/shortdes]
CONNECTIVITY
Transmitter:
INPUT:
1 × HDMI [Type A, 19-pin female]
OUTPUT:
1 × HDMI [Type A, 19-pin female]
1 × CAT [RJ45, 8-pin female]
1 × IR IN [3.5mm Stereo Mini-jack]
1 × IR OUT [3.5mm Stereo Mini-jack]
CONTROL:
1 × SERVICE [Micro USB, Update port]
1 x OPTICAL [S/PDIF, female]
CONTROL:
1 × IR IN [3.5mm Stereo Mini-jack]
1 × IR OUT [3.5mm Stereo Mini-jack]
1 × SERVICE [Micro USB, Update port]

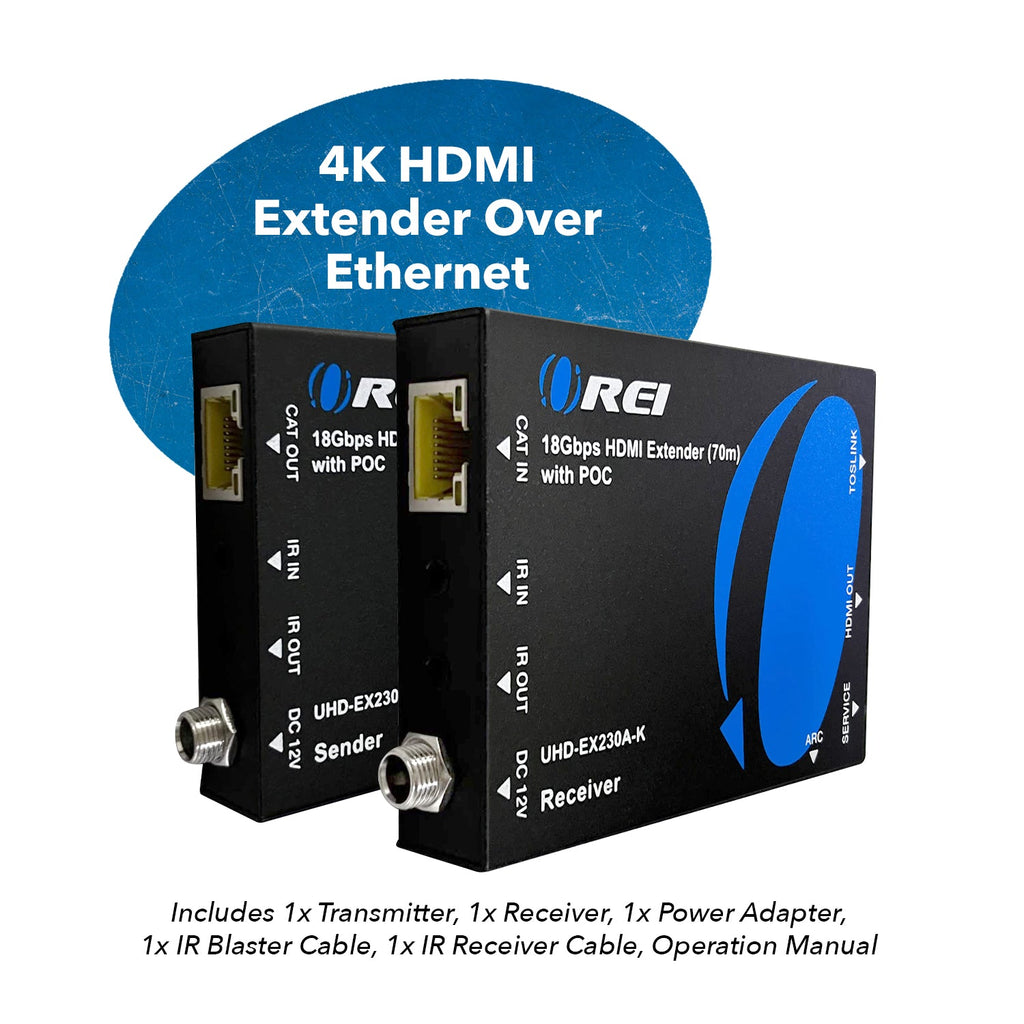

PACKAGE CONTENTS
1x Transmitter
1x Receiver
1x IR Blaster Cable
1x IR Receiver Cable
4x Mounting ears
8x Screws (KM3*4)
1x Power Adapter
User Manual
SUPPORTED CAT CABLES
CAT5e, CAT6, CAT7:
We recommend you use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance
EXTENDING DISTANCE
4K@60HZ:
230 Feet
VIDEO OUTPUT
Video Bandwidth:
18Gbps
Video Resolutions:
Up to 4K@60Hz, 2K@60Hz
ADDITIONAL FEATURES
CEC:
No
ARC:
Yes
USB KVM:
No
PoC/PoE:
Yes
IR Control:
Yes
Downmix:
No
Downscale:
No
Over IP:
No
HDBaseT:
No
RS-232:
No
LOOP-OUT/LOCAL PORT
Has loop out port:
Yes
Number of Loop out ports:
1
AUDIO SUPPORT
HDMI Audio Formats:
LPCM 7.1CH, Dolby True HD, and DTS-HD Master
Coaxial Audio Formats:
Dolby 5.1, DTS 5.1, PCM 2.0
COMPLIANCES
HDMI Compliance
HDMI 2.0b
HDCP Compliance
HDCP 2.2
POWER
Power Consumption:
3.36W (Max)
Power Supply:
Input: AC 100-240V 50/60Hz
Output: DC 12V/1A

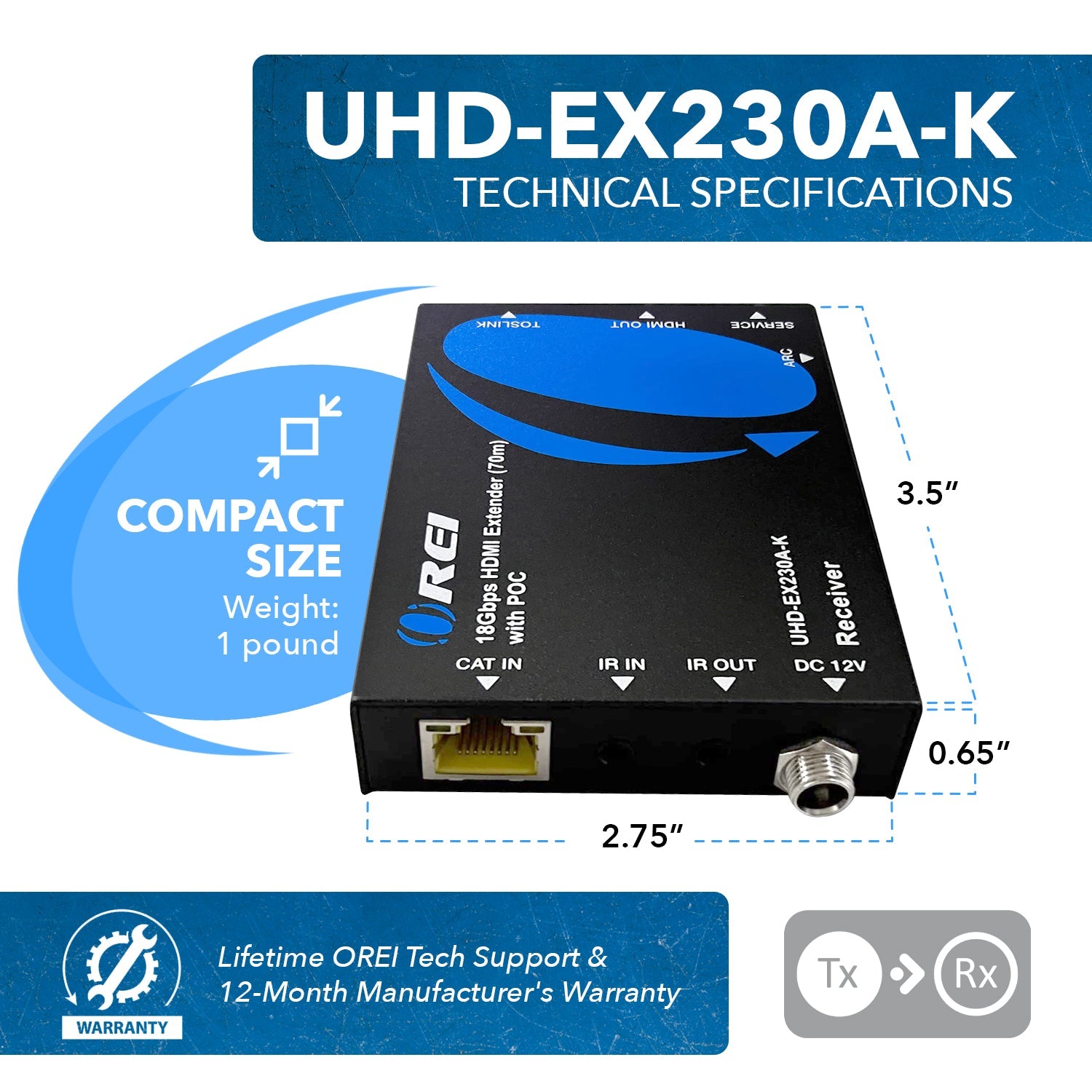

DIMENSIONS & WEIGHT
Transmitter:
Length:
90mm / 3.54in
Width:
68mm / 2.68in
Height:
18mm / 0.71in
Weight:
160g / 5.64oz
Receiver:
Length:
90mm / 3.54in
Width:
68mm / 2.68in
Height:
18mm / 0.71in
Weight:
155g / 5.47oz
PROPERTIES
Color:
Black
Housing:
Metal Enclosure
WARRANTY
1-Year Manufacturer's Warranty
[/tab]
[tab1]
FAQs
Yes, you can purchase these things directly from us. Please contact us & we will assist you further.
No, this product doesn not extend multiple screens. It will duplicate the input sources to multple outputs.
Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.
Yes, you can implement the daisy chain method.
Both the ends of the CAT cable should be termed as EIA-568B & the cable should be straight & not crossed.
We recommend you to use High-Quality HDMI cables & shielded CAT6 cables.
Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.
Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.
No, this product doesn't upscale/downscale the video resolutions.
You can extend the display devices up to 400 Feet when using with a shielded CAT6 cable.
The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable.
If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead.
Please contact us so that we can troubleshoot the issue.
You can upgrade the firmware by connecting the PC & this device via RS-232 cable.
Please note that this product only supports the CEC function between HDMI input & HDMI output 1.
No, optical output doesn't supports CEC due to its limitations. CEC will work only with HDMI devices.
HDBaseT is the technology used for long distance transmission of lossless signals, resulting extremely low latency & giving the best picture quality.
In normal extenders, if you extend your signals up to some extend, the quality of the signals will degrade & you may find some latency issues. HDBaseT is the lastest standard which provides extending your signals to the longer distance without degrading the quality of the signals & with 0 latency.
We recommend you using a shielded CAT6 cables for optimum performance.
Our all the extenders supports IR Frequency & the devices using RF frequency will not be compatible with our products.
The IR Blaster/Emitter should be connected to the IR out port on the Transmitter and the IR Receiver should be connected to the IR in on the Receiver.
