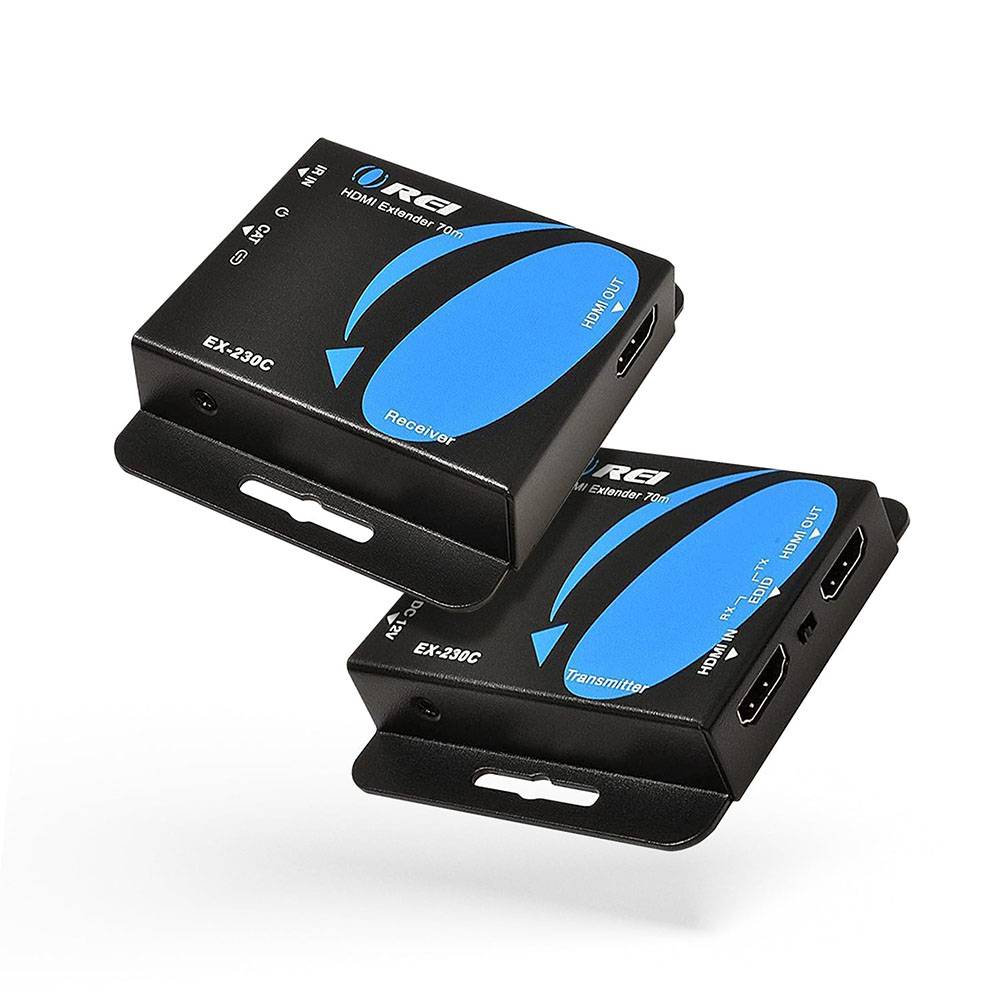

OREI 4K HDMI Extender with HDMI Loop Output, Uni- directional IR & Power over Cable (EX-230C)
Key Features:
HDMI 1.4 & HDCP 1.4 compliant
Video resolutions up to 4K@30Hz 4:4:4
10.2Gbps video bandwidth
Signal transmission up to 131 feet at 4K@30Hz & 230 feet at 1080P@60Hz over a CAT 6/7 cable

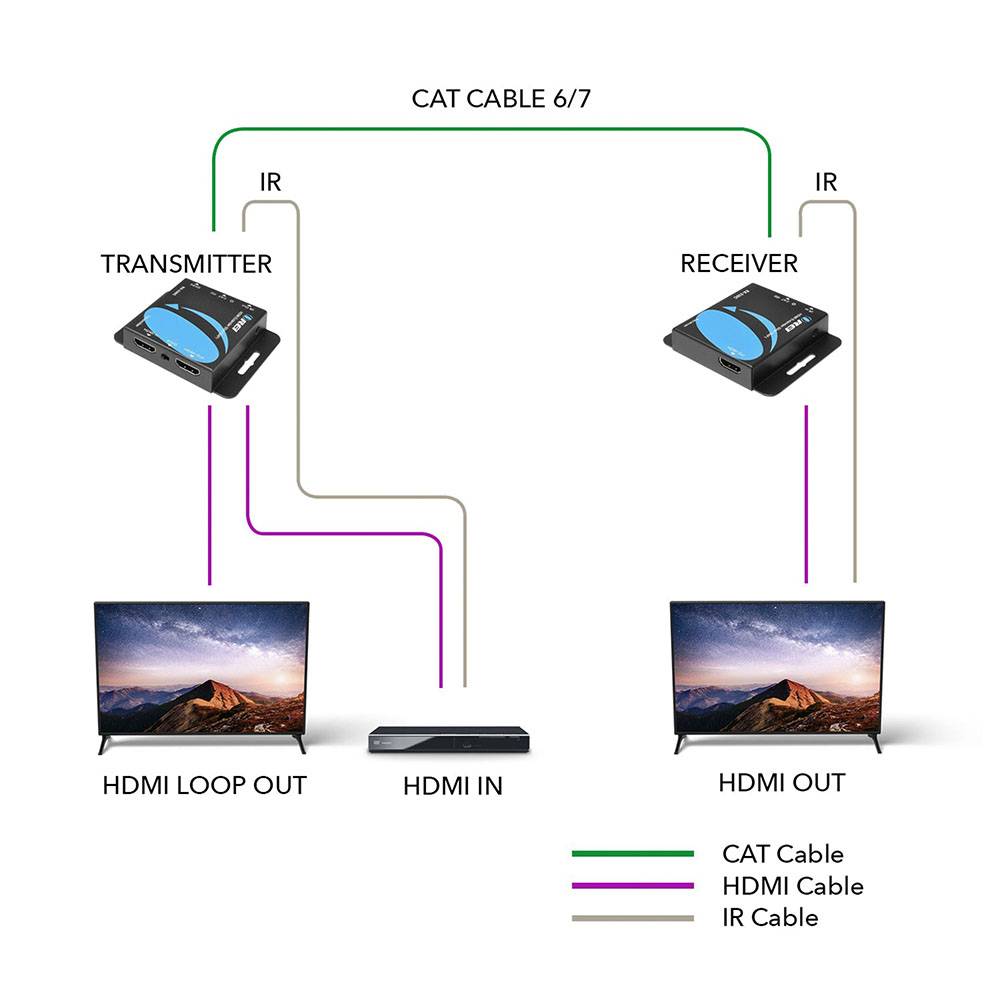

The transmitter unit features an HDMI loop output to connect a display at the source

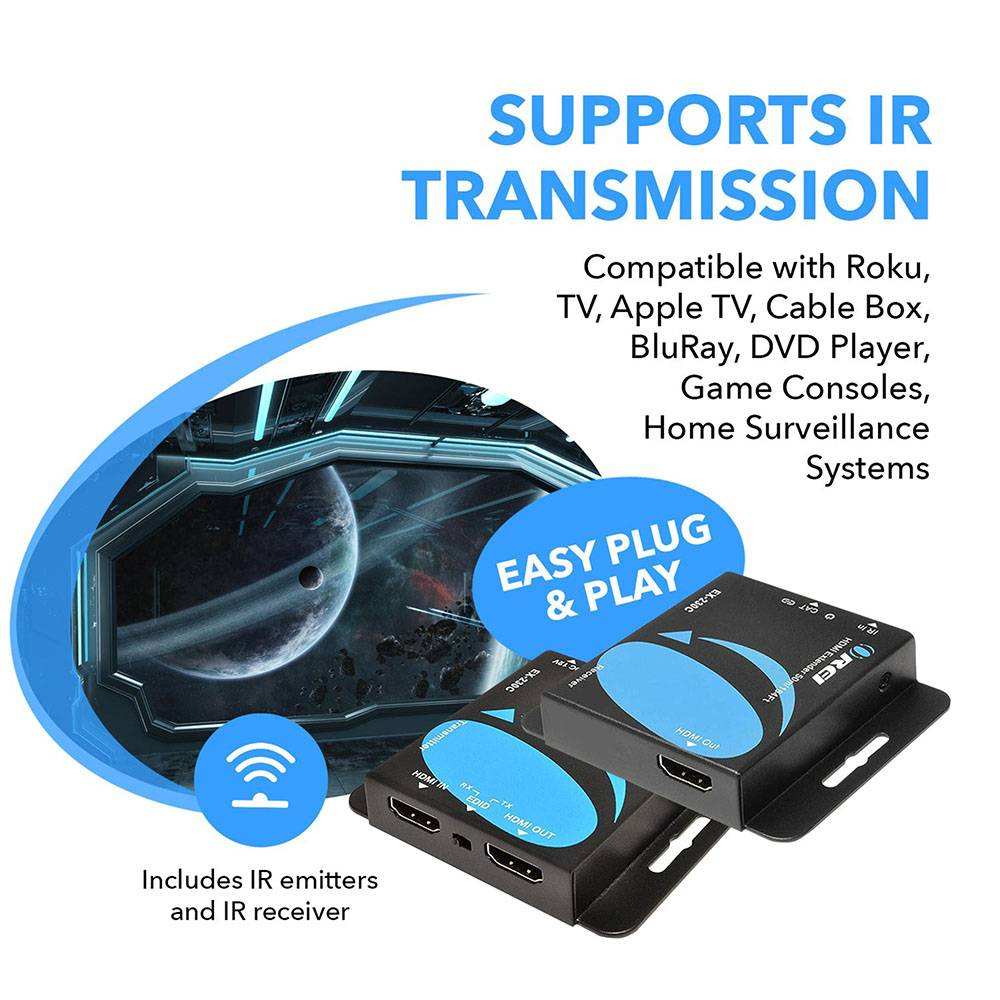

One-way IR control, enabling the control of the source from the receiver's location

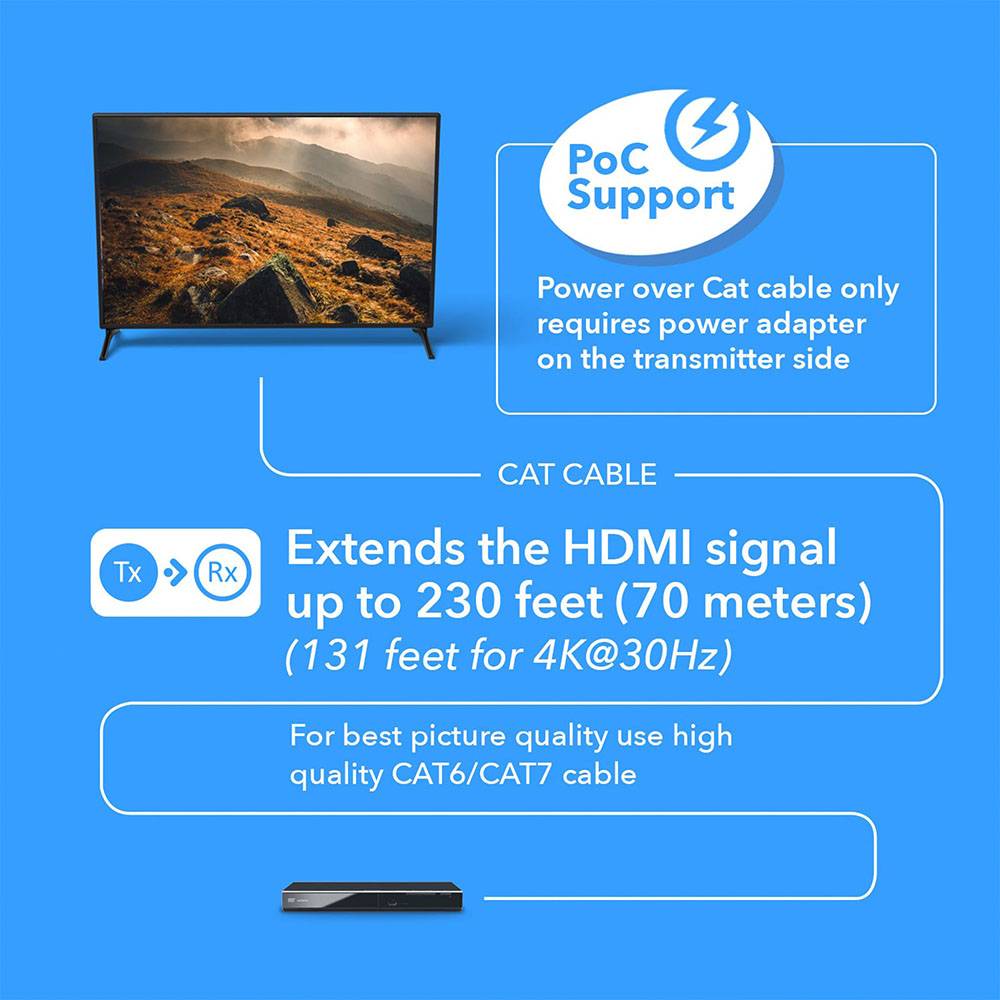

Power over Cable technology support (from transmitter to receiver), where the setup requires only one power adapter, which can be connected to the transmitter
Compact design & easy installation
The EX-230C is an HDMI extender designed to extend media signals to a display up to 230 feet away. It supports video resolutions up to 4K@30Hz 4:4:4 and is HDMI 1.4 and HDCP 1.4 compliant, providing a video bandwidth of 10.2Gbps. The transmitter includes an HDMI loop output for connecting a display at the source. With uni-directional IR functionality, you can control the source from the receiver's location. Power over Cable (PoC) technology simplifies installation, requiring only one power adapter to power the entire setup, which can be connected to the transmitter. The EX-230C also features advanced EDID management. Ideal for both residential and commercial environments.
[summary]

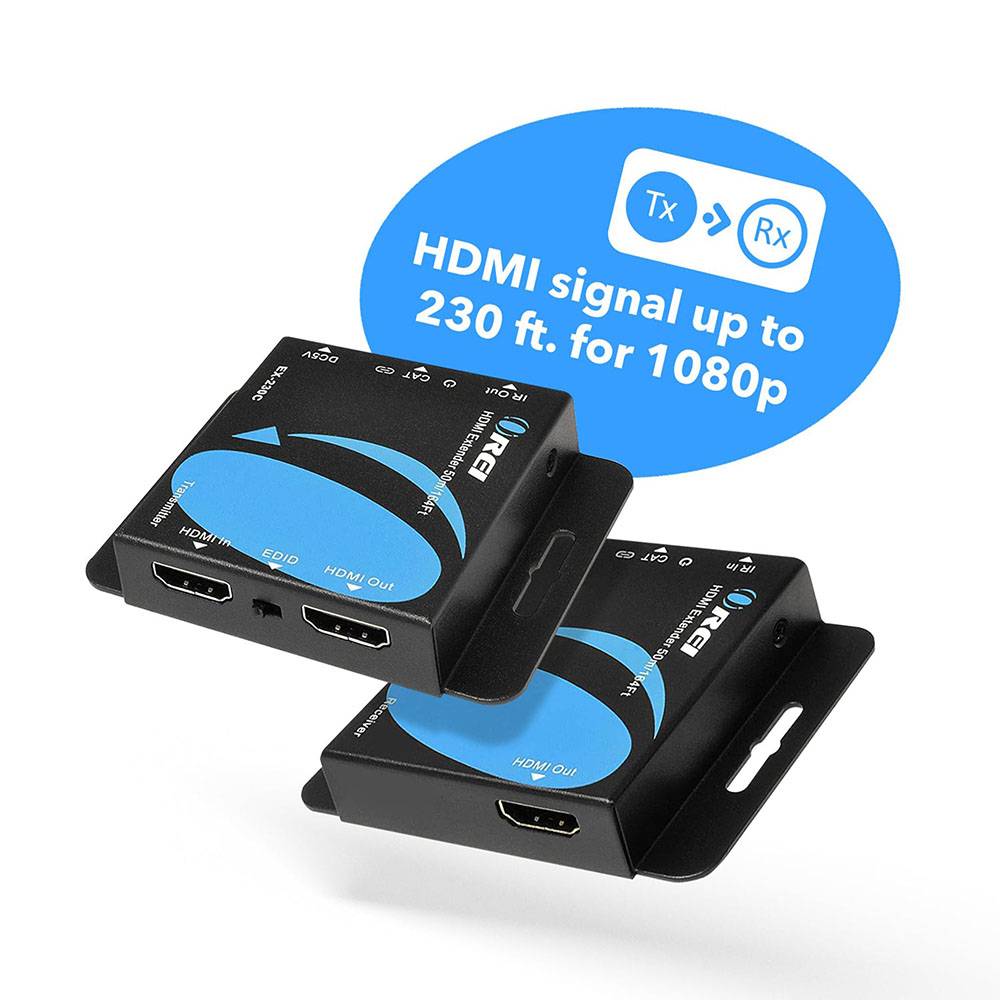

HDMI over ethernet up to 230 feet
Video resolutions up to 4K@30Hz up to 131 feet
Supports Power over cable & IR functionality
[/summary]
[tab]
CONNECTIVITY
Transmitter:
INPUT:
1 × HDMI [Type A, 19-pin female]
OUTPUT:
1 × HDMI [Type A, 19-pin female]
1 × CAT [RJ45, 8-pin female]
CONTROL:
1 × IR OUT [3.5mm Stereo Mini-jack]
Receiver:
INPUT:
1 × CAT [RJ45, 8-pin female]
OUTPUT:
1 × HDMI [Type A , 19-pin female]
CONTROL:
1 × IR IN [3.5mm Stereo Mini-jack]
PACKAGE CONTENTS
1x Transmitter
1x Receiver

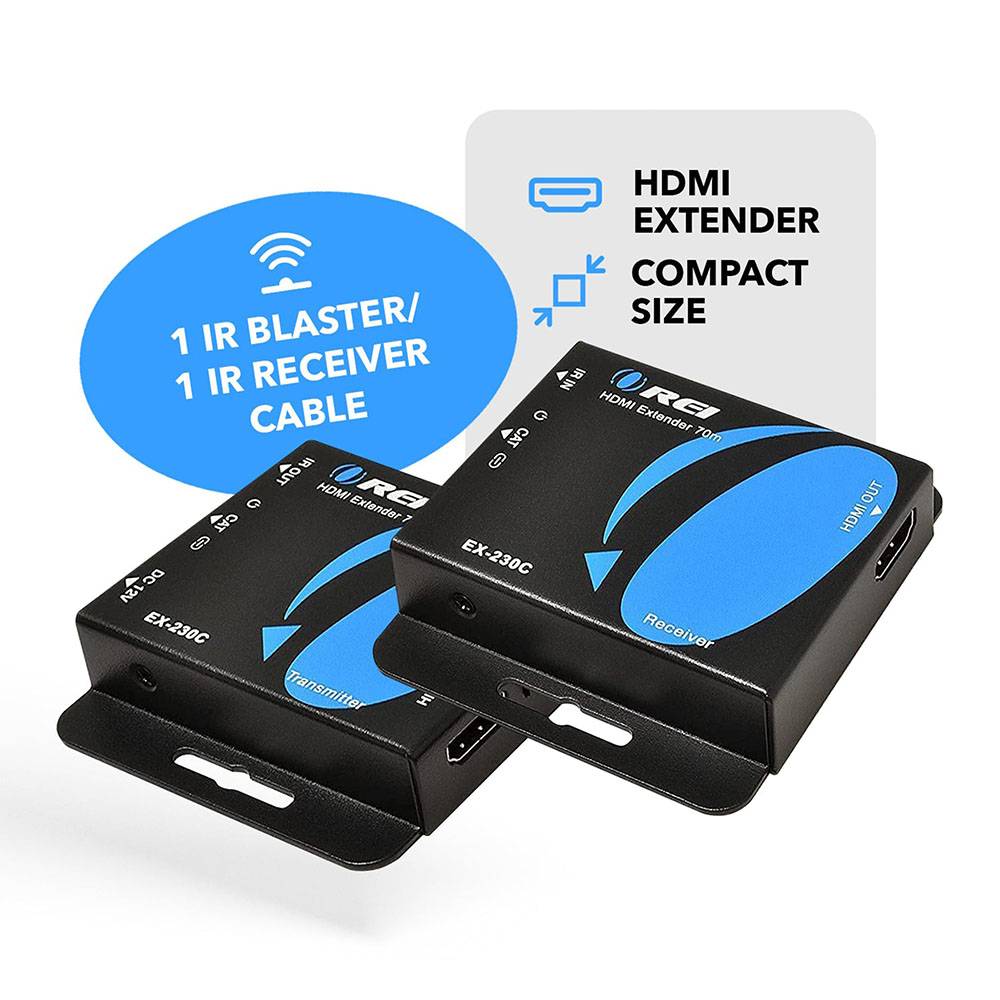

1x IR Blaster Cable
1x IR Receiver Cable
1x Power Adapter
User Manual
SUPPORTED CAT CABLES
CAT5e, CAT6, CAT7:
We recommend you use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance
EXTENDING DISTANCE
1080P@60Hz:
230 Feet
4K@30Hz:
131 Feet
VIDEO OUTPUT
Video Bandwidth:
10.2Gbps
Video Resolutions:
Up to 4K@30Hz
ADDITIONAL FEATURES
CEC:
No
ARC:
No
USB KVM:
No
PoC/PoE:
Yes
IR Control:
Yes
Downmix:
No
Downscale:
No
Over IP:
No
HDBaseT:
No
RS-232:
No
LOOP-OUT/LOCAL PORT
Has loop out port:
Yes
Number of Loop out ports:
1
AUDIO SUPPORT
HDMI Audio Formats:
Up to 7.1CH HD audio
COMPLIANCES
HDMI Compliance
HDMI 1.4
HDCP Compliance
HDCP 1.4
POWER
Power Consumption:
TX: 1.86W (Max) & RX: 0.87W (Max)
Power Supply:
Input: AC 100-240V 50/60Hz
Output: DC 12V/1A

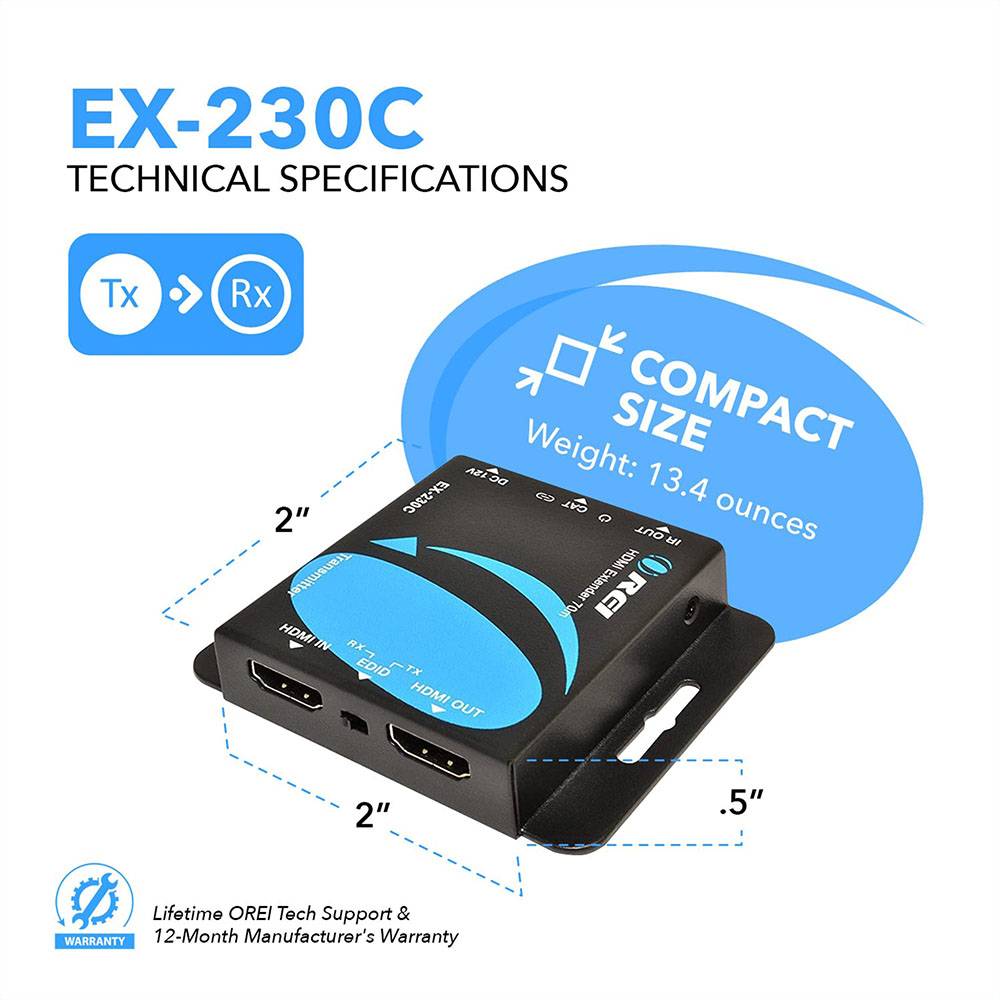

DIMENSIONS & WEIGHT
Transmitter:
Length:
79.6mm / 3.13in
Width:
69mm / 2.72in
Height:
16.5mm / 0.65in
Weight:
132g / 4.66oz
Receiver:
Length:
79.6mm / 3.13in
Width:
69mm / 2.72in
Height:
16.5mm / 0.65in
Weight:
130g / 4.62oz
PROPERTIES
Color:
Black
Housing:

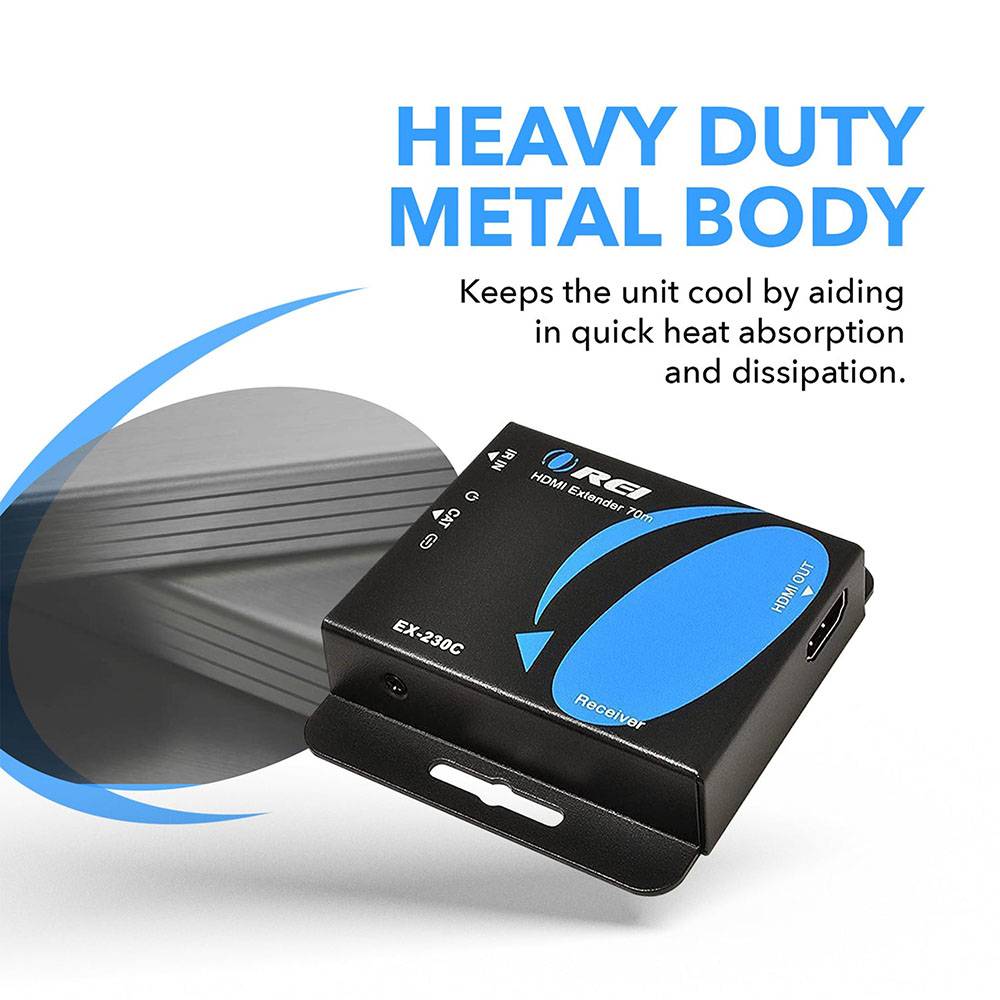

Metal Enclosure
WARRANTY
1-Year Manufacturer's Warranty
[/tab]
[tab1]
FAQs
Yes, you can purchase these things directly from us. Please contact us & we will assist you further.
No, this product doesn not extend multiple screens. It will duplicate the input sources to multple outputs.
Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.
Yes, you can implement the daisy chain method.
Both the ends of the CAT cable should be termed as EIA-568B & the cable should be straight & not crossed.
We recommend you to use High-Quality HDMI cables & shielded CAT6 cables.
Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.
Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.
No, this product doesn't upscale/downscale the video resolutions.
You can extend the display devices up to 400 Feet when using with a shielded CAT6 cable.
The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable.
If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead.
Please contact us so that we can troubleshoot the issue.
You can upgrade the firmware by connecting the PC & this device via RS-232 cable.
Please note that this product only supports the CEC function between HDMI input & HDMI output 1.
No, optical output doesn't supports CEC due to its limitations. CEC will work only with HDMI devices.
HDBaseT is the technology used for long distance transmission of lossless signals, resulting extremely low latency & giving the best picture quality.
In normal extenders, if you extend your signals up to some extend, the quality of the signals will degrade & you may find some latency issues. HDBaseT is the lastest standard which provides extending your signals to the longer distance without degrading the quality of the signals & with 0 latency.
We recommend you using a shielded CAT6 cables for optimum performance.
Our all the extenders supports IR Frequency & the devices using RF frequency will not be compatible with our products.
The IR Blaster/Emitter should be connected to the IR out port on the Transmitter and the IR Receiver should be connected to the IR in on the Receiver.
