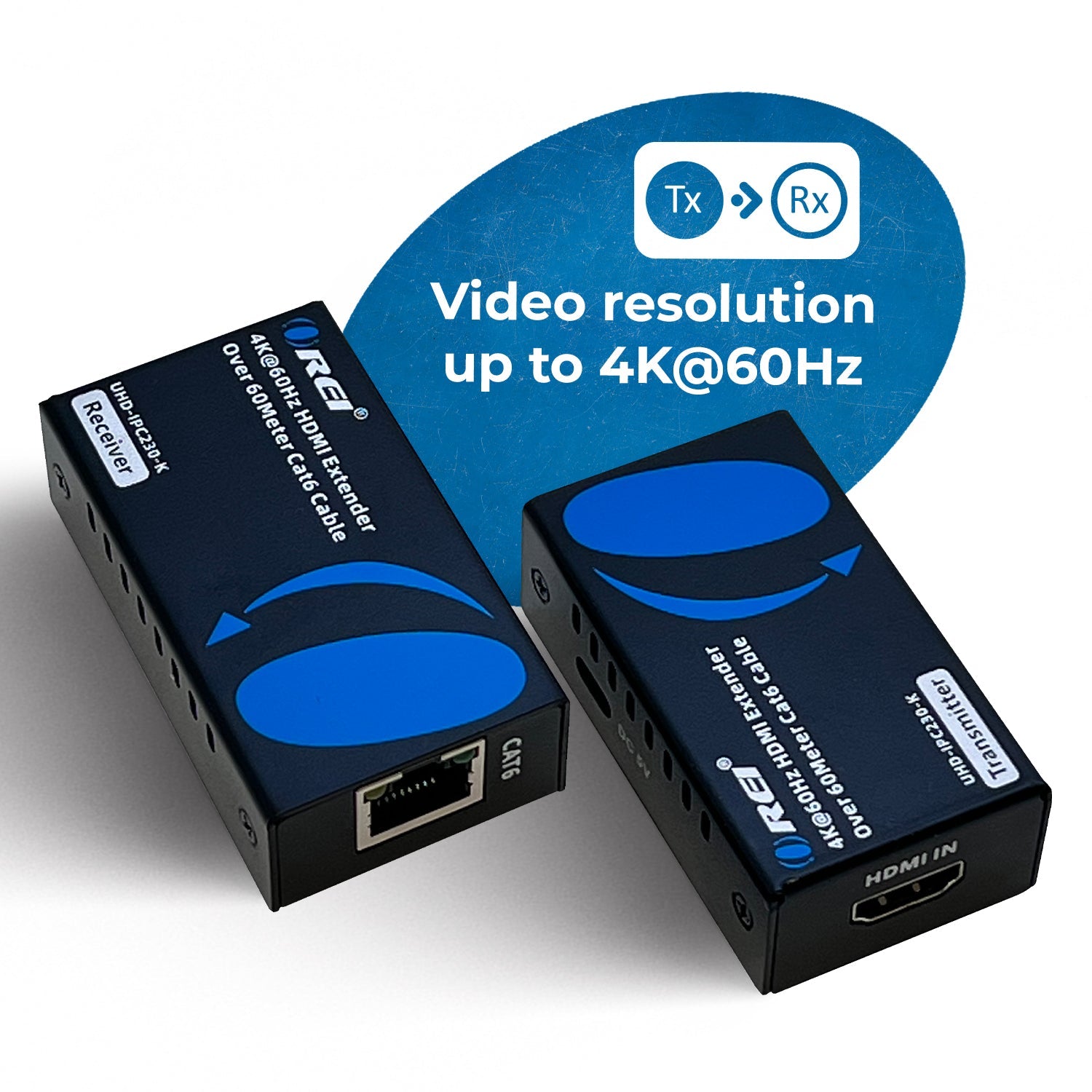

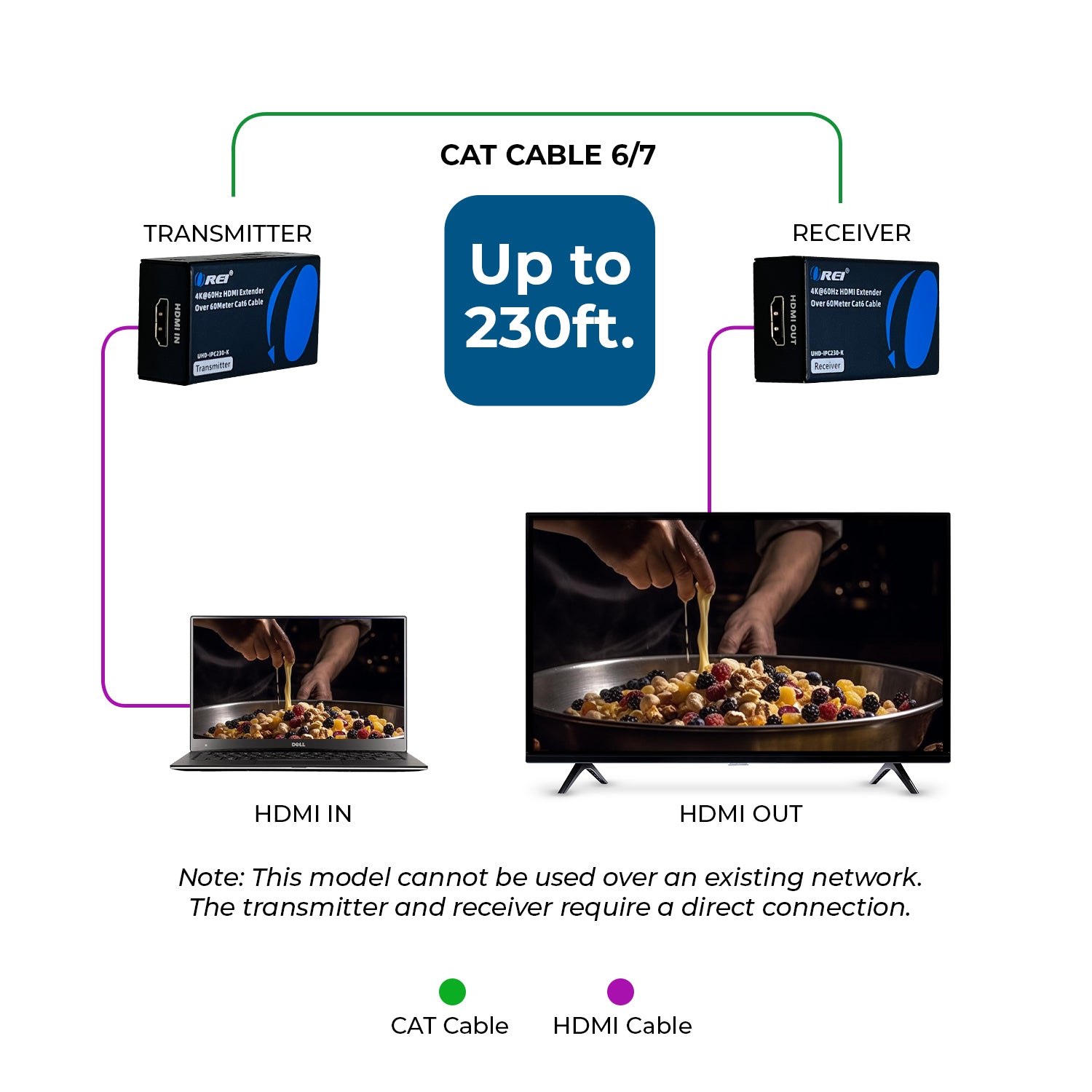

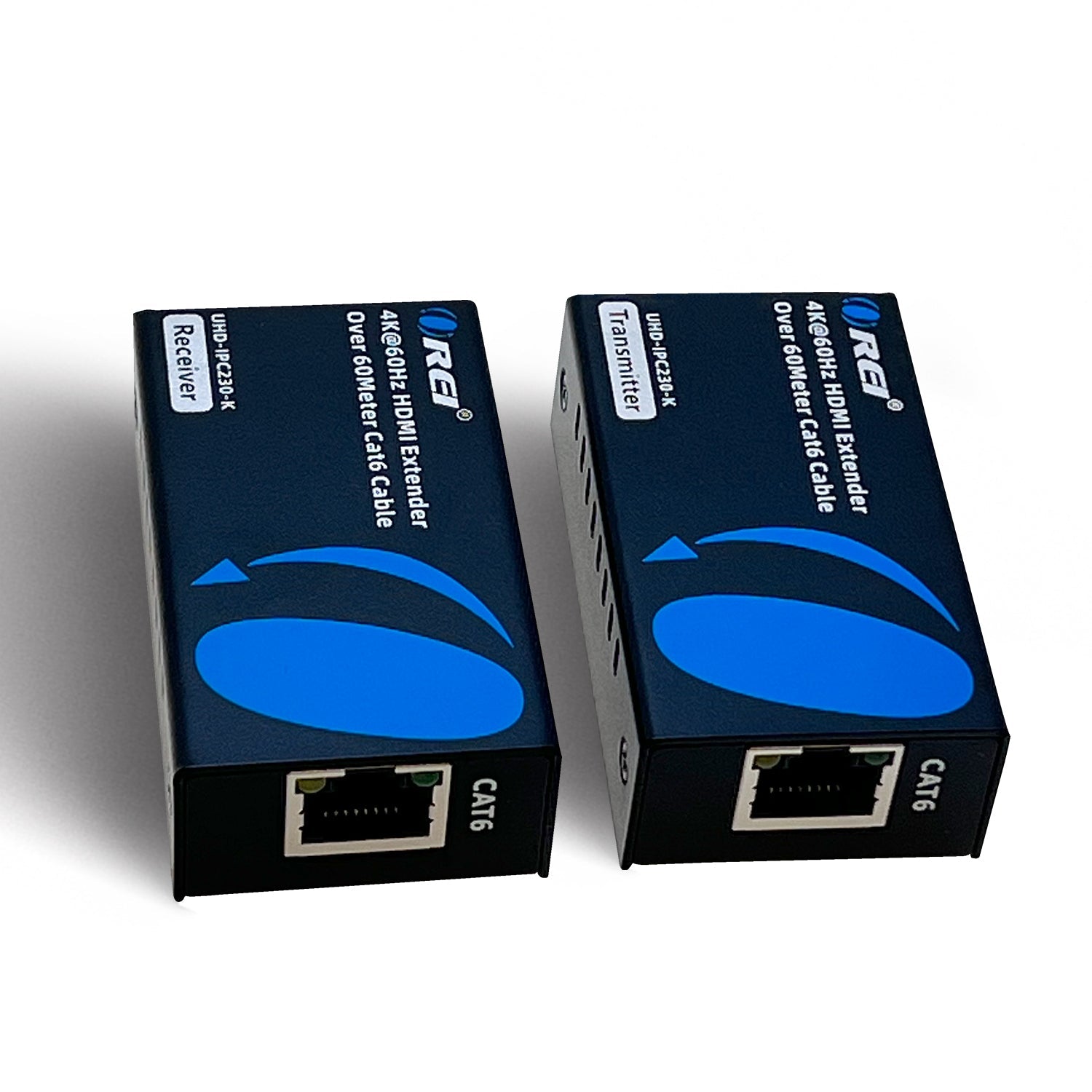

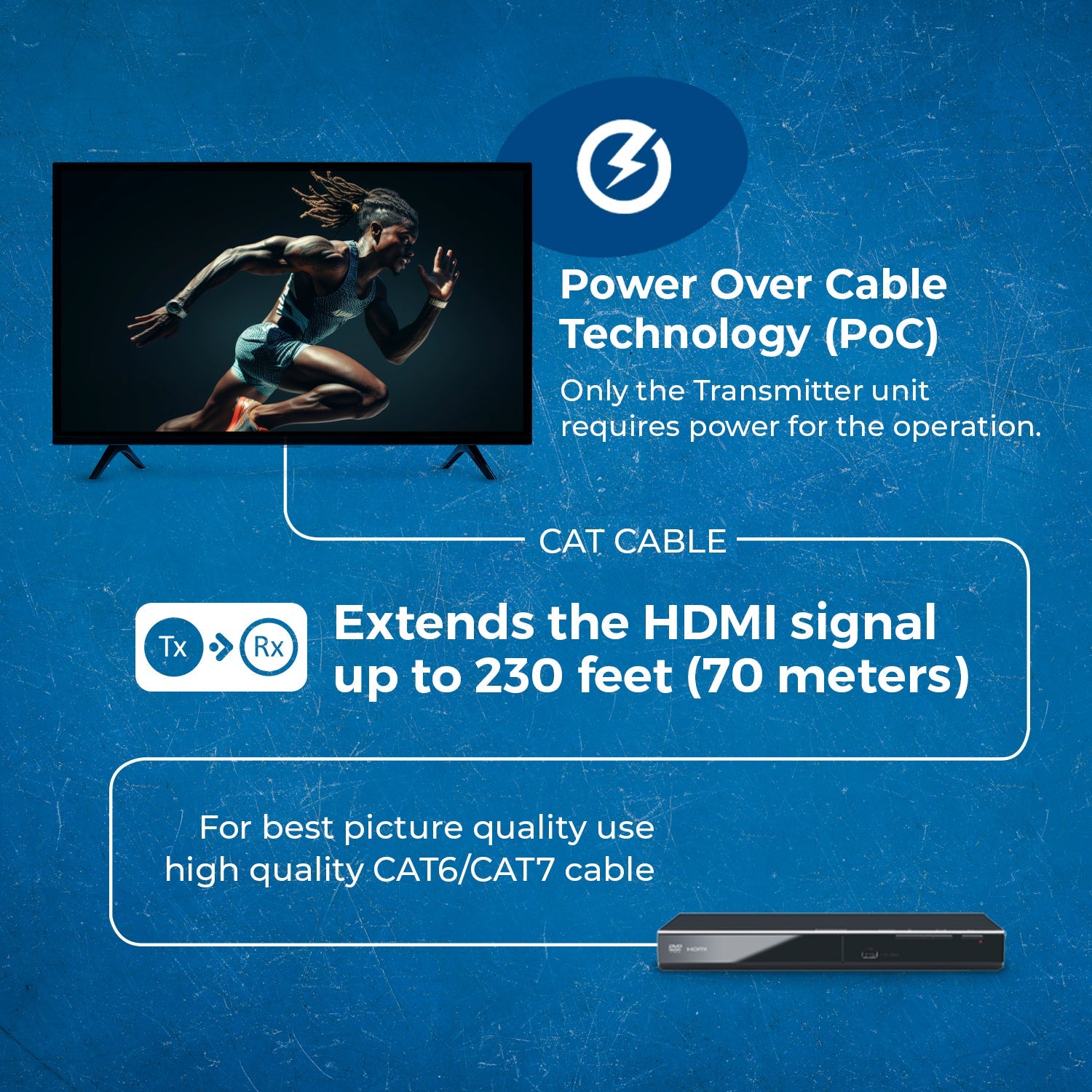

This OREI HDMI extender balun allows you to transmit HDMI audio/video signals over CAT/6/7 cable with zero latency along with maintaining original audio/video quality. It supports up to 4K@60Hz YUV 4:4:4 resolution and extends the transmission distance up to 230 feet using high-quality CAT cables. OREI technology transmits uncompressed HDMI audio and video, RS-232 serial, and Bi-directional IR control signals up to 230 feet and supports up to 18 Gbps transmission. The OREI installation can control RS-232 signal devices such as scanners and touchscreen display at baud rates up to 115 kbps.
Compact, durable, and easy to set up and operate. Ideal for home, businesses, test bench facilities, data centers, and help desks. You can also operate a set-top box or a Blu-ray player using its remote when at the remote monitor and vice versa.
HDMI Loop-out - Connect HDMI display to the transmitter for output to local display at the source.
Bi-directional IR control - Enables source devices to recognize remote commands from the remote display or control the remote display from the source device.
Digital Audio-out - SPDIF audio output on receiver for Digital audio output when the audio stream is along from the source.
[tab]
AUDIO AND VIDEO
Transmitter:
INPUT PORTS:
1x HDMI Type A [19-pin female]
1x IR IN [3.5mm Stereo Mini-jack]
OUTPUT PORTS:
1x HDMI Type A [19-pin female]
1x CAT OUT [RJ45, 8-pin female]
1x IR OUT [3.5mm Stereo Mini-jack]
Receiver:
INPUT PORTS:
1x CAT IN [RJ45, 8-pin female]
1x IR IN [3.5mm Stereo Mini-jack]
OUTPUT PORTS:
1x HDMI Type A [19-pin female]
1x IR OUT [3.5mm Stereo Mini-jack]
1x SPDIF OUT [S/PDIF]
COMPLIANCES
HDMI Compliance:
HDMI 2.0
HDCP Compliance:
HDCP 2.2
SUPPORTED CAT CABLES
CAT5e, CAT6, CAT7:
We recommend you to use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance
CEC, EARC, POC/POE, IR, DOWNSCALER, KVM, OVER IP, HDBASET, RS-232 SUPPORT
CEC Function:
No
ARC Function:
Yes
USB KVM Function:
No
PoC/PoE Function:
Yes
IR Controller:
Bidirectional IR
Downscaler Function:
No
Over Network/IP Function:
No
HDBaseT Function:
No
RS-232 Function:
No
LOOP-OUT/LOCAL PORT
Has loop out port:
Yes
Number of Loop out ports:
1
SWITCHES
EDID Management:
No
EQ Dip Switches:
No
ARC:
Yes
AUDIO OUTPUT
HDMI Audio Formats:
LPCM/DTS-HD/DTS-Audio/ Dolby Digital 5.1CH
SPDIF/Optical Audio Formats:
LPCM/DTS-HD/DTS-Audio/ Dolby Digital 5.1CH
L/R Audio Formats:
NO L/R audio output
SIGNALS
TMDS Signals:
0.7 ~ 1.2Vp-p(TMDS)
DDC Signals:
5Vp--(TTL)
PERFORMANCE & INTERFACE
Transmission Type:
Over CAT6 Cable
Transfer Method:
IPcolor Transmission Technology
Latency:
Zero Latency
Transmission Distance:
229 Feet Over CAT6
Maximun Pixel Clock:
594MHz

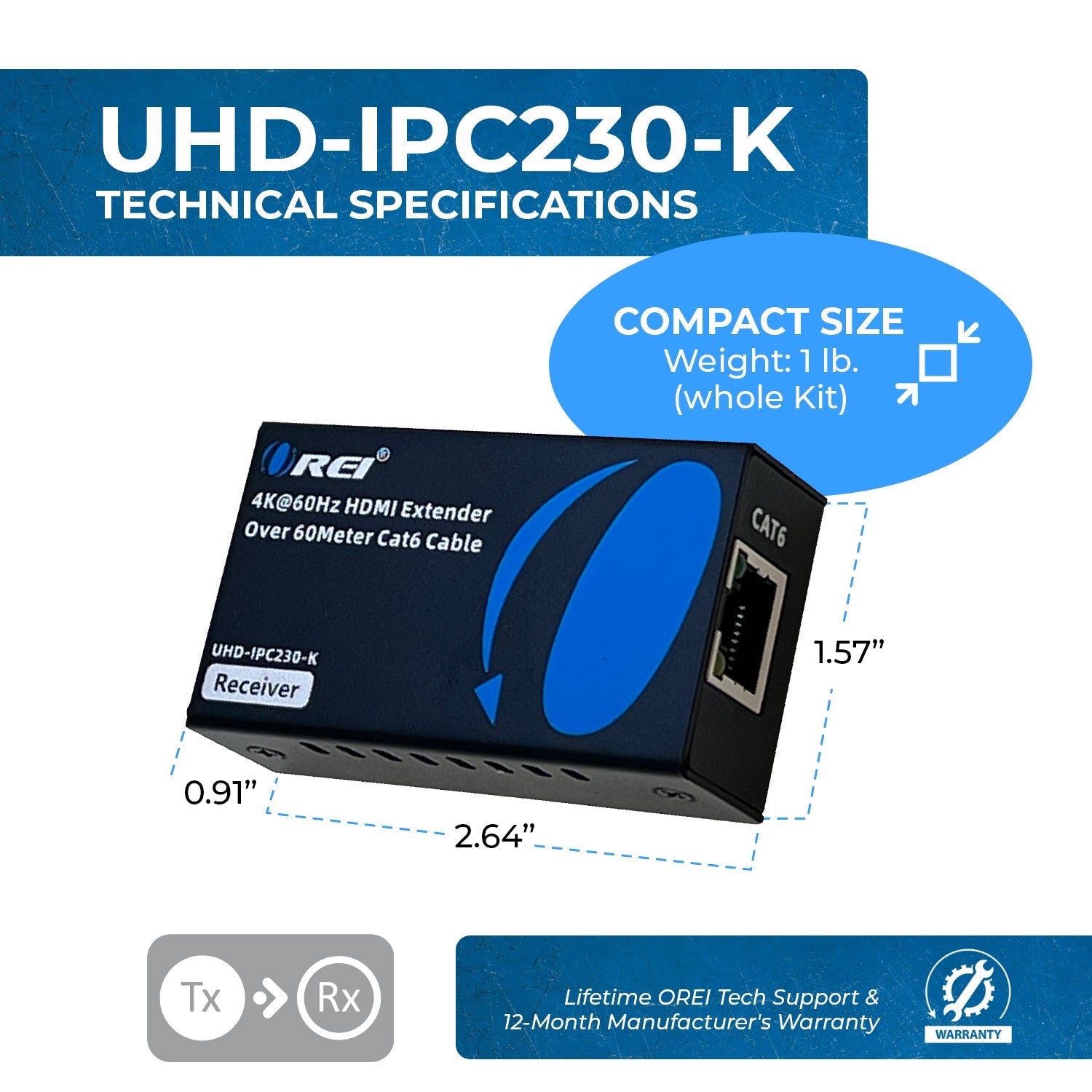

DIMENSIONS & WEIGHT
Transmitter:
Height:
26.2mm
Width:
99mm
Depth:
106mm
Weight:
210g
Receiver:
Height:
26.2mm
Width:
99mm
Depth:
106mm
Weight:
210g
PROTECTION
Operation Temperature:
0～50℃
Storage temperature:
-30~70°C
Relative Humidity:
0~90%RH
ESD Protection:
IEC61000-4-2
Electrostatic Protection of the whole Machine:
1a Contact discharge level 3 1b Air discharge level 3 Implementation of the standard: IEC1000-4-2
RJ-45 CONNECTOR Type
WE/SS 8P8C
POWER
Power Consumption (Max):
Transmitter:
<4W
Receiver:
<4W
Power Supply
DC5V/2A
PHYSICAL PROPERTIES
Color:
Black
Housing:
Aluminum Alloy Material + Crystal Panel
Processing Technology:
IPcolor Transmission Technology
Finishing:
Grit blast

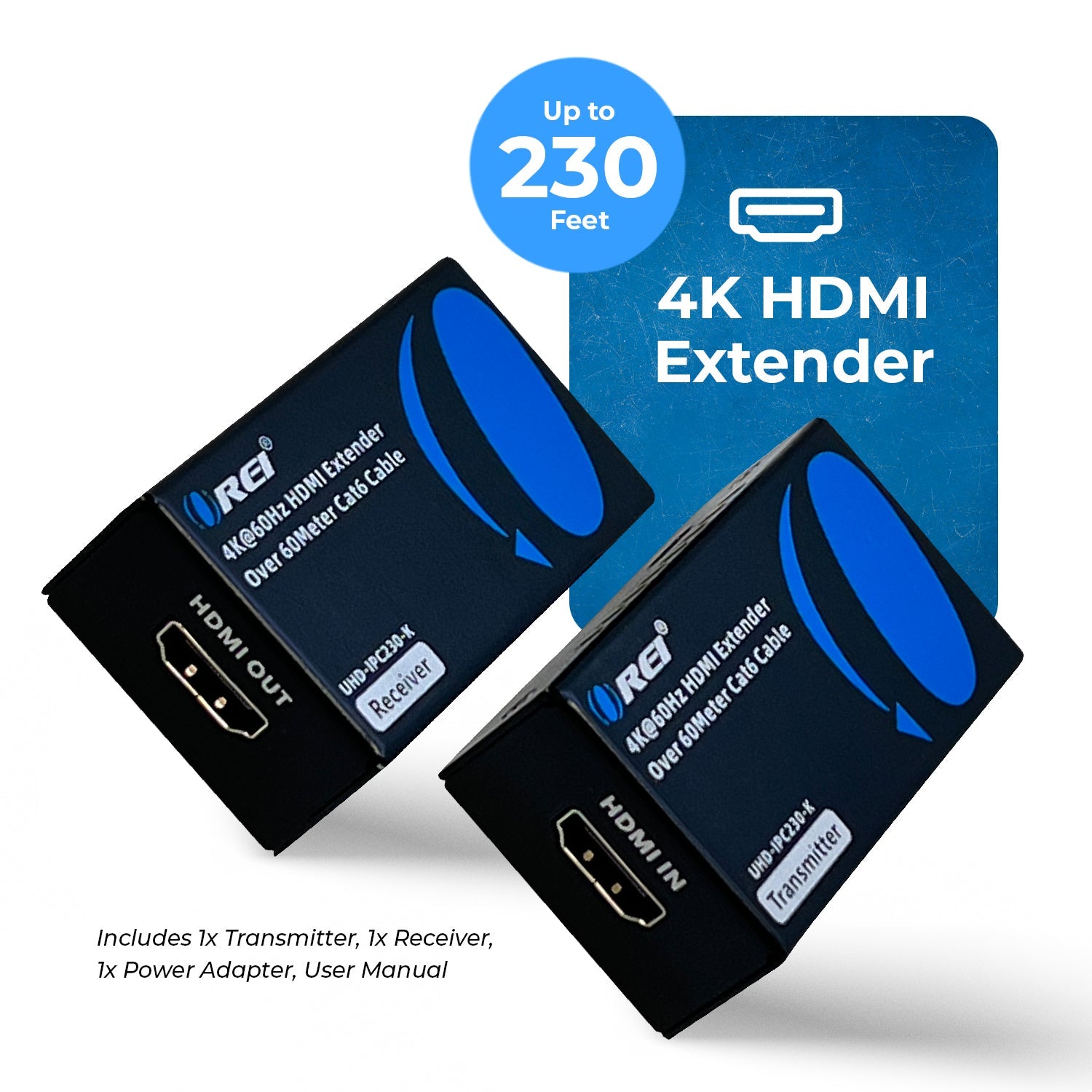

PACKAGE CONTENTS
1X Transmitter unit
1X Receiver unit
1X DC5V/2A Power Adapter
1X User manual
1X IR blaster extension cable
1X IR receiver extension cable
8X Mounting brackets
WARRANTY
1-Year Manufacturer's Warranty
[/tab]
[tab1]
FAQs
Yes, you can purchase these things directly from us. Please contact us & we will assist you further.
No, this product doesn not extend multiple screens. It will duplicate the input sources to multple outputs.
Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.
Yes, you can implement the daisy chain method.
Both the ends of the CAT cable should be termed as EIA-568B & the cable should be straight & not crossed.
We recommend you to use High-Quality HDMI cables & shielded CAT6 cables.
Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.
Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.
You can extend the display devices up to 230 Feet when using with a shielded CAT6 cable.
The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable.
If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead.
Please contact us so that we can troubleshoot the issue.
Our all the extenders supports IR Frequency & the devices using RF frequency will not be compatible with our products.
The IR Blaster/Emitter should be connected to the IR out port on the Transmitter and the IR Receiver should be connected to the IR in on the Receiver.
