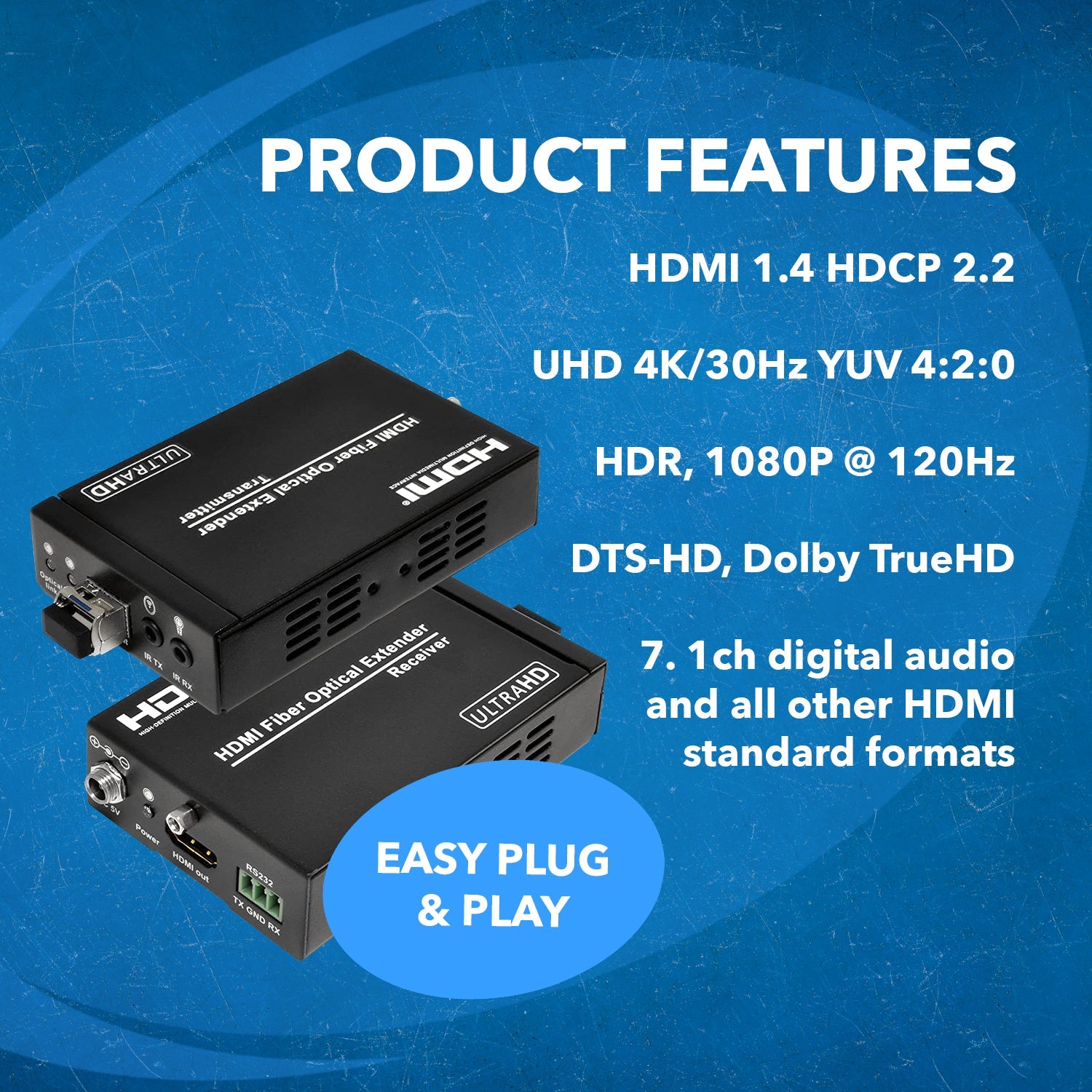

OREI HDS-FO-K - 4K HDMI Extender up to 1km (3300 Feet)

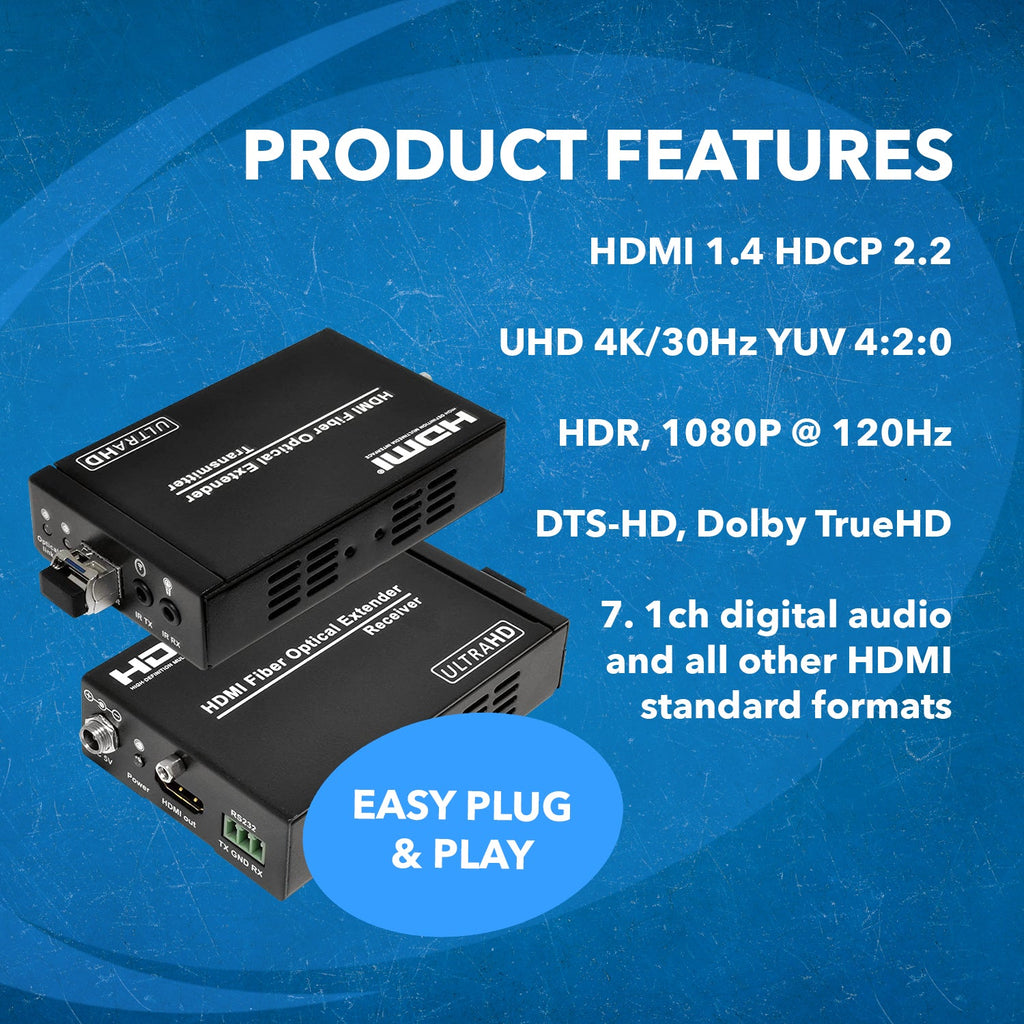

Key Features:
Supports HDMI 1.4, HDCP 2.2 and DVI compatible
Supports video resolutions up to 4K@60Hz (4:2:0), 4K@30Hz, 1080p@120Hz and 1080p 3D

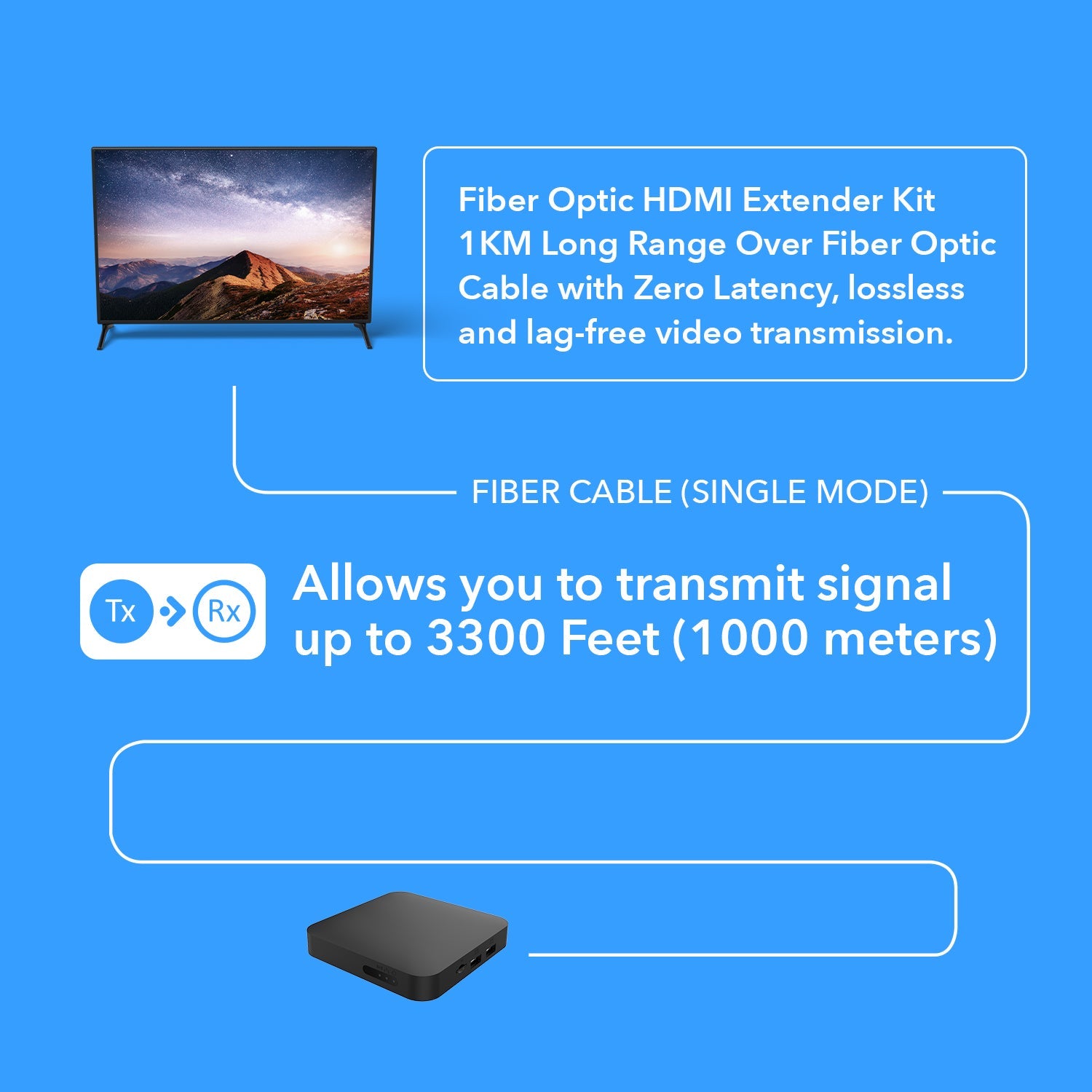

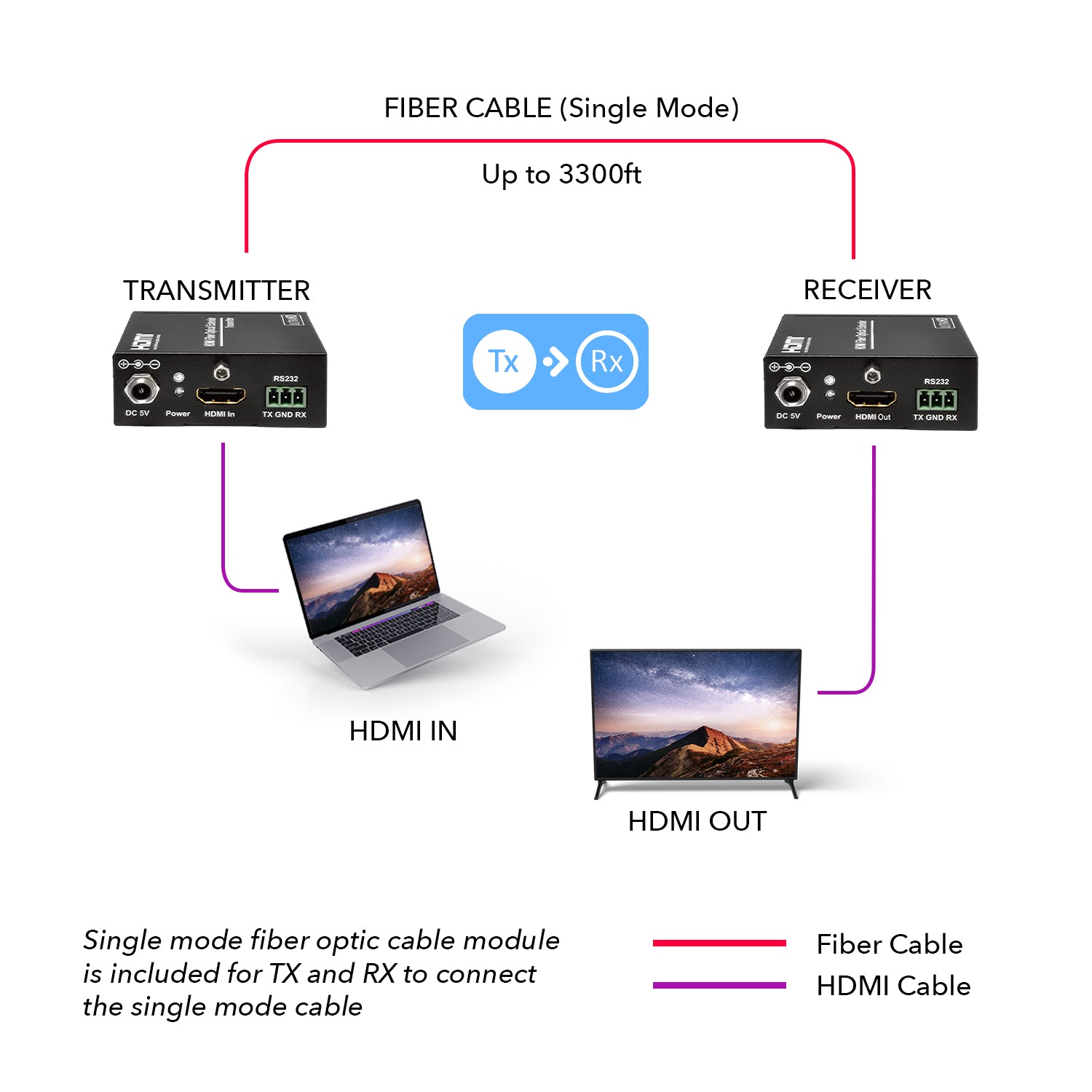

Supports long distance transmission up to 3300feet/1000meters over single-mode fiber cable
Supports long distance transmission up to 1000 feet/300 meters over multimode fiber cable (50/125µm/OM3)
Supports HD audio formats: LPCM2/5.1/7.1 CH, Dolby Digital, DTS, Dolby. TrueHD, DTS-HD Master Audio and more
Transfer Bidirectional Infrared control signal together with the HDMI signal
Transfer Bidirectional RS232 control signal together with the HDMI signal
Supports smart EDID management
Locking power supplies
Description:

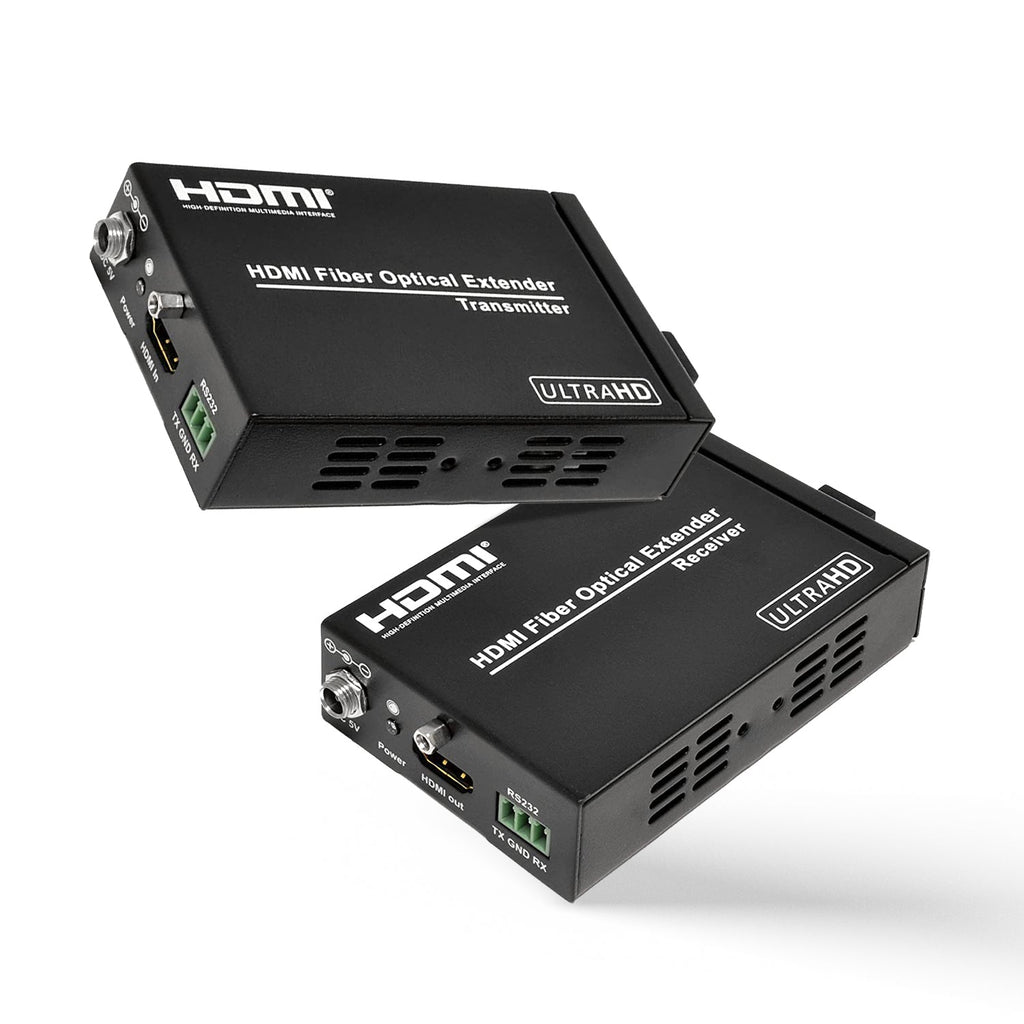

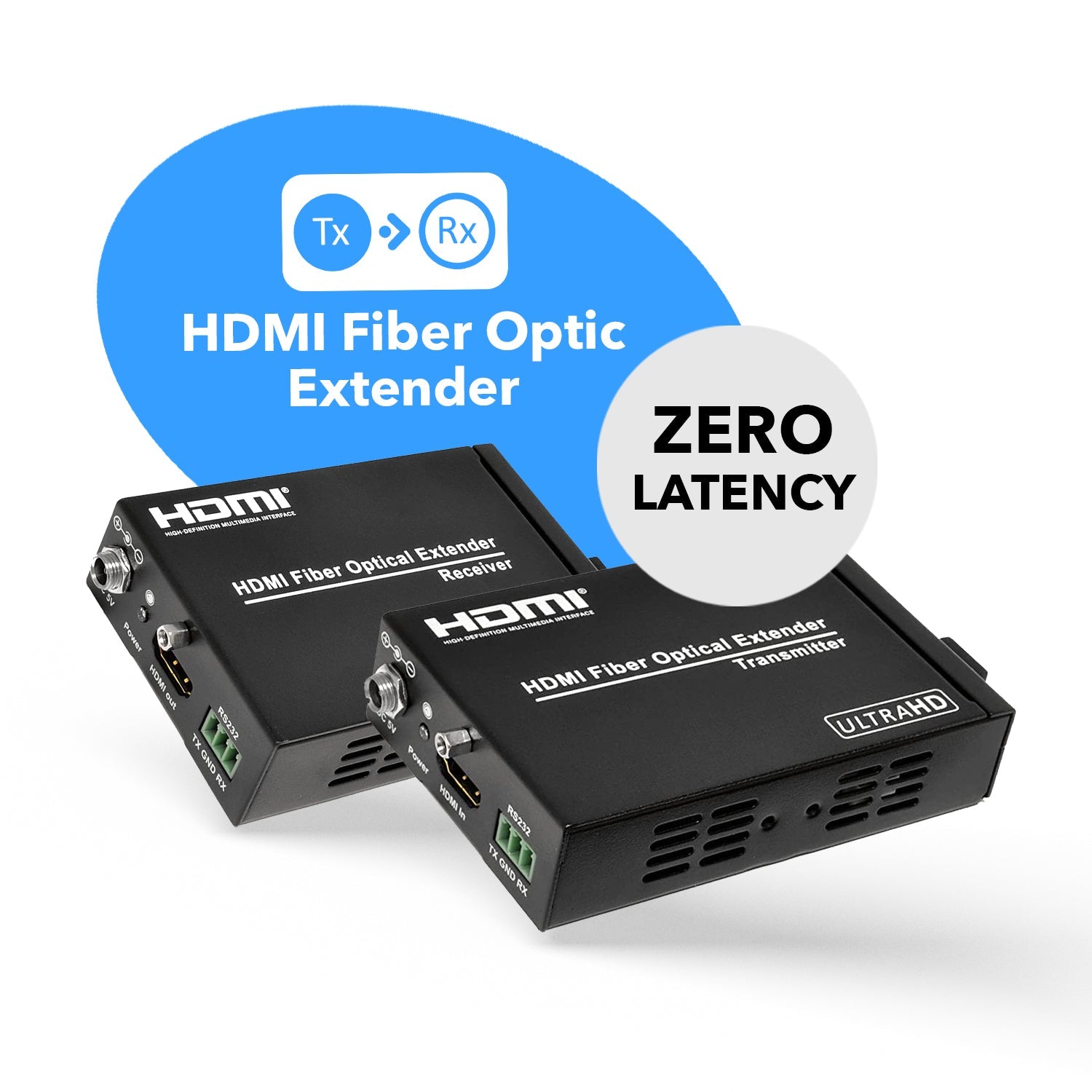

HDS-FO-K is HDMI Fiber Optical Extender which can extend your HDMI signal over 3300feet/1000meters to a compatible display. This product works with any HDMI source and supports resolutions up to 4K Ultra HD. It also transfers Bi-directional Infrared control signal and RS232 control.
The Automatic Virtual EDID feature allows automatic copying of the Extended Display Identification Data (EDID) to the sender unit for continuous availability to the source.
Please note that in order to extract the sound, your sound system should have an HDMI input port.
[shortdes]
Extends up to 3300feet/1000meters over single-mode fiber cable & 1000 feet/300 meters over multimode fiber cable
Transfer bi-directional IR, RS-232
Supports smart EDID management
[/shortdes] [tab]
AUDIO AND VIDEO
Transmitter:
INPUT PORTS:
1x HDMI In
1x IR In
1x RS-232
OUTPUT PORTS:
1x IR Out
1x Optical
Receiver:
INPUT PORTS:
1x IR in
1x Optical
OUTPUT PORTS:
1x HDMI Out
1x IR Out
1x RS-232
COMPLIANCES
HDMI Compliance:
HDMI 1.4
HDCP Compliance:
HDCP 2.2
EXTENDING DISTANCE
Single-Mode Fiber Cable:
3300 Feet
Multi-Mode Fiber Cable:
1000 Feet
VIDEO OUTPUT
Video Bandwidth:
10.2G
Video Resolutions:
Up to 4K@60Hz (4:2:0)
Color Space:
RGB/Ycbcr444/Ycbcr422/ycbcr420
Color Depth:
8/10/12bit
CEC, EARC, POC/POE, IR, DOWNSCALER, KVM, OVER IP, HDBASET, RS-232 SUPPORT
CEC Function:
No
ARC Function:
No
USB KVM Function:
No
PoC/PoE Function:
No
IR Controller:
Bi-Directional IR
Downscaler Function:
No
Over Network/IP Function:
No
HDBaseT Function:
No
RS-232 Function:
Yes
AUDIO OUTPUT
HDMI Audio Formats:
LPCM 2/5.1/7.1 CH, Dolby Digital, DTS, Dolby TrueHD, DTS-HD Master Audio and more
SIGNALS
TMDS Signals:
3.3V
DDC Signals:
5V
Maximum Pixel Clock:
300Mhz

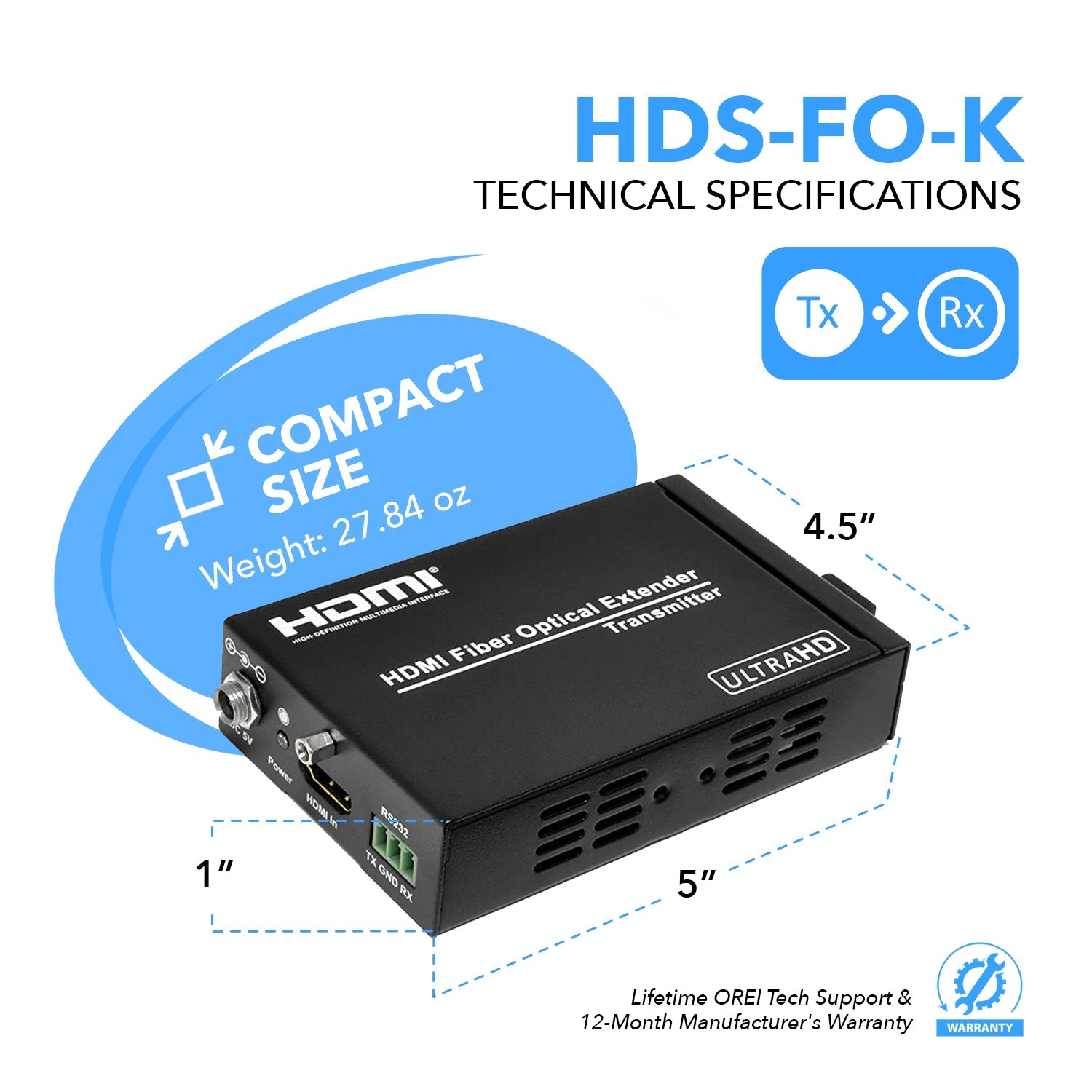

DIMENSIONS & WEIGHT
Height:
25.6mm
Width:
100mm
Depth:
65mm
Weight:
Transmitter:
210g
Receiver:
210g
PROTECTION
Operation Temperature:
0°C ~ 40°C / 32°F ~ 104°F
Storage temperature:
-20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity:
20~90% RH (Non-condensing)
ESD Protection:
Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
RJ-45 CONNECTOR Type
POWER
Power Consumption (Max):
Transmitter:
2.2W
Receiver:
2W
Power Supply:
DC 5V 1A
PHYSICAL PROPERTIES
Color:
Black
Housing:
Iron

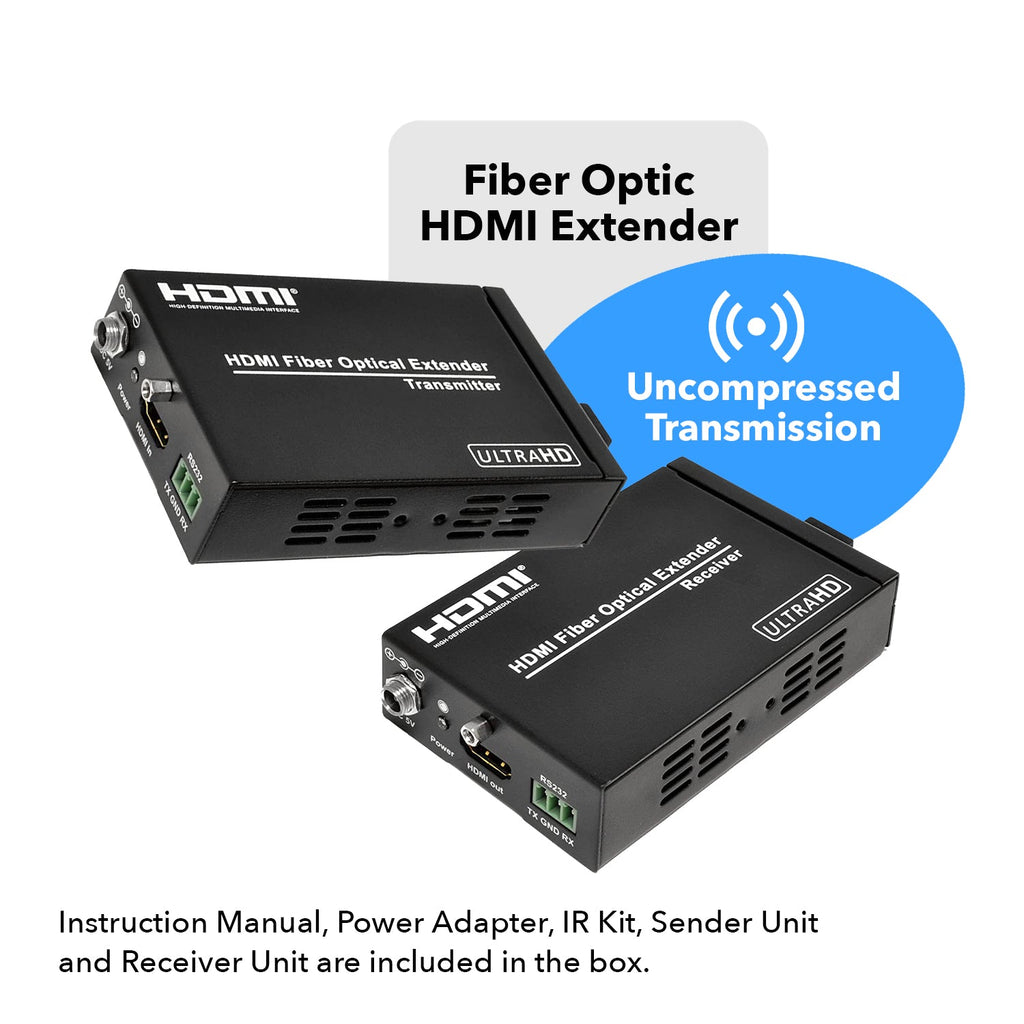

PACKAGE CONTENTS
1x Fiber Optical Transmitter
1x Fiber Optical Receiver
1x Fiber Module TX
1x Fiber Module RX
2x Wideband IR TX
2x Wideband IR RX
2x 5V/1A DC Power Adapter
2x Phoenix male jack
4x Mounting ears
1x User Manual
WARRANTY
1 - Year Manufacturer's Warranty
[/tab]
[tab1]
FAQs
Yes, you can purchase these things directly from us. Please contact us & we will assist you further.
No, this product does not extend multiple screens. It will duplicate the input sources to multple outputs.
Yes, you can implement the daisy chain method.
Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.
Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.
If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead.
Please contact us so that we can troubleshoot the issue.
[/tab1]
General Information
UPC
850031132269
