OREI 4K HDMI Extender Balun up to 40 KM

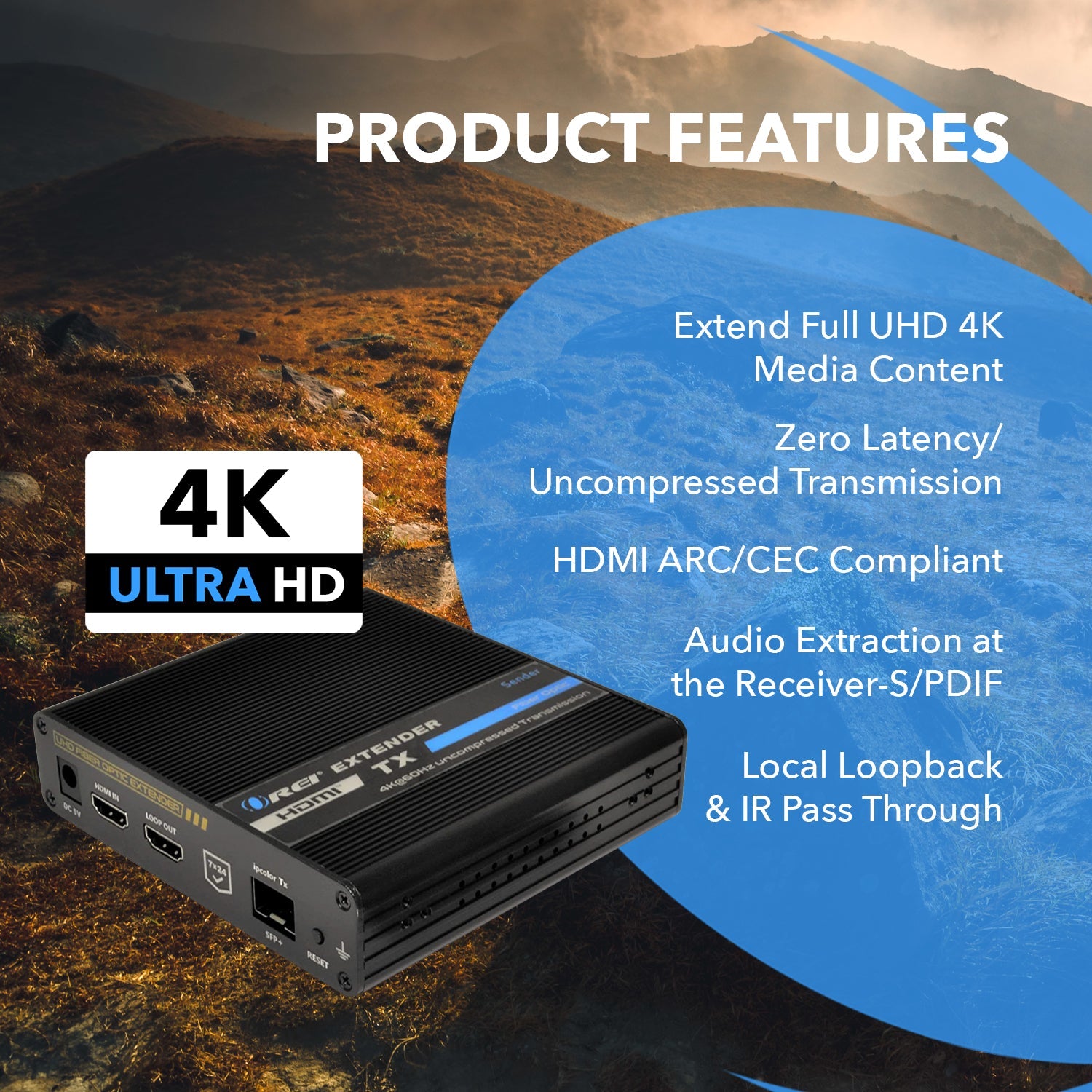

Key Features:
Supports 4K@60Hz, HDR10 Support zero latency, uncompressed transmission of video signals The maximum transmission distance is 40km while using a single-mode cable & optical module The maximum transmission distance is 1km while using a multi-mode cable & module Support one to one & one to many connections through the 10Gb switch Supports switch cascading Supports bi-directional IR pass back Supports HDMI ARC Support CEC Support RS-232 passthrough & command control
Transmitter & Receivers sold separately
The receiver can output the source audio additionally through the S/PDIF port
Has HDMI loop out port on the transmitter
24/7 reliable
Lightning Protection, Surge Protection, ESD Protection
This unit requires only one power adapter to work

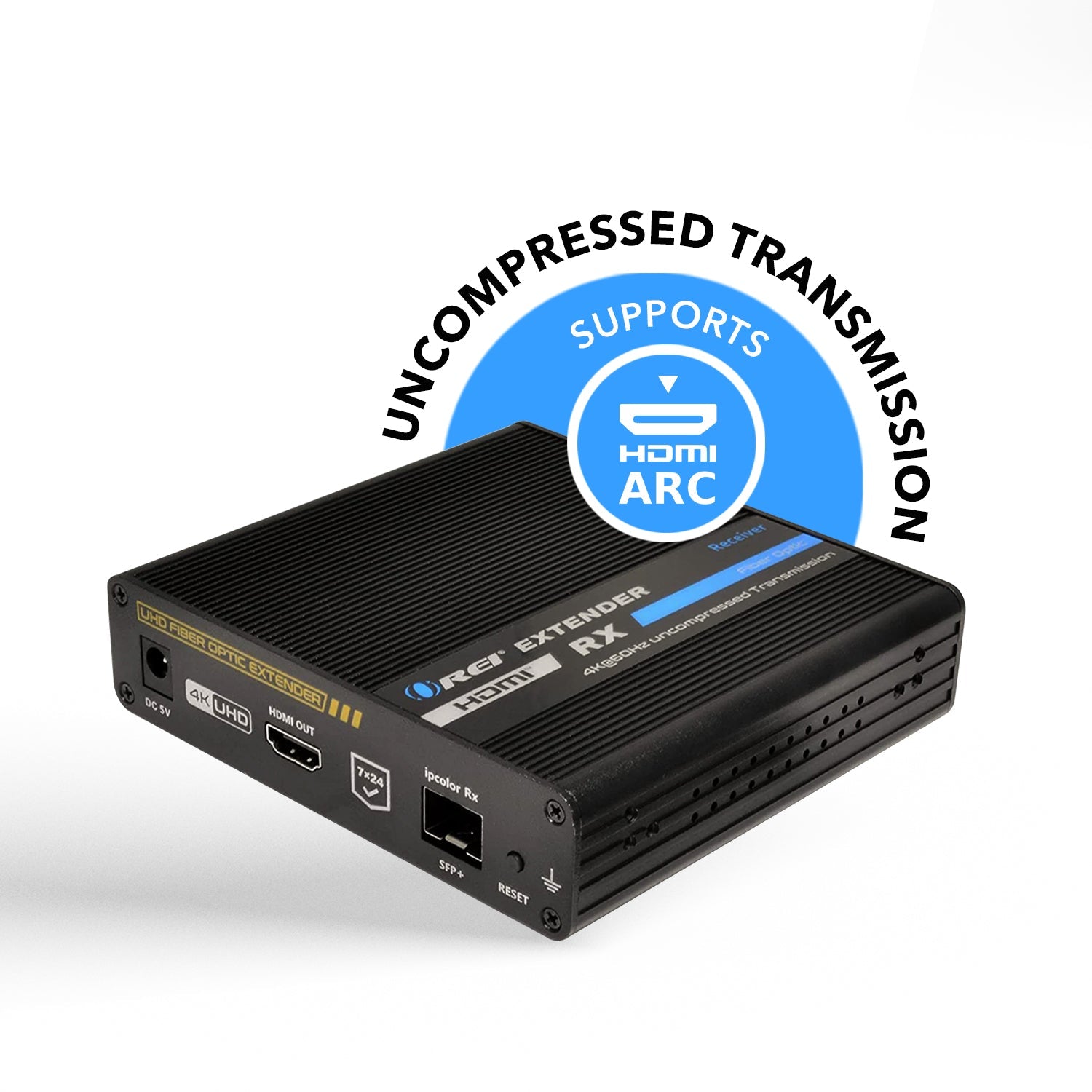

Description: UHD-F040 is an HDMI optical fiber extender which adopts a new transmission technology that supports zero-latency & uncompressed transmission of the video signals. The HDMI 4K@60Hz signals can be extended to 40kms through the single mode fiber cable.

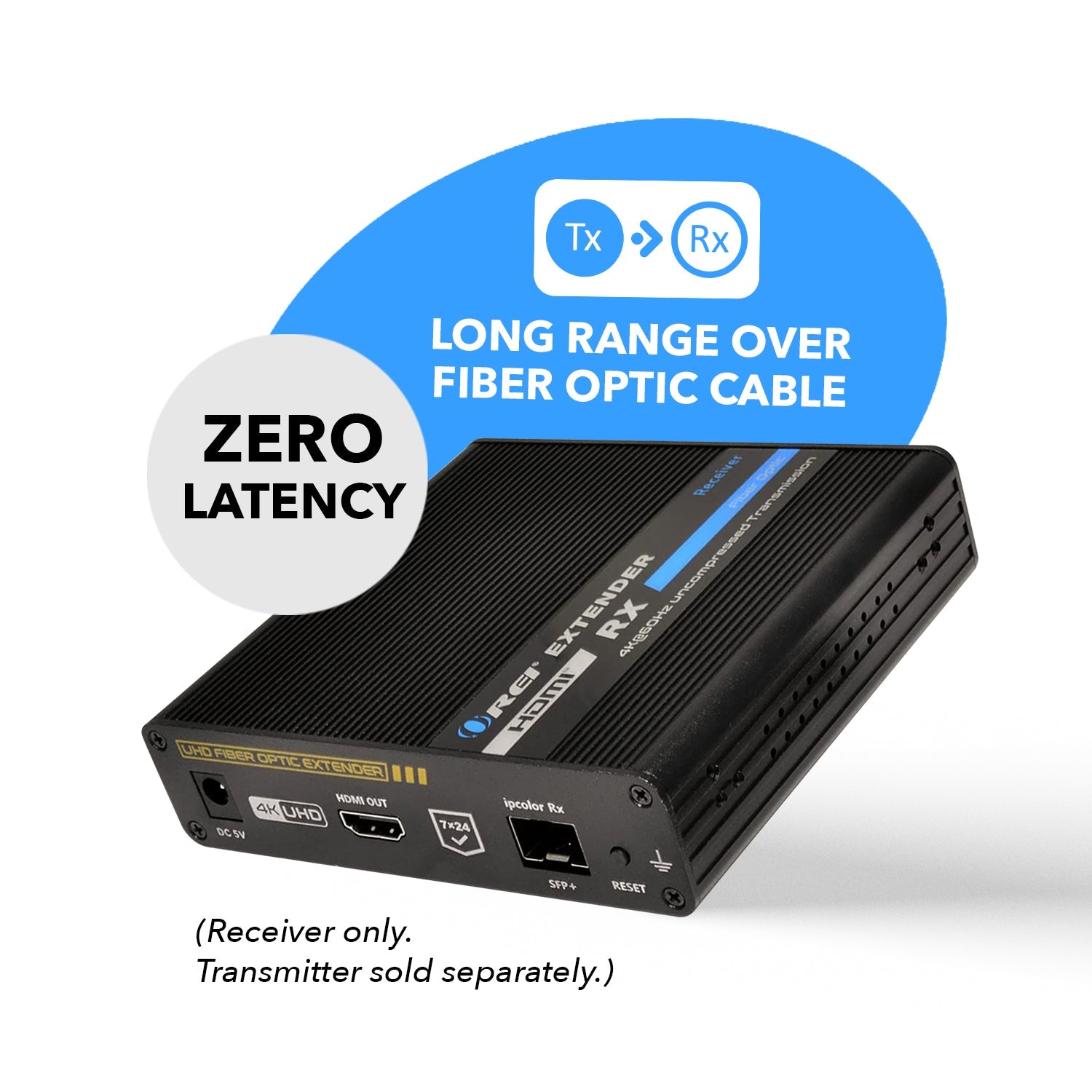

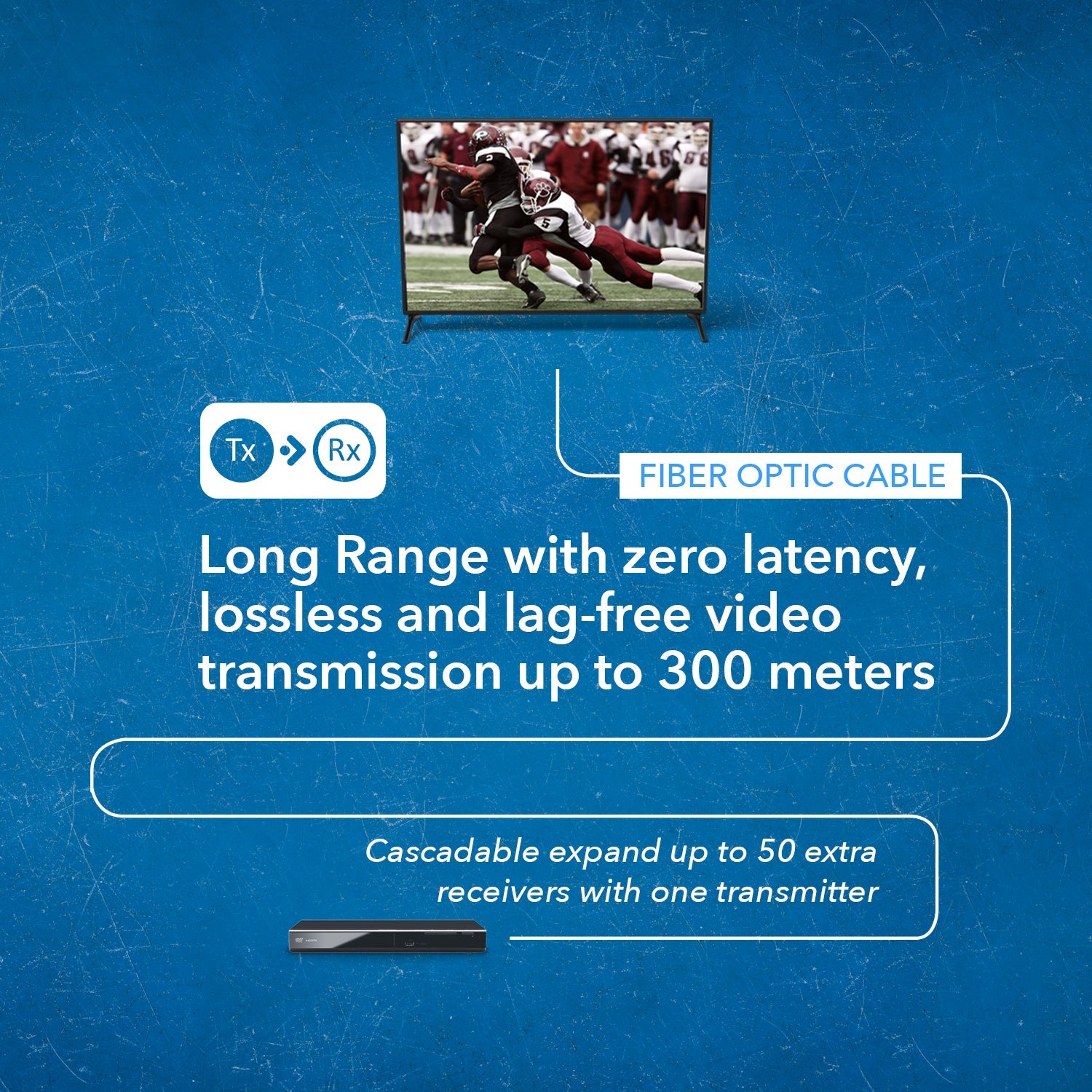

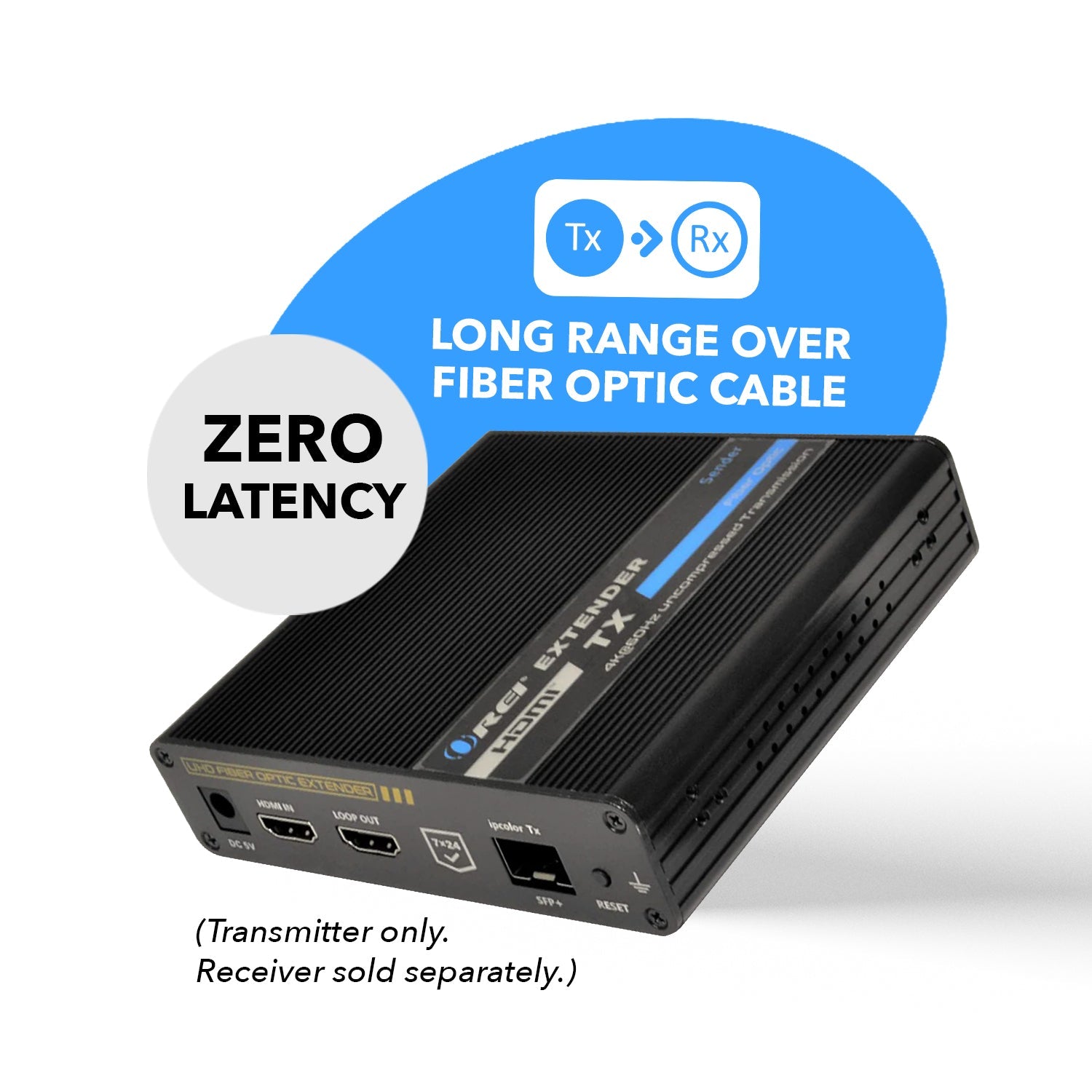

Provides Long Range Over Fiber Optic Cable with Zero Latency, lossless and lag-free video transmission. Supports switch cascading.

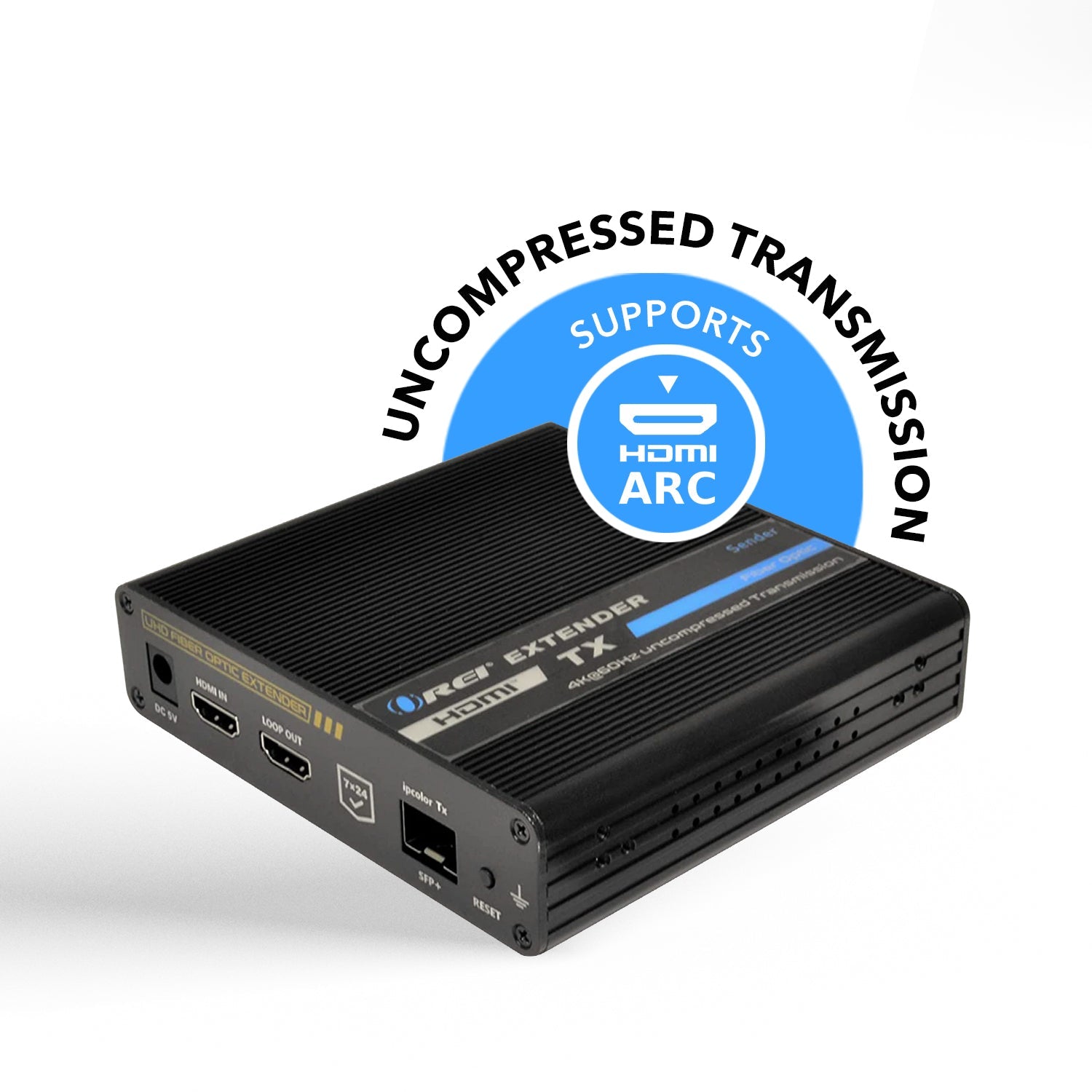

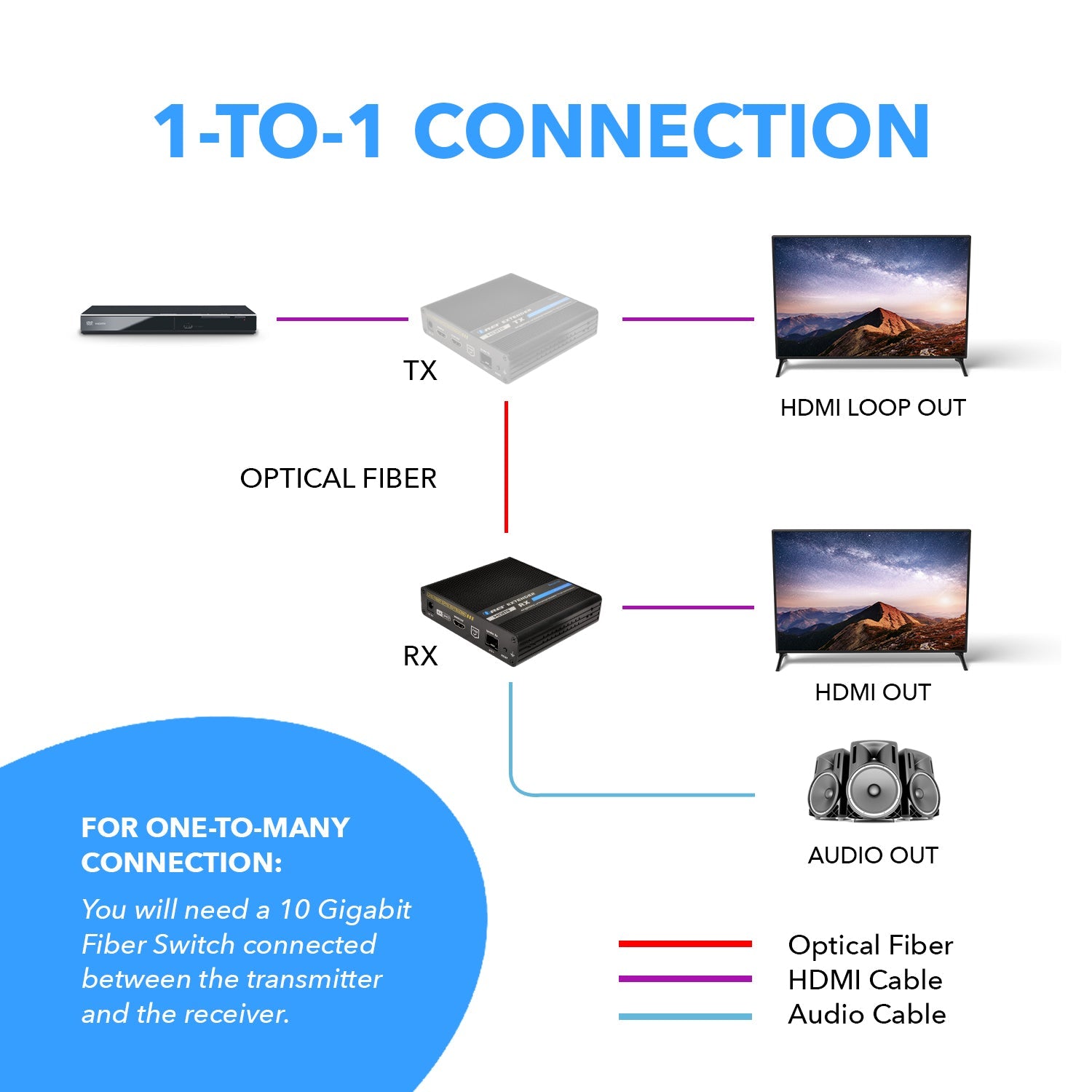

The transmitter supports HDMI loop out, bi-directional IR, RS-232, HDMI ARC, CEC and other functions. It also supports one to one connection, one to many connections through the switch and switch cascading. It is widely used in security monitoring, rail transit, broadcasting & is a Perfect professional Commercial distribution solution.
[shortdes]
Maximum transmission distance is 40km while using single mode fiber cable
Supports Bi-Directional IR, HDMI ARC, CEC, RS-232 (Transmitter & Receivers sold separately)
Lightning Protection, Surge Protection, ESD Protection
[/shortdes] [tab]
AUDIO AND VIDEO

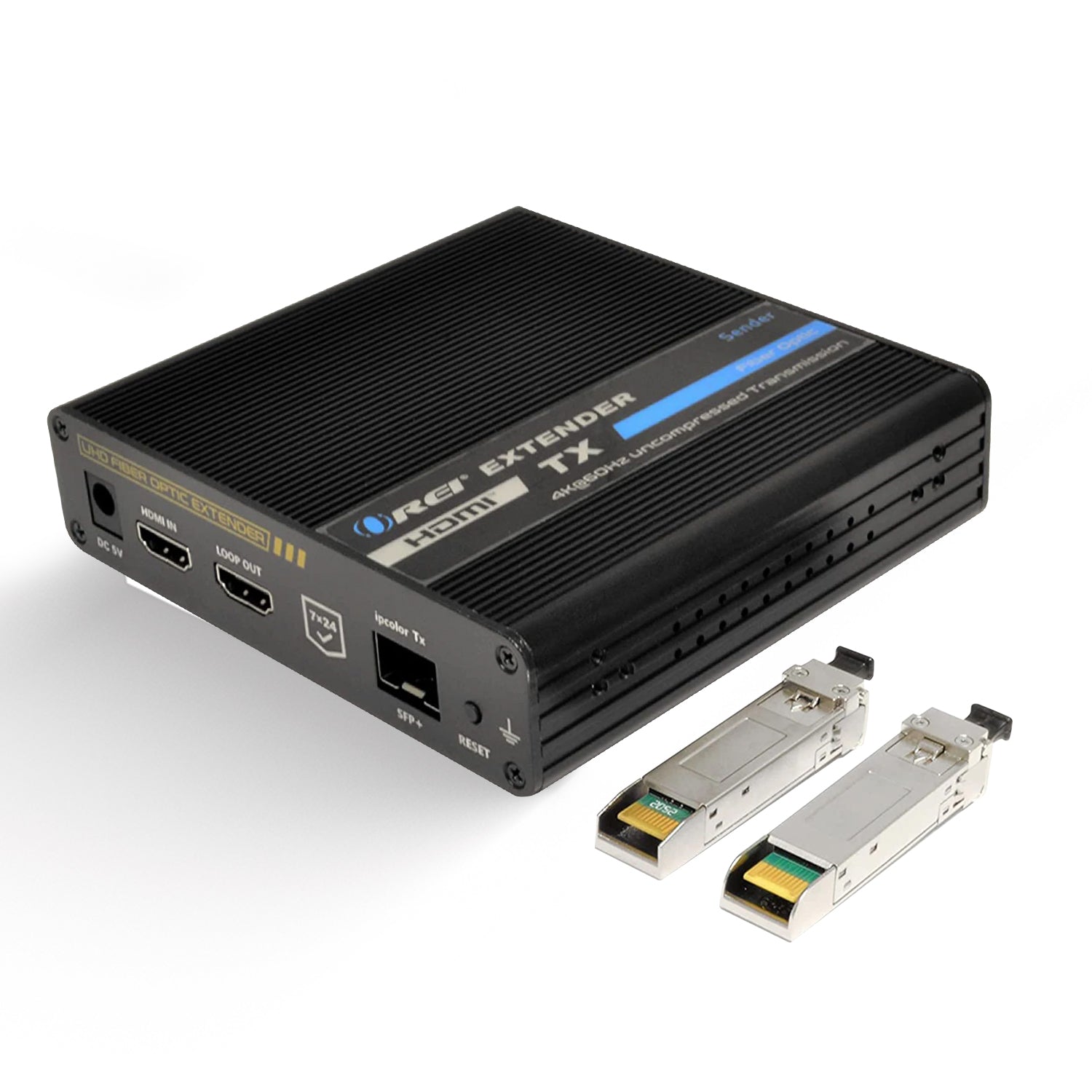

Transmitter: INPUT PORTS:
1x HDMI Input
1x IR IN
OUTPUT PORTS:
1x HDMI Output
1x Single/Multi Mode
1x IR Out

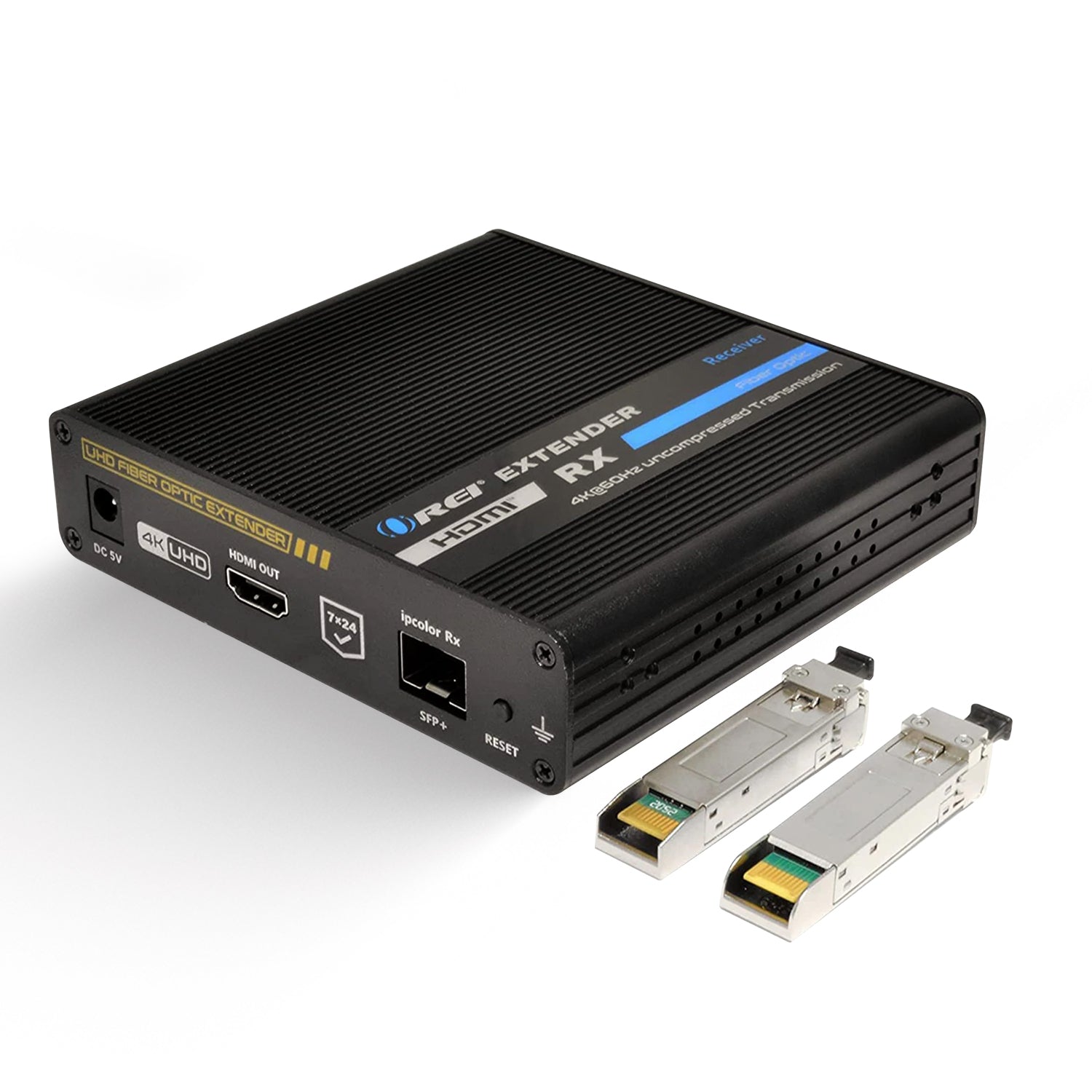

Receiver: INPUT PORTS:
1x IR IN
1x Single/Multi Mode
OUTPUT PORTS:
1x HDMI Out
1x IR Out
COMPLIANCES
HDMI Compliance: HDMI 2.0
HDCP Compliance: HDCP 2.2
Transmission protocol: Ipcolor
Latency: Zero latency
Optical Module Type: SFP+
Fiber Optic Cable Type: Single mode fiber (Use with the default optical modules)
SFP+ optical fiber module wavelength: 1270nm/1330nm
EXTENDING DISTANCE
VIDEO OUTPUT
Video Bandwidth: 18 Gbps
Video Resolutions: Up to 4K@60Hz
CEC, EARC, POC/POE, IR, DOWNSCALER, KVM, OVER IP, HDBASET, RS-232 SUPPORT
CEC Function: Yes
ARC Function: Yes
USB KVM Function: No
PoC/PoE Function: No
IR Controller: Bi-directional IR
Downscaler Function: No
Over Network/IP Function: Yes
HDBaseT Function: No
RS-232 Function: Yes
AUDIO OUTPUT
HDMI Audio Formats: LPCM 7.1/DTS-HD/DTS-Audio/Dolby Digital plus /Dolby TrueHD/Dolby Digital/Dolby Atmos

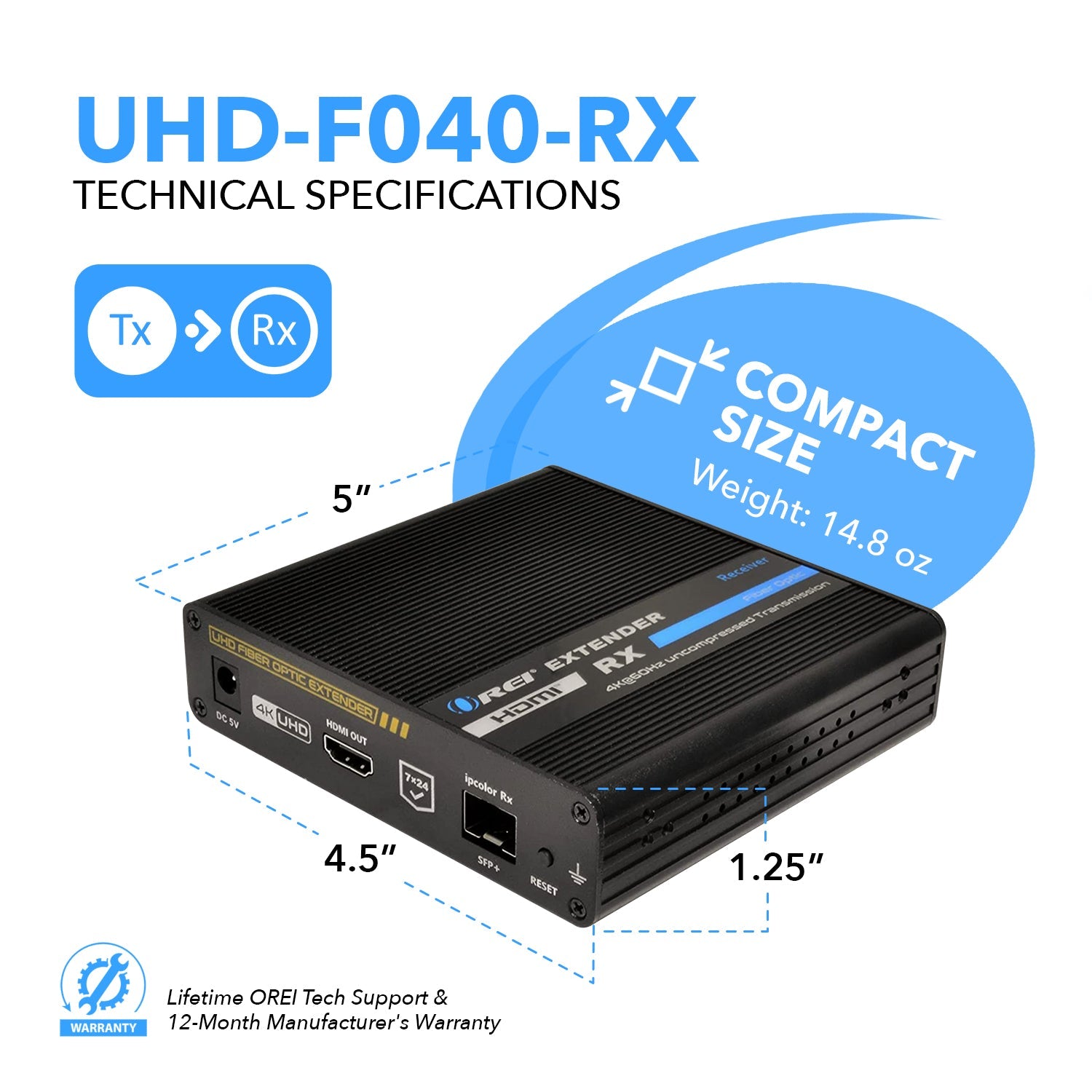

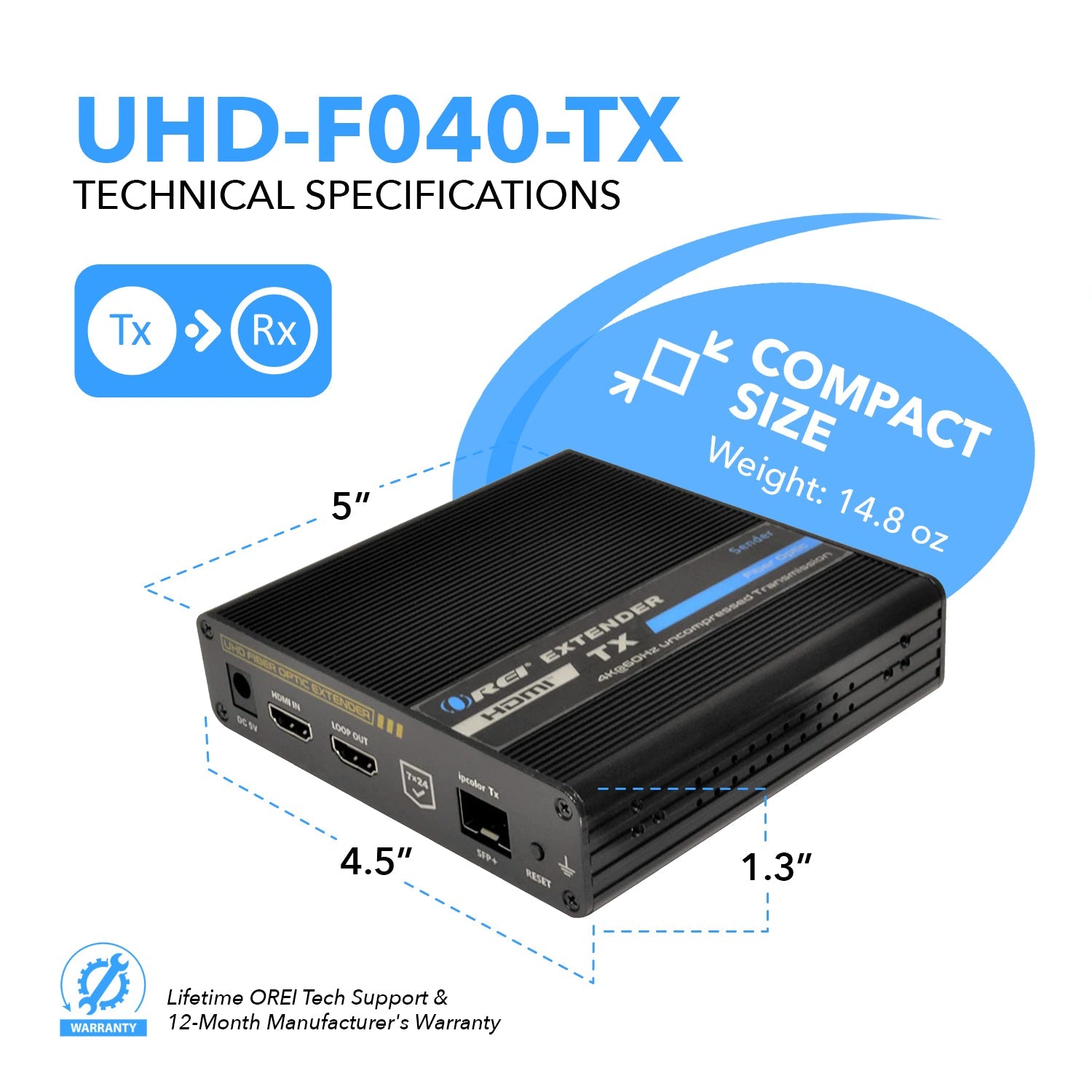

DIMENSIONS & WEIGHT
Transmitter: Height:
30mm
Width:
115.20mm
Depth:
123.95mm
Weight:
420g
Receiver: Height:
30mm
Width:
115.20mm
Depth:
123.95mm
Weight:
420g
PROTECTION
Operation Temperature: -20 ~ 60°C
Storage temperature: -30 ~ 70°C
Relative Humidity: 0 ~ 90% RH
ESD Protection: 1a Contact discharge level 3 1b Air discharge level3 Implementation of the standard: IEC61000-4-2
Light Protection: Yes
Surge Protection: Yes
POWER
Power Consumption (Max): DC 5V/2A
Power Supply (Max): 7W
PHYSICAL PROPERTIES
Color: Black
Material: Aluminium Alloy Material + Crystal Panel
PACKAGE CONTENTS (Transmitter Only)
1x Transmitter
1x DC5V/2A Power Adapter
1x IR Blaster Extension Cable
8x Mounting brackets
1x SFP+ single mode optical module/ 1270nm LC
1x SFP+ multi-mode optical module/ 850nm LC
9x Screw
1x Earthing screw
1x User Manual
PACKAGE CONTENTS (Receiver Only)
1x Receiver
1x DC5V/2A Power Adapter
1x IR Receiver Extension Cable
8x Mounting brackets
1x SFP+ single mode optical module/ 1330nm LC
1x SFP+ multi-mode optical module/ 850nm LC
9x Screw
1x Earthing screw
1x User Manual
WARRANTY
1 - Year Manufacturer's Warranty
[/tab]
[tab1]
FAQs
Can I purchase the replacement parts such as power adapter, receiver/transmitter or IR Kit from OREI?
Yes, you can purchase these things directly from us. Please contact us & we will assist you further.
Can I extend multiple screen with this product?
No, this product does not extend multiple screens. It will duplicate the input sources to multple outputs.
Can I input the output of this product to another extender similar to daisy chain method?
Yes, you can implement the daisy chain & switch cascading method.
Can I purchase additional transmitter?
Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.
Can I purchase additional receivers?
Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.
Up to what length I can extend this product?
You can extend the display devices up to 40 KM
