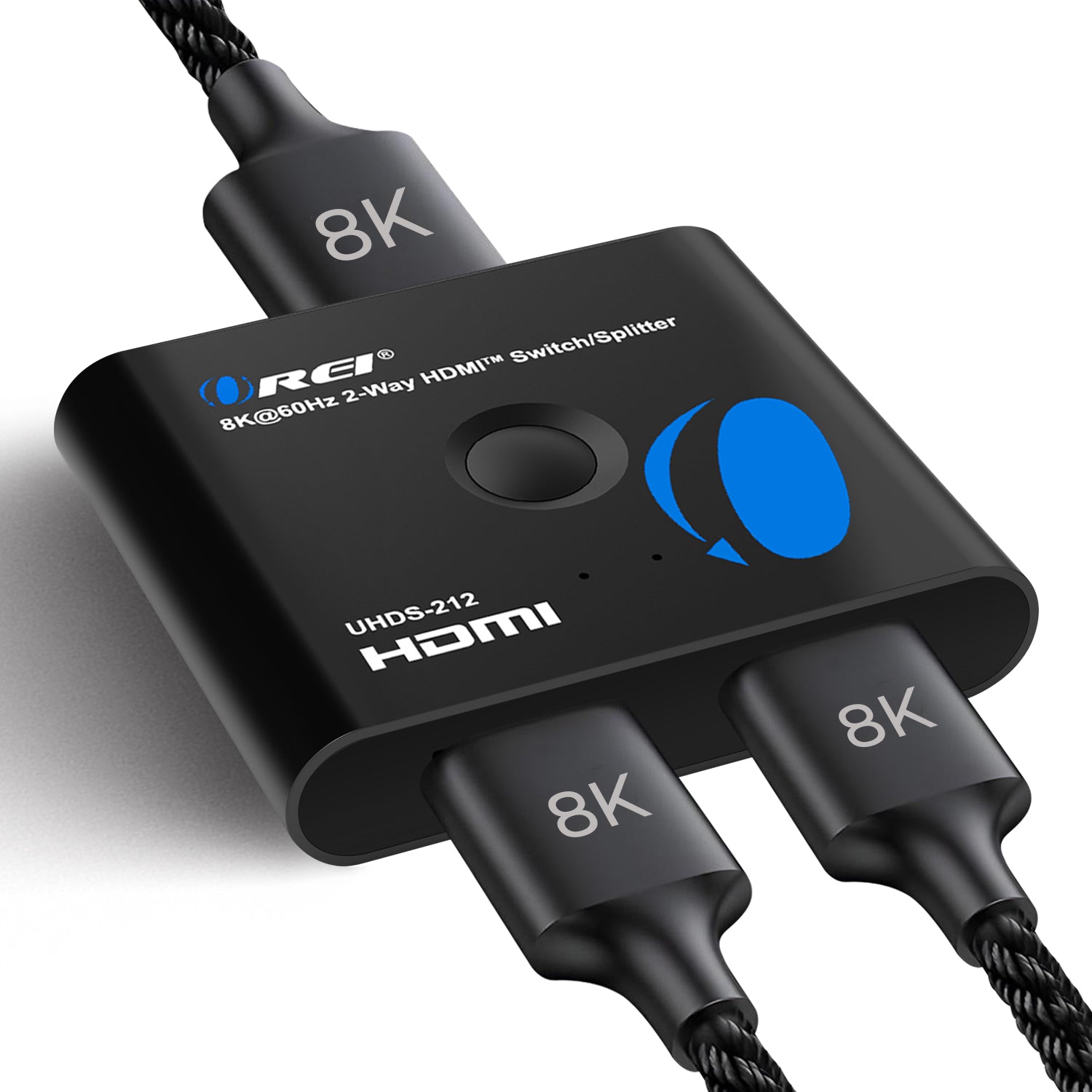

Name: 4K HDMI Bi-direction 1x2 Splitter, 2x1 Switch v2.0 4Kx2K@60Hz (UHDS-212)
Brand: OREI
SKU: UHDS-212
Price: 28.00 CAD
Availability: InStock

4K HDMI Bi-direction 1x2 Splitter, 2x1 Switch v2.0 4Kx2K@60Hz (UHDS-212)

Roll over image to zoom in Click on image to zoom

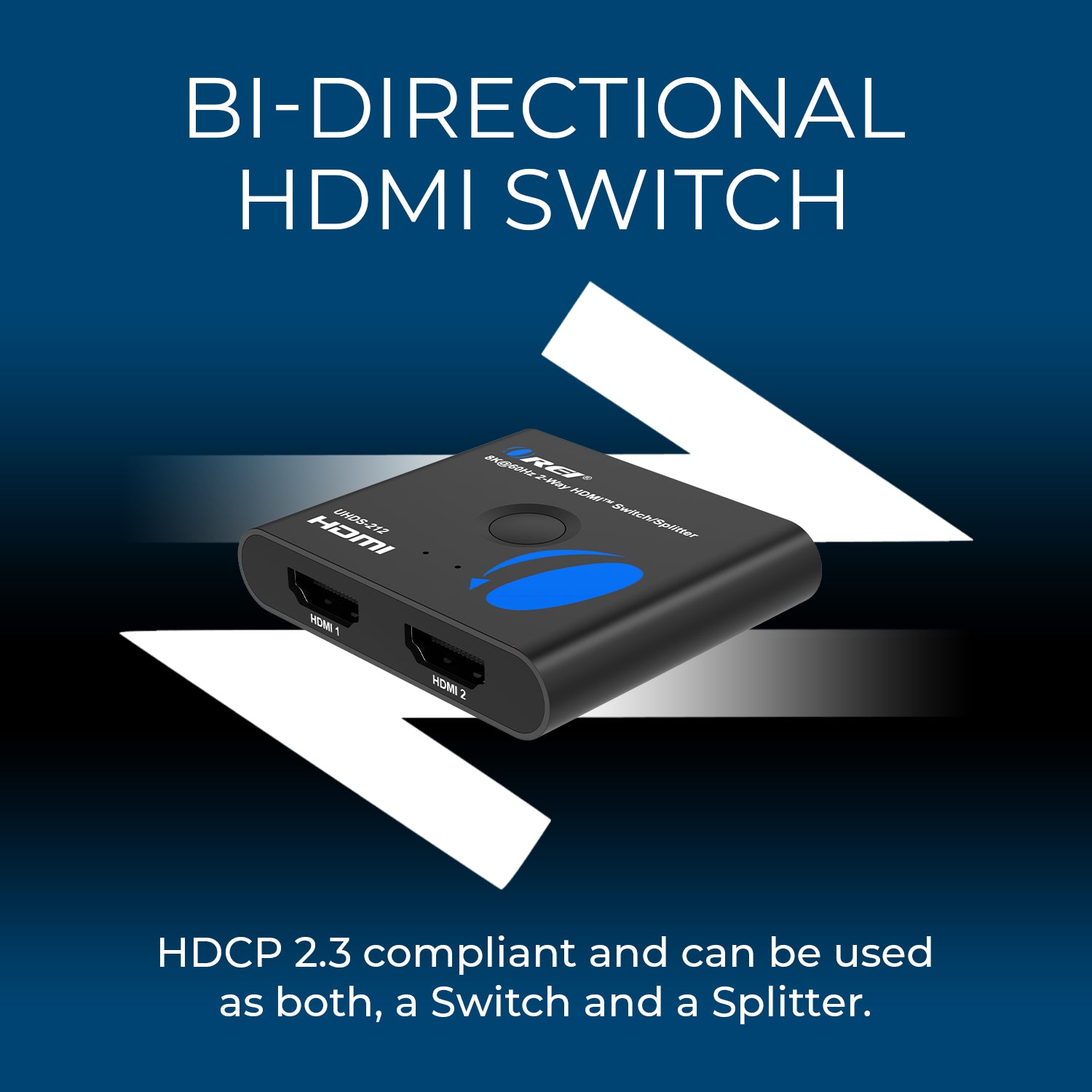

OREI 4K HDMI Bi-direction 1x2 Splitter, 2x1 Switch

Key Features:

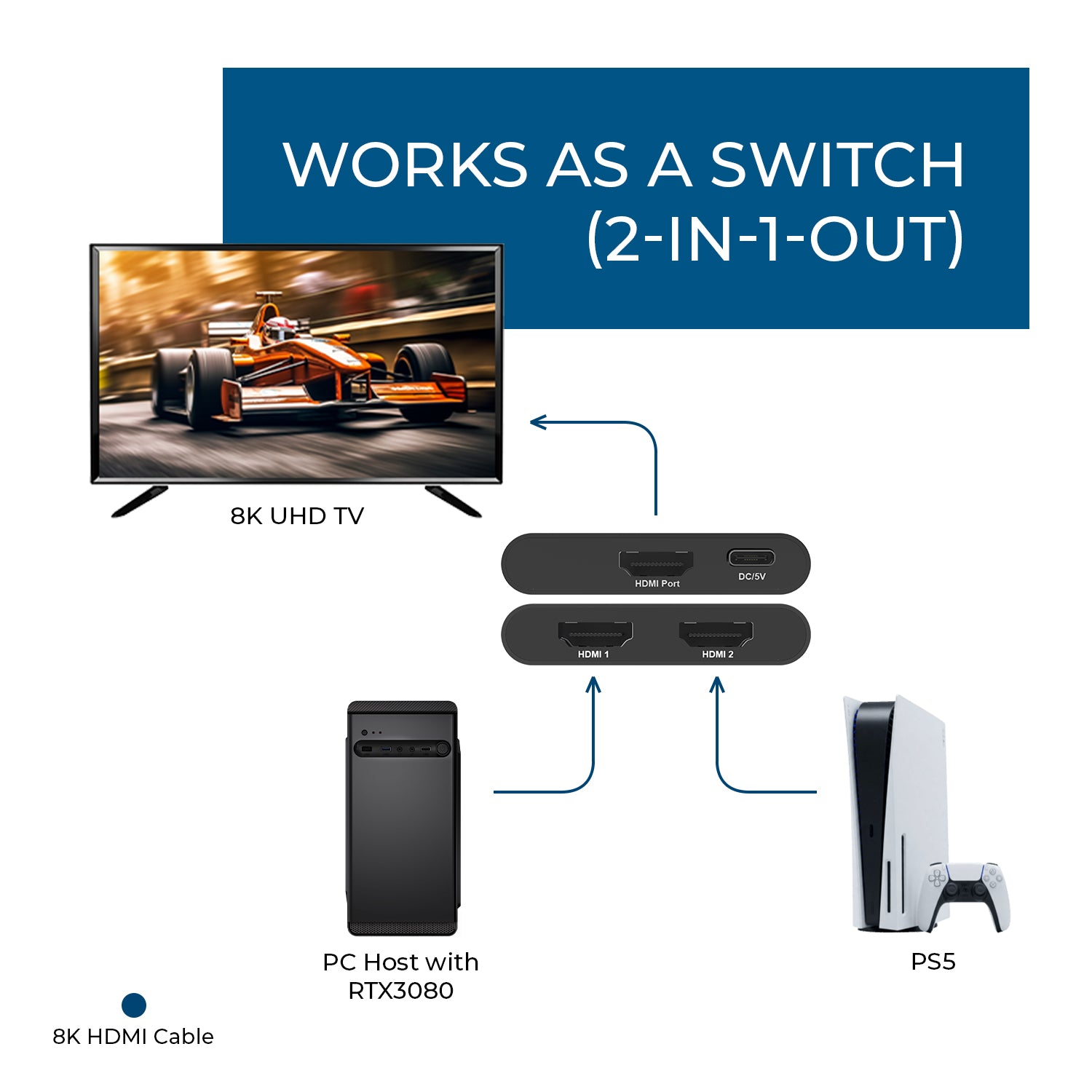

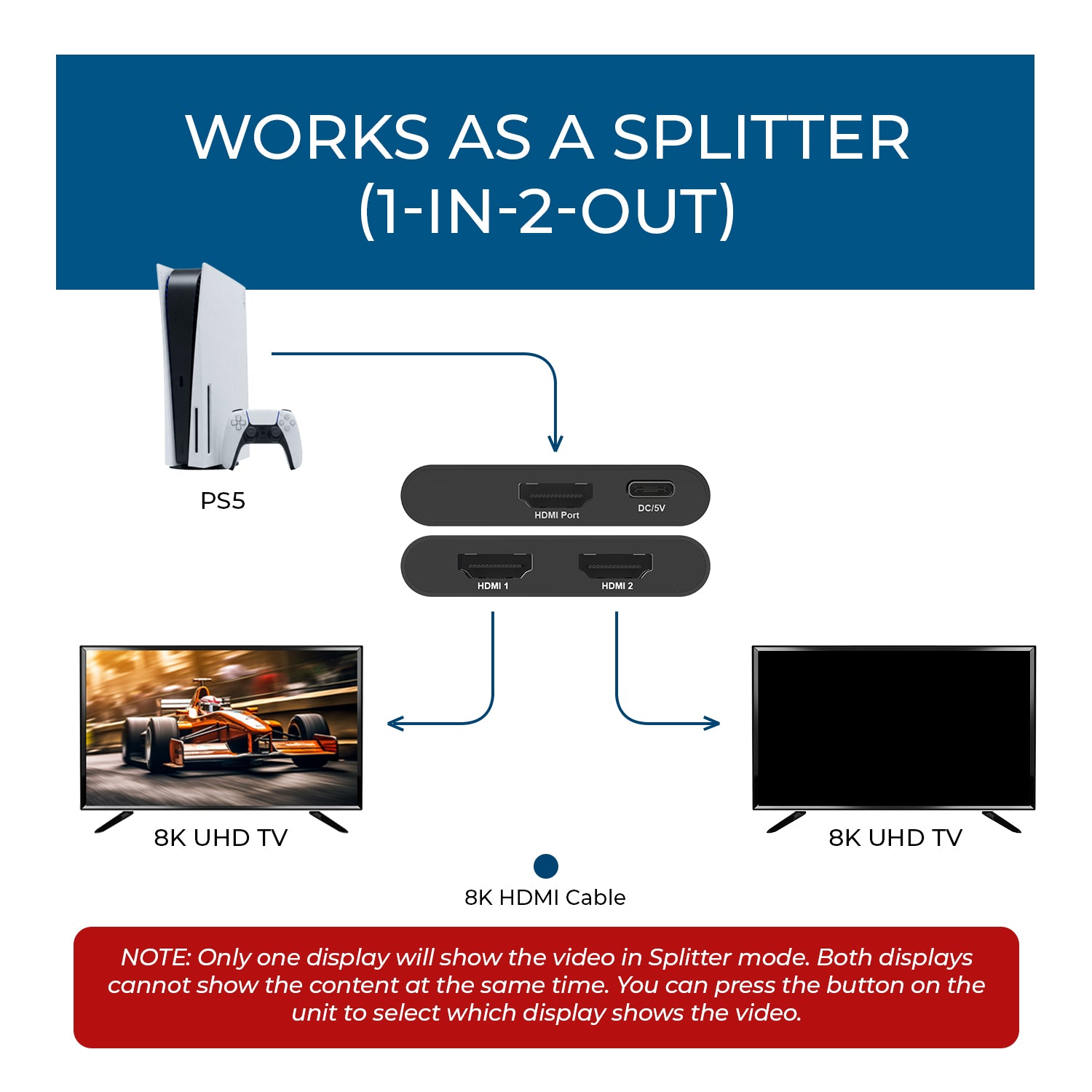

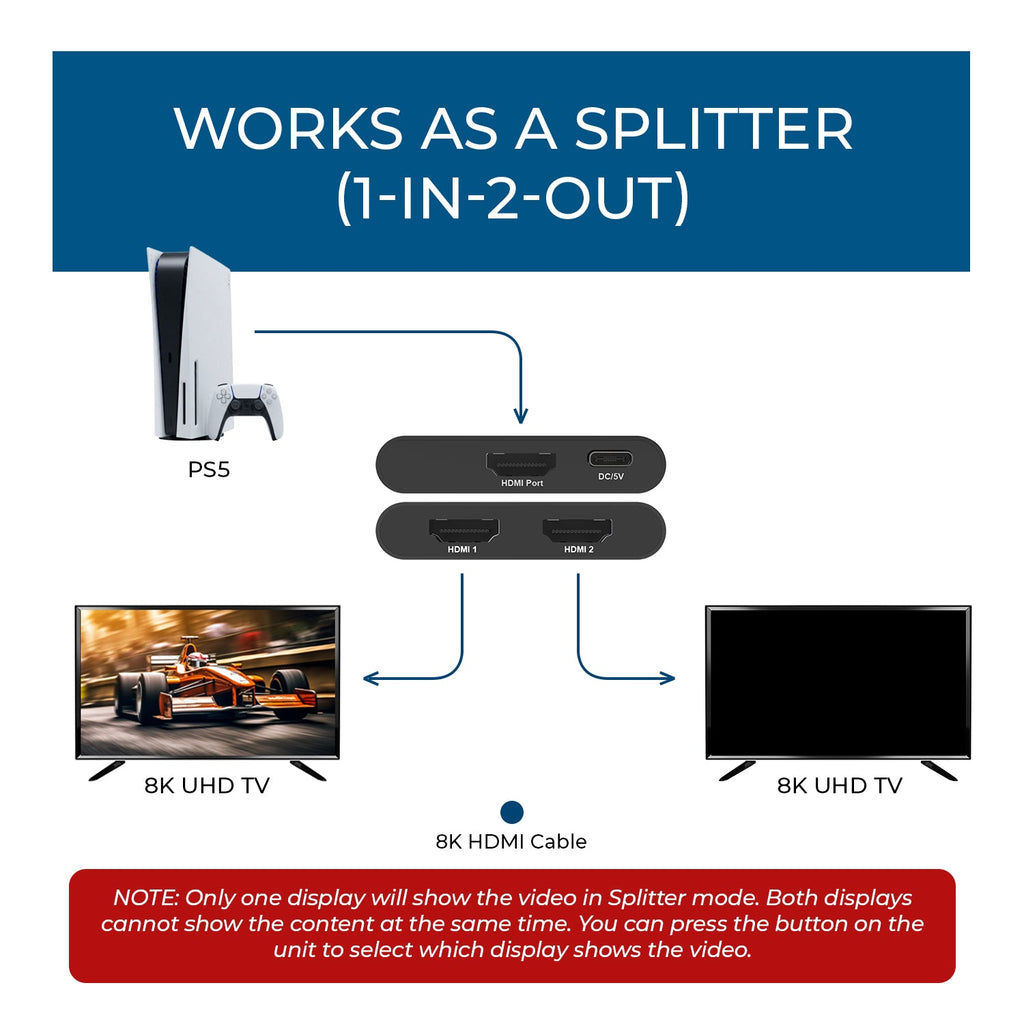

2 HDMI-Host to 1 HDMI monitor, 1 HDMI-Host to 2 HDMI monitors
Backward compatible with the HDMI earlier versions
Supports DTS-HD Master Audio, Dolby TrueHD Dolby Digital, DTS, DVD-Audio, LPCM, SACD, MPCM
Supports high definition resolution up to 4Kx2K@60Hz YUV 4:4:4 and Full 3D
Supports High Dynamic Range (HDR) video
HDMI 2.0 and HDCP 2.2/1.4 compliant
Supports 600MHz/6.0 Gbps per channel bandwidth (18 Gbps all channels)
Compatible with HDMI units such Roku 4, 4K TV, Amazon Fire TV, Ultra Projector, PS4 ,Xbox, Apple TV, HDMI LCD, Gaming, Cable box, Blu-ray player, DVD player, PC, STB and more
Supports Consumer Electronics Control
Manual port selection: Enables you to manually select your HDMI source with easy-to-use panel buttons
Support HDMI signal retiming, no loss of quality

ULTRA HD 2 in 1 HDMI Switcher : Perfect for 2 HDMI Input Signal to 1 Monitor or TV 4K Display Screens, Also Allows you to use a HDMI Splitter 1 in 2 out, This Device Will Not Extend Monitor for PC or Laptops, Does not extract Audio This HDMI splitter will not extend monitors. Compatible Devices - HDMI source device, such as computer PCs, Blu-ray players, media players, and game consoles - HDMI displays, monitors, and HDTVs - Xbox One S/X - PS4 Pro Specifications - HDMI 2.0a, HDCP 2.2/1.4 compliant - Supports 4K @60Hz (4:4:4 8-bit) and HDR 4K @60Hz (4:2:0 10-bit) with xvYCC, x.v.Color & Deep Color - Supports DTS-HD Master Audio, Dolby TrueHD Dolby Digital, DTS, DVD-Audio, LPCM, SACD, MPCM - Wide frequency range: 25MHz - 600MHz and Video bandwidth: 18Gbps (Single-link 600MHz) - HDMI Cable upto 10 Ft - For longer length use OREI Fiber optic HDMI cables Pre-programmed settings - · Support HDMI signal retiming, no loss of quality

[shortdes]

2 Inputs - 1 Output HDMI switch, 1 Input - 2 Outputs HDMI splitter
Video resolution up to 4Kx2K@60Hz
Supports HDMI signal retiming
Compliance: HDMI 1.4 - HDCP 2.0/1.4

[/shortdes]

[tab1]

FAQs

You can use standard HDMI cables up to 10 feet and high quality cables up to 30 feet.

However, you can use fiber optic active HDMI cables up to 200 feet. If its not a high quality cable then you may lose the signal in some instances.

If its not a high quality cable then you may lose the signal in some instances.

No, our switchers aren't compatible with capture cards

[/tab1] [tab]

AUDIO AND VIDEO

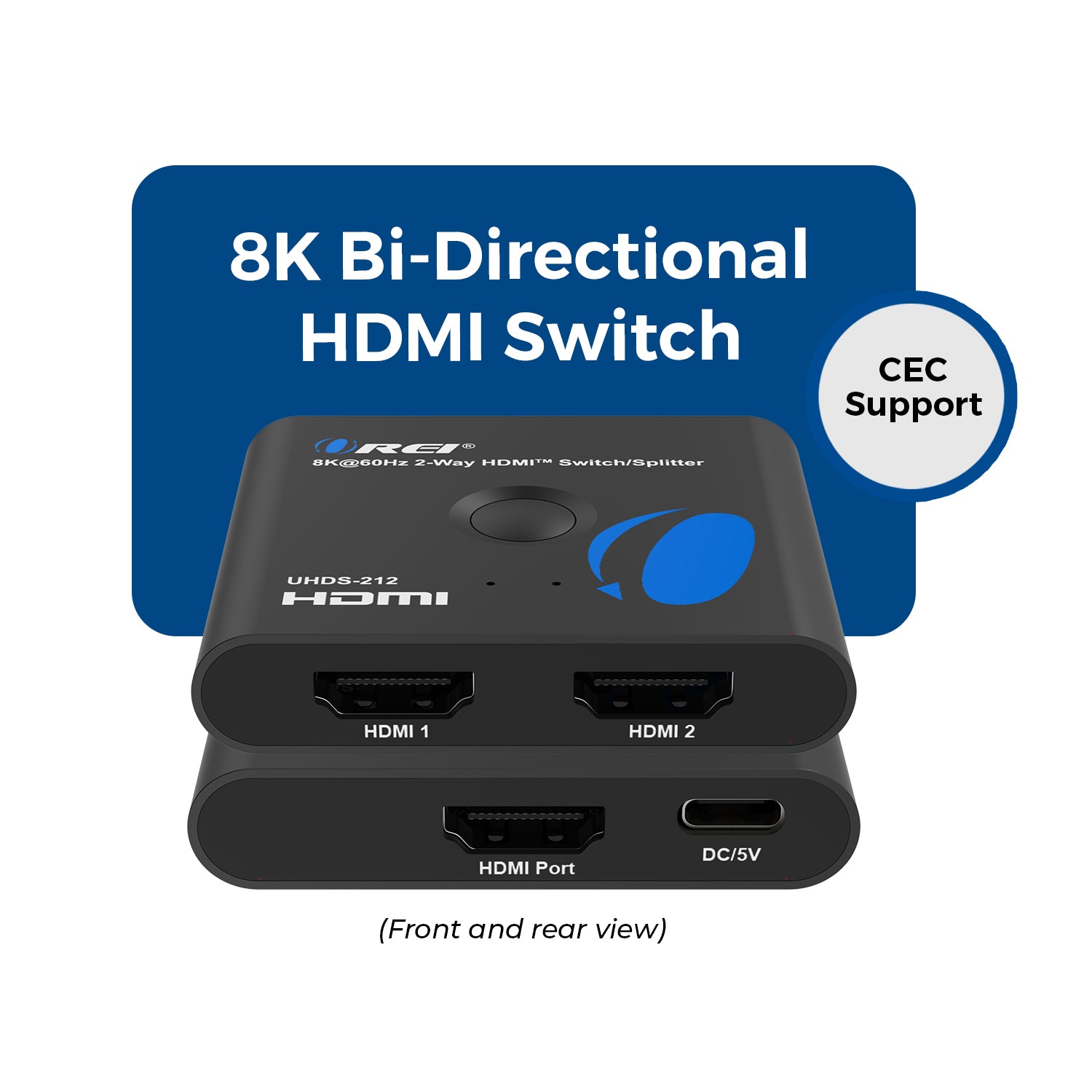

Input Ports:	HDMI x 1 (1 in 2 out) / HDMI x 2 (2 in 1 out)(Female type)
Output Ports:	HDMI x 2 (1 in 2 out)/ HDMI x 1 (2 in 1 out)(Female type)
Video Bandwidth:	6.0 Gbps/600MHz per channel (18Gbps all channels)
Video Resolution:	Interlaced(50 & 60Hz): 480i, 576i, 1080i; Progressive(50 & 60Hz): 480p, 576p, 720p, 1080p, 4K@24/30Hz, 4K@50/60Hz
Color Space:	YUV 4:4:4
Vertical Frequency Range:	50/60Hz
Digital Audio Formats:	DTS-HD Master Audio, Dolby TrueHD Dolby Digital, DTS, DVD-Audio, LPCM, SACD, MPCM

COMMUNICATION AND CONTROL

HDMI Compliance	HDMI 2.0
HDCP Compliance	HDCP 2.2/1.4

POWER

Power Consumption:

CONTROL

CEC:

Pass through

ENVIRONMENTAL

Operating Temperature:	0 °C to 70 °C
Relative Humidity:	5% to 90% RH non-condensation

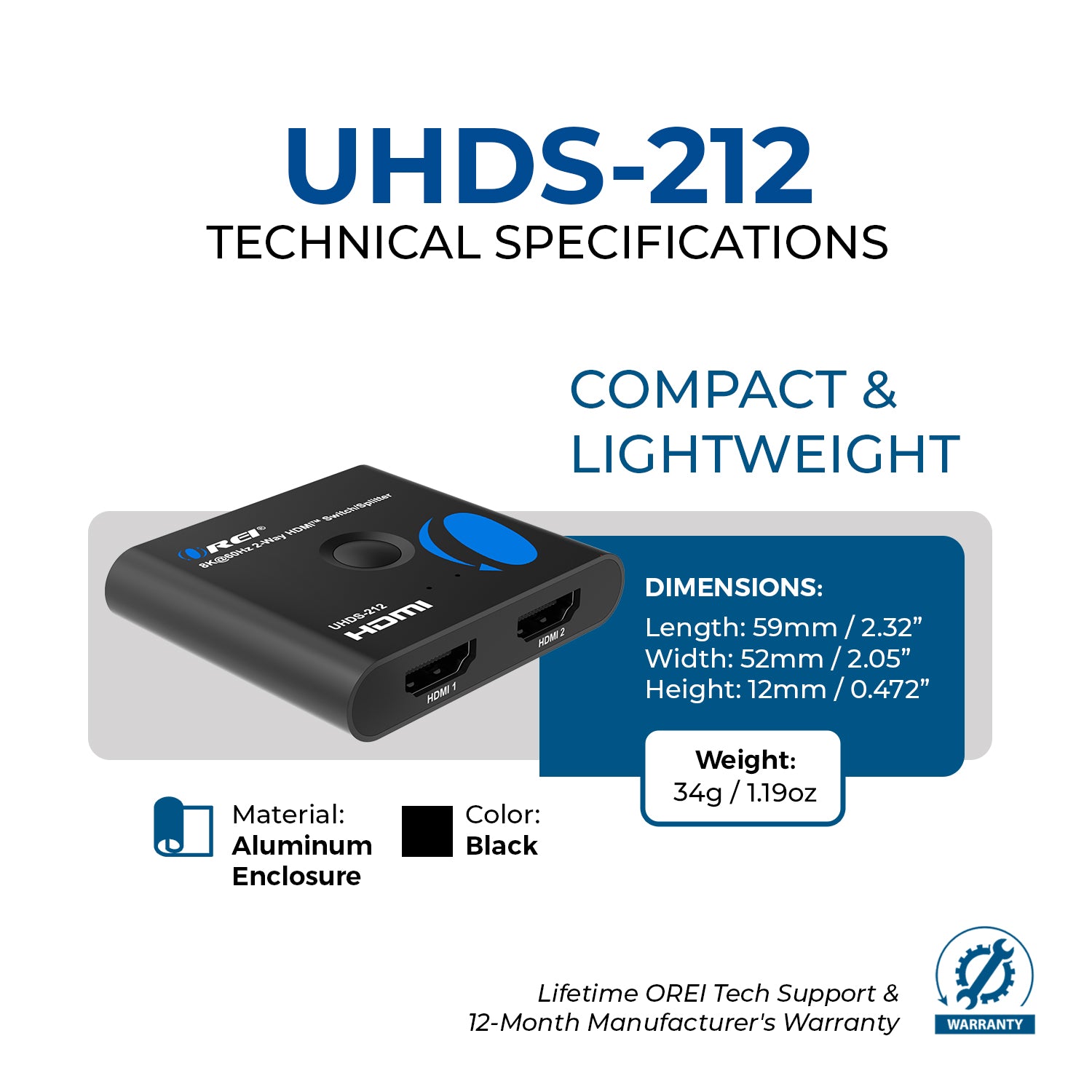

DIMENSIONS & WEIGHT

Height:	14 mm
Width:	51.6 mm
Depth:	52 mm
Weight:	30g

REGULATORY

Safety and Emission:

CE | FCC | RoHS

PACKAGE CONTENTS

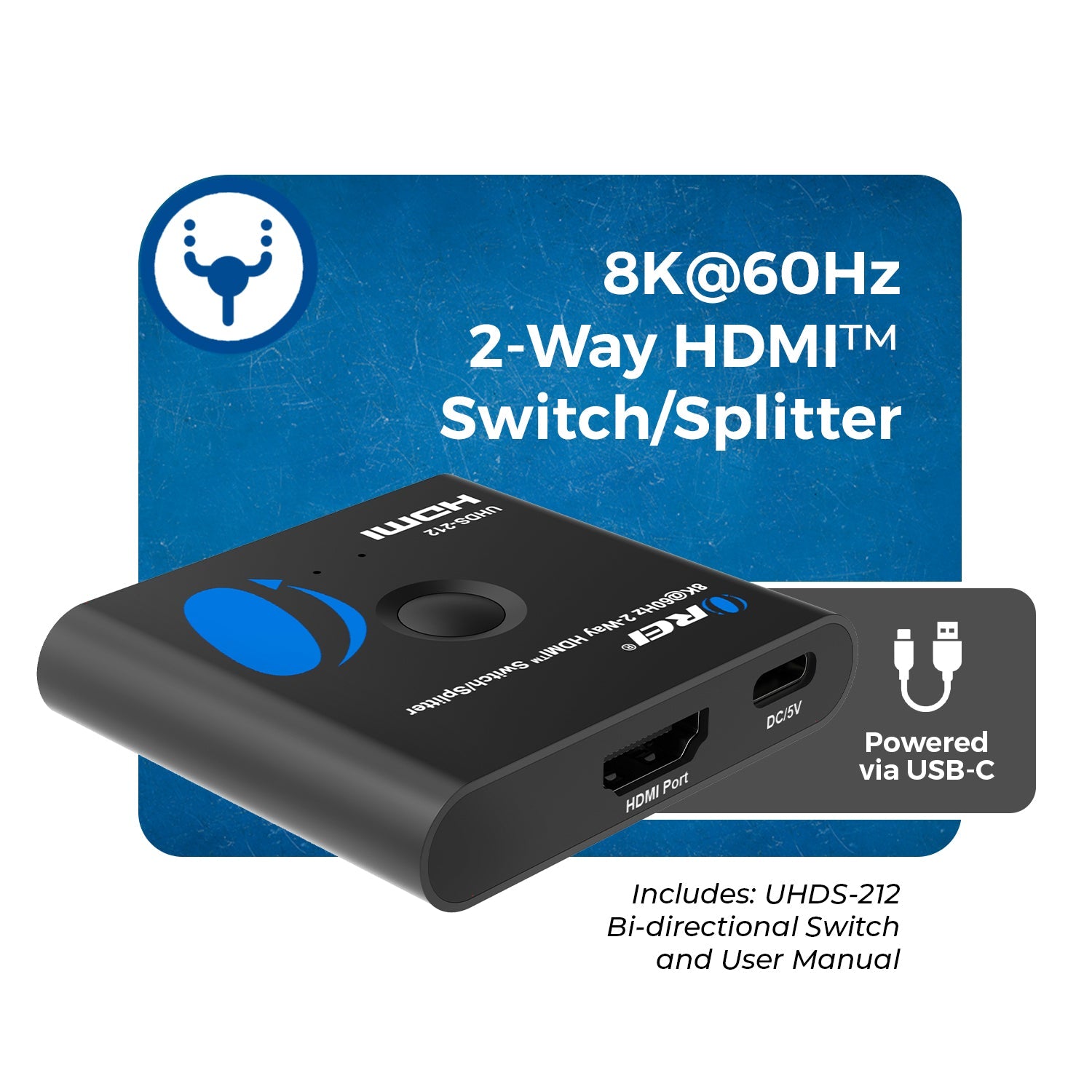

1 × UHDS-212 Bi-directional switch

1 × User Manual

Warranty

1 - Year Manufacturer's Warranty

[/tab]

General Information

UPC	850031132184
