OREI 4K HDMI ARC/eARC Audio Extractor
Key Features:
- HDMI 2.0b and HDCP 2.3 compliant
- Support 18Gbps video bandwidth
- Support video resolution up to 4K2K@60Hz with 24-bit RGB/YCbCr 4:4:4
- Support HDR, HDR10, HDR10+, Dolby Vision and HLG pass-through
- Support HDMI audio formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
- Perfect solution for SONOS ARC/BOSE 500/BOSE 700/BOSE 900 Soundbars and other eARC/ARC audio/video receivers
- Dedicated HDMI port for outputing audio only when connecting with legacy AVR without eARC/ARC function
- Built-in Equalizer, Retiming and Driver
- Auto EDID management
- Compact design for easy and flexible installation

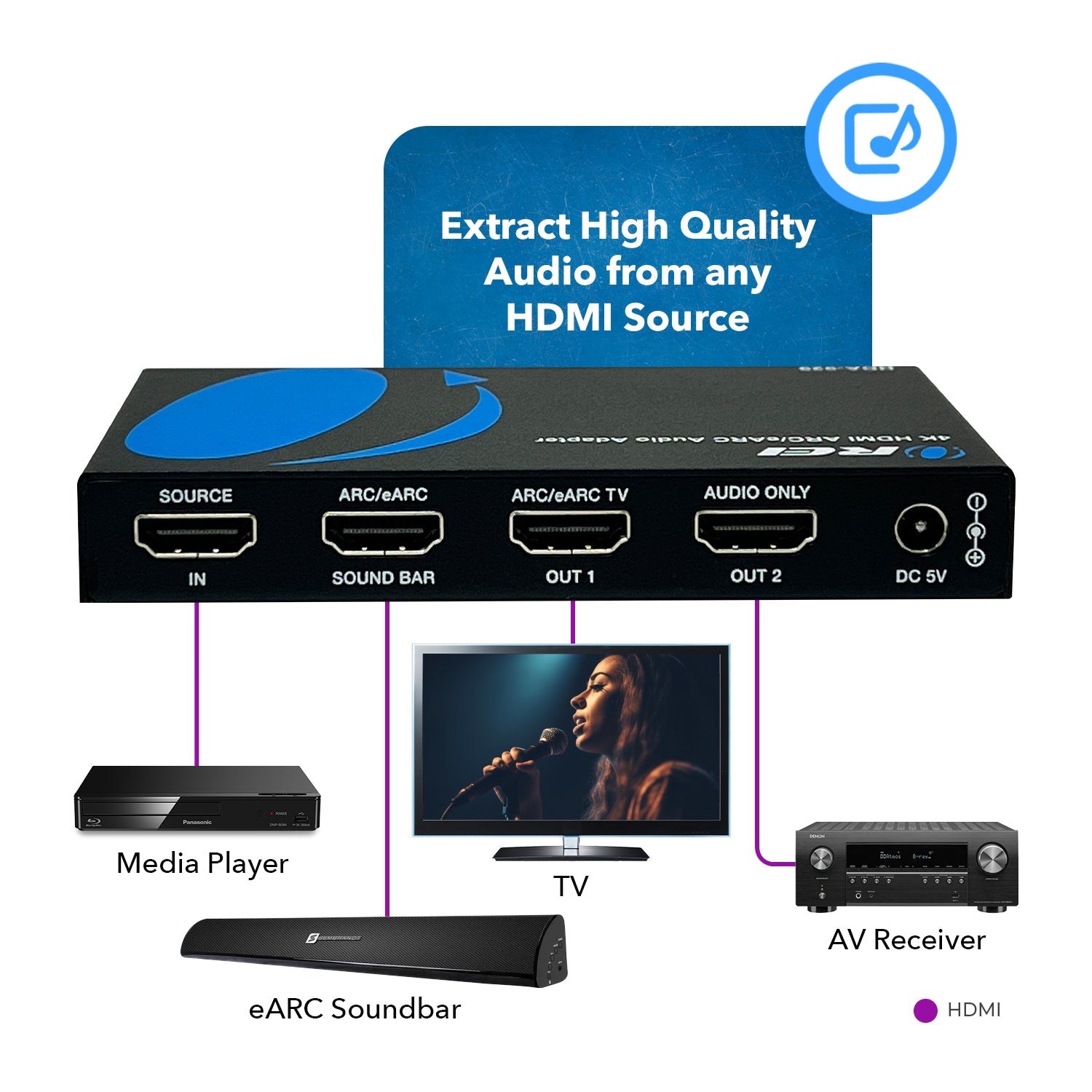

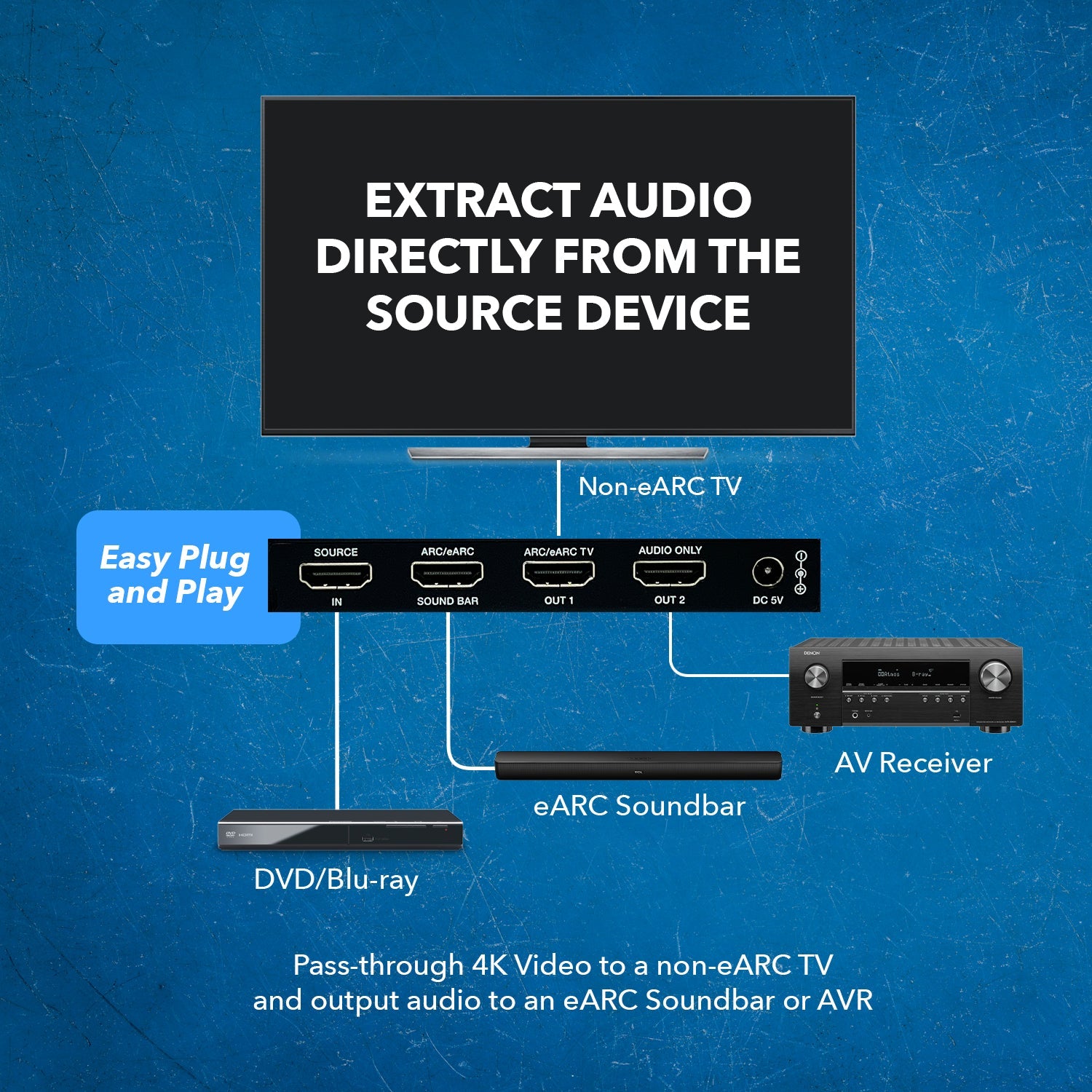

The HDA-929 4K HDMI ARC/eARC Audio Adapter is capable to output Dolby Atmos audio from an external HDMI source to eARC/ARC sound systems. Since it is compliant with audio formats such as LPCM, Dolby True HD and DTS-HD Master Audio, this adapter is a perfect solution for connecting SONOS ARC/BOSE 500/BOSE 700/ BOSE 900 Soundbars and other eARC/ARC audio/video receivers. It also provides a dedicated HDMI output port for outputing audio only when connecting with legacy AVR without eARC/ARC function. [shortdes]
- Video resolution up to 4K2K@60Hz
- HDMI 2.0b and HDCP 2.3 compliant
- HDR, HDR10, HDR10+, Dolby Vision & HLG pass-through
[/shortdes]
[tab]
CONNECTIVITY

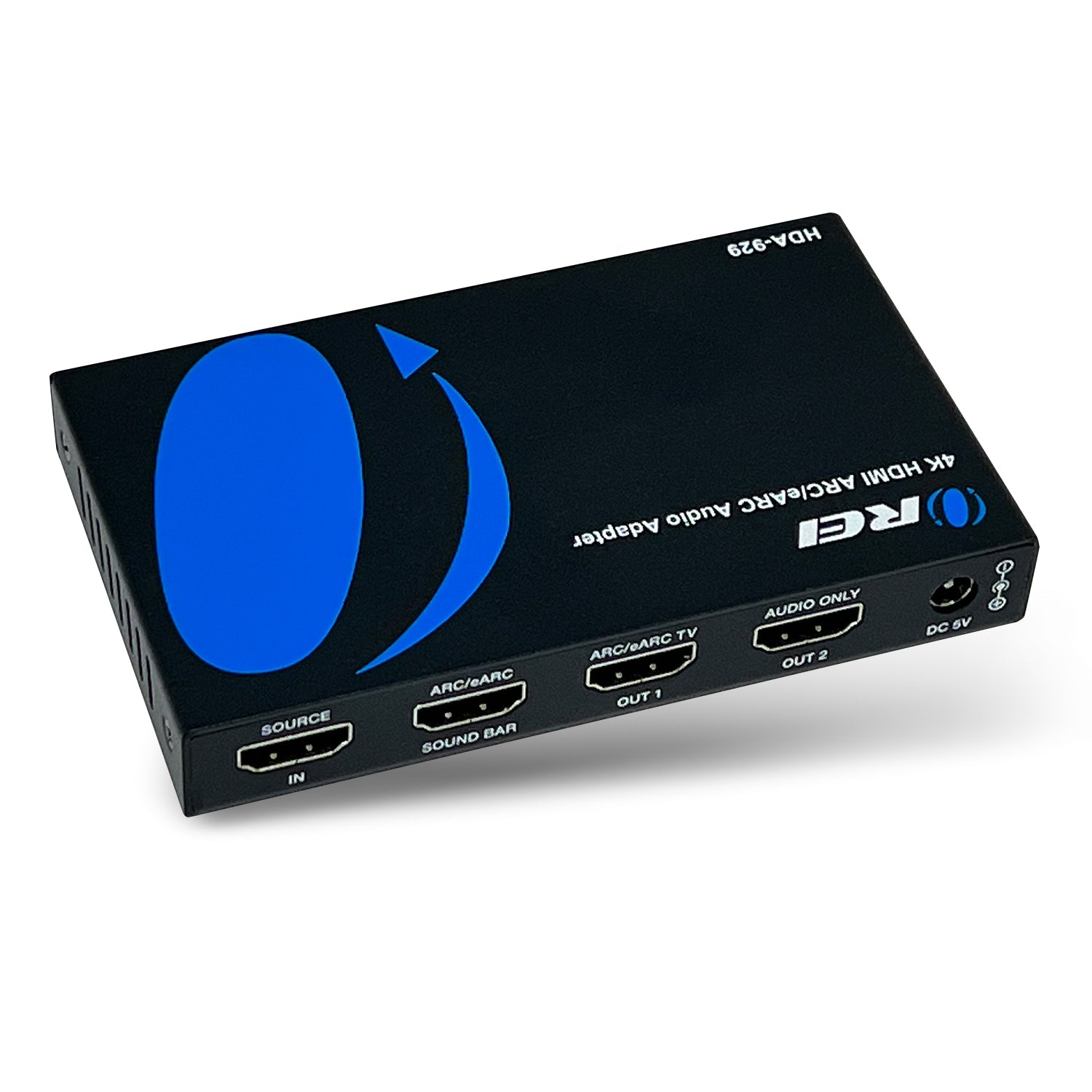

| INPUT PORTS: |
1 × HDMI IN [Type A, 19-pin female] |
| OUTPUT PORTS: |
1 × HDMI SOUND BAR [Type A, 19-pin female] |
|
2 × HDMI OUT [Type A, 19-pin female] |
COMPLIANCES
| HDMI Compliance |
HDMI 2.0b |
| HDCP Compliance |
HDCP 2.3 |
AUDIO AND VIDEO
| Video Bandwidth: |
18Gbps |
| Video Resolutions: |
Up to 4K2K@60 with 24-bit RGB/YCbCr 4:4:4 |
| Color Space: |
RGB, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0 |
| Color Depth: |
8-bit,10-bit,12-bit |
| HDMI Audio Formats: |
LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
FUNCTIONS
| CEC: |
NO |
| eARC/ARC: |
YES |
| Downmixing: |
NO |
| Downscaling: |
NO |
SWITCHES

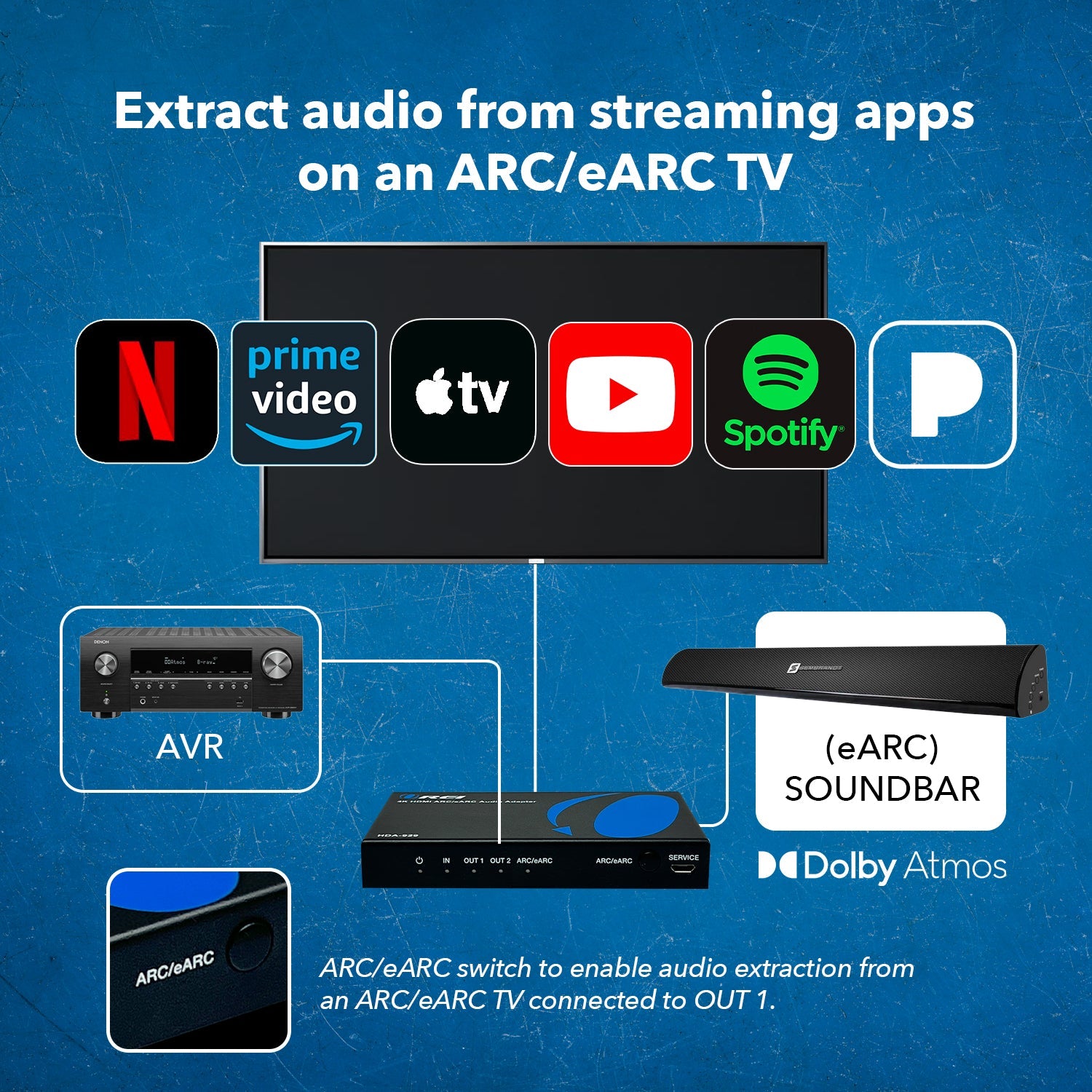

| eARC/ARC: |
ARC/eARC Switch to select if the audio is extracted from an ARC/eARC TV or through the Source |

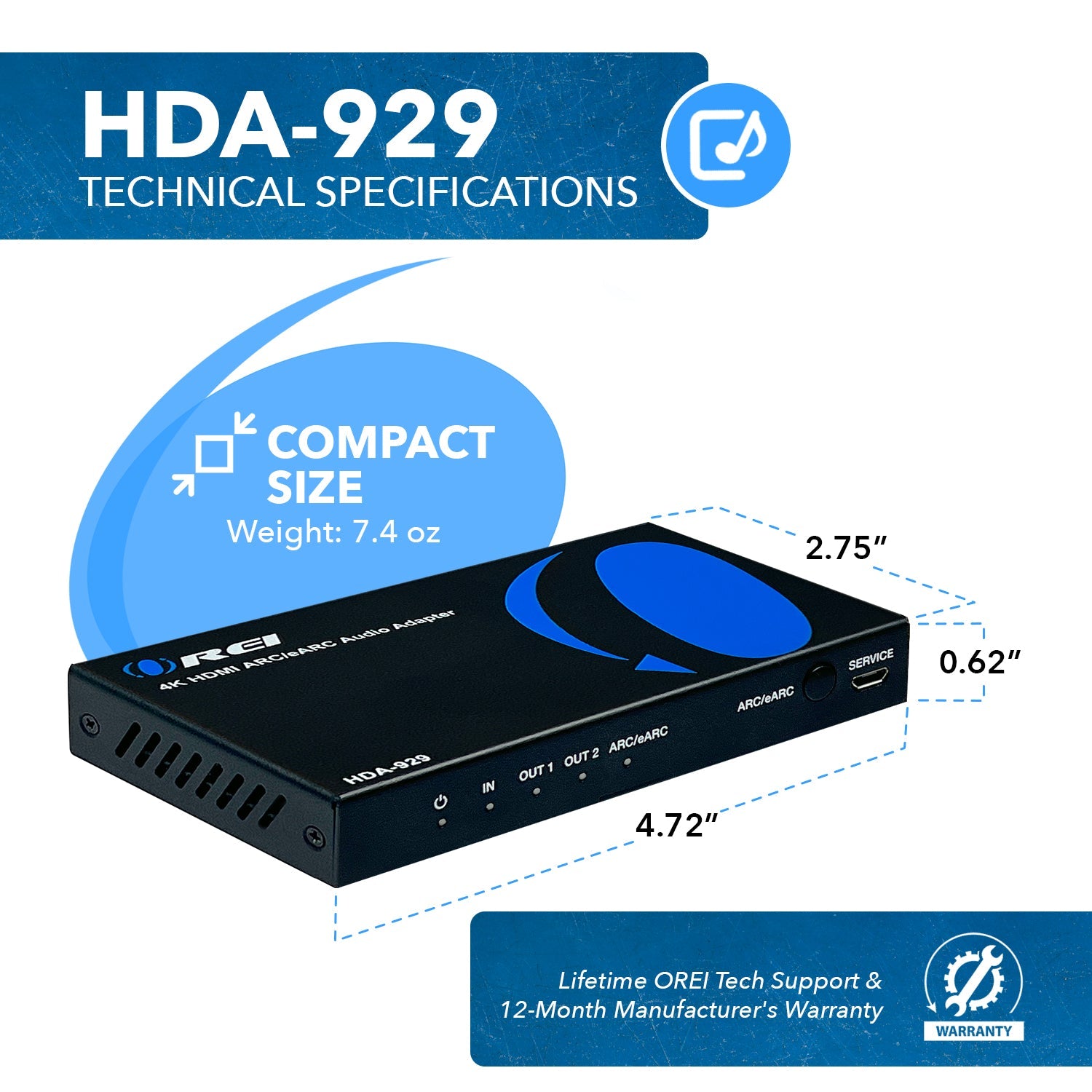

DIMENSIONS & WEIGHT
| Height: |
16mm |
| Width: |
120mm |
| Depth: |
70mm |
| Weight: |
210g |
PROTECTION
| Operation Temperature: |
32 - 104°F / 0 - 40°C |
| Storage temperature: |
-4 - 140°F / -20 - 60°C |
| Relative Humidity: |
20 ~ 90% RH (Non-condensing) |
POWER
| Power Consumption (Max): |
2.28W (Max) |
| Power Supply: |
DC 5V/1A |
PROPERTIES
| Color: |
Black |

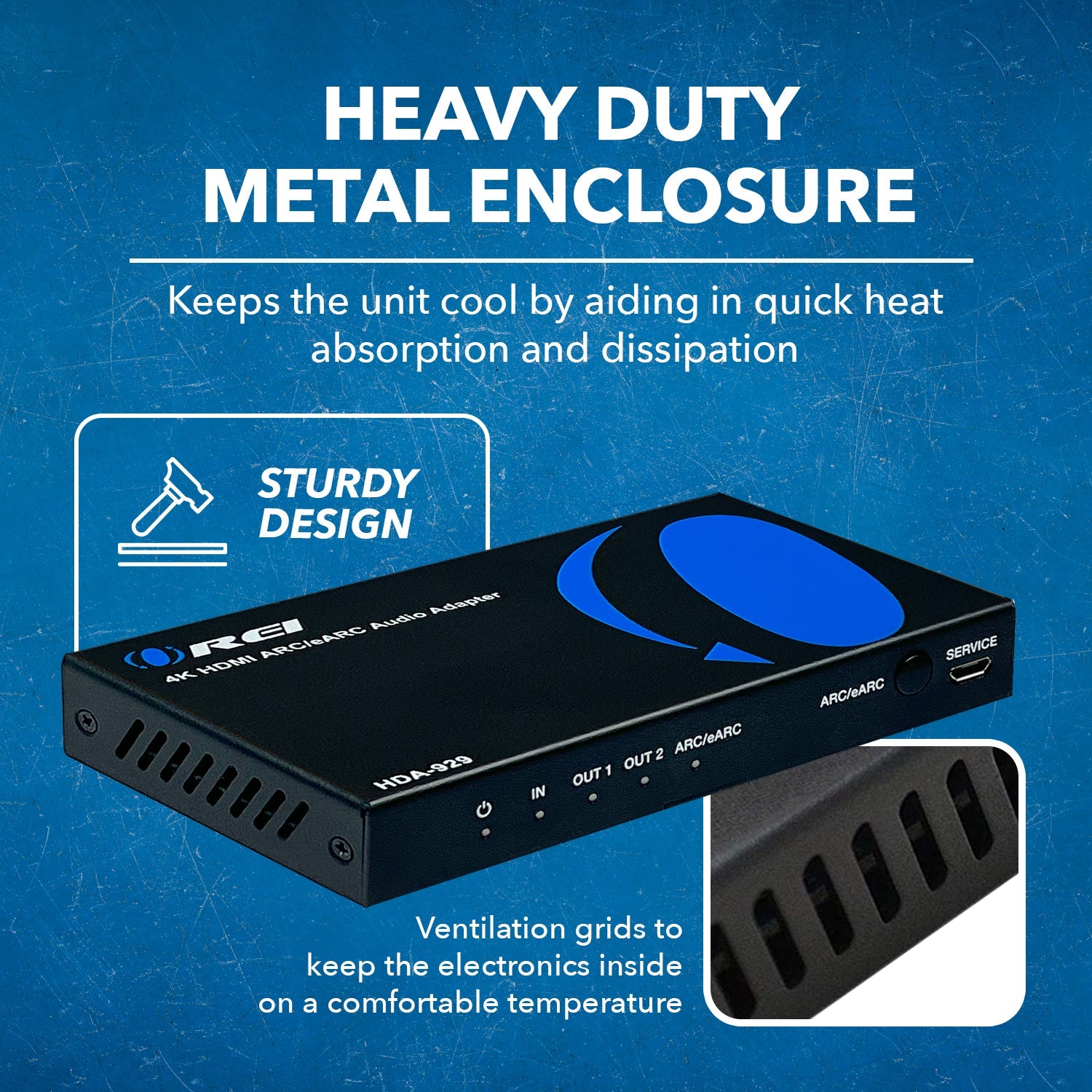

| Housing: |
Metal Enclosure |

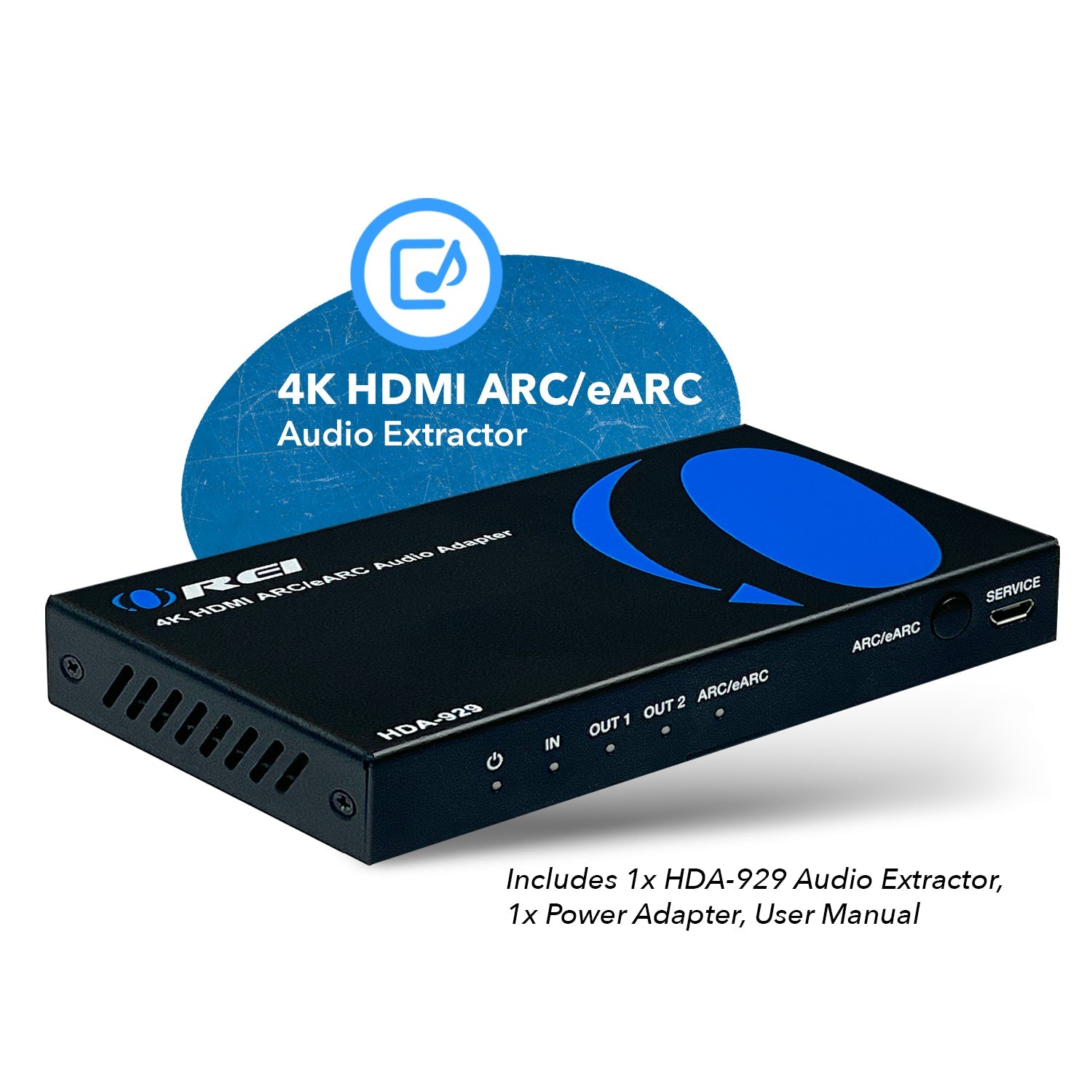

PACKAGE CONTENTS
| 1x 4K HDMI ARC/eARC Audio Adapter |
| 1x 5V/1A American Standard Power Adapter |
| 1x User Manual |
WARRANTY
| 1-Year Manufacturer's Warranty |
[/tab]
