Supports video resolutions up to 4K@60Hz (4:4:4:), 4K@30Hz & 1080p@120Hz
Audio up to 7.1 Channels of High-Definition audio pass through (LPCM, Dolby TrueHD & DTS-HD Master Audio)
Supports HDBaseT 2.0 over a single CAT6/7 cable up to 330ft
Supports ARC & CEC
5-Play convergence: HD video & audio, IR/RS-232/Ethernet/PoC

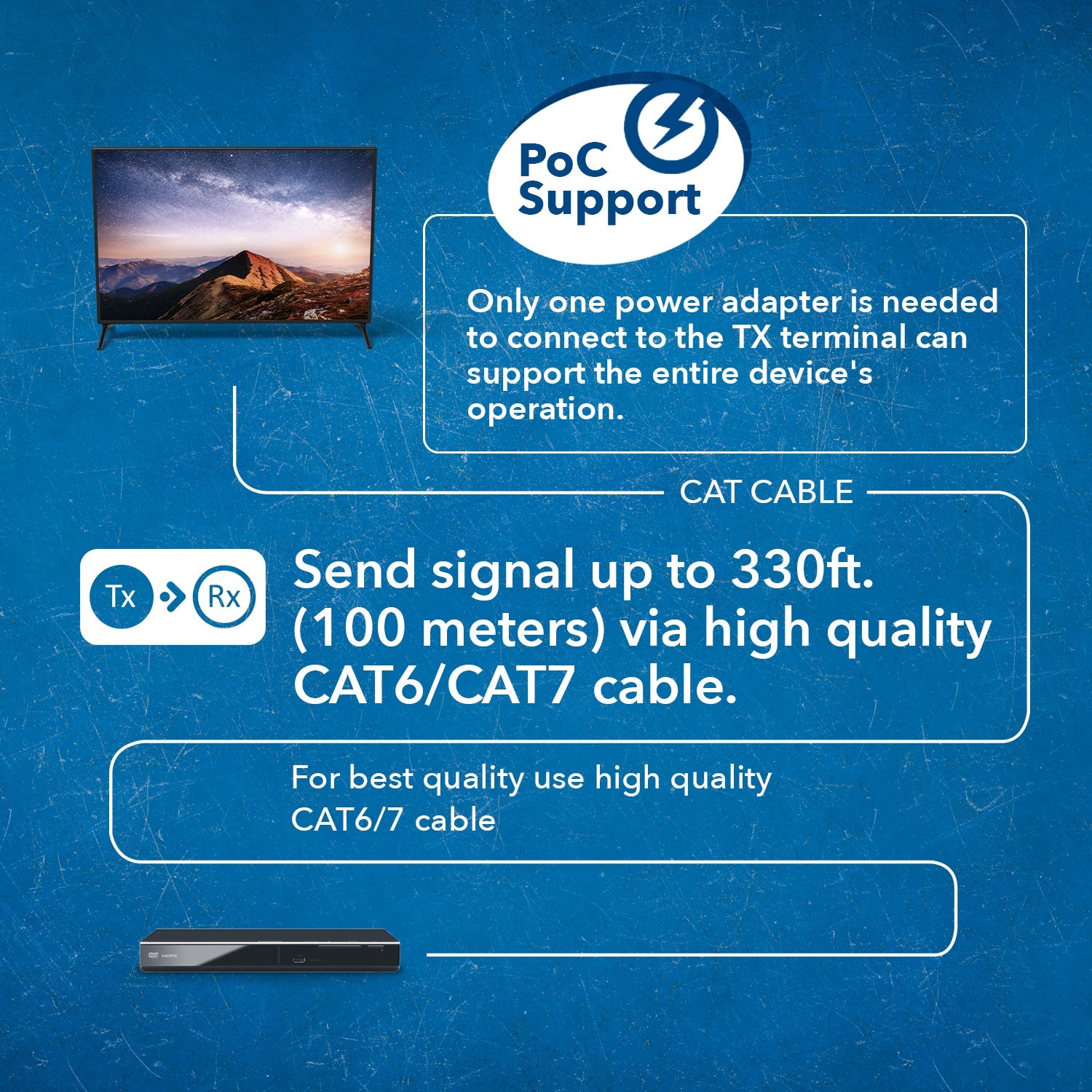

Two-Way PoC (Power Over Cable), either TX or RX powered by 24V/1A, the other one doesn't need power supply
This unit requires only one power adapter to work

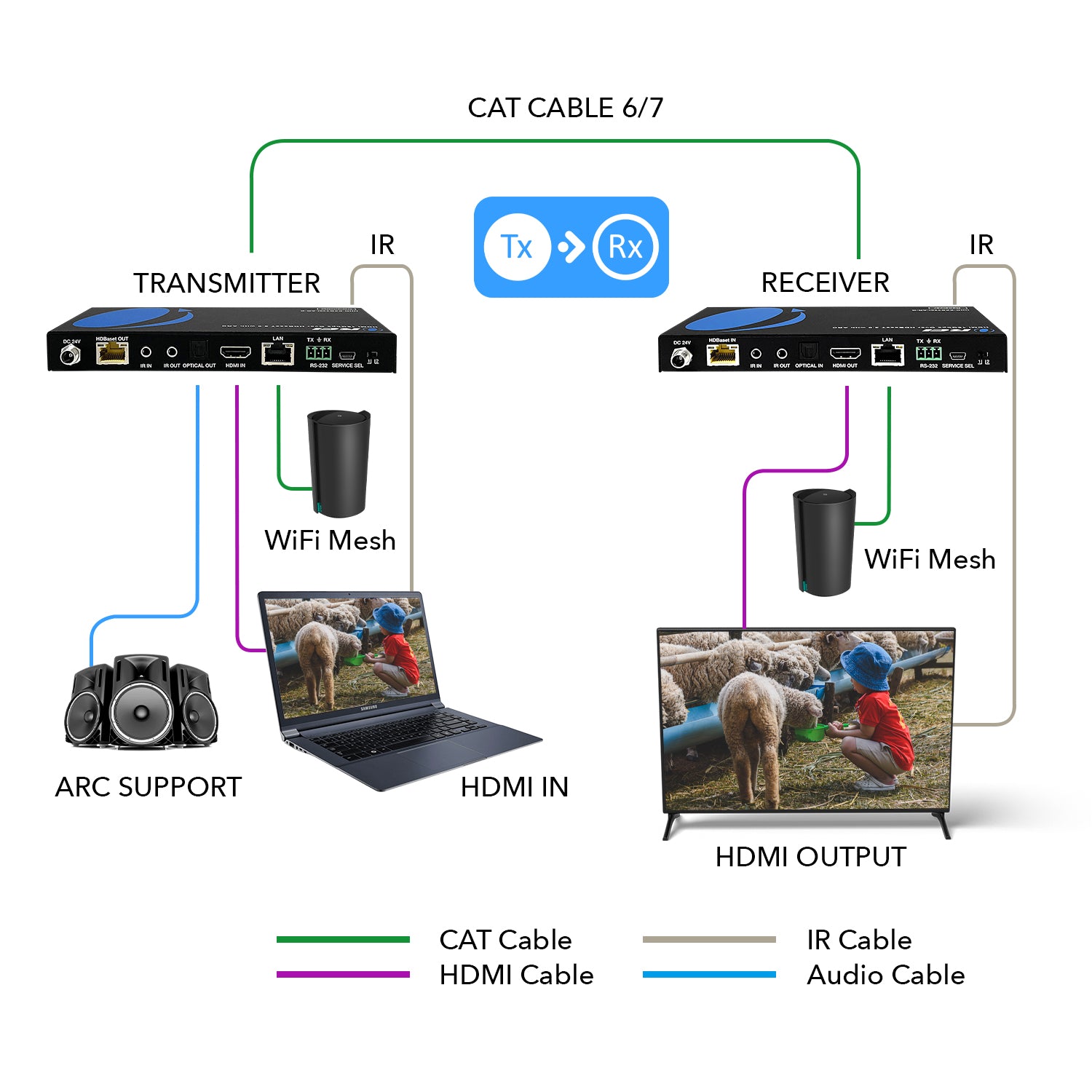

The HDBaseT HDMI extender enables transmission of video resolutions up to 4K@60Hz (YUV 4:4:4) along with HD audio, dedicated optical audio pathways, HDBaseT Ethernet, Two-Way IR, RS-232, 24V PoC & ARC signals up to 330ft.
ARC function enables audio from a compatible display to be routed back from the receiver unit to the transmitter. The latest HDBaseT 2.0 technology can make your home or office set up more efficient and easier to use.
[shortdes]
Supports audio up to 7.1Ch
Supports Bi-directional IR, PoC, ARC, RS-232
Extends signals up to 330 feet
[/shortdes] [tab]
AUDIO AND VIDEO

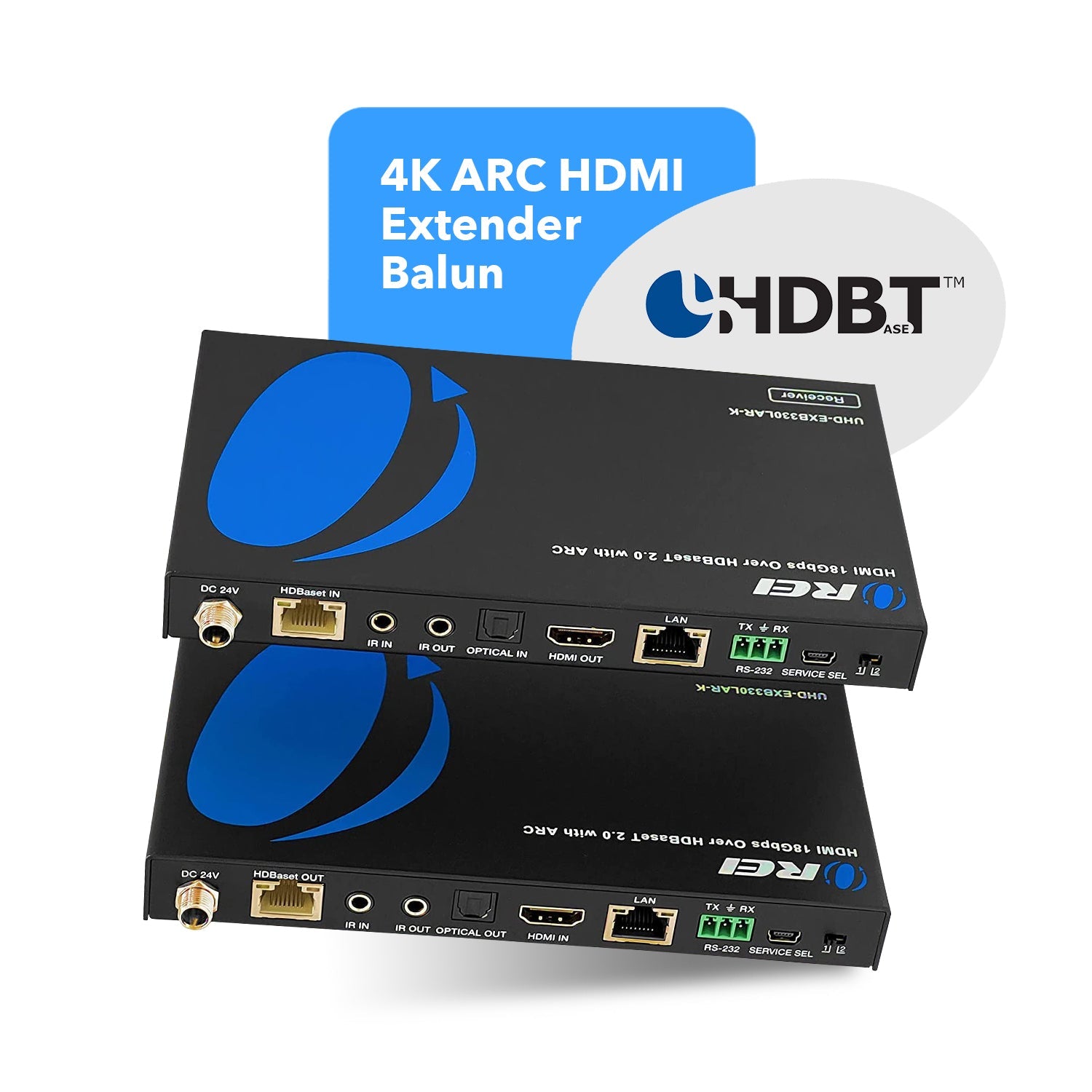

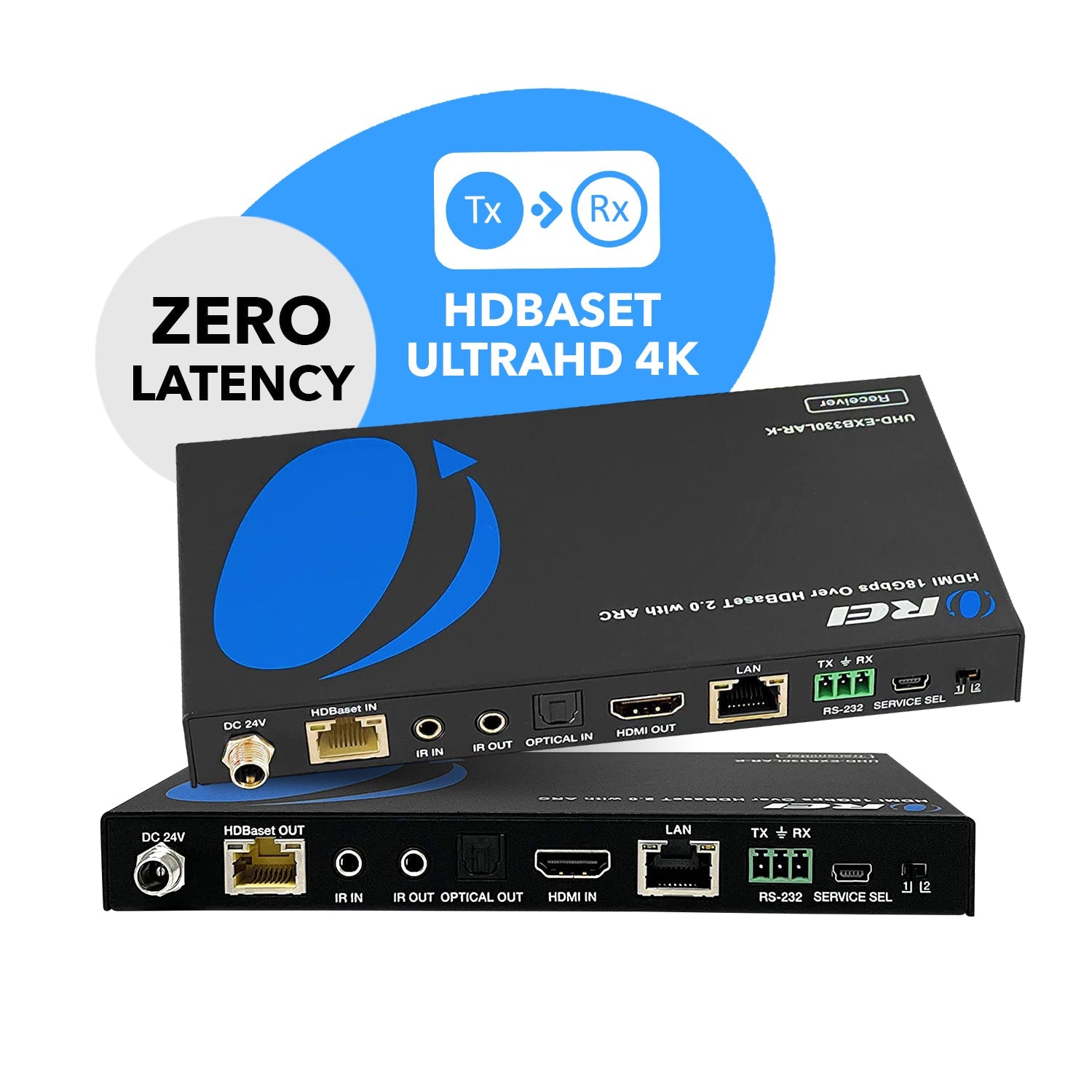

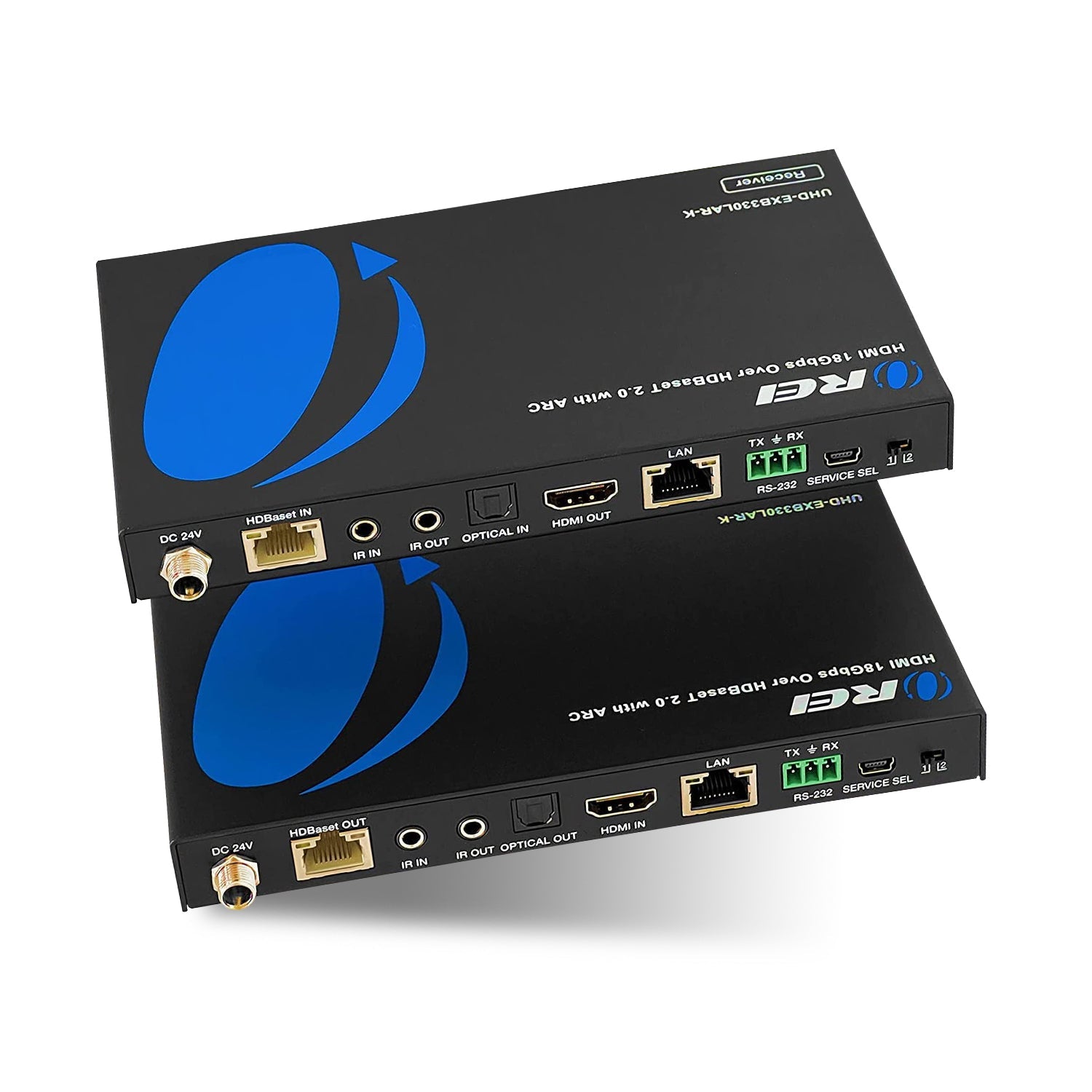

Transmitter:
INPUT PORTS:
1x HDMI Type A [19-pin female]
1x IR In [3.5mm Stereo Mini-Jack]
1x LAN [RJ45]
OUTPUT PORTS:
1x HDBaset Out [RJ45]
1x IR Out [3.5mm Stereo Mini-Jack]
1x Optical Out [S/PDIF]
Receiver:
INPUT PORTS:
1x HDBaseT In [RJ45]
1x IR IN [3.5mm Stereo Mini-Jack]
1x Optical In [S/PDIF]
OUTPUT PORTS:
1x HDMI Type A [19-pin female]
1x IR Out [3.5mm Stereo Mini-Jack]
1x LAN [RJ45]
COMPLIANCES
HDMI Compliance:
HDMI 2.0b
HDCP Compliance:
HDCP 2.2 and HDCP 1.4
SUPPORTED CAT CABLES
CAT5e, CAT6, CAT7:
We recommend you to use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance
EXTENDING DISTANCE
4K@60Hz:
Up to 330 Feet
VIDEO OUTPUT
Video Bandwidth:
18 Gbps
Video Resolutions:

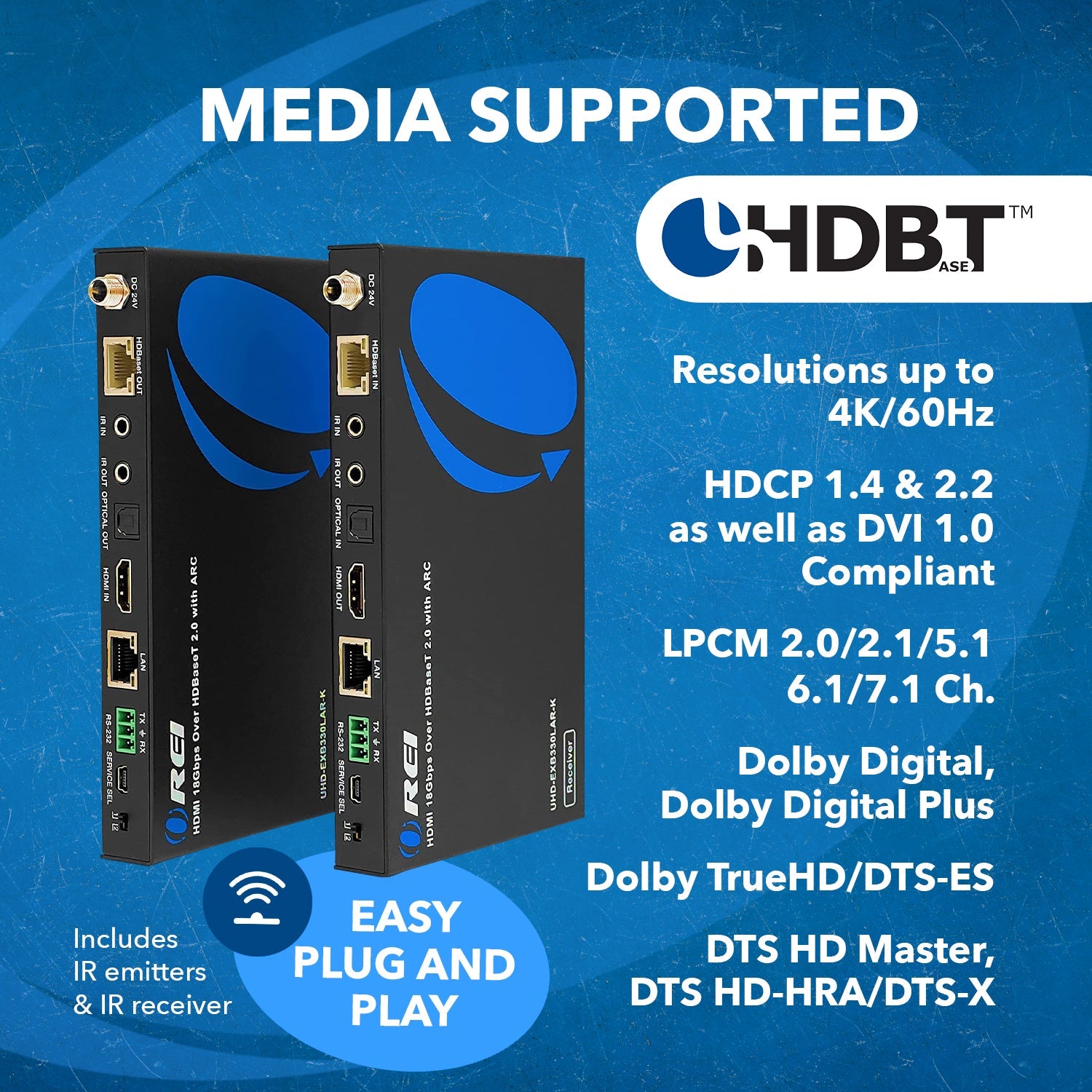

Up to 4K@60Hz (4:4:4), 4K@30Hz, 1080p@120Hz, 1080p 3D@60Hz
Color Space:
RGB, YCbCr 4:4:4, YCbCr 4:2:2
Color Depth:
8-bit, 10-bit, 12-bit
CEC, EARC, POC/POE, IR, DOWNSCALER, KVM, OVER IP, HDBASET, RS-232 SUPPORT
Yes, you can purchase these things directly from us. Please contact us & we will assist you further.
No, this product does not extend multiple screens. It will duplicate the input sources to multple outputs.
Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.
Yes, you can implement the daisy chain method.
Both the ends of the CAT cable should be termed as EIA-568B & the cable should be straight & not crossed.
We recommend you to use High-Quality HDMI cables & shielded CAT6 cables.
Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.
Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.
You can extend the display devices up to 330 Feet when using with a shielded CAT6 cable.
The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable.
If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead.
Please contact us so that we can troubleshoot the issue.
