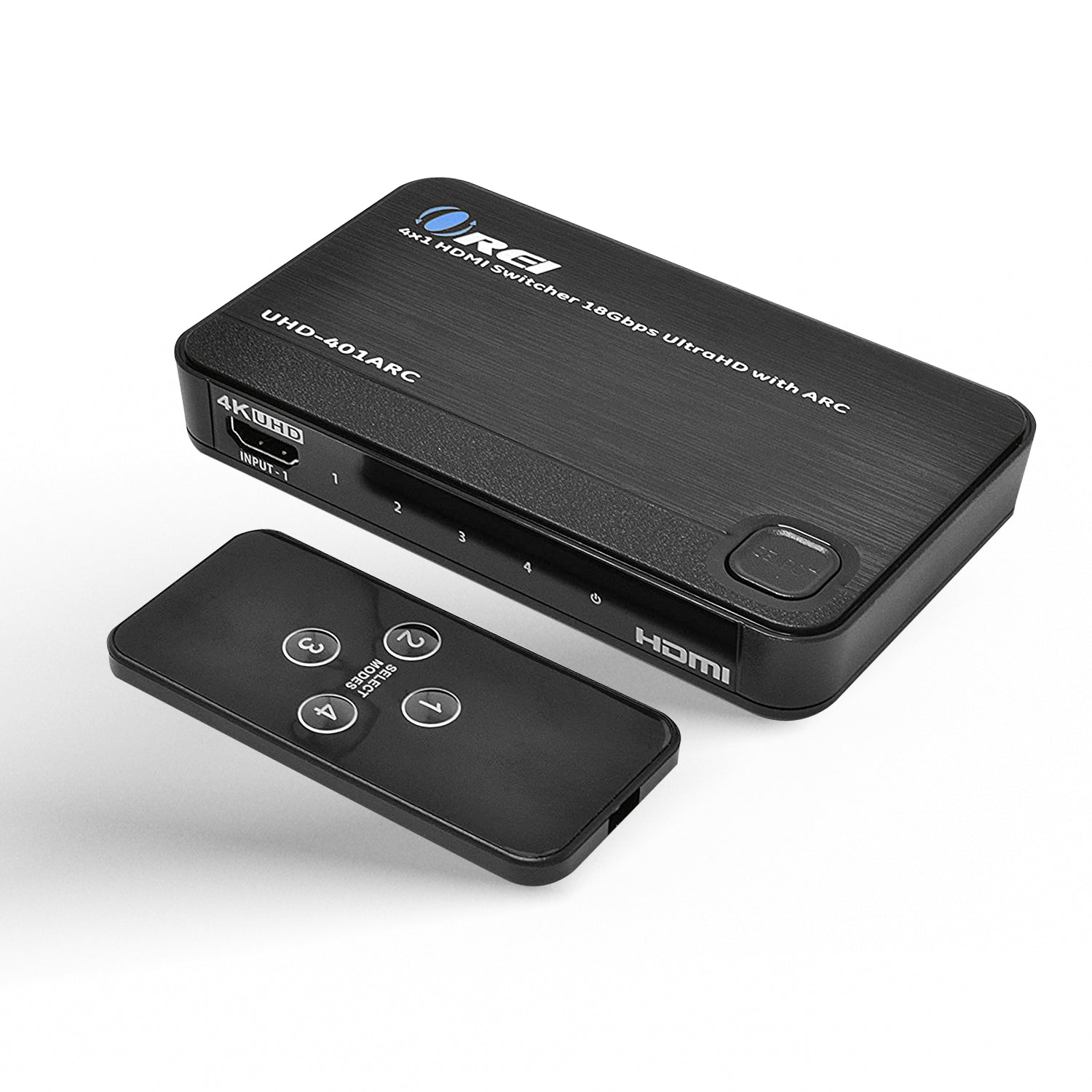

Name: 4K ARC 4x1 HDMI Switcher - Supports 4K @ 60Hz, Connect Sound bar With ARC (UHD-401ARC)
Brand: OREI
SKU: UHD-401ARC
Price: 47.00 CAD
Availability: OutOfStock

4K ARC 4x1 HDMI Switcher - Supports 4K @ 60Hz, Connect Sound bar With ARC (UHD-401ARC)

Roll over image to zoom in Click on image to zoom

UHD-401ARC HDMI Combo Switch - 4 Inputs 1 Output

Key Features:

4 inputs and 1 output HDMI Switch
HDMI 2.0 / Ultra HD 4k (3840 x 2160 @60Hz)
DTS® HD, Dolby® TrueHD lossless compressed digital audio compliant

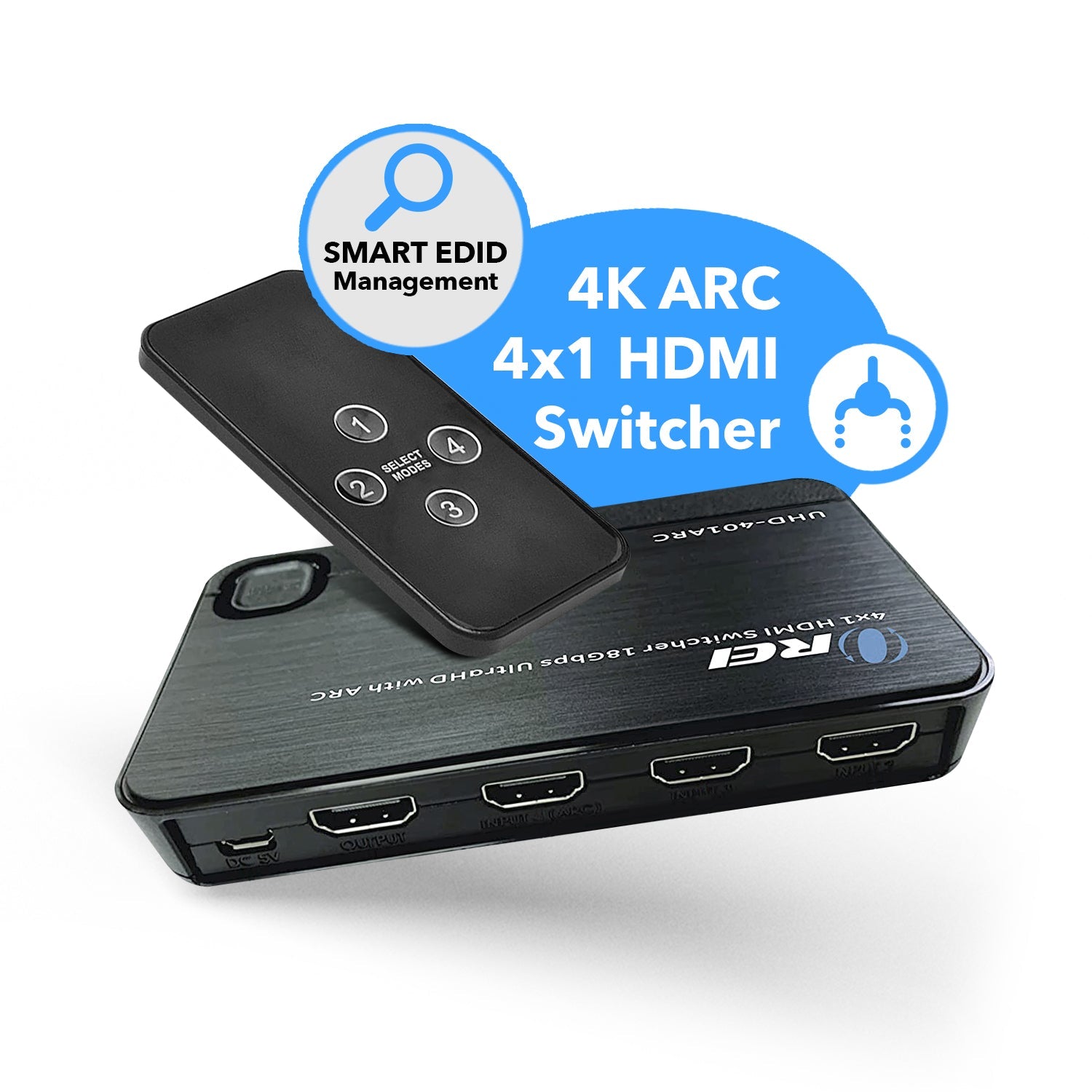

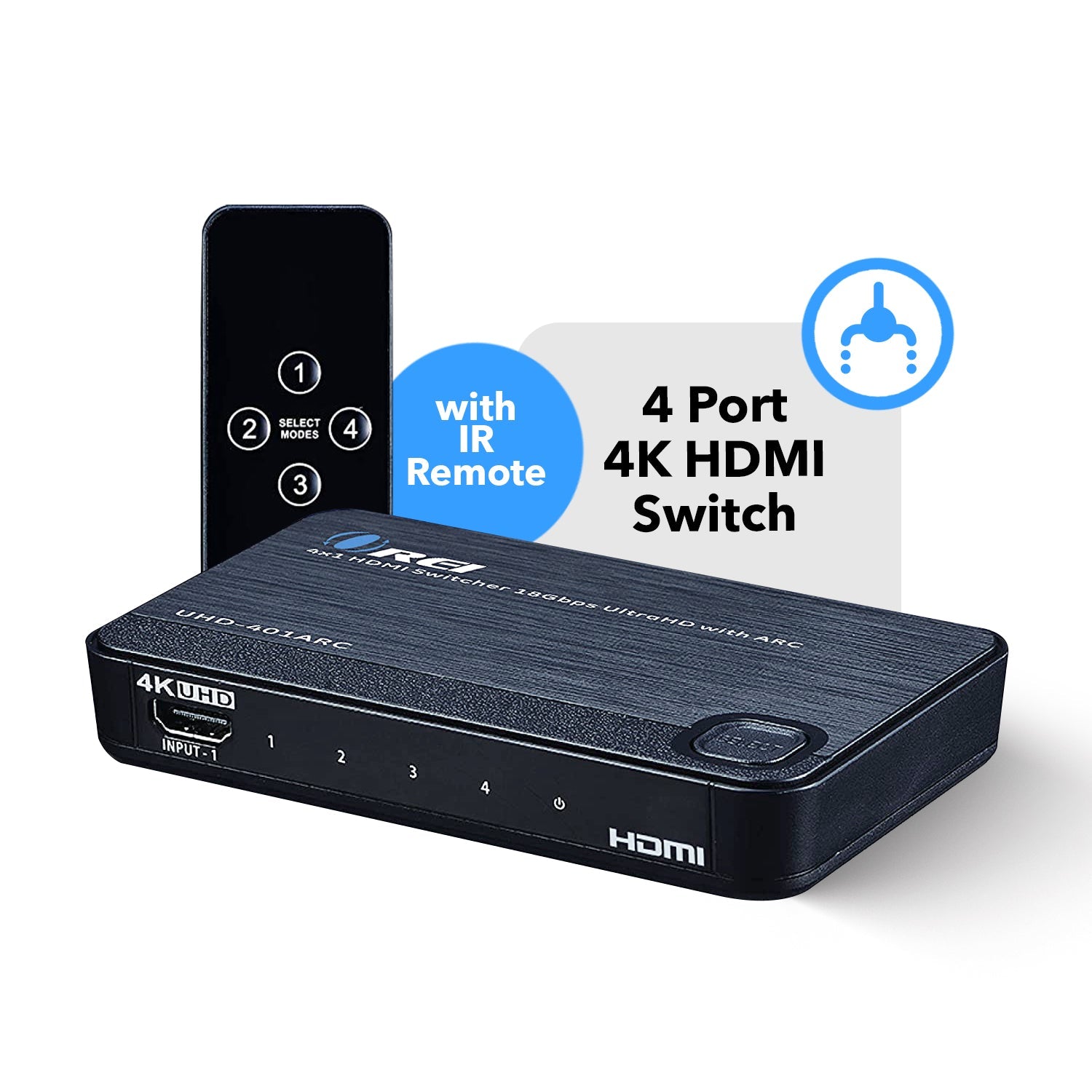

Multiple controls: Front panel button operation and IR Remote Control
One HDMI input port on the front panel for quick and easy access

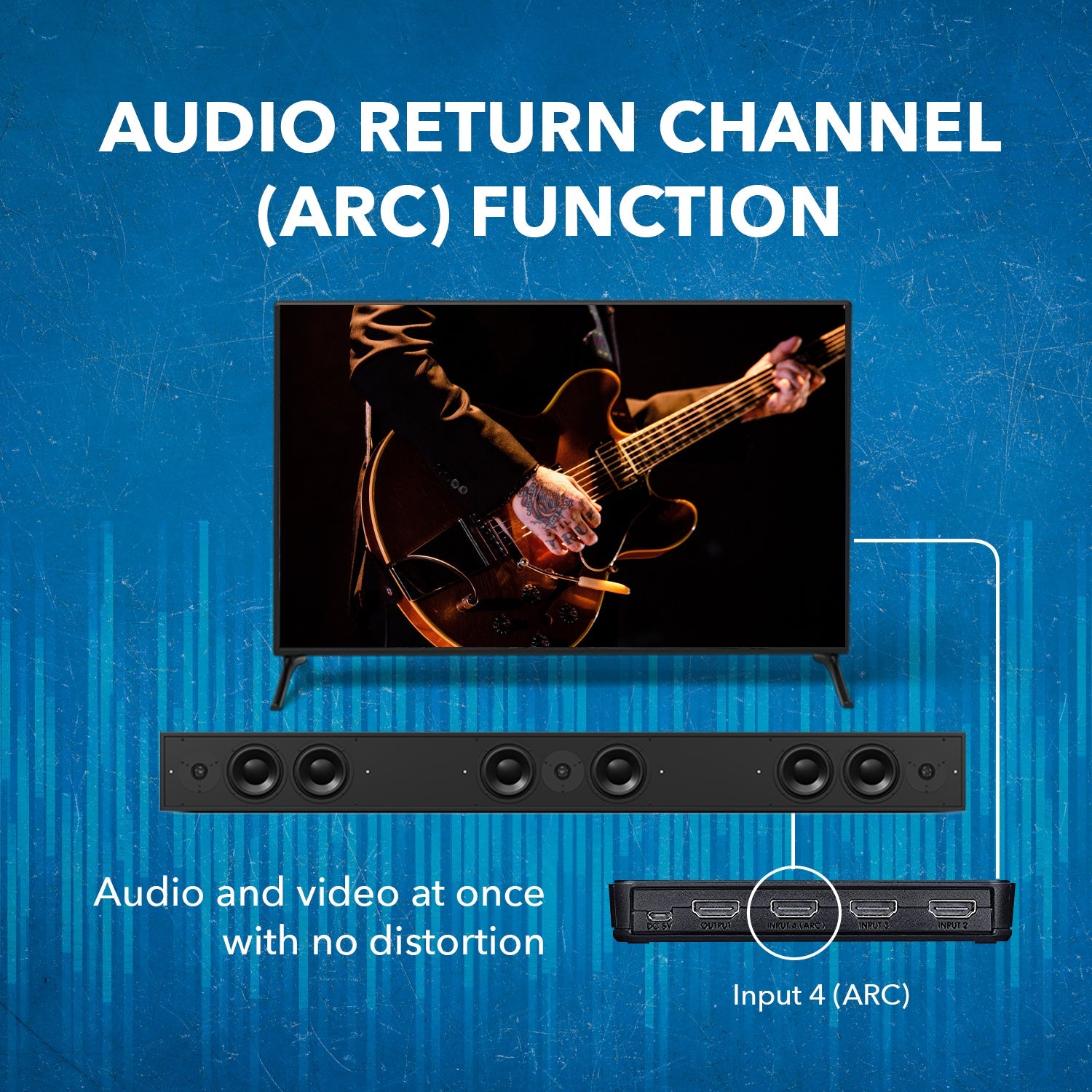

ARC bypass (Input-4 & Output)

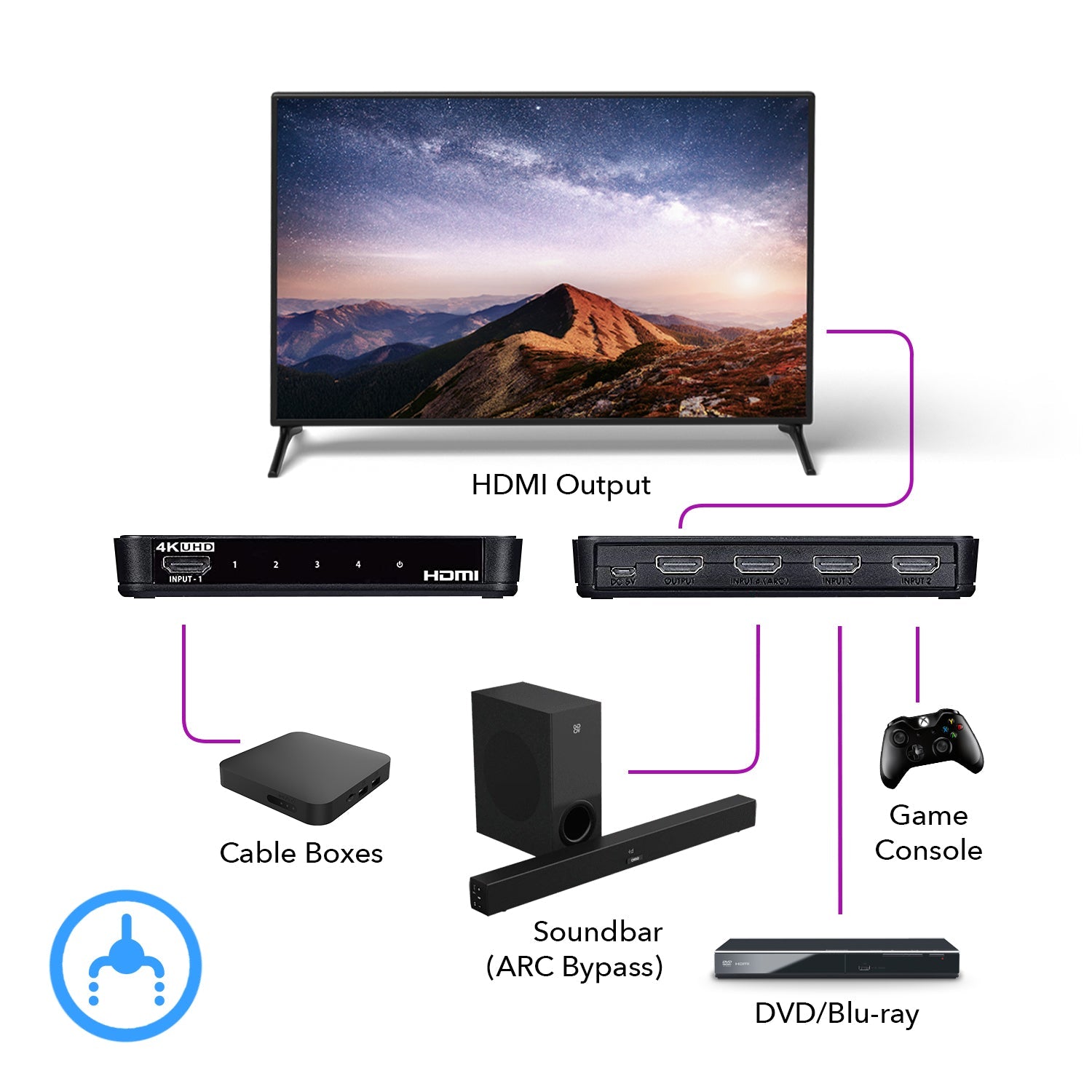

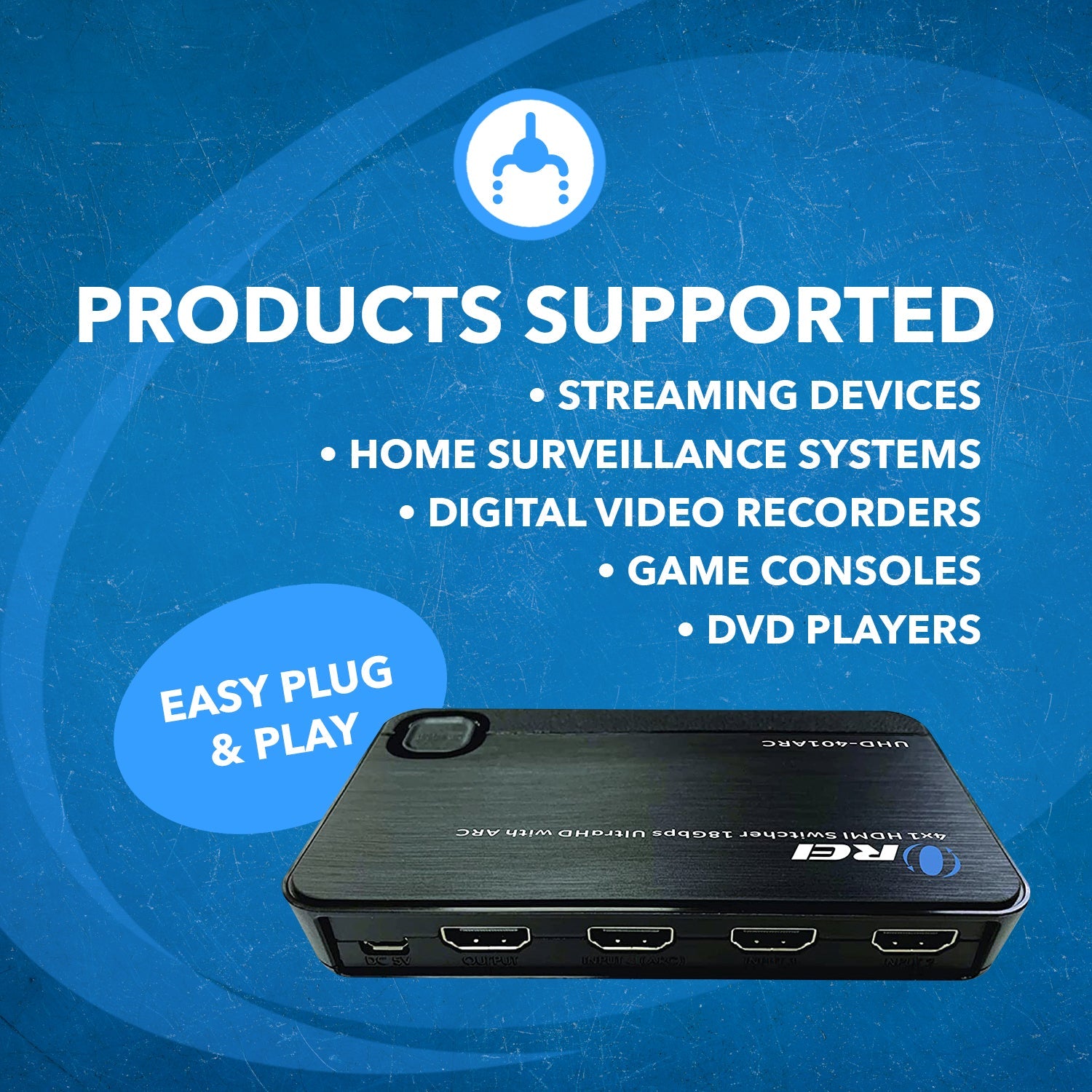

Few sample applications:

The OREI UHD-401ARC 4x1 switch can expand the HDMI input of your HDMI display with up to 4 HDMI inputs with a single HDMI cable connected to your display. Easily switch between 4 HDMI sources and output to a single HDMI output. The switch supports a 4K@60Hz signal and is HDCP 2.2 & HDMI 2.0 compliant. The HDMI Output can be selected by pressing the button on top of the device or using the included IR wireless remote control. The UHD-401ARC supports the ARC bypass function (Input-4 & Output) to connect a soundbar or audio receiver with an HDMI ARC port. DTS® HD, Dolby® TrueHD lossless compressed digital audio compliant. The product also supports CEC pass-through.

[summary]

4K 2.0a (18Gbps) HDMI 4 Input into 1 output Switcher
highest video resolution up to 4K x 2K at 60Hz
ARC bypass function

[/summary]

[tab]

AUDIO AND VIDEO

Inputs Ports	4 HDMI input (Type A 19-pin female)
Output Ports	1 HDMI output (Type A 19-pin female)
Video Bandwidth	18Gbps
Video Resolution:	4K@60Hz(4096x2160), 1080P@60Hz (1920x1080)
Color Space:	RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
HDMI Audio Formats:	PCM 2ch / PCM5.1 /PCM7.1, DTS /DTS-HD, Dolby 5.1 /Dolby 7.1/ Dolby TrueHD

COMMUNICATION AND CONTROL

HDMI Compliance	HDMI 2.0
HDCP Compliance	HDCP2.2

POWER

Power Supply:	DC 5V / 0.6A
Power Consumption	356mA

CONTROL

CEC

Pass through

ENVIRONMENTAL

Operating Temperature:	0°C to 40°C (32°F to 104°F)
Storage Temperature:	-20°C to 60°C (-4°F to 140°F)
Relative Humidity	10~90 % RH

DIMENSIONS & WEIGHT

Height	20.5mm
Width	131mm
Depth	78.5mm
Weight	109g

REGULATORY

Safety and Emission:

CE | FCC | RoHS

PACKAGE CONTENTS

1 × UHD-401ARC 4x1 HDMI Switch

1 × Power Adapter

1 × User Manual

1 × Remote Control

Warranty

1 - Year Manufacturer's Warranty

[/tab]

[tab1]

FAQs

You can use standard HDMI cables up to 15 feet and high quality cables up to 30 feet.

However, you can use fiber optic active HDMI cables up to 200 feet. If its not a high quality cable then you may lose the signal in some instances.

You can use standard HDMI cables up to 15 feet and high quality cables up to 30 feet.

However, you can use fiber optic active HDMI cables up to 200 feet. If its not a high quality cable then you may lose the signal in some instances.

No, our switchers aren't compatible with capture cards

Yes, the included power adapter does support 220V

[/tab1]

[shortdes]

4 Inputs - 1 outputs ARC HDMI switch
Video resolution up to 4K@60Hz - HDR
Supports ARC function
Compliance: HDMI 2.0 - HDCP 2.2

[/shortdes]

General Information

UPC	820103569866
