OREI UHD816-EX230-K: 4K 8x8 HDMI Matrix Extender with IR & RS-232 control upto 230 feet
Key Features:
HDMI 2.0b and HDCP 2.2 compliant
Video resolution up to 4K@60Hz (YUV 4:4:4) on all HDMI & CAT ports
8 HDMI inputs, 8 HDMI & CAT mirrored outputs
HDMI ports support 18Gbps lossless compressed video bandwidth
HDR, HDR10, HDR10+, Dolby Vision, HLG are supported
CAT output can extend the transmission distance up to 230ft/70m via a single CAT6 cable
HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD and DTS-HD Master Audio)
Advanced EDID management and CEC control are supported

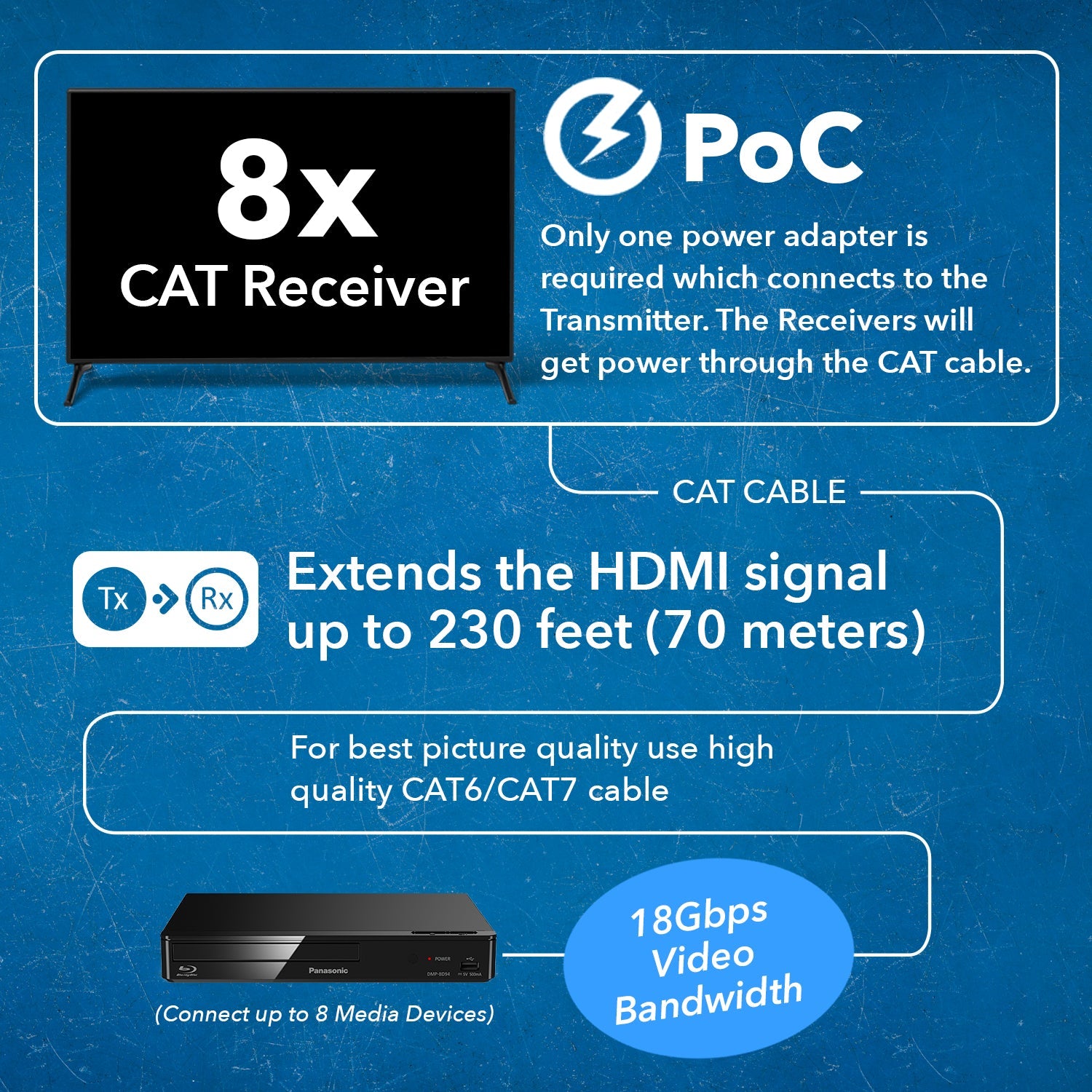

12V PoC on all CAT ports
Supports one-way IR matrix function
Control via front panel buttons, IR remote, RS-232, LAN and Web GUI

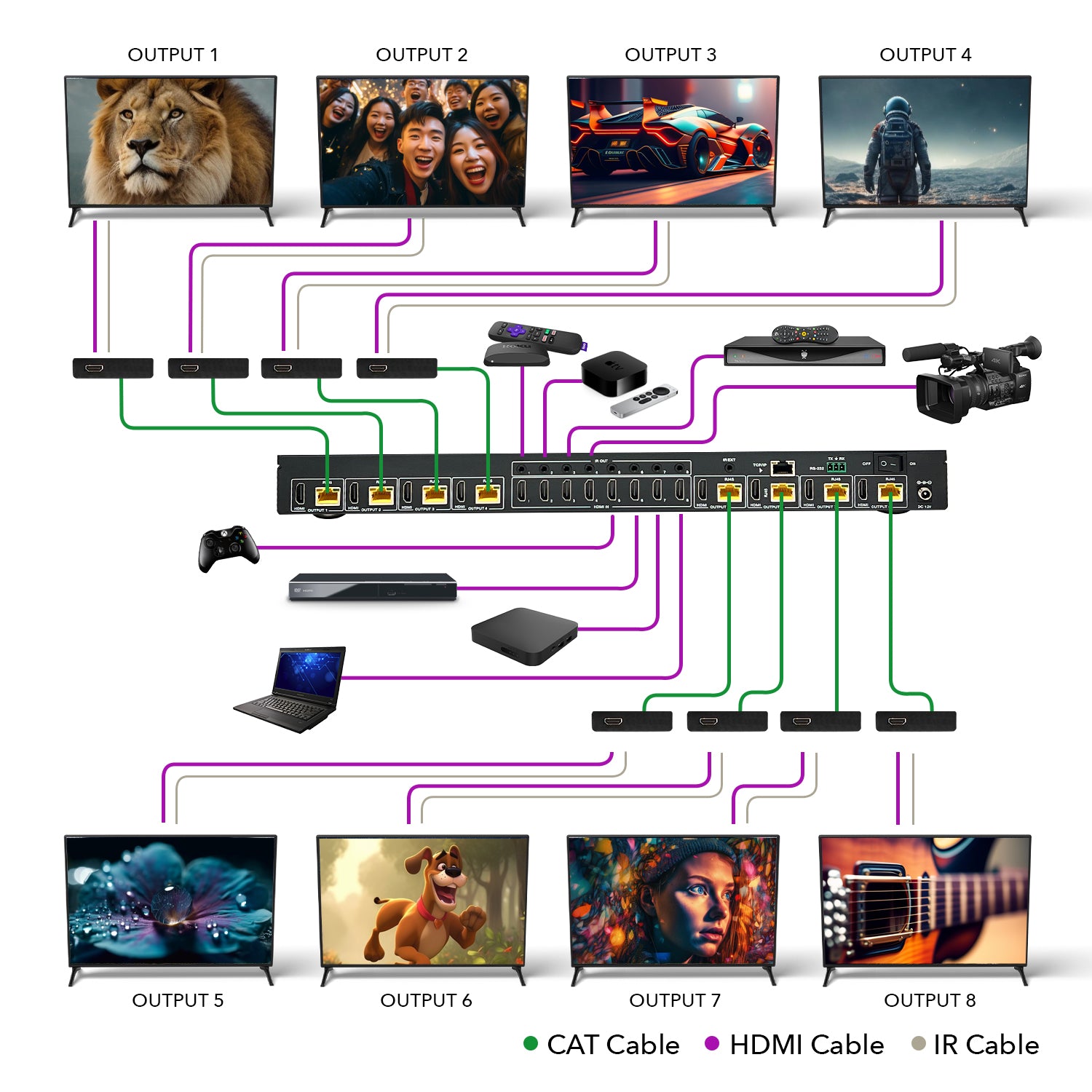

The UHD816-EX230-K Matrix can connect up to 8 HDMI sources and output to 16 displays. It features eight HDMI outputs, and each HDMI output is mirrored to provide a CAT-Cable output which runs simultaneously. It supports transmission of video with resolutions up to 4K@60Hz 4:4:4 and supports HD digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio. The Matrix can be used for multi-room connectivity, and the HDMI signals can be extended up to 230ft/70m via CAT-Cable outputs by connecting the included CAT Receivers. The Matrix supports one-way IR matrix function. It can be controlled via front panel buttons, IR remote, RS-232, LAN, and Web GUI.
[shortdes]
16 outputs (8 HDMI & CAT mirrored)
4K@60Hz up to 230 feet
RS-232 and TCP/IP control
[/shortdes]
[tab]

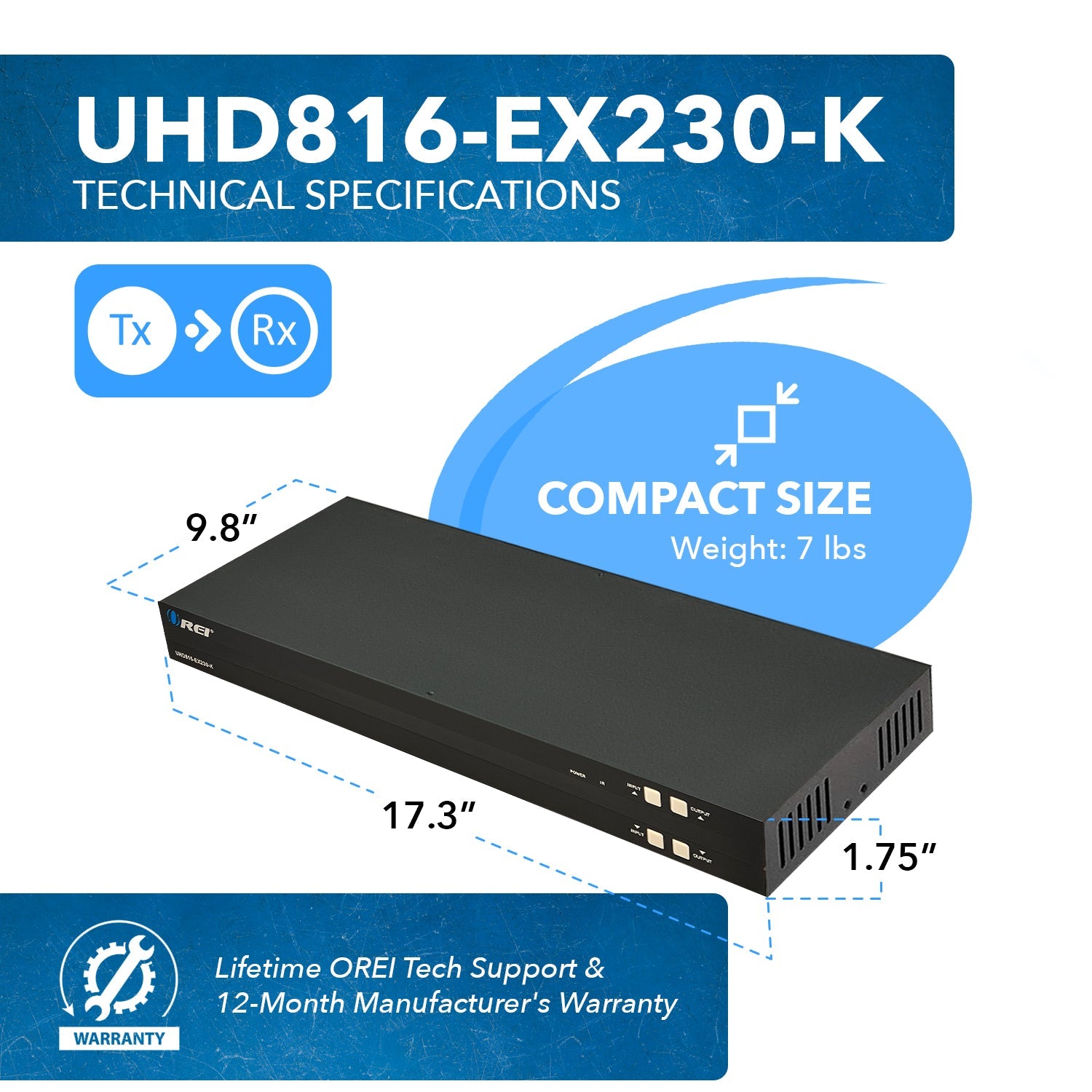

CONNECTIVITY
Transmitter:
INPUT:
8 × HDMI [Type A, 19-pin female]
OUTPUT:
8 × HDMI [Type A, 19-pin female]
8 × CAT [RJ45, 8-pin female]
CONTROL:
8 × HDMI [Type A, 19-pin female]
1 × RS-232 [3-pin Phoenix connector]
8 × IR OUT [3.5mm Stereo Mini-jack]
1 × IR EXT [3.5mm Stereo Mini-jack]
Receiver:
INPUT:
1 × CAT [RJ45, 8-pin female]
OUTPUT:
1 × HDMI [Type A, 19-pin female]
CONTROL:
1 × IR IN [3.5mm Stereo Mini-jack]
1 × SERVICE [Micro USB, Update port]

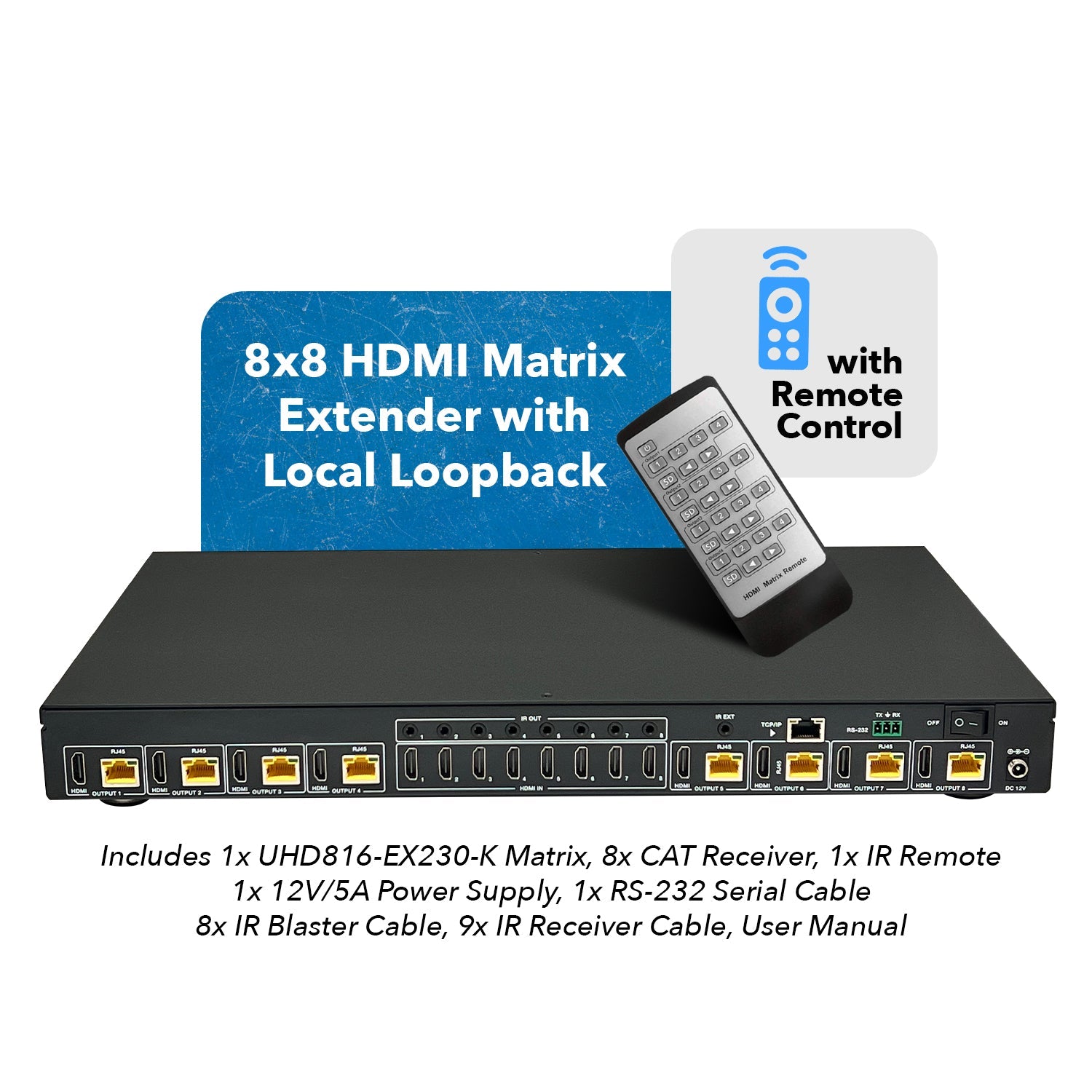

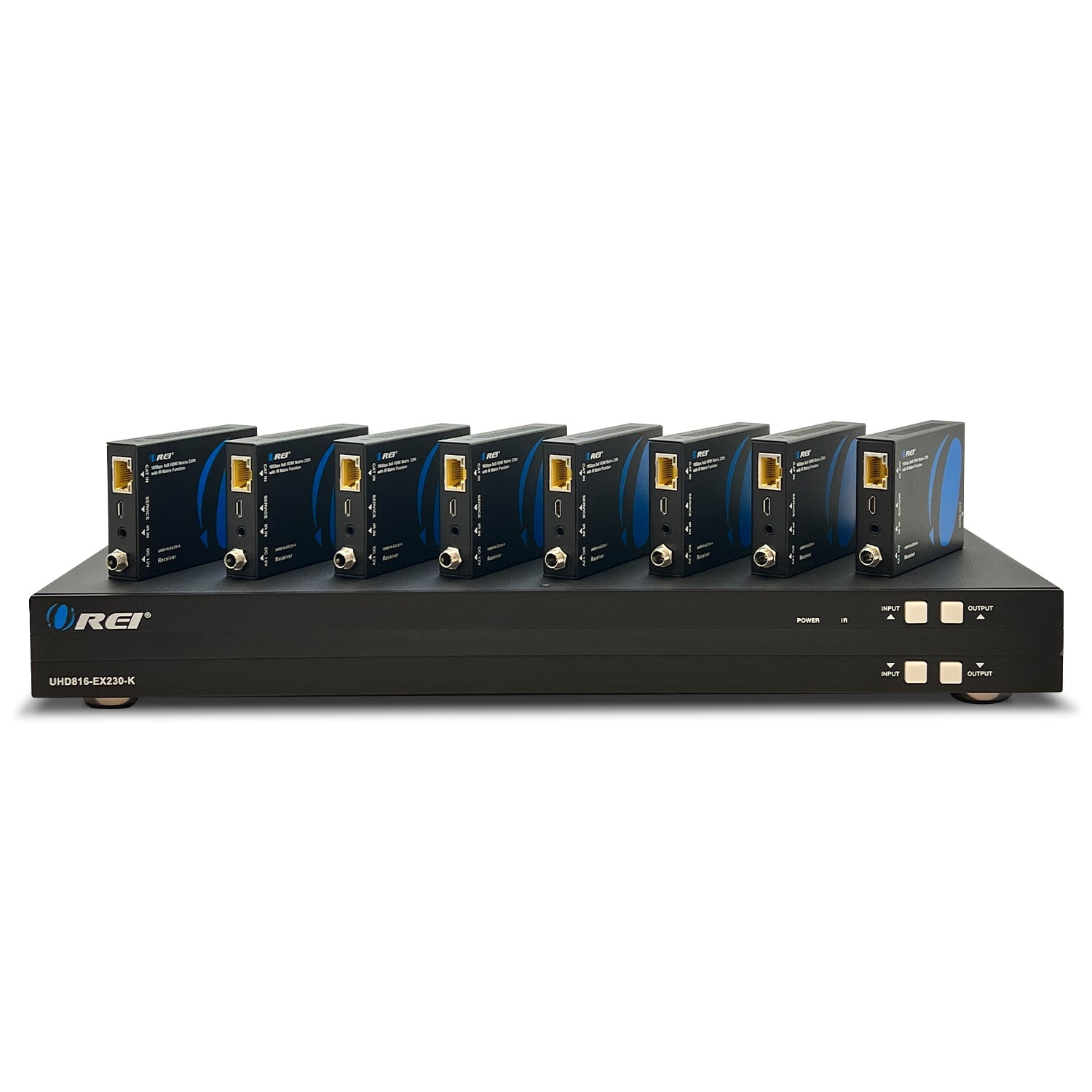

PACKAGE CONTENTS
1x Transmitter

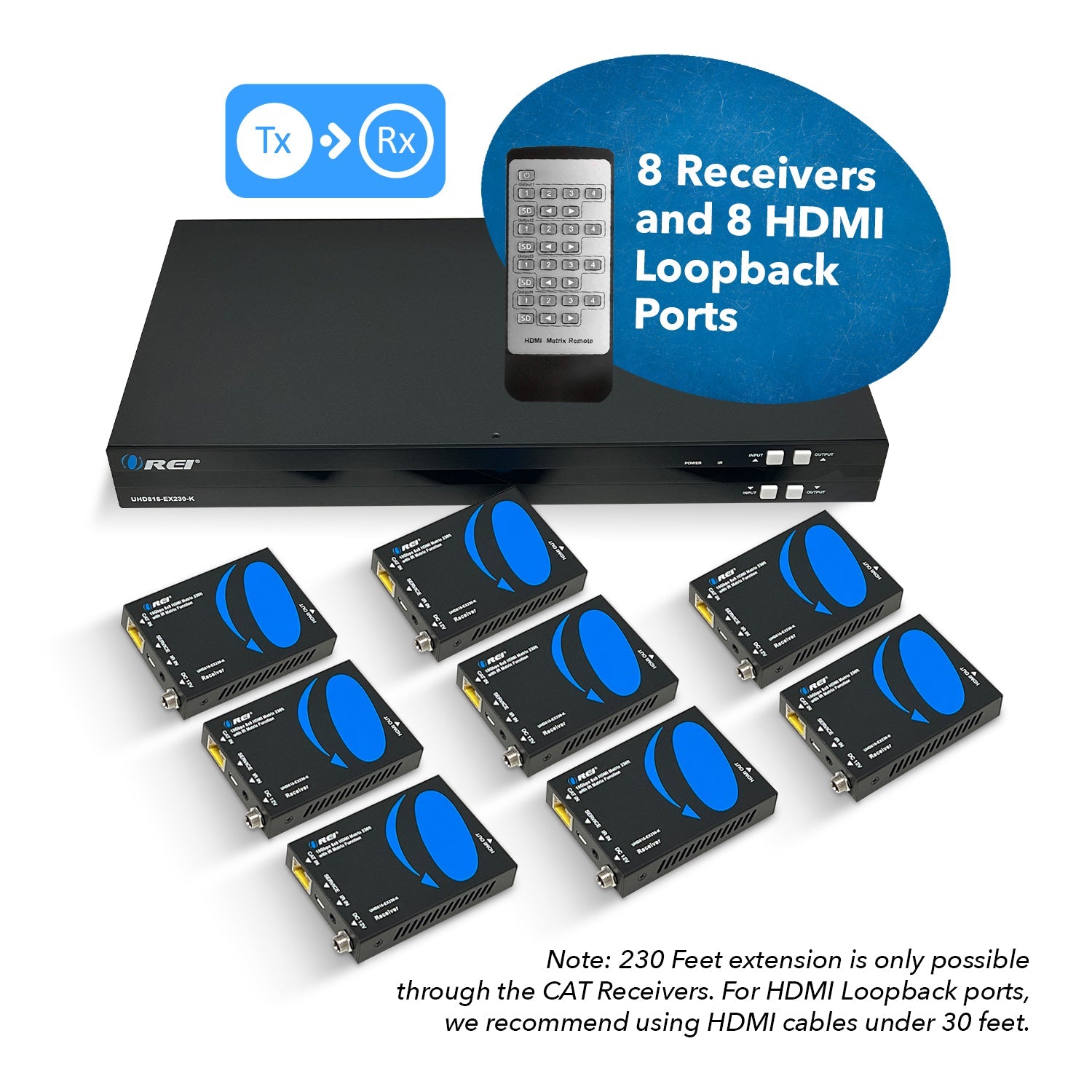

8x Receiver
1x IR Remote
8x IR Blaster cable
9x IR Receiver cable
1x DB9 to RS-232 Cable
18x Mounting Brackets
8x Screw (KM3*6)
1x Power Adapter
User Manual
SUPPORTED CAT CABLES
CAT5e, CAT6, CAT7:
We recommend you use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance
Yes, you can purchase these things directly from us. Please contact us & we will assist you further.
No, this product doesn not extend multiple screens. It will duplicate the input sources to multple outputs.
Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.
Yes, you can implement the daisy chain method.
Both the ends of the CAT cable should be termed as EIA-568B & the cable should be straight & not crossed.
We recommend you to use High-Quality HDMI cables & shielded CAT6 cables.
Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.
Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.
No, this product doesn't upscale/downscale the video resolutions.
You can extend the display devices up to 400 Feet when using with a shielded CAT6 cable.
The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable.
If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead.
Please contact us so that we can troubleshoot the issue.
You can upgrade the firmware by connecting the PC & this device via RS-232 cable.
Please note that this product only supports the CEC function between HDMI input & HDMI output 1.
No, optical output doesn't supports CEC due to its limitations. CEC will work only with HDMI devices.
HDBaseT is the technology used for long distance transmission of lossless signals, resulting extremely low latency & giving the best picture quality.
In normal extenders, if you extend your signals up to some extend, the quality of the signals will degrade & you may find some latency issues. HDBaseT is the lastest standard which provides extending your signals to the longer distance without degrading the quality of the signals & with 0 latency.
We recommend you using a shielded CAT6 cables for optimum performance.
Our all the extenders supports IR Frequency & the devices using RF frequency will not be compatible with our products.
The IR Blaster/Emitter should be connected to the IR out port on the Transmitter and the IR Receiver should be connected to the IR in on the Receiver.
