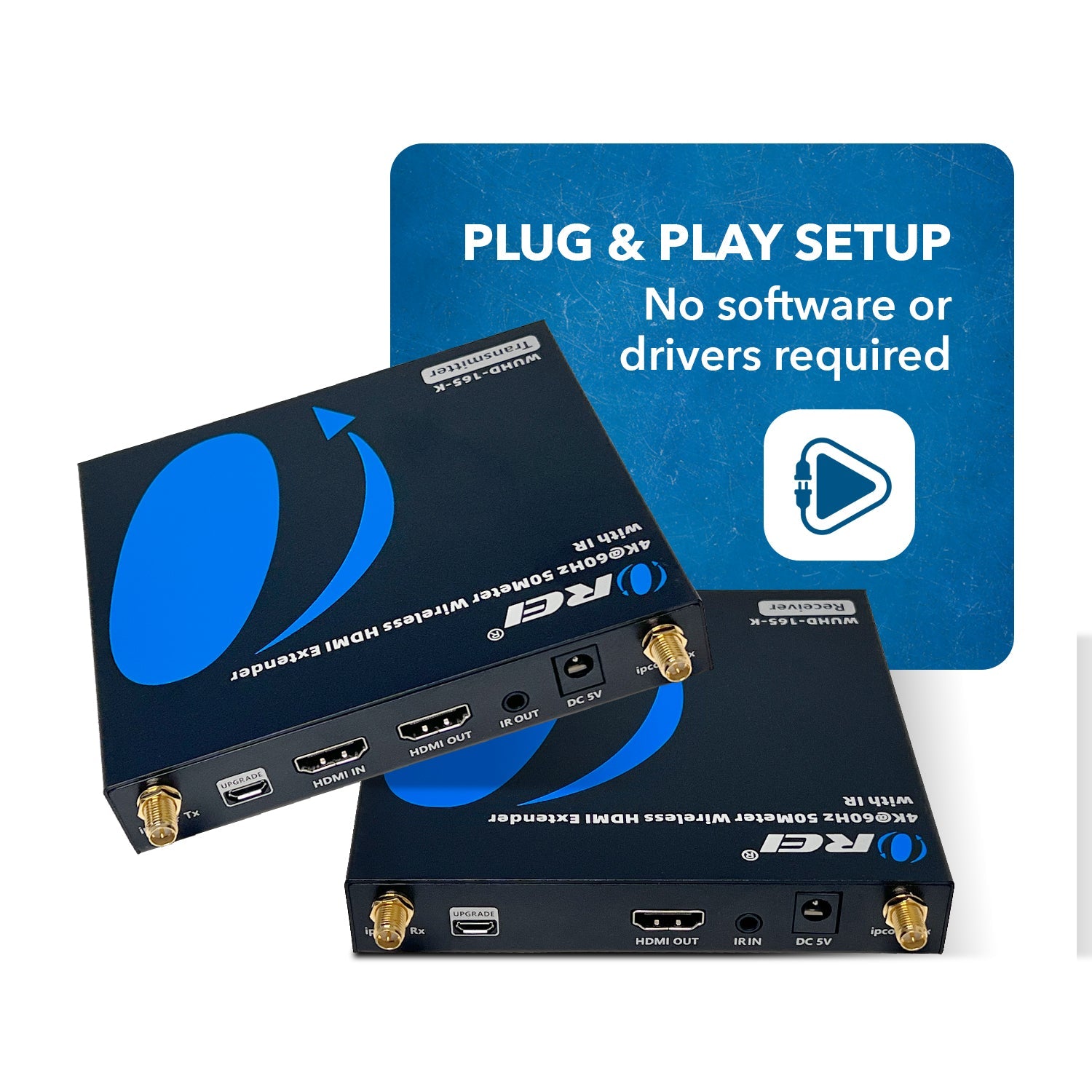

WUHD-165-K: 4K@60Hz Wireless HDMI Extender up to 165 feet with IR
Key Features:
HDMI 2.0 & HDCP1.1/2.2 Compliant
Video resolutions up to 4K@60Hz

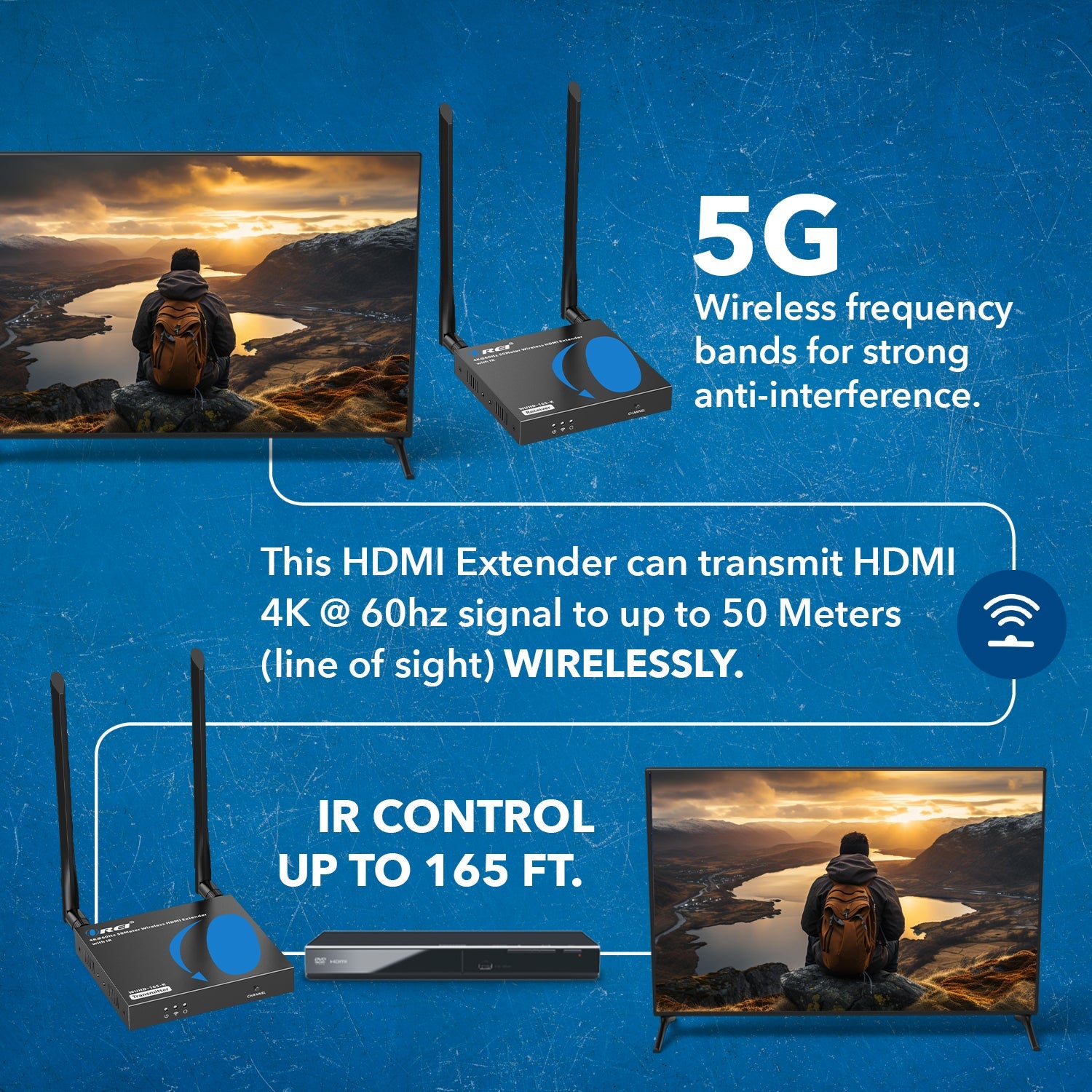

Wireless transmission up to 50M/165Ft line of sight.
HDMI Loop out at the Transmitter to connect a display near the source.
SSID Pairing and Channel Switching to avoid interference with other nearby devices.
One-way IR Control from Receiver to Transmitter.
5G wireless frequency bands for strong anti-interference.
Plug & Play setup, no drivers or software required.

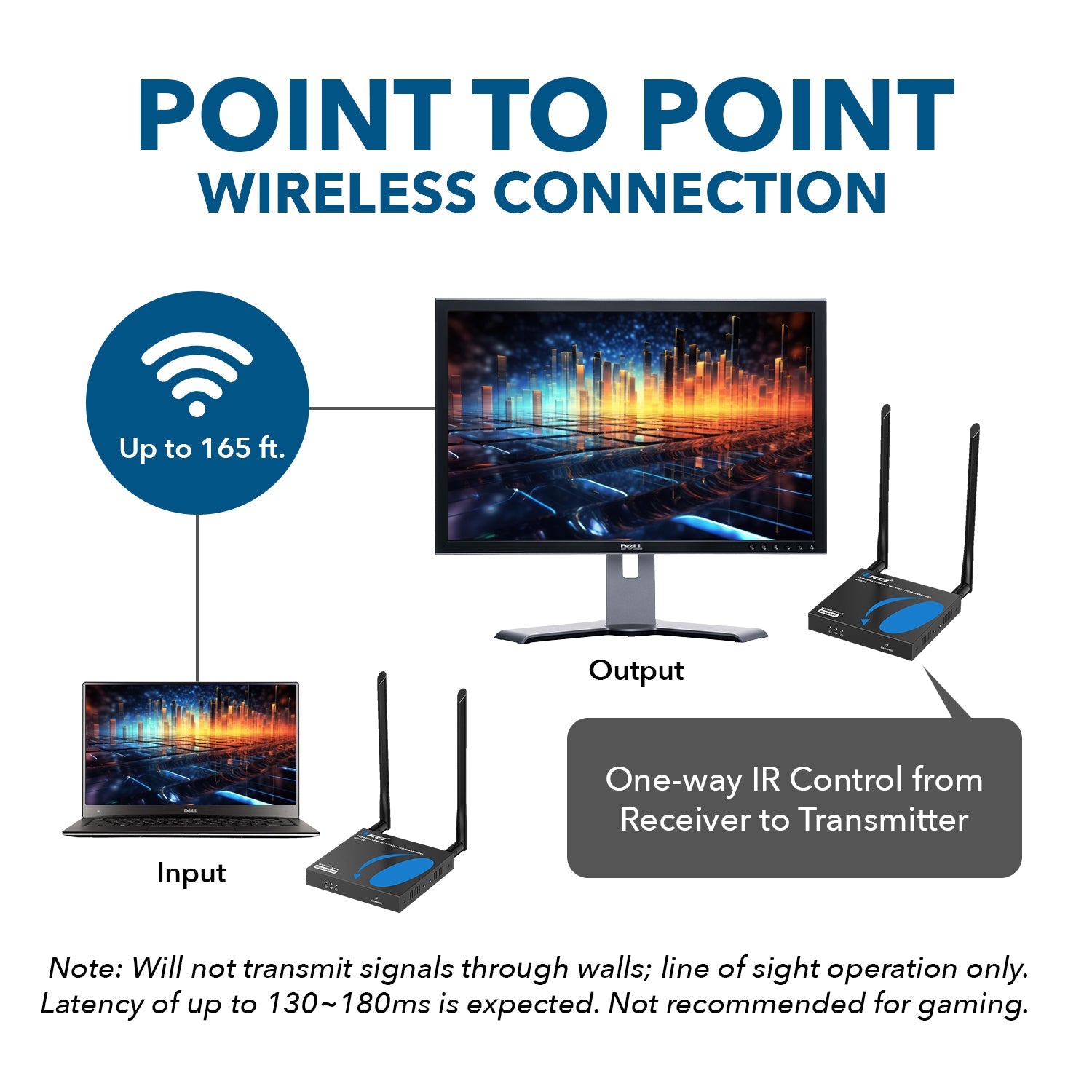

The WUHD-165-K Wireless HDMI Extender can extend an HDMI signal up to 165 feet(50m) with 4K@60Hz resolution. The device uses ipcolor STREAM Technology to deliver high-definition, low-latency video transmission. 5G wireless frequency bands provide several advantages over traditional 2.4GHz and 5GHz bands, including stability, speed, security, and anti-interference. The device features an HDMI loop output on the Transmitter to connect a display near the source. It supports 1-to-1 wireless transmission, effectively solving problems caused by complicated wiring. It's an ideal wireless video transmission solution for video conferences, home entertainment, multimedia education, etc.
[shortdes]
5g Wireless HDMI extender
Extends 4K@60Hz up to 165 feet line of sight
One-way IR control
[/shortdes]
[tab]
CONNECTIVITY
Transmitter:
INPUT:
1 × HDMI [Type A, 19-pin Male]
1 x DC 5V [Micro-USB Power Input]

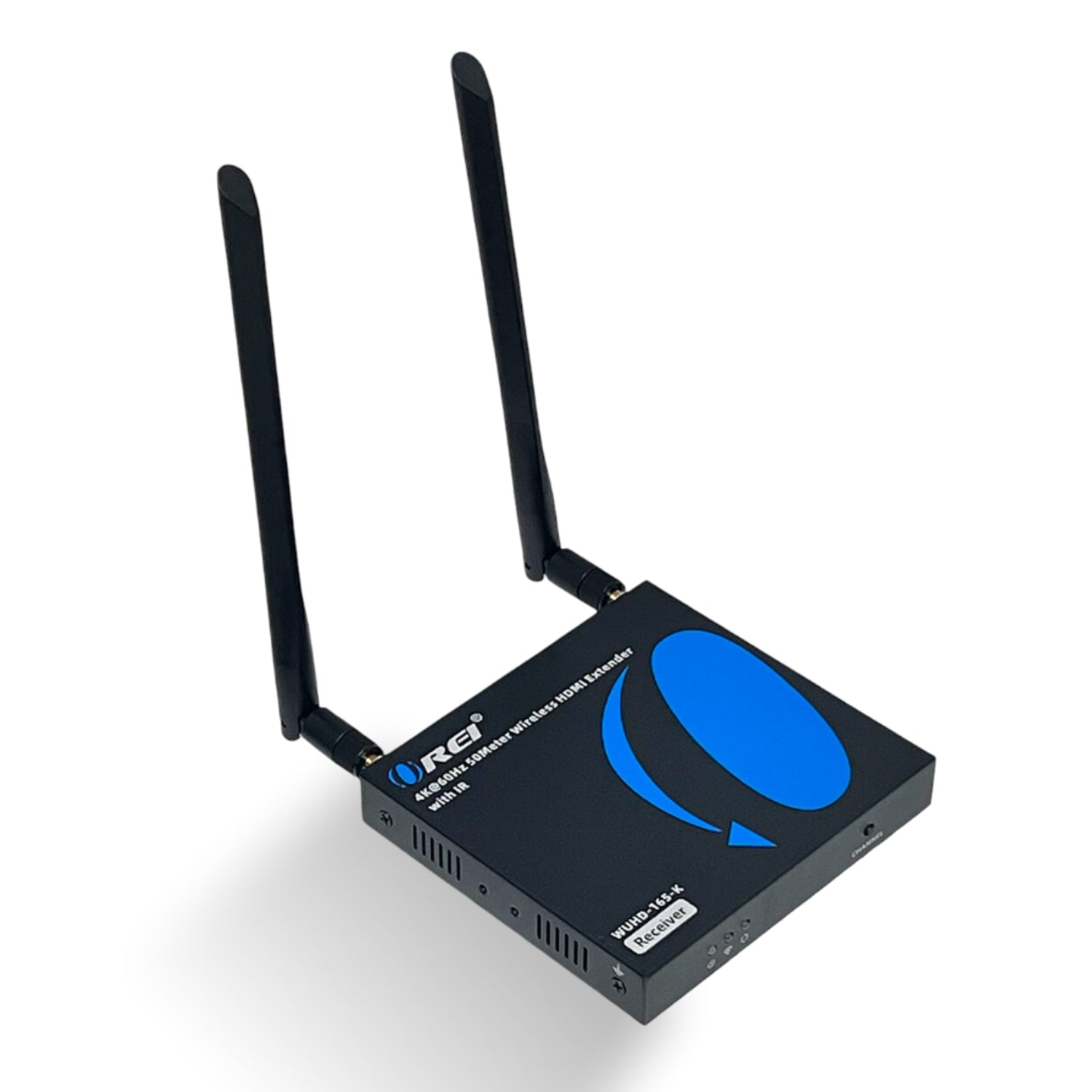

Receiver:
INPUT:
Input: 1 x DC 5V [Power Input]
OUTPUT:
1 × HDMI [Type A, 19-pin Male]

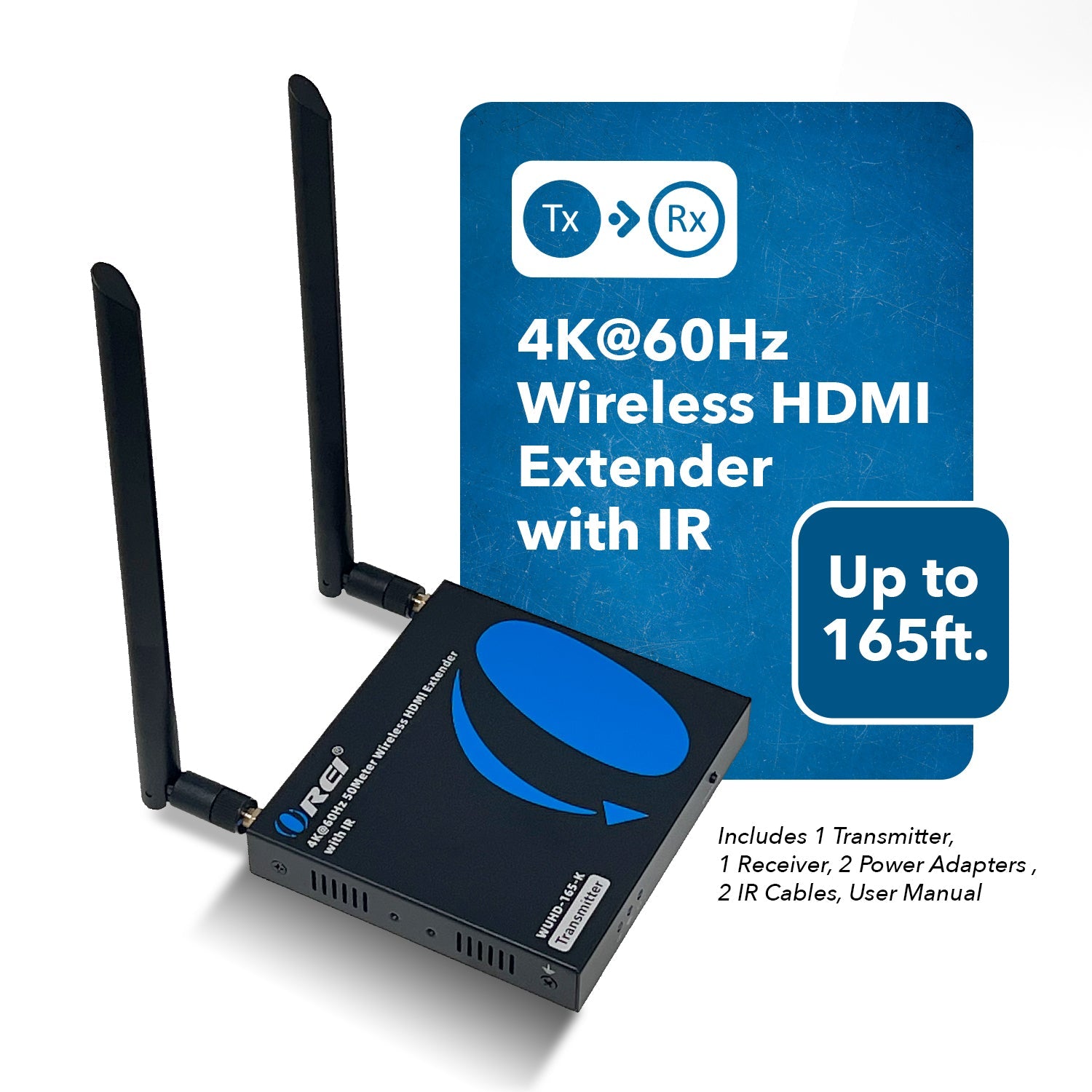

PACKAGE CONTENTS

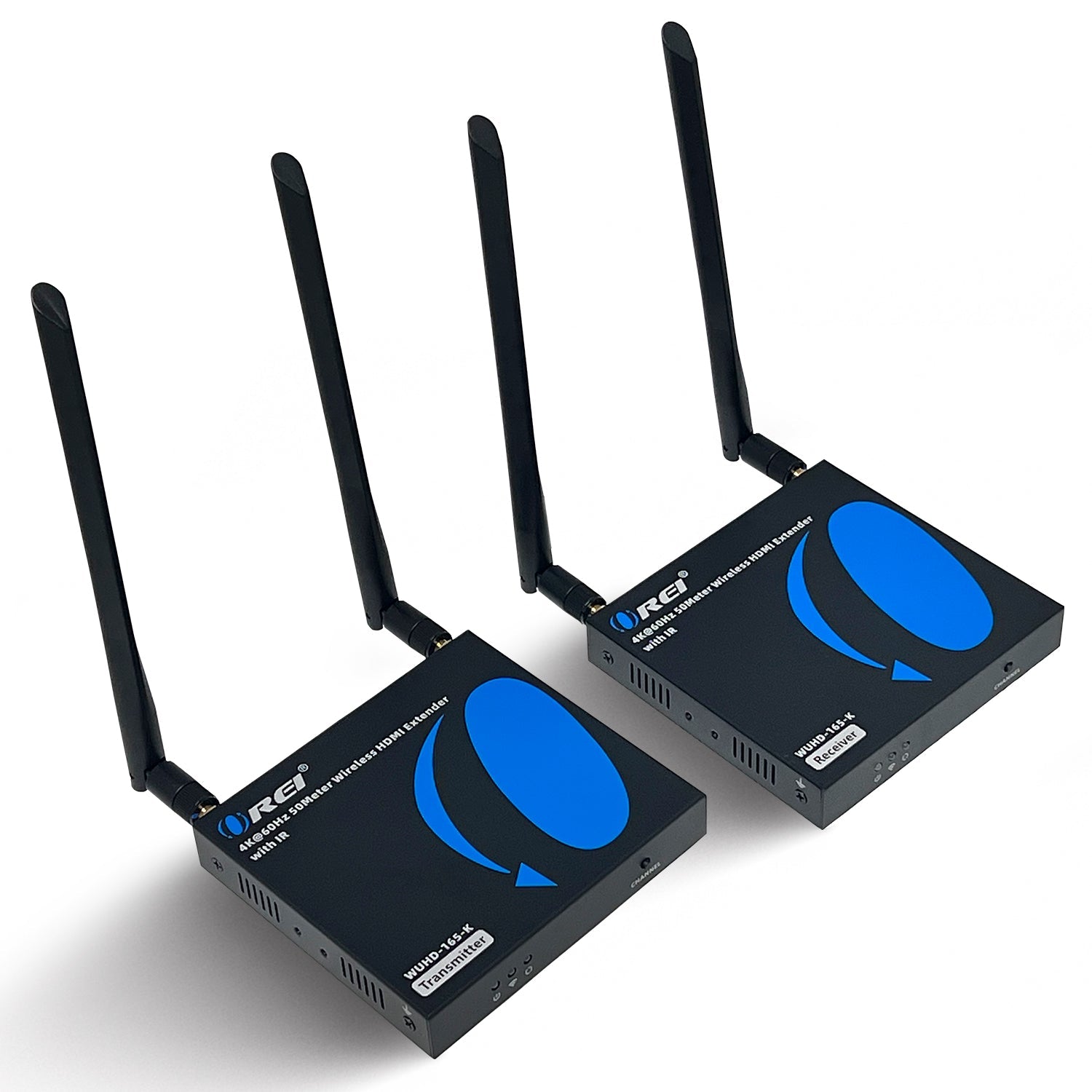

1x Transmitter
1x Receiver
2x Micro USB cable
User Manual
EXTENDING DISTANCE
4K@60HZ:
65 feet
VIDEO OUTPUT
Video Bandwidth:
18Gbps
Video Resolutions:
Up to 4K@60Hz
ADDITIONAL FEATURES
CEC:
No
ARC:
No
USB KVM:
No
PoC/PoE:
No
IR Control:
No
Downmix:
No
Downscale:
No
Over IP:
No
HDBaseT:
No
RS-232:
No
LOOP-OUT/LOCAL PORT
Has loop out port:
No
Number of Loop out ports:
0
AUDIO SUPPORT
HDMI Audio Formats:
PCM
COMPLIANCES
HDMI Compliance
HDMI 2.0
HDCP Compliance
HDCP 2.2
POWER
Power Consumption:
Transmitter 4.5W (Max) & Receiver 3.5W (Max)
Power Supply:
Input: AC 100-240V 50/60Hz
Output: DC 5V/1A

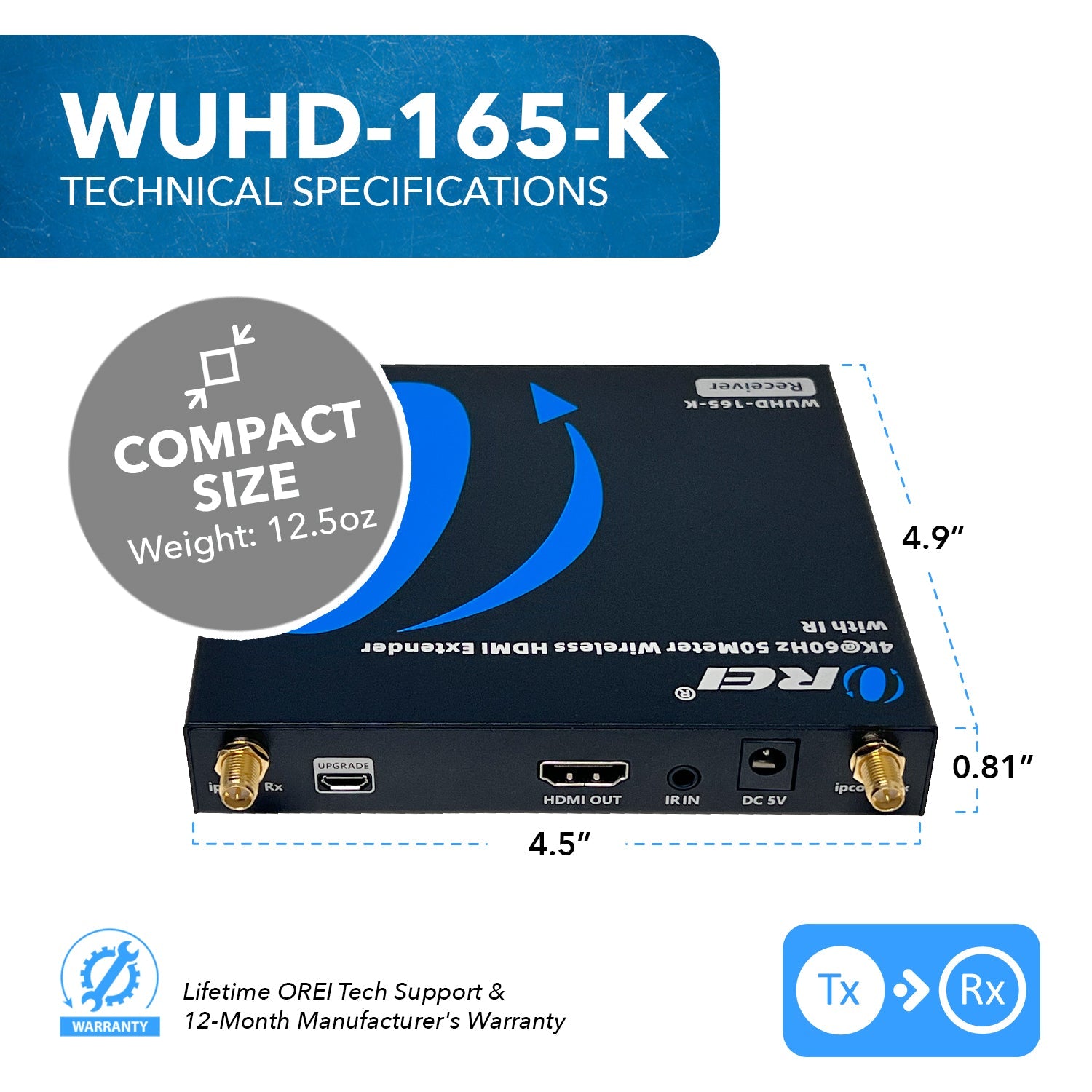

DIMENSIONS & WEIGHT
Transmitter:
Length:
230mm / 9.06in
Width:
40.2mm / 1.58in
Height:
15mm / 0.59in
Weight:
58g / 2.05oz
Receiver:
Length:
230mm / 9.06in
Width:
40.2mm / 1.58in
Height:
15mm / 0.59in
Weight:
54g / 1.91oz
PROPERTIES
Color:
Black
Housing:
Metal Enclosure
WARRANTY
1-Year Manufacturer's Warranty
[/tab]
[tab1]
FAQs
Please try the following steps to resolve your pixelating issue:
Please try replacing your current HDMI cables with High-Quality HDMI cables.Please make sure that you dont have any other wireless devices such as wifi router nearby this extender.If you have a wifi router, then please try moving the router away as the wireless signals interfears with each other & causing this issue.
Yes, you can purchase these things directly from us. Please contact us & we will assist you further.
Yes, you can implement the daisy chain method.
We recommend you to use High-Quality HDMI cables.
Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.
Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.
[/tab1]
