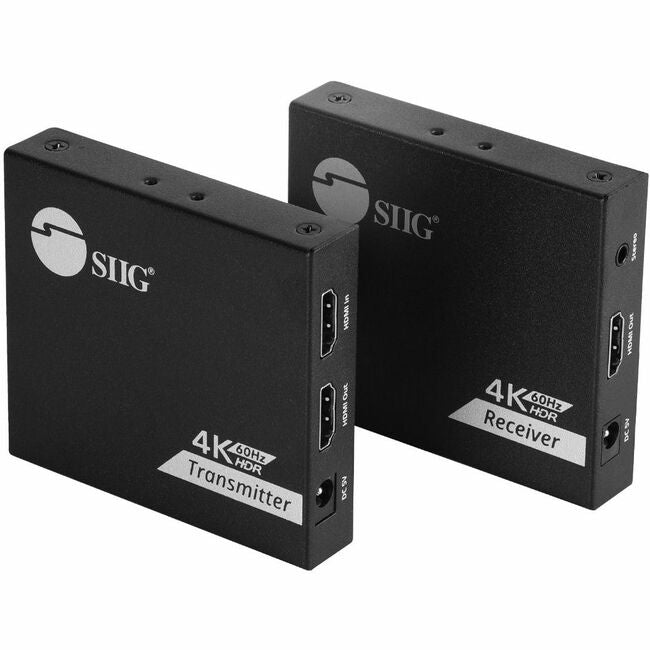

SIIG 4K 60Hz HDMI Over Cat6 Extender with Loopout & IR
Multiple Connectivity Ports

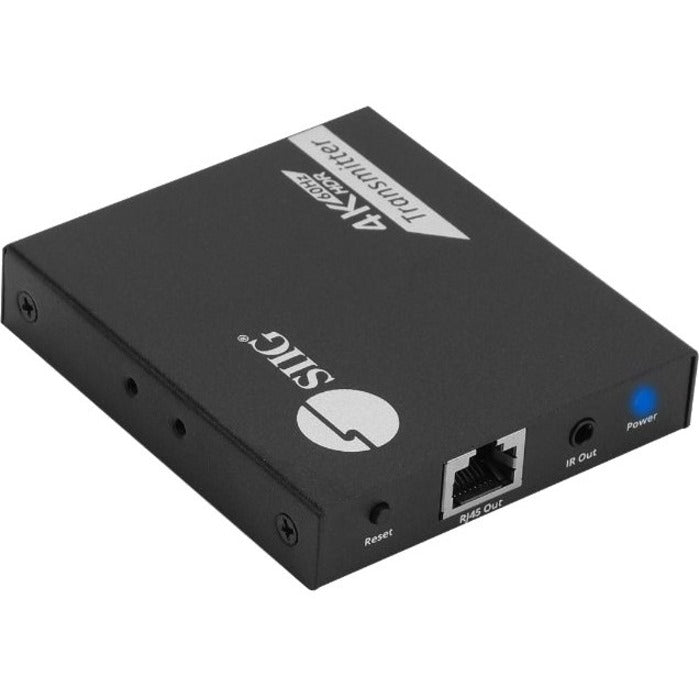

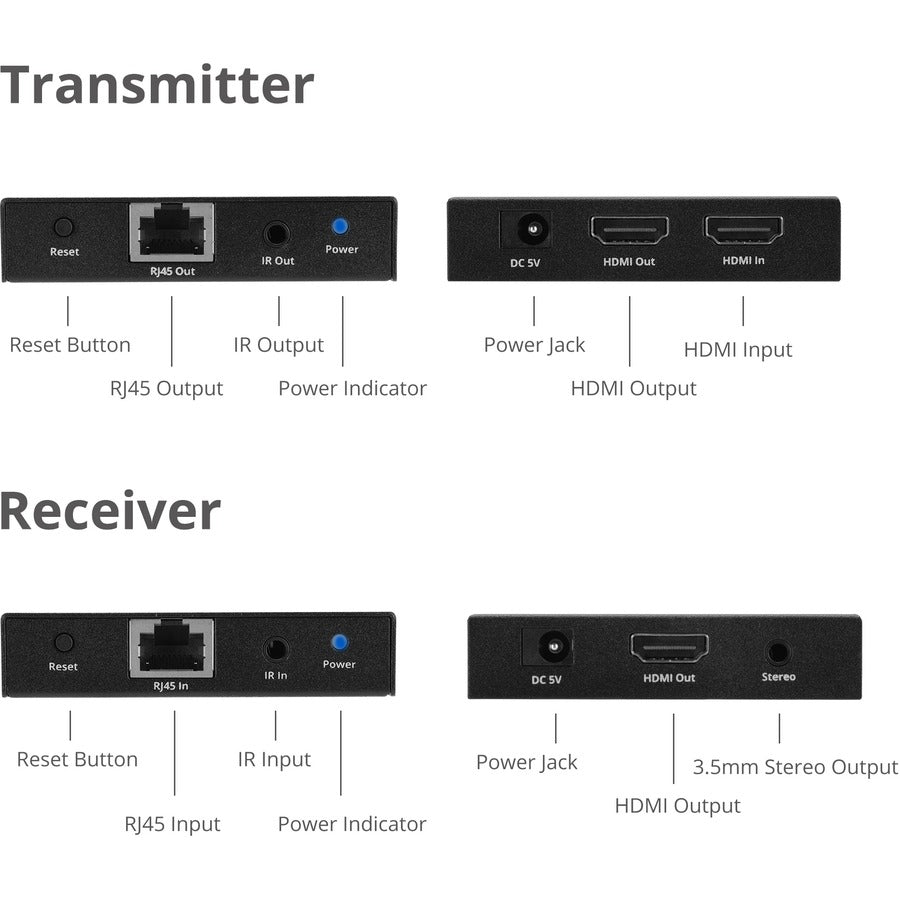

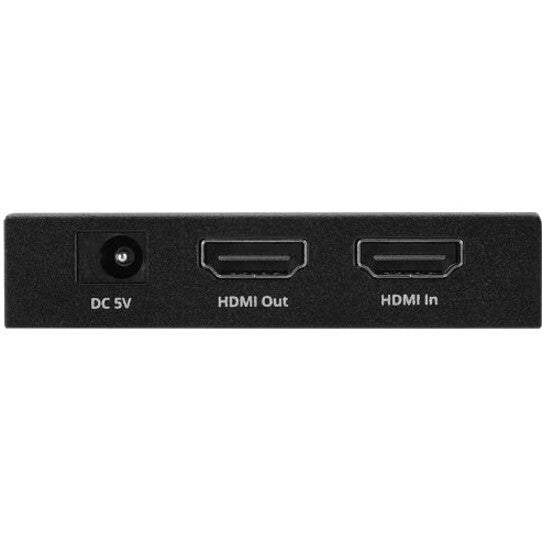

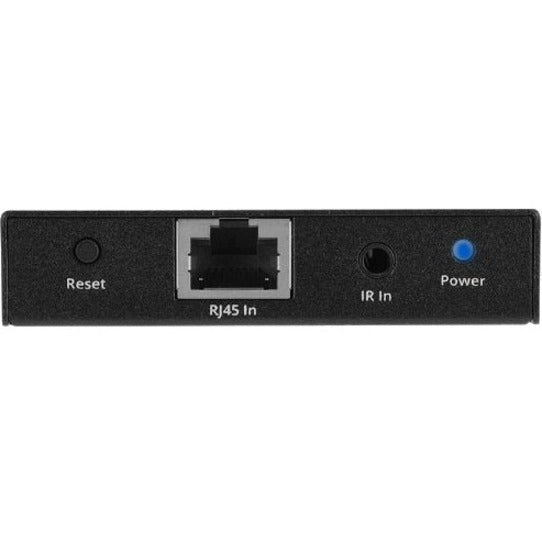

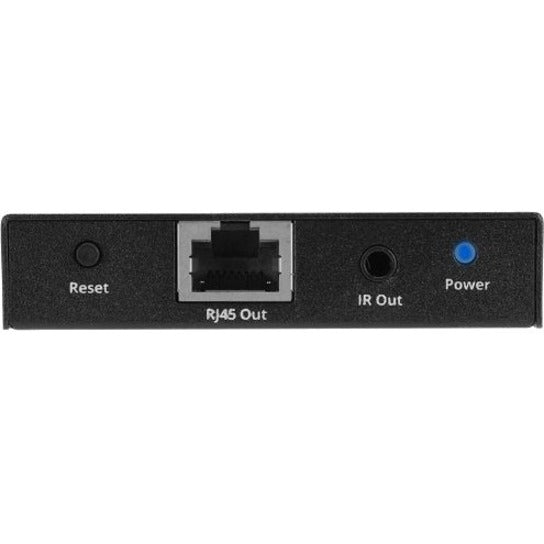

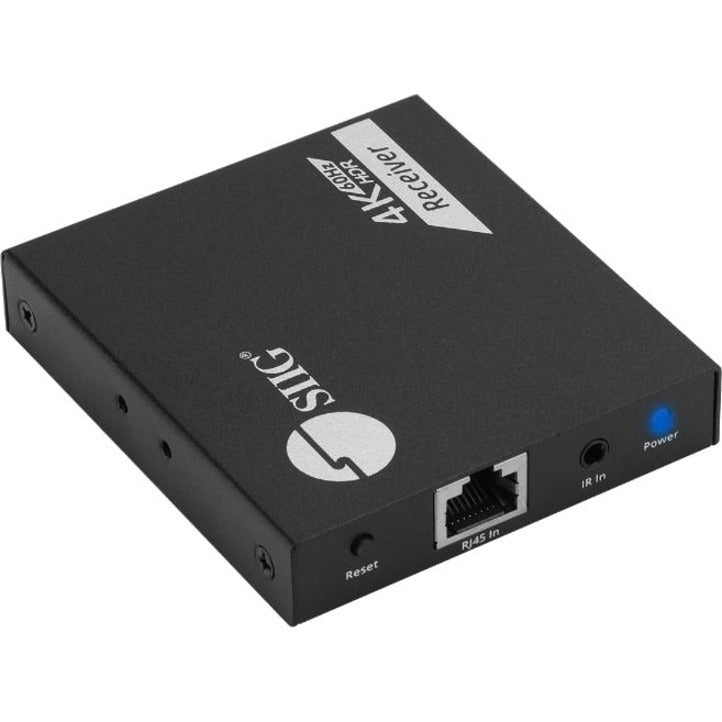

Comes with one HDMI video input port, one HDMI video loop-out port, one HDMI video output port, two RJ45 network ports, one 3.5mm IR emitter port, one 3.5mm IR receiver port, one 3.5mm stereo audio port, two reset buttons, two DC power jacks (5V/1A)
Applications
- Lecture hall
- Educational facilities
- Multimedia education
- Home theater
- Restaurant
- Shopping center
- Digital signage
- Meeting room
- Trade show
- Library
- Show room
- Church

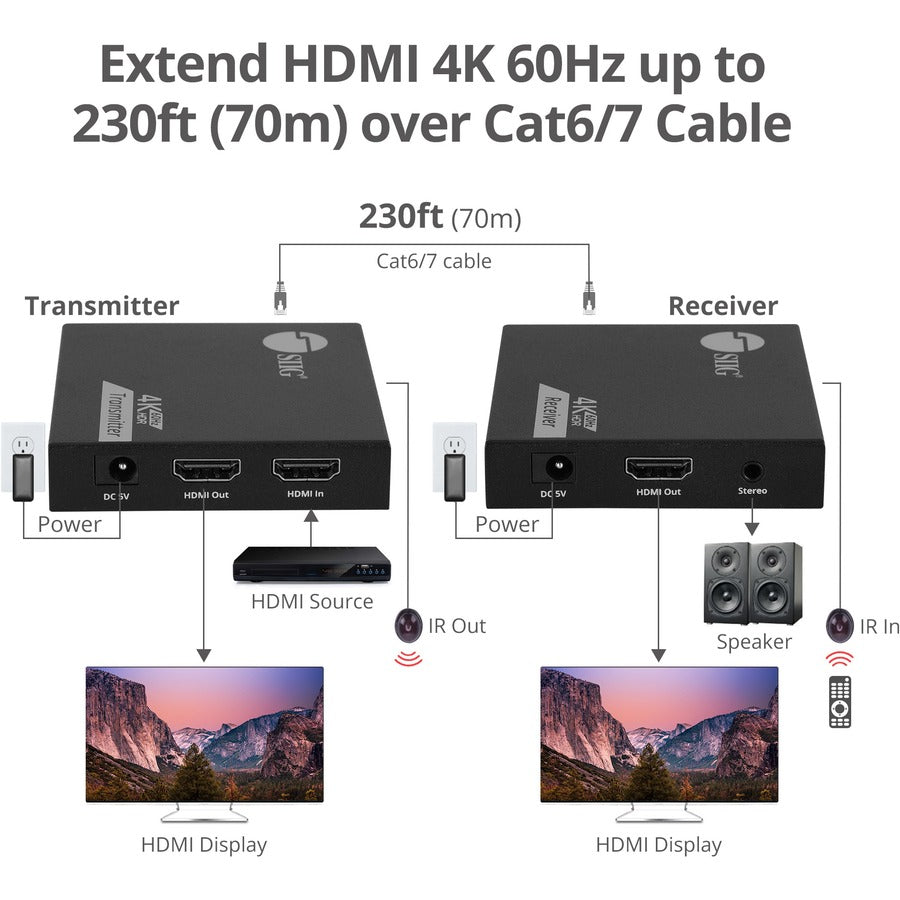

- Extends HDMI signals from DVD players, game consoles, or HDMI-equipped computers up to 230ft via Cat6/7 networking cable, ideal for home theater, conference room or other audio/video applications that require remote location setup
- Delivers video content up to UHD 4K@60Hz with zero latency up to 230ft/70m through a Cat6/7 network cable, support HDR 10

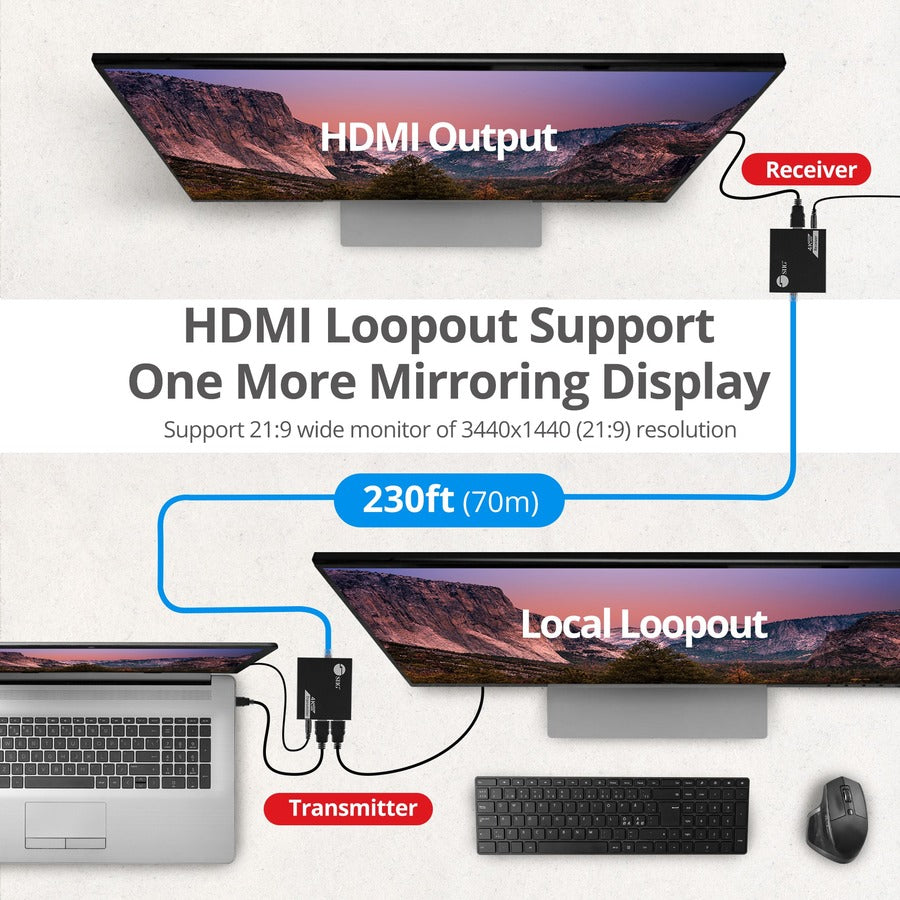

- The transmitter can work as an HDMI splitter with the additional HDMI output design and allows screen mirroring to another display device
- Supports PCM / DTS-HD/ Dolby Digital 5.1ch via HDMI and 3.5mm stereo audio from receiver
- Supports EDID passthrough and auto downscaling
- Lightning Protection, Surge Protection, ESD Protection provides durability and minimizes EMI/RFI noise interference.
- Premium metal housing offers excellent heat dissipation further enhances durability for dependable performance and long life
- Plug-n-Play installation, no software installation or hardware setup is required
Product Type: Video Extender Transmitter/Receiver
Environmentally Friendly: Yes
Environmental Certification: RoHS

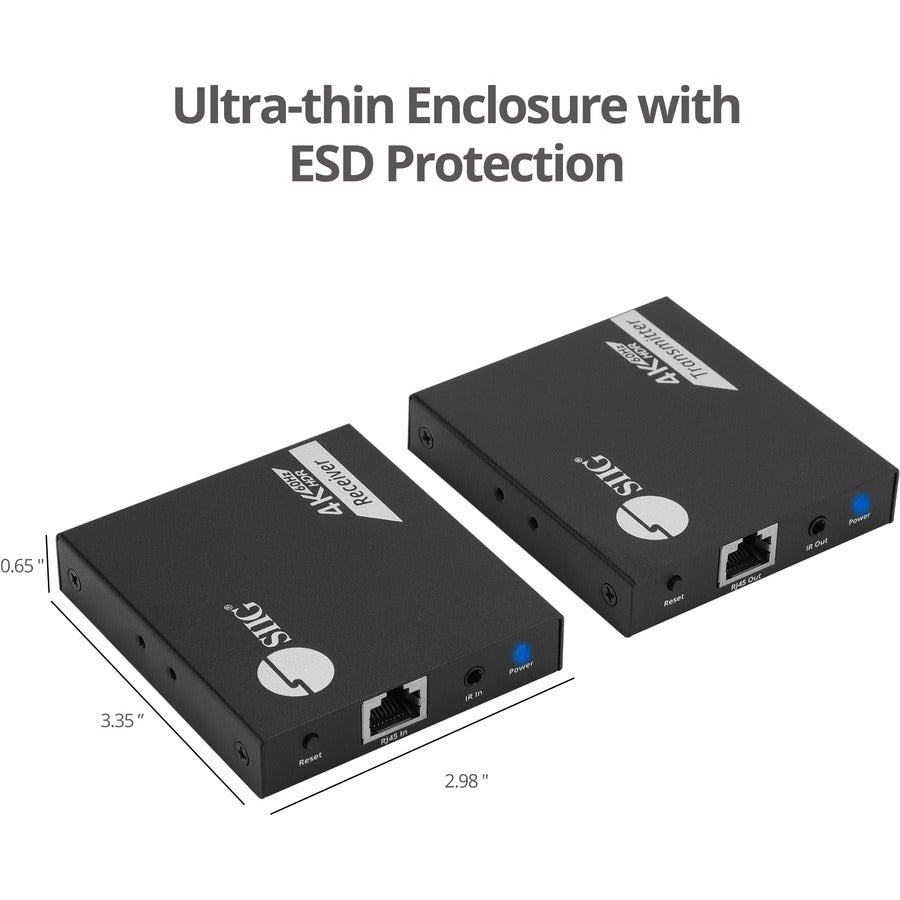

Transmitter Height: 0.65"
Transmitter Width: 3.35"
Transmitter Depth: 2.97"
Receiver Height: 0.65"
Receiver Width: 3.35"
Receiver Depth: 2.97"
Transmitter Weight (Approximate): 4.80 oz
Receiver Weight (Approximate): 4.80 oz
Product Color: Black
Brand Name: SIIG
Manufacturer: SIIG, Inc
Product Name: 4K 60Hz HDMI Over Cat6 Extender with Loopout & IR
Manufacturer Part Number: CE-H27D11-S1
Manufacturer Website Address: http://www.siig.com

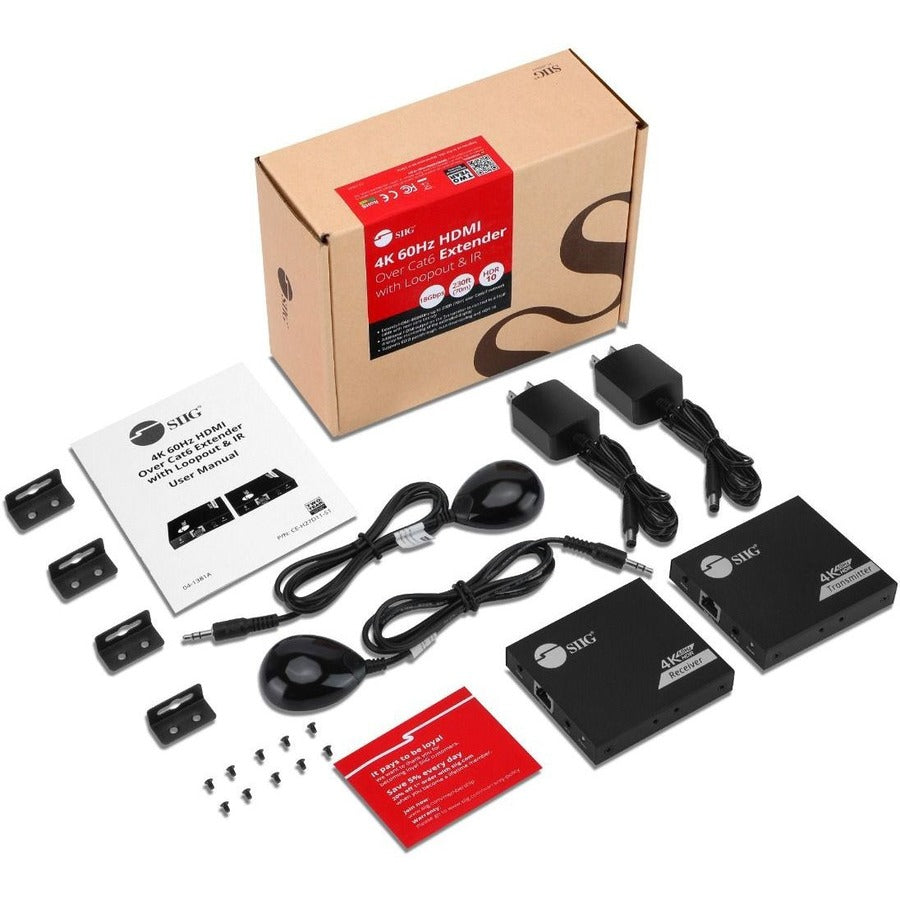

Package Contents:
- 1 x Transmitter
- 1 x Receiver
- 2 x Power Adapter
- IR Blaster extension cable
- IR Receiver extension cable
- 4 x Mounting Ears
- 8 x Screws
- User Manual
Limited Warranty: 2 Year
