Video resolutions up to 4K@30Hz, including 1080P@120Hz, and 1080P 3D@60Hz
2.97Gbps video bandwidth
Digital audio formats such as DTS-HD/Dolby-true-HD/LPCM 7.1/ DTS/Dolby-AC3/DSD are supported.
EDID Mode: Copy Mode: Copy output 1 EDID to input port. Auto Mode: Compare output ports 1 and 2 EDID and output the lowest between the 2

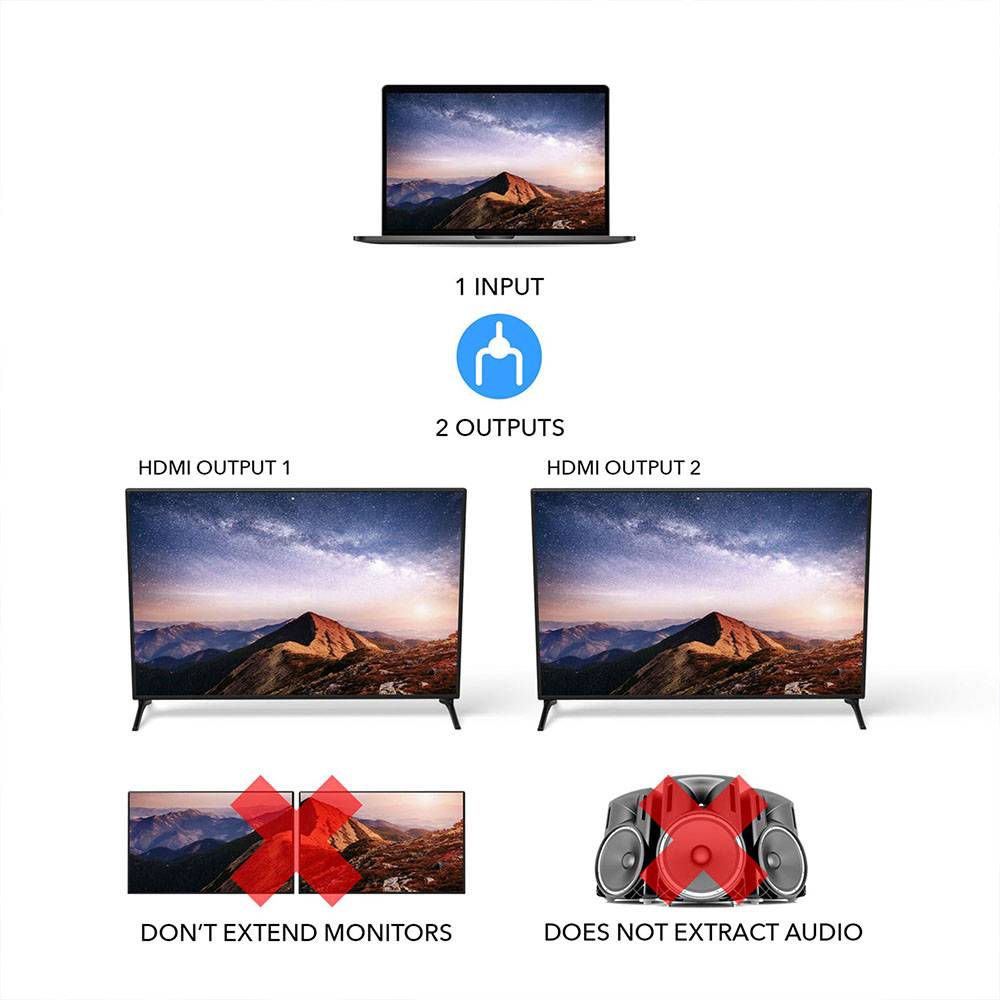

Does NOT extend laptop or PC display to have different programs on both screens
Compact design and plug-and-play setup

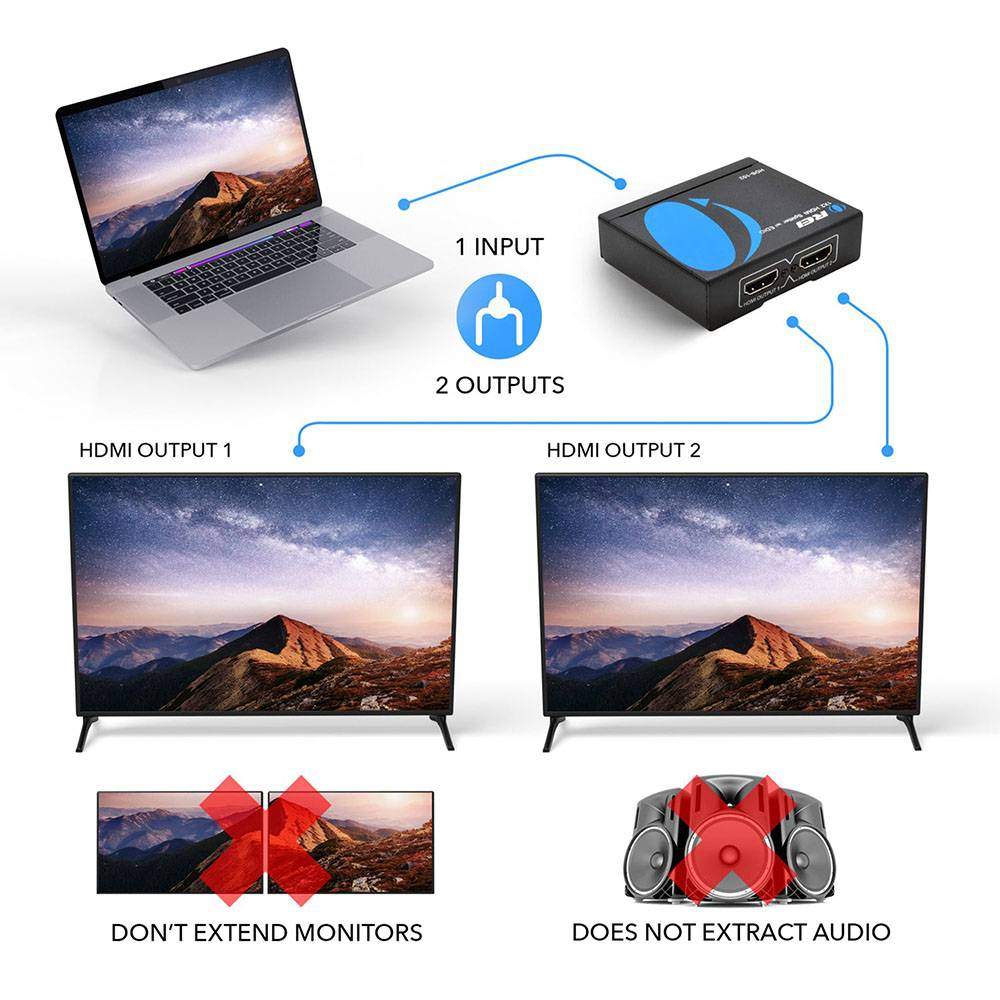

The OREI HDS-102 HDMI Splitter can take 1 HDMI input and duplicate the output to 2 displays simultaneously. The device supports video resolutions up to 4K@30Hz. It is HDMI 1.4a and HDCP 1.4 compliant. You can connect any media device such as a cable box, laptop, FireTv stick, Apple TV, etc. and duplicate its contents to 2 different displays at the same time. The device features a switch to select between 2 EDID settings; COPY and AUTO. It is perfect for any commercial or personal home theatre setups.
Does NOT EXTEND Laptop or PC display to have different program on both screens. Use the OREI SplitXtend dual display adapter for extended displays.
[shortdes]
Split audio/video signals to 2 displays
HDMI 1.4a & HDCP 1.4 compliant
EDID management
[/shortdes]
[tab]
CONNECTIVITY
INPUT:
1 × HDMI [Type A, 19-pin female]
OUTPUT:
2 × HDMI [Type A, 19-pin female]

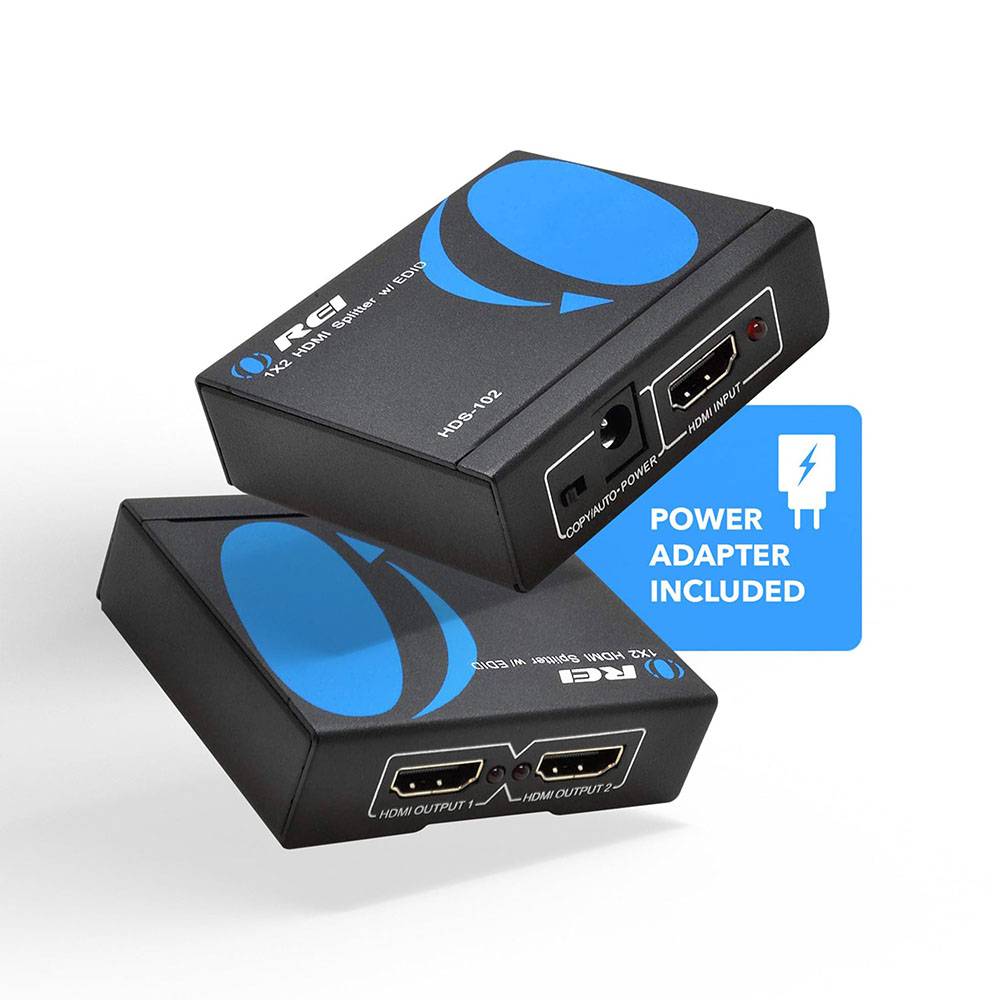

PACKAGE CONTENTS
1x HDS-102
1x Power Adapter
User Manual
SUPPORTED HDMI CABLES
HDMI 2.0/2.1
We recommend using high-quality HDMI 2.0/2.1 cables under 30 feet for optimum performance
EXTENDING DISTANCE
4K@30Hz:
30 Feet
VIDEO OUTPUT
Video Bandwidth:
2.97Gbps
Video Resolutions:
Up to 4K@30Hz
ADDITIONAL FEATURES
CEC:
No
ARC:
No
USB KVM:
No
PoC/PoE:
No
IR Control:
No
Downmix:
No
Downscale:
No
Over IP:
No
HDBaseT:
No
RS-232:
No
AUDIO SUPPORT
HDMI Audio Formats:
DTS-HD/Dolby-true-HD/LPCM 7.1/ DTS/Dolby-AC3/DSD
COMPLIANCES
HDMI Compliance
HDMI 1.4a
HDCP Compliance
HDCP 1.4
POWER
Power Consumption:
5W (Max)
Power Supply:
Input: AC 100-240V 50/60Hz
Output: DC 5V/1A
DIMENSIONS & WEIGHT
Length:
70mm / 2.76in
Width:
60mm / 2.36in
Height:
20mm / 0.79in
Weight:
125g / 4.4oz
PROPERTIES
Color:
Black
Housing:
Metal Enclosure
WARRANTY
1-Year Manufacturer's Warranty
[/tab]
[tab1]
FAQs
Our splitters will not work with capture cards due to the HDCP encryption on the output
Our HDMI splitter will duplicate or "mirror" a single HDMI source on two HDMI displays. Both displays will show the same video and audio simultaneously
Our splitter does not support extend mode. It only supports mirror/duplicate screen function, each screen will show the same picture
Yes, the power adapter does support 220V
You can use standard HDMI cables up to 15 feet and high quality cables up to 30 feet.
However, you can use fiber optic active HDMI cables up to 200 feet. If it's not a high-quality cable then you may lose the signal in some instances.
No, the HDMI splitters do not support CEC because most customers do not want all the TV's to turn ON as soon as the source is turned on.
