Dataram 4GB DDR4 SDRAM Memory Module

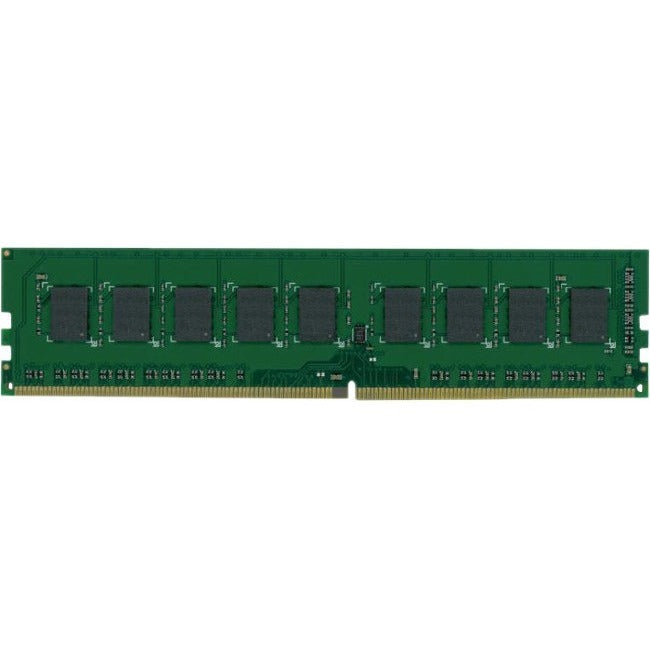

DTM68109-H is an Unbuffered 512Mx72 memory module, which conforms to JEDEC's PC4-2133 standard. The assembly is single-rank containing - nine SKHynix 512Mx8 DDR4-2133 SDRAMs.One 2K-bit EEPROM is used for Serial Presence Detect.
Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology.
- DIMM 4 GB of memory to refine your computer's performance
- 288-pin-pin DDR4-2133/PC4-17000 interface multiplexes 2-bit data from memory cell and I/O buses to minimize processor idle time and enhance your computer's performance
- Up to 2133 MHz speed for playing the latest games and using heavy software
Product Type: RAM Module
Environmentally Friendly: Yes
Environmental Certification: RoHS
Brand Name: Dataram
Form Factor: DIMM
Length: 5.3"
Manufacturer: Dataram Corporation
Product Name: 4GB DDR4 SDRAM Memory Module
Manufacturer Part Number: DTM68109-H
Manufacturer Website Address: http://www.dataram.com
Number Of Pins: 288-pin
Limited Warranty: Lifetime
Thickness: 97.2 mil
