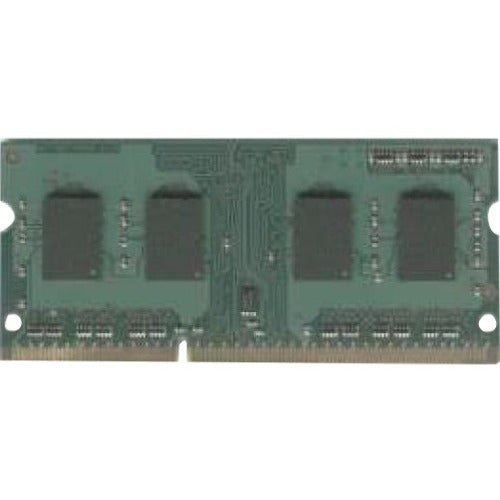

Dataram 4GB DDR3 SDRAM Memory Module DTI16S1L8W/4G

Dataram 4GB DDR3 SDRAM Memory Module
DTI16S1L8W/4G is an Unbuffered DDR3 512Mx64 small-outline memory module, which conforms to JEDEC's DDR3L, PC3L-12800 standard. The assembly is Single Rank, comprised of eight 512Mx8 DDR3 Industrial Temp SDRAMs.

One EEPROM is used for Serial Presence Detect.

Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology.

• SoDIMM 4 GB of memory to refine your computer's performance


• 240-pin-pin DDR3-1600/PC3L-12800 interface multiplexes 2-bit data from memory cell and I/O buses to minimize processor idle time and enhance your computer's performance


• No matter how heavy and numerous the applications that you are using, 1600 MHz memory speed will run them smoothly

Product Type: RAM Module
Environmentally Friendly: Yes
Environmental Certification: WEEE
Brand Name: Dataram
Form Factor: SoDIMM
Length: 2.7"
Manufacturer: Dataram Corporation
Product Name: 4GB DDR3 SDRAM Memory Module
Manufacturer Part Number: DTI16S1L8W/4G
Manufacturer Website Address: http://www.dataram.com
Number Of Pins: 240-pin
Thickness: 149.6 mil
