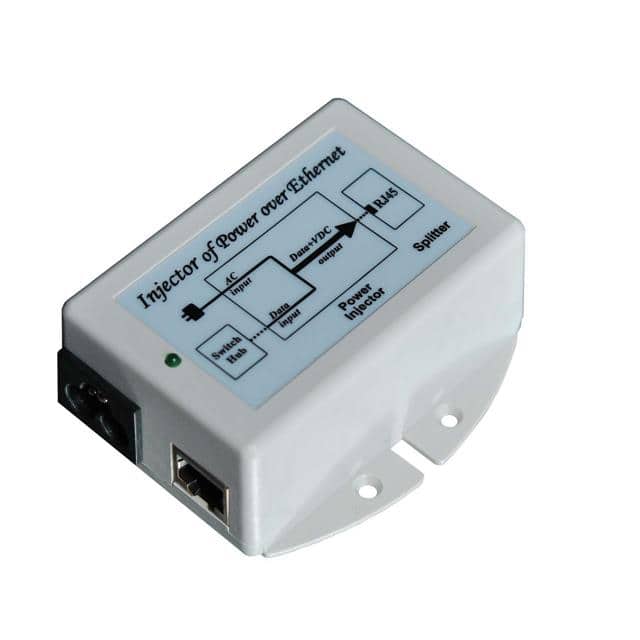

Tycon Power 120/240VAC Input, 48VDC 24W POE Output
The TP-POE Power Over Ethernet Power Sources offered by Tycon Power Systems are quality midspan power sources for years of reliable operation even in the toughest conditions. They accept data-in to a shielded RJ45 Jack and provide surge protected data-out and power on the shielded RJ45 output jack. They work by supplying power to the remote device on the unused Ethernet pins 4,5(V+) and 7,8(V-). For the "R" model the voltage is reversed. 4,5(V-) and 7,8(V+). The Ethernet spec supports distances up to 100m (328 feet).
Product Type: PoE Injector
Environmentally Friendly: Yes
Environmental Certification: RoHS
Certifications & Standards:
- FCC Class B
- EN55022 Class B
- UL1950
- CSA 22.2
- TUV EN60950
Brand Name: Tycon Power
Compatibility:
- Wireless Access Points
- Client Devices
- IP Phone
- Security Camera Systems
Manufacturer: Tycon Power Systems
Product Model: TP-POE-48
Product Name: 120/240VAC Input, 48VDC 24W POE Output
Mount Type: Floor/Desktop/Wall-mountable
Manufacturer Part Number: TP-POE-48
Manufacturer Website Address: http://www.tyconpower.com
Package Contents:
- 120/240VAC Input, 48VDC 24W POE Output
- US Power Cord
Limited Warranty: 1 Year
Weight (Approximate): 5.30 oz
