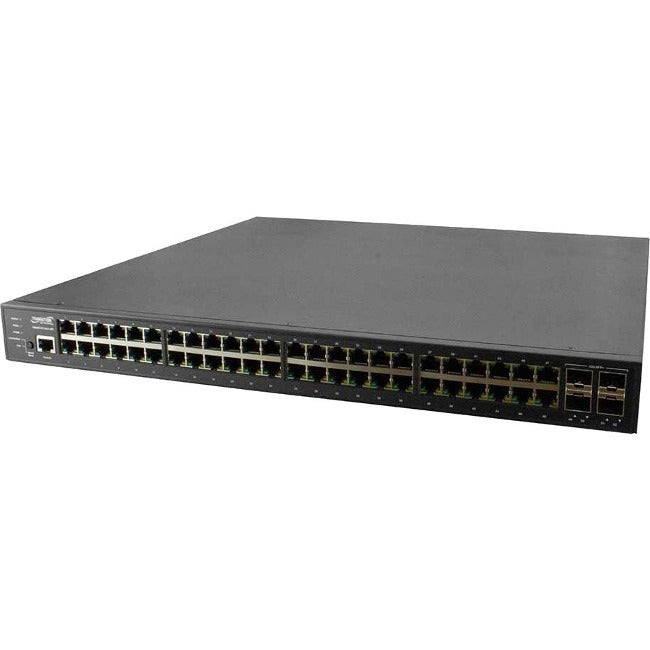

This 48-Port Managed Gigabit Ethernet PoE+ Switch with 4 SFP+ Uplinks is perfect for enterprise IT administrators, network engineers, and organizations that need comprehensive network management with high-density PoE+ capabilities and flexible fiber connectivity. Our solution delivers:
-
48 port PoE+ switch that provides maximum power and connectivity for wireless APs, IP cameras, and VoIP devices
-
Managed switch capabilities offering advanced VLAN, QoS, and security features
-
SFP+ uplink ports enabling high-speed 1G/10G fiber connections to core network infrastructure
-
Enterprise-grade performance supporting mission-critical business applications
Key Features
-
48 Gigabit PoE+ ports delivering 30W per port with IEEE 802.3at compliance
-
4 SFP+ uplink ports supporting 1G/10G fiber connections
-
Advanced management interface with web GUI, CLI, and SNMP support
-
Layer 2+ switching with static routing capabilities
-
VLAN support with up to 4,000 VLANs for network segmentation
-
Quality of Service with traffic prioritization and bandwidth control
-
Security features including Access Control Lists and port security
-
High PoE power budget supporting multiple high-power devices simultaneously
Technical Specifications
| Manufacturer |
Enterprise Network Solutions |
| Model Number |
MGE-48P-4SFP+ |
| Type |
48-Port Managed Gigabit Ethernet PoE+ Switch |
| Access Ports |
48 x 10/100/1000BASE-T PoE+ ports |
| Uplink Ports |
4 x SFP+ 1G/10G ports |
| PoE Standard |
IEEE 802.3af/at (PoE/PoE+) |
| PoE+ Power Per Port |
30W maximum per port |
| Total PoE Power Budget |
740W |
| Switching Capacity |
176 Gbps |
| Forwarding Rate |
130.95 Mpps |
| MAC Address Table |
32,000 entries |
| Buffer Memory |
12 MB |
| VLAN Support |
4,000 VLANs (802.1Q) |
| Routing Table |
1,000 static routes |
| QoS Queues |
8 hardware queues per port |
| ACL Entries |
2,000 rules |
| Management |
Web GUI, CLI, SNMP v1/v2c/v3, SSH/Telnet |
| Spanning Tree |
STP, RSTP, MSTP support |
| Link Aggregation |
LACP, static LAG (32 groups, 8 ports/group) |
| Multicast |
IGMP v1/v2/v3 snooping, 1,000 groups |
| Security Features |
802.1X, port security, DHCP snooping, IP source guard |
| Storm Control |
Broadcast, multicast, unknown unicast |
| Power Consumption |
65W (without PoE), 805W (full PoE load) |
| Power Supply |
Internal 100-240V AC with redundant option |
| Operating Temperature |
0°C to 45°C (32°F to 113°F) |
| Storage Temperature |
-20°C to 70°C (-4°F to 158°F) |
| Humidity |
10% to 90% non-condensing |
| Dimensions |
17.3" x 15.4" x 1.73" (440 x 391 x 44 mm) |
| Weight |
12.1 lbs (5.5 kg) |
| Mounting |
1U rack-mount, brackets included |
| MTBF |
150,000 hours at 25°C |
| Compliance |
FCC Class A, CE, UL, Energy Star |
| Standards |
IEEE 802.3, 802.3u, 802.3ab, 802.3af, 802.3at, 802.1Q, 802.1p |
| Warranty |
5-year limited hardware warranty |
| Compatible Systems |
Enterprise networks, campus deployments, data centers, wireless infrastructure, IP surveillance systems |
Frequently Asked Questions
Q: What managed switch capabilities distinguish this from unmanaged alternatives?
A: This managed gigabit ethernet switch provides comprehensive network control including VLAN configuration, QoS traffic shaping, SNMP monitoring, and advanced security features like 802.1X authentication. The managed switch capabilities enable network segmentation, performance optimization, and centralized administration through web interface, CLI, or network management systems - capabilities impossible with unmanaged switches.
Q: How does the PoE+ support benefit high-power device deployments?
A: With 740W total power budget and 30W per port PoE+ capability, this 48 port PoE+ switch supports power-hungry devices like Wi-Fi 6 access points, PTZ security cameras, digital signage, and VoIP phones with color displays. The intelligent power management automatically detects device requirements and delivers appropriate power levels while protecting against overload conditions.
Q: What advantages do the SFP+ uplink ports provide?
A: The 4 SFP+ uplink ports support both 1G and 10G speeds with various fiber optic transceivers, enabling flexible connections to core switches, servers, or storage systems over long distances. This provides high-bandwidth aggregation for the 48 access ports while supporting fiber infrastructure for backbone connectivity and future 10G upgrades.
Q: How does high port density benefit enterprise network design?
A: High port density with 48 ports in a single 1U chassis maximizes rack space efficiency and reduces cabling complexity in enterprise environments. This density supports entire floors or departments from a single switch location, simplifying network architecture while reducing equipment costs and power consumption compared to multiple smaller switches.
Q: What enterprise applications are best suited for this switch?
A: This switch excels in enterprise network environments including corporate offices, educational institutions, healthcare facilities, and retail locations. It's ideal for supporting dense wireless deployments, IP security systems, VoIP communications, and mixed device environments where advanced management, security, and PoE+ power delivery are essential requirements.
Q: How do the Layer 2+ features enhance network performance?
A: The Layer 2+ capabilities include static routing, inter-VLAN routing, and advanced QoS features that optimize traffic flow and reduce core switch processing load. These features enable efficient local routing, traffic segmentation, and bandwidth management, improving overall network performance while maintaining security through VLAN isolation and access control policies.
Q: What monitoring and troubleshooting capabilities are included?
A: The switch provides comprehensive monitoring through SNMP v3, RMON statistics, port mirroring, and real-time traffic analysis. Advanced troubleshooting features include cable diagnostics, link quality monitoring, and detailed logging capabilities, enabling proactive network management and rapid issue resolution in enterprise environments.
48-Port Managed Gigabit Ethernet PoE+ Switch with 4 SFP+ uplinks providing enterprise network management, high power budget, and fiber connectivity.
