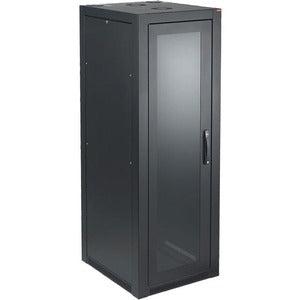

Black Box Zone 4 Seismic Cabinet, 45U, 84"H x 28"W x 32"D
Vented heavy-gauge steel base can be bolted to floor with seismic-rated fasteners.
Performance rating based on NEBS-Telcordia GR-63-CORE standard vibration test.
Reinforced front door features smoke gray acrylic window.
EIA standard for 19" rackmount equipment.
Door equipped with 3-point latching and keylock handle.
Door and side panels removable for easy installation and access.
Top features two cable entry ports with caps and grommets, and two fan-ready cutouts with finger guards.
With its"chimney" effect, the cabinet cools mounted equipment by drawing cool air through louvers and venting the heated air through the top.
Dynamic load rating of 1000 pounds (454 kg) for earthquake zones; static load rating of 2500 pounds (1134 kg) for non-earthquake zones.
If it can stand up to the activity in California, it can handle what happens in your server room. The Zone 4 Seismic Cabinet is designed to protect up to 1000 pounds of server room equipment from the rigors of Zone 4 seismic activity. And because it meets EIA standards, the cabinet can be used in different applications with 19-inch rackmount equipment and fans.
The top of the cabinet features two cable entry ports with caps and grommets, and two fan-ready cutouts with finger guards. With its "chimney" effect, the cabinet cools mounted equipment by drawing cool air through louvers and venting the heated air through the top.
- Protects servers, networking equipment, and telephony equipment through Zone 4 seismic activity.
- Constructed of heavy-gauge welded steel.
- Weight capacity of 1100 pounds.
Product Type: Rack Cabinet
Maximum Weight Capacity: 1100 lb
Static/Stationary Weight Capacity: 2500 lb
Dynamic/Rolling Weight Capacity: 1000 lb
Taa Compliant: Yes
Product Color: Black
Product Material: Steel
Country Of Origin: United States
Rack Height: 45U
Brand Name: Black Box
Manufacturer: Black Box Corporation
Product Model: RM5110A
Product Name: Zone 4 Seismic Cabinet, 45U, 84"H x 28"W x 32"D
Manufacturer Part Number: RM5110A
Manufacturer Website Address: http://www.blackbox.com
Limited Warranty: 1 Year
