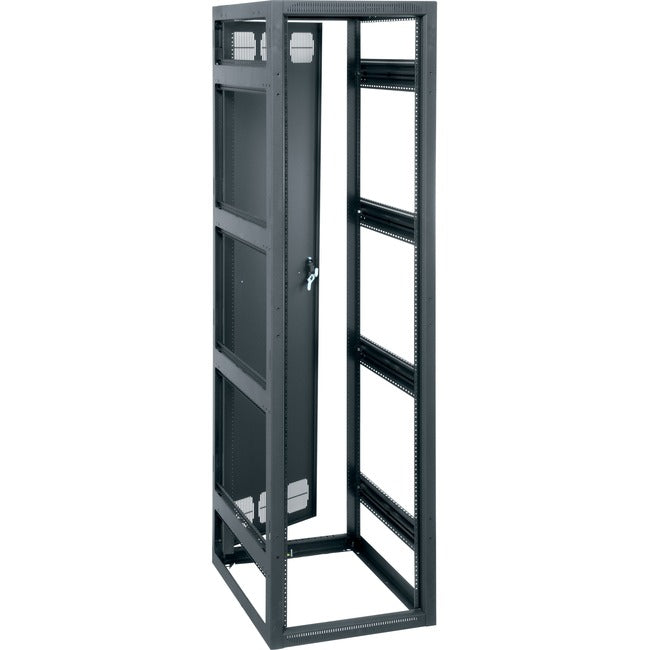

Middle Atlantic BGR Series Rack - 45RU - 32in Depth
BGR = Breakthrough Next-Generation Rack
This is the "Next Generation" Rack you have been wanting ! BGR-SA series racks have higher weight capacities, provide more useable rackspace, and incorporate more functionality than any other rack system on the market. Features the revolutionary patent-pending LeverLock™ system for tool free installation of cable management accessories. New options include brush grommet rear doors and problem-solving extender bays. Choose a BGR enclosure for the highest level of space efficiency and strength available, and to enable the use of the latest options for installation flexibility. This stand-alone version includes fixed vented side panels.
Structural Features
- Breakthrough design provides more useable rack height - for example, the 45 space version is shorter than 44 space alternative models
- Accepts patent-pending LeverLock™ system accessories for fast, flexible cable management and mounting of small devices such as interface boxes, power supplies, and relay modules
- Unique new extender bay adds 3" of useable depth to the front or rear of the enclosure at any time. Extender bays allow the use of existing doors and can even be stacked for greater depth
- Standard front and rear adjustable wide, heavy-gauge, 10-32 threaded rackrail with numbered rackspace increments speeds equipment mounting
- Wide open bottom accepts multiple base options
- Finished in a durable black textured powder coat
Thermal Management
- Top options include solid, vented, and thermostatically controlled fan tops
- Standard vented door accepts optional doors
Cable Management
- Accepts LeverLock™ system tool free cable management accessories
- Cable entry choices include generous laser knockouts and choice of trade openings and/or grommetted pass-throughs
- The generous 21" wide top opening provides for full-width cable and conduit entry, and includes vertical cable entry tie points on both sides
- Optional brush grommet rear door kit can be mounted top or bottom to provide a large cable passage with easy access to the cables without fishing
Product Type: Rack Cabinet
Environmentally Friendly: Yes
Environmental Certification: GREENGUARD
Static/Stationary Weight Capacity: 12000 lb
Rack Depth: 29.40"
Product Color: Black
Product Material: Steel
Product Series: BGR
Rack Width: 19"
Rack Height: 45U
Brand Name: Middle Atlantic
Form Factor: Floor Standing
Manufacturer: Legrand Group
Product Name: BGR Series Enclosure
Manufacturer Part Number: BGR-4532
Manufacturer Website Address: http://www.legrand.us
Limited Warranty: Lifetime
