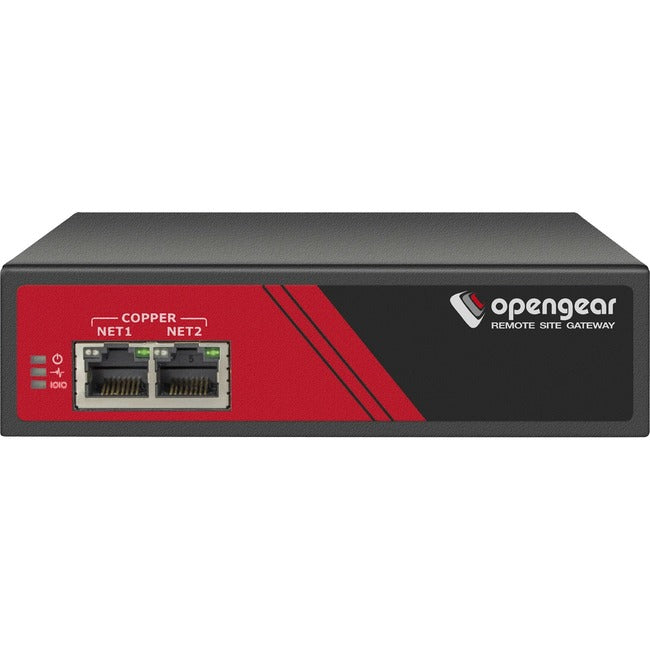

Opengear Remote Site Gateway
The Remote Site Gateway console server offers flexibility with 4 to 8 x RJ45 serial and 4 x USB console ports. Choose from a wide range of USB console support ranging from switches, server, PDUs and other devices. Available with a built-in 4 port Gigabit Ethernet switch which reduces the need for additional equipment and for applications with limited space. Failover connectivity includes ethernet, SFP fiber and via PSTN modem. Secure remote site monitoring with the latest versions of SSL, SSH, OpenVPN, and first to market PCI DSS 3.2 compliance.
- 4 to 8 x serial RJ45 ports, out-of-band management of network and server devices
- 4 x USB 2.0 console ports, out-of-band management of network and server devices
- Available with built-in 4-port gigabit Ethernet switch and fiber SFP
- Available built-in V.92 modem for out of band management
- Centralize the management of all your enterprise remote sites and data centers with Lighthouse 5
- 4 Port Digital IO and embedded internal temperature sensor that can be used for environmental monitoring
- Integrated RESTful API engine on devices running firmware 4.0 or higher
- Out-of-band access utilizing existing networks or installations
- Link Layer Discovery Protocol (LLDP) discover, identify and verify attached devices on your local network.
- Deploy in pop-up stores, wiring closets, branch offices, communications cabinets and harsh remote sites
- Integrated console server: manage router, switch and firewall serial & USB consoles
- FIPS 140-2 validated encryption, SSL and SSH, stateful firewall, OpenVPN & IPsec
- Environmental monitoring (temperature, humidity, smoke, water leak and physical tampering) and notification via SMS, SNMP or Nagios
- Automatically detect and recover from network outages and repair equipment faults
- Smart OOB™ with Failover to Cellular
- Maintain network connectivity during failures with IP Passthrough
- Available with 4 port embedded switch
- Flexibility with built-in 4 USB console ports
- Multicarrier cellular modules for carrier diversity
- Built-in digital I/O and high voltage I/O
- Compact and powerful hardware with integrated 4 GB internal storage
Product Type: Infrastructure Management Equipment
Environmentally Friendly: Yes
Environmental Certification: TV
Country Of Origin: United States
Product Series: ACM7000
Brand Name: Opengear
Form Factor: Rack Mount
Manufacturer: Opengear
Product Model: ACM7004-2
Product Name: Remote Site Gateway
Application/Usage: Remote Management
Manufacturer Part Number: ACM7004-2
Manufacturer Website Address: http://www.opengear.com
Package Contents:
- Remote Site Gateway
- Rack Mount Kit - Two ears and screws
- Digital I/O Black Terminal block
- DB9F-RJ45 Adapter
- 4 x Rubber Feet
- 12VDC Universal Power Supply
- Quick Start Guide
Limited Warranty: 4 Year
Weight (Approximate): 1.30 lb
