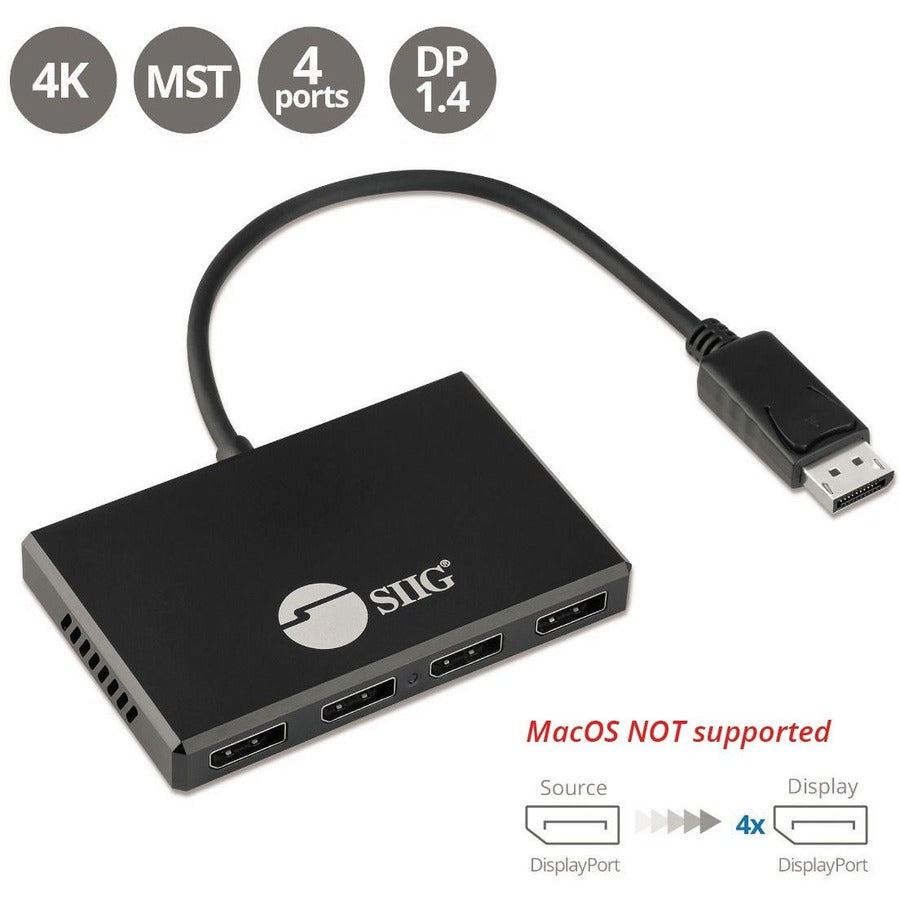

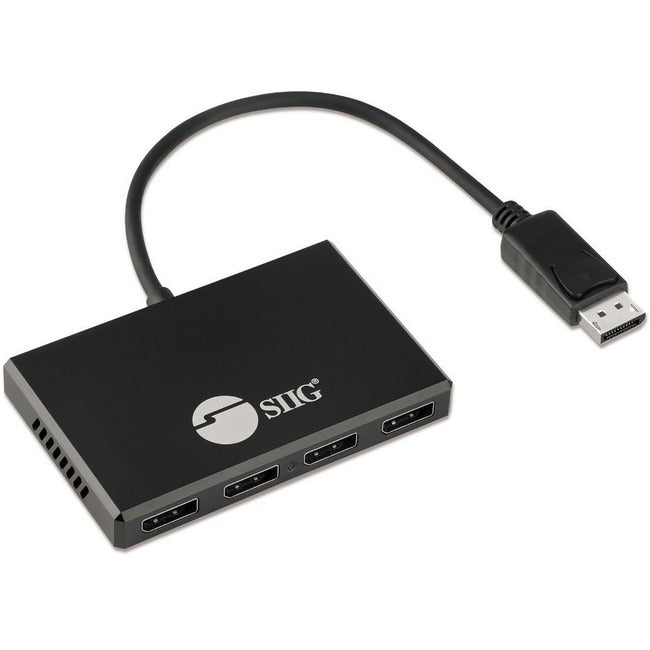

4 Port 8K DisplayPort 1.4 to DisplayPort MST Hub Splitter
1x4 Splitter, connect up to four DisplayPort displays to single DisplayPort 1.4 output with Multi-Stream Transport (MST), no driver required, Windows PCs, not Mac OS compatible
- Connect up to four DisplayPort displays to single DisplayPort 1.4 output with Multi-Stream Transport (MST) technology to boost your productivity

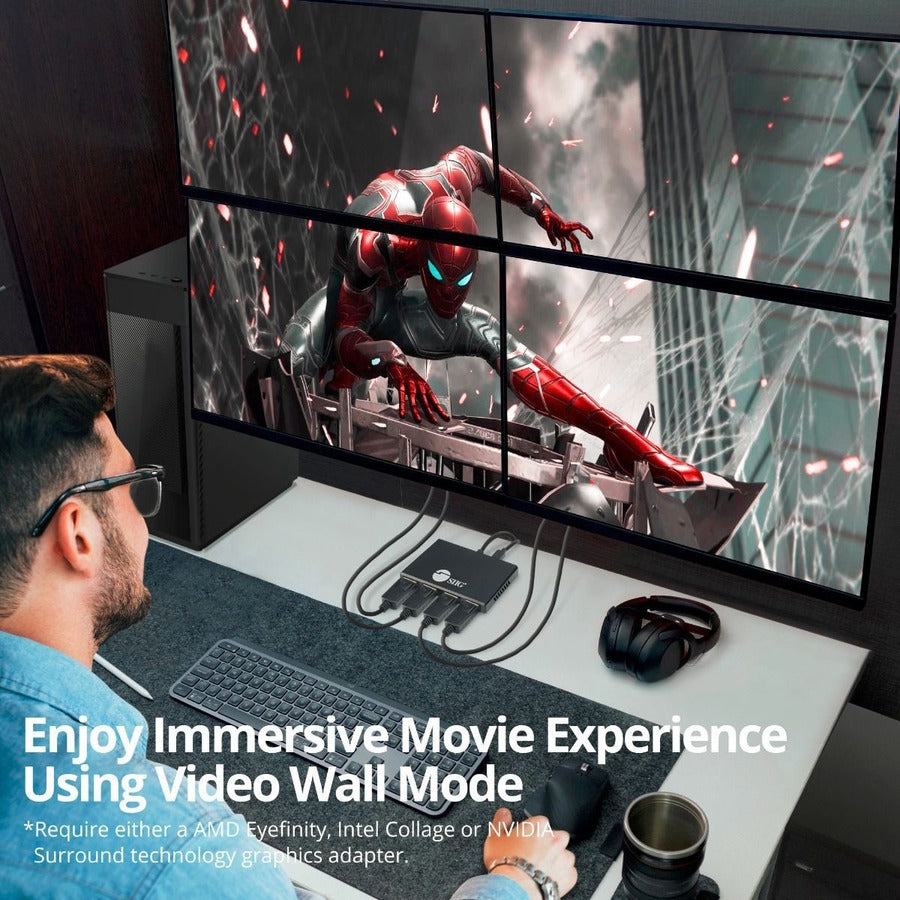

- Provides multiple display modes such as Mirror mode* same content on each display, Extended mode with individual content on each display, and Panoramic Video Wall mode which combines multiple monitors to use as one large display. Note: Mirror mode using a NVIDIA Surround technology graphics adapter is limited to 2 displays. Video Wall mode requires either a AMD Eyefinity, Intel, or NVIDIA Surround technology graphics adapter

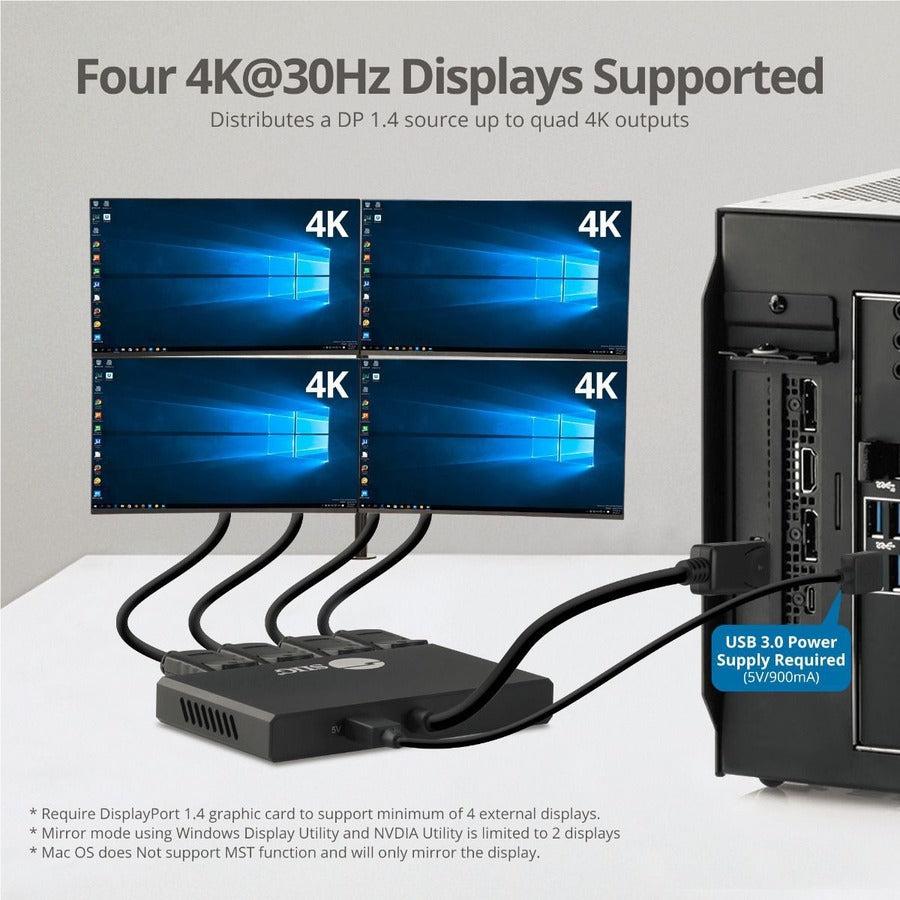

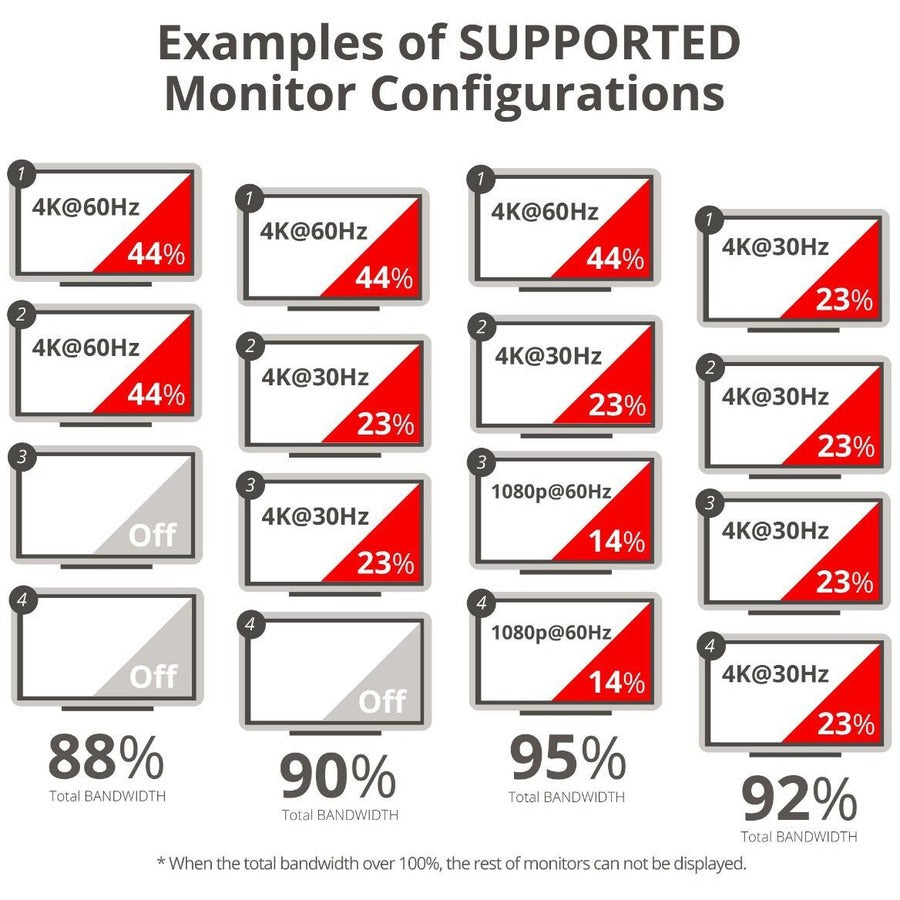

- Total Bandwidth 32.4Gbps (max): Supports one UHD 8K (7680 x 4320)@30Hz display, two 4K@60Hz displays, three or four 4K (3840x2160)@30Hz or less display. Other resolution combinations which are less than or equal to 4K@30Hz will work also. For example, four 2K, four 1080p, 4K+2K+1080p+1080p etc. Note: The total combined bandwidth among all connected displays must NOT exceed the total maximum bandwidth of 32.4Gbps

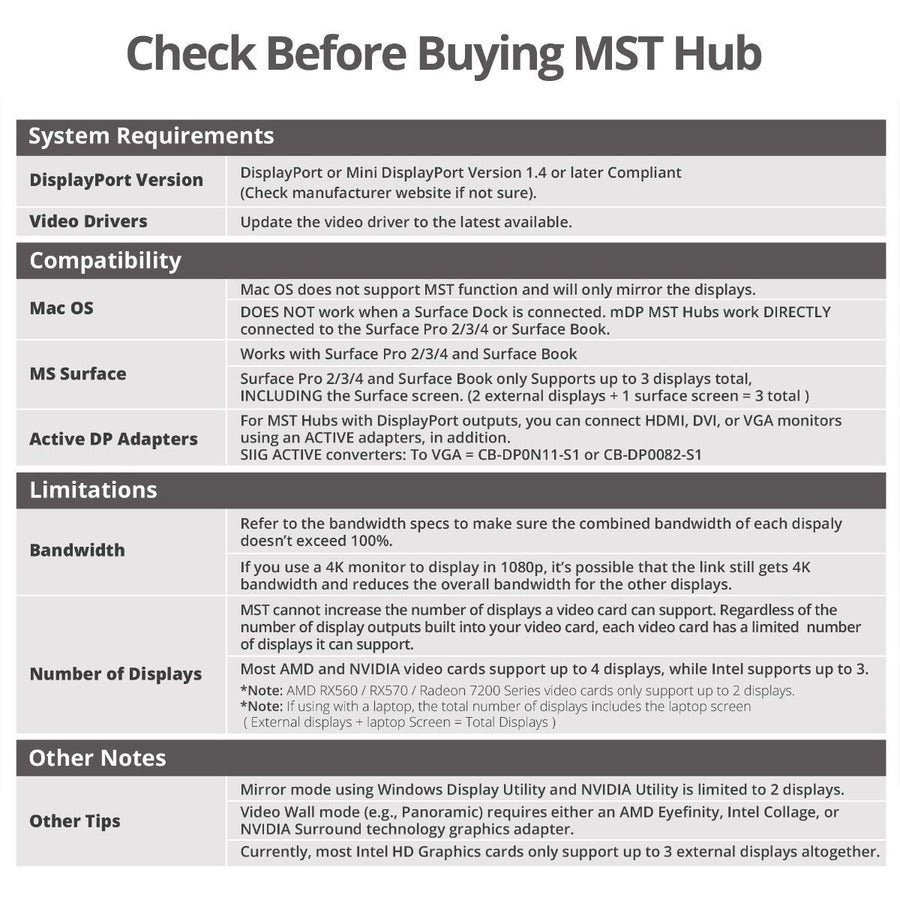

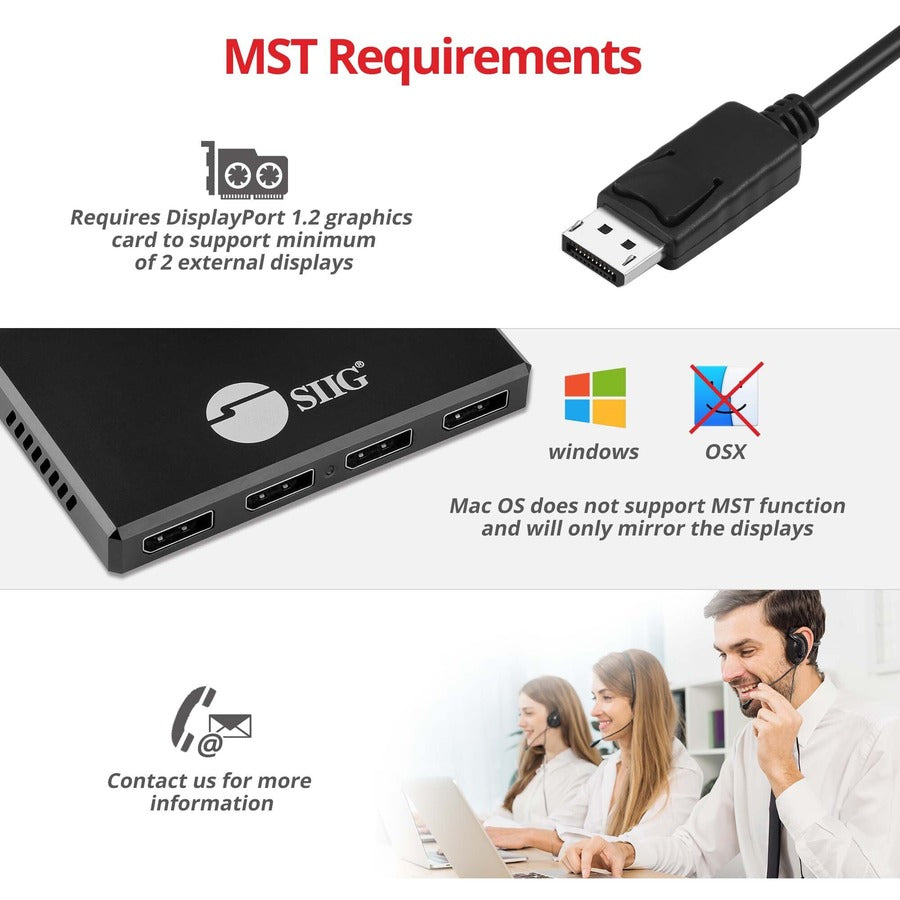

- Compatible with DisplayPort 1.4 with MST graphics cards with AMD Eyefinity, Intel Collage or NVIDIA Surround technology
- Supports 4K HDR and HDCP 2.2
- Plug-n-play, trouble-free set up without complicated hardware or driver installation
More from the Manufacturer
- Split CATV and other signals with this satellite splitter so that it can be used for more than one device
- Up to 7680 x 4320 video resolution.
- Unhindered connections with USB devices are ensured by the built-in USB port
Product Type: Signal Splitter
Environmentally Friendly: Yes
Environmental Certification: RoHS
Brand Name: SIIG
Manufacturer: SIIG, Inc
Product Name: 4-Port DisplayPort 1.4 to DisplayPort MST Hub Splitter
Manufacturer Part Number: CE-DP0R11-S1
Manufacturer Website Address: http://www.siig.com

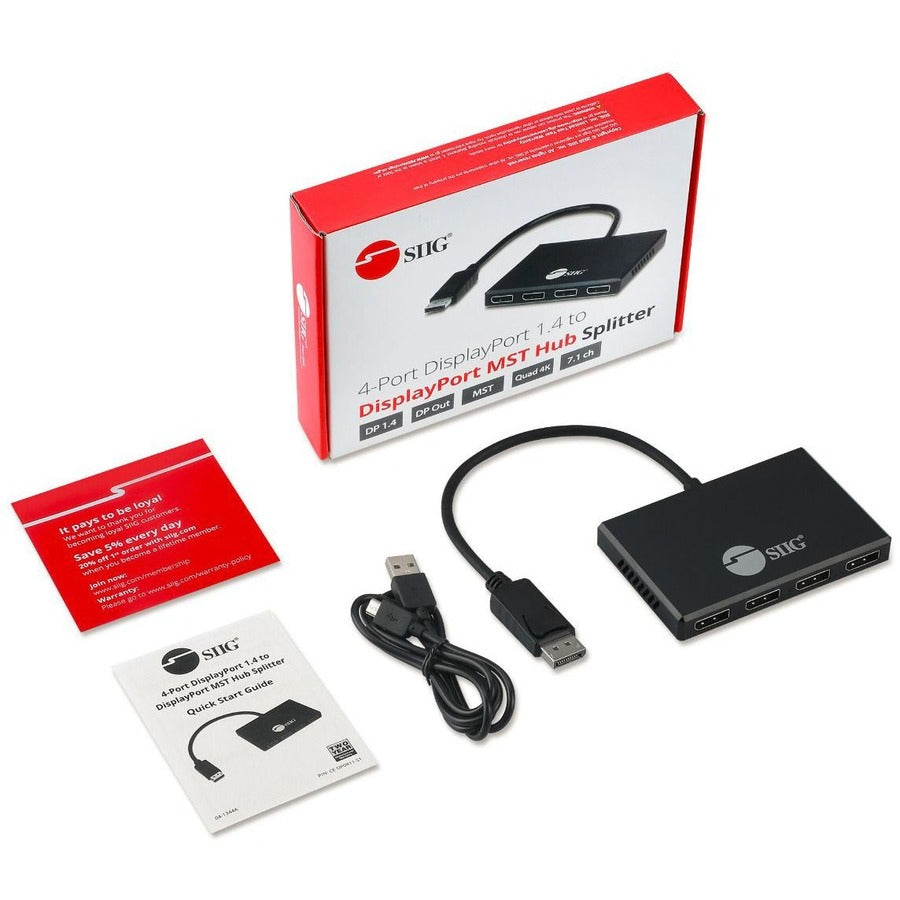

Package Contents:
- 4-Port DisplayPort 1.4 to DisplayPort MST Hub Splitter
- Micro-USB power cable
- Quick Start Guide
Limited Warranty: 2 Year

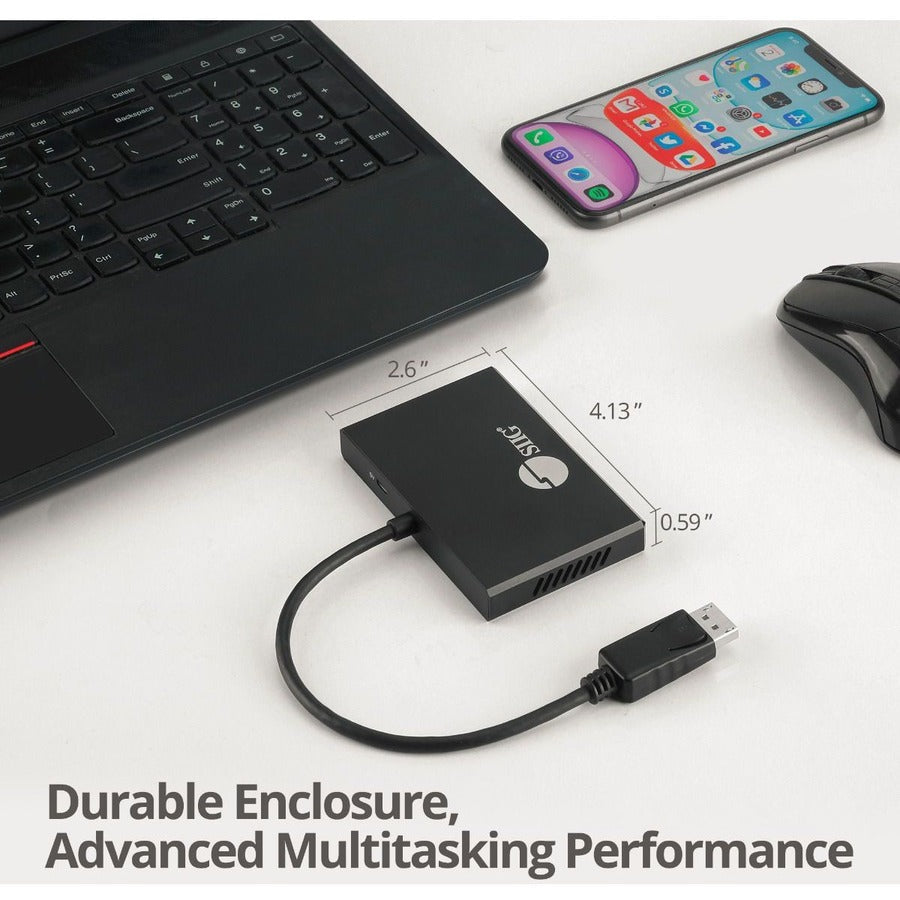

Weight (Approximate): 4.16 oz
