Atdec ceiling menu board tilt 3x1 600x400mm

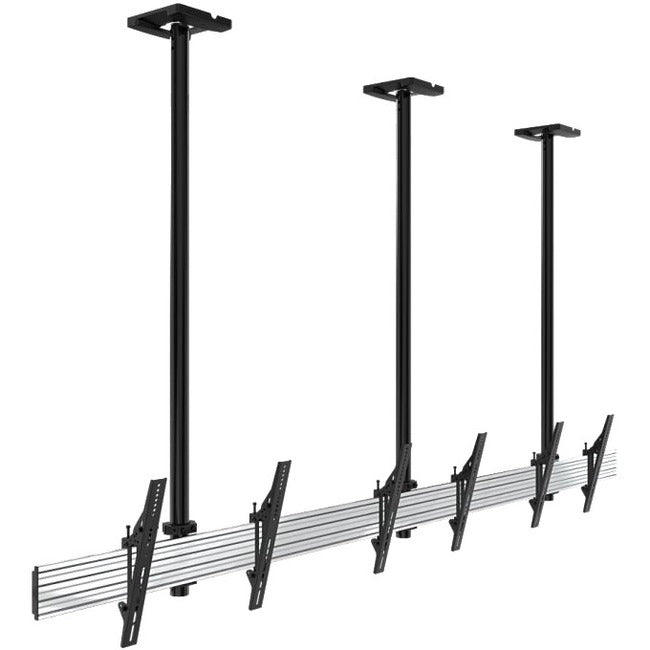

3x1 ceiling menu board mount (118.1" rail, 59.05" poles), tilting angle. Max load per display: 110lb
The ADBS-3X1-30T3C is a pre-configured mounting solution for digital menu boards. The mounting brackets support displays up to 110lb and are attached to a 118.1" horizontal mounting rail, with the added convenience of tilting mechanism.
- Max weight per screen: 110lb
- Landscape orientation
- Universal VESA: up to 400mm
- Horizontal mounting rail: 118.1"
- Material: Aluminum/Steel
- Pole: 59.05"
- Warranty: 10 years
The ADBS-3X1-30T3C solution is part of the Atdec Digital Signage modular family and consists of the following individual components:
- 1 x ADB-R175-S 68.9" Mounting Rail
- 1 x ADB-R125-S 49.2" Mounting Rail
- 1 x ADB-RX Rail Extension Kit
- 3 x ADB-PC Pole to Ceiling or Floor Attachment Fixture
- 3 x ADB-P150-B 59.05" long 1.97" diameter Pole
- 3 x ADB-RPJ Rail Pole Joiner
- 3 x ADB-B400T VESA 400 Tilting Bracket (set of two)
- Can withstand a maximum weight of 330 lb
- Supports 55" displays
- Suits the screens with 400 x 400 mounting hole pattern
Product Type: Ceiling Mount
Vesa Mount Standard: 600 x 400
Product Color: Black
Product Material: Steel
Brand Name: Atdec
Manufacturer: Atdec Pty Ltd
Product Name: 3x1 Ceiling Menu Board Mount (118.1" rail, 59.05" poles), Tilting Angle
Manufacturer Part Number: ADBS-3X1-30T3C
Manufacturer Website Address: http://www.atdec.com
Package Contents:
- 1 x ADB-R175-S 68.9" Mounting Rail
- 1 x ADB-R125-S 49.2" Mounting Rail
- 1 x ADB-RX Rail Extension Kit
- 3 x ADB-PC Pole to Ceiling or Floor Attachment Fixture
- 3 x ADB-P150-B 59.05" long 1.97" diameter Pole
- 3 x ADB-RPJ Rail Pole Joiner
- 3 x ADB-B400T VESA 400 Tilting Bracket (set of two)
Limited Warranty: 10 Year
