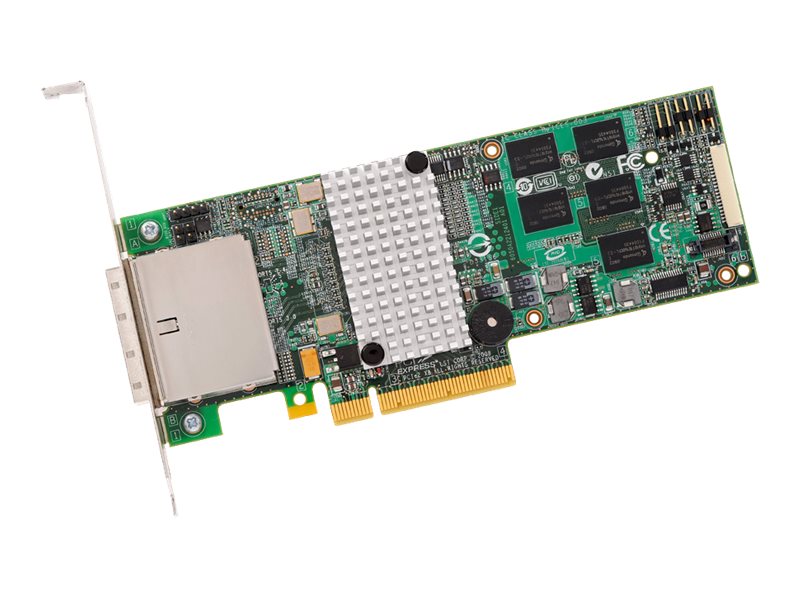

3ware SAS 9750-8e Kit - Storage controller (RAID) - 8 Channel - SATA 6Gb/s / SAS 6Gb/s - RAID 0, 1, 5, 6, 10, 50 - PCIe 2.0 x8
- Eight high performance 6Gb/s SATA+SAS external ports, x8 PCIe 2.0 host, driven by RAID-on-Chip (ROC) technology from LSI
- Ideal for configuring storage servers with your choice of high-performance SAS hard drives, high-capacity SATA hard drives or solid state drives (SSDs)
- A fast RAID controller card with capacity for accelerating key applications, tiering corporate data or driving streaming media sites
The eight-port 3ware SAS 9750-8e, offering data transfer rates of up to 6Gb/s per port, brings new features and improved performance to server applications using up to 127 SATA or SAS devices.
-
Expand your horizon
LSI 3ware SATA+SAS RAID controllers provide a new level of reliability, availability, and performance to businesses that are facing storage challenges, particularly in sequential I/O intensive and multi-stream environments. This 3ware controller supports both internal drive storage and external JBOD expansion, while providing a higher standard of data protection and performance with the LSI RAID-on-Chip (ROC) technology. Using the external SAS ports, multiple JBODs can be connected to a server, delivering a scalable and affordable solution for growing storage requirements. Additionally, StreamFusion+ is designed to deliver breakthroughs in high-load applications and provide enhanced features and functionality in all environments.
-
6Gbps SAS advantage
6Gbps SAS is designed for backward compatibility with 3Gbps SAS as well as with 3Gbps SATA drives. In addition, 6Gbps 3ware controllers deliver significant performance improvements in both read and write applications regardless of drive speed. StorSave strengthens array performance during peak usage by allowing the controller to use both controller cache and disk cache for RAID operations. Other features of the 6Gbps 3ware SATA+SAS controller cards include greater signal integrity using decision feedback equalization, support for more sophisticated SAS topologies using expander self-discovery/self-configuration, and additional safeguards to enhance data protection.
-
StreamFusion+ performance
3ware's advanced algorithms allow for optimized reads and writes in multi-stream environments. StreamFusion+ enables higher throughout even in degraded modes to deliver a superior standard of data protection and to boost performance. It is the result of countless hours of engineering aimed at delivering breakthroughs in high-load applications and providing enhanced features and functionality in all environments. Focusing on the technology trends and customer requirements, StreamFusion+ firmware reaffirms 3ware's commitment to customer success and industry leadership.
