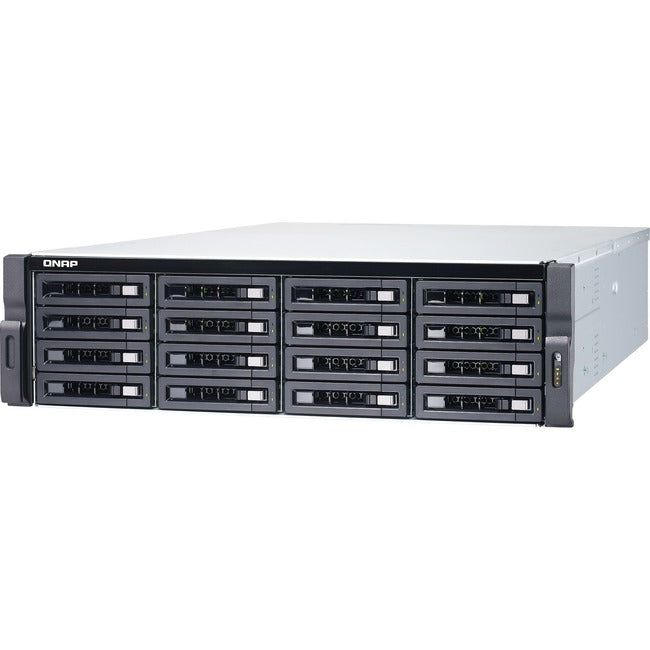

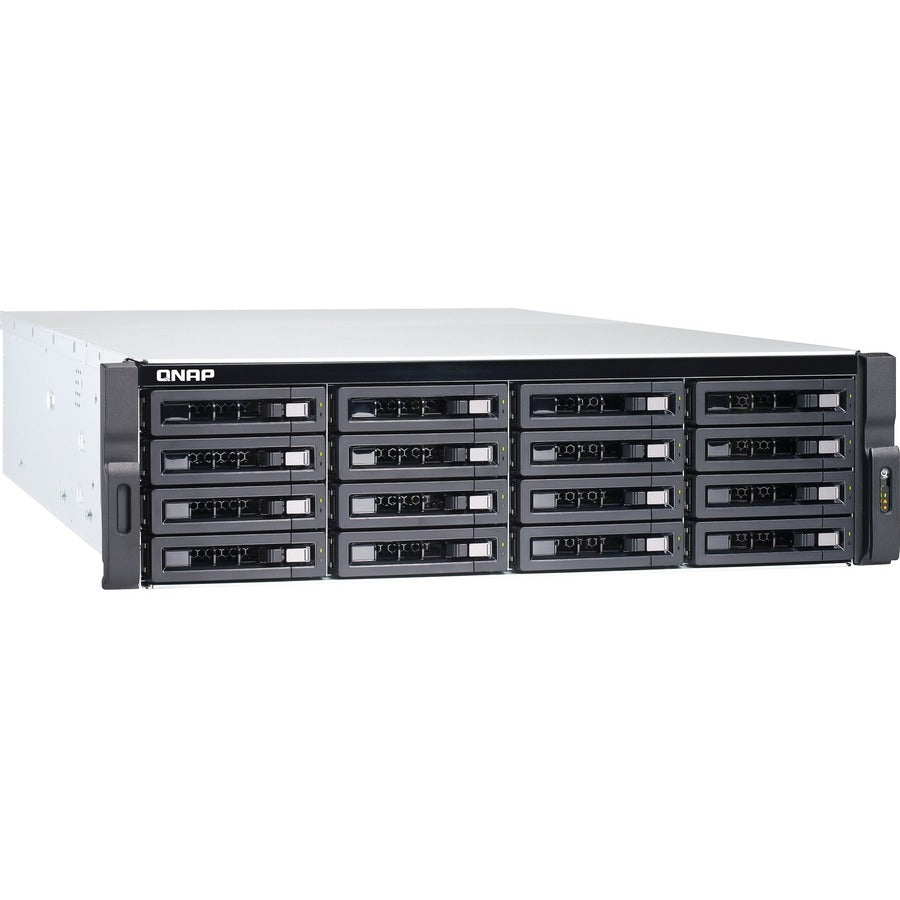

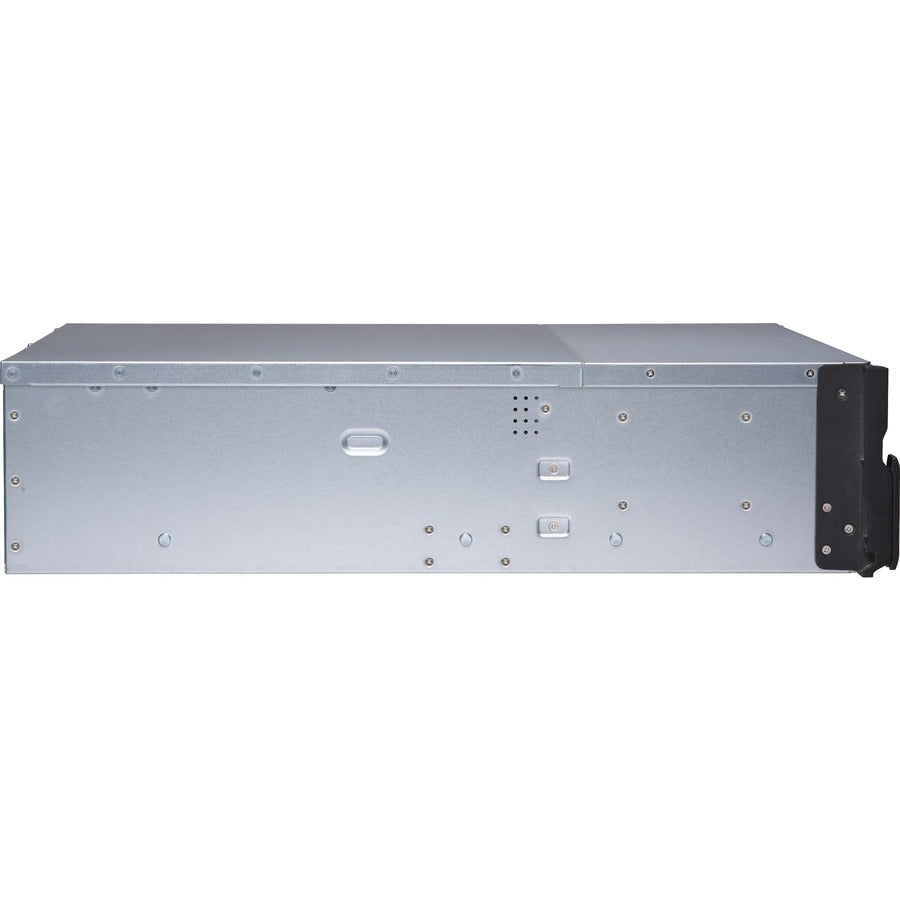

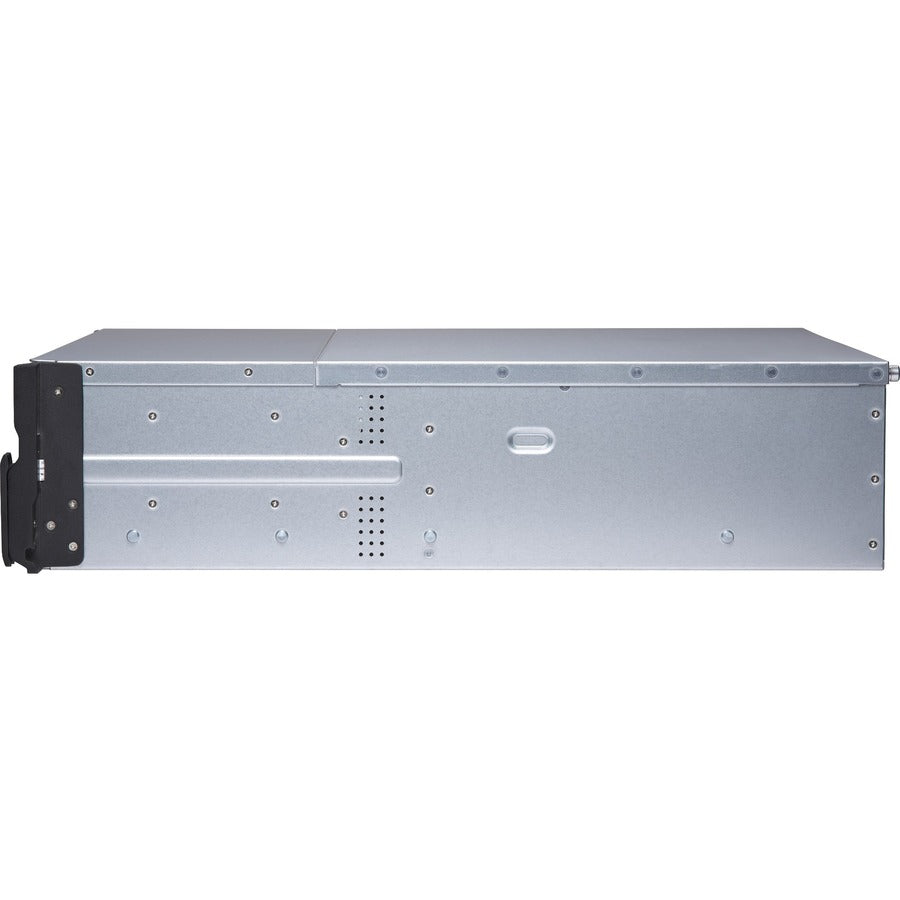

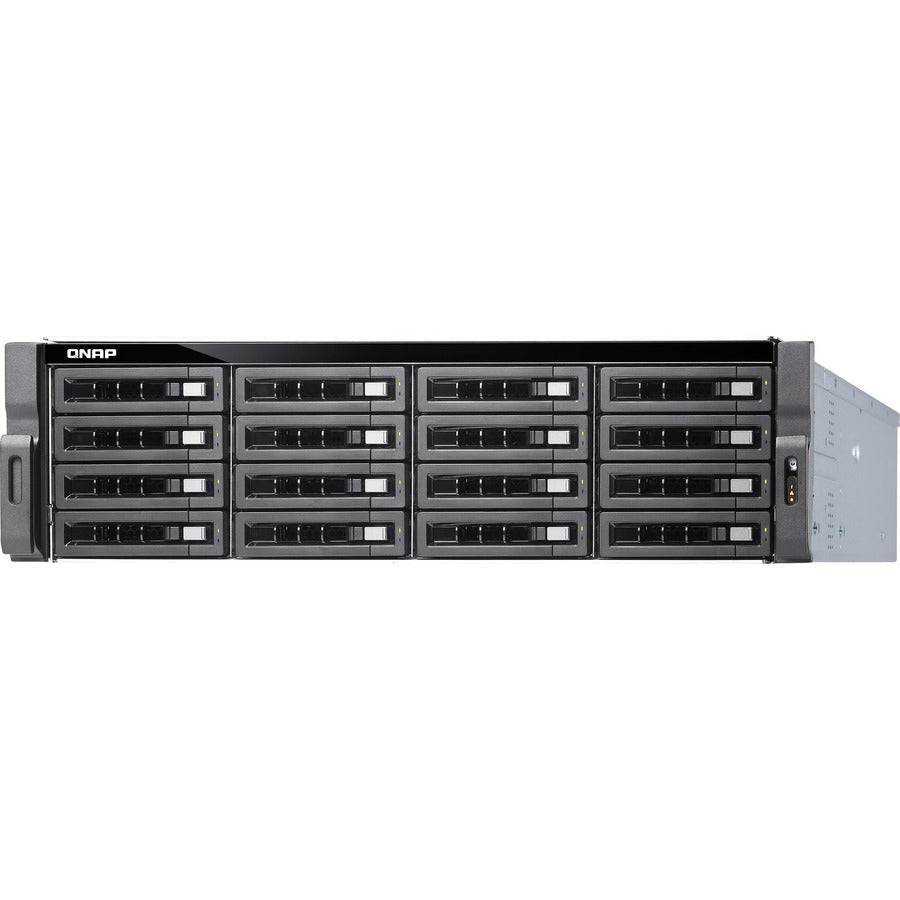

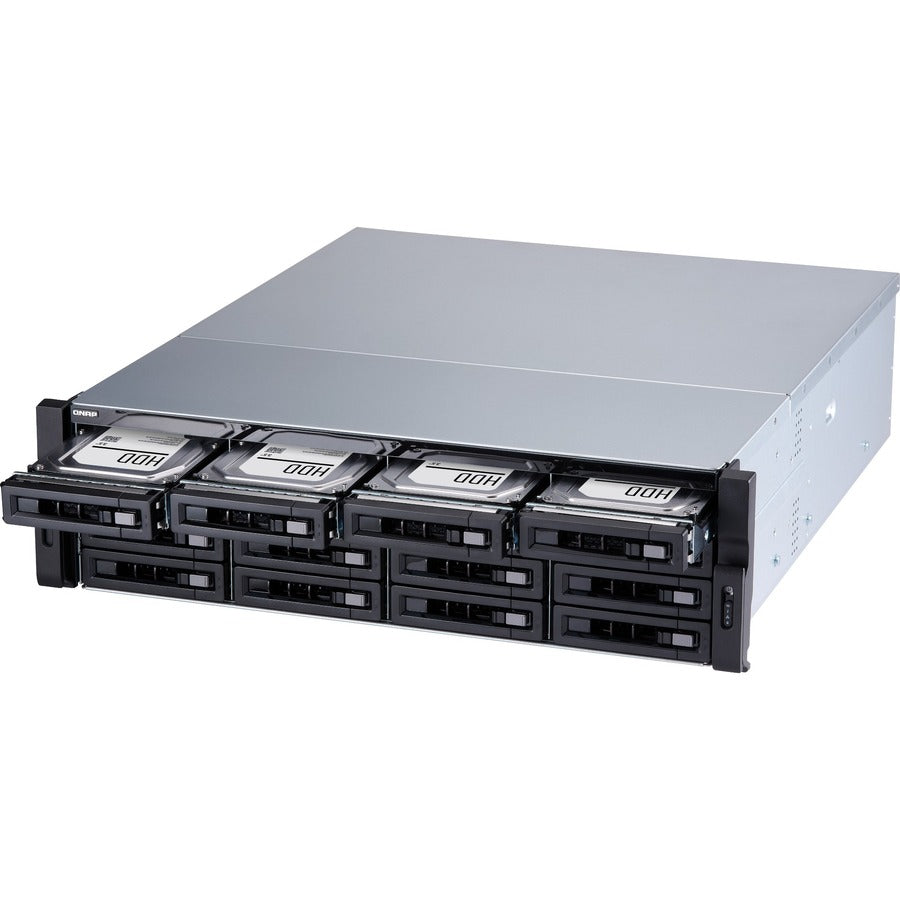

QNAP TS-1683XU-RP-E2124-16G SAN/NAS Storage System
Server-grade Intel® Xeon® E processor and ECC memory for high performance and reliability
The Intel® Xeon® E based TS-1683XU-RP enterprise NAS with up to 64 GB DDR4 ECC (Error Correcting Code) memory delivers server-grade performance with dependable reliability. It features Mellanox® ConnectX®-4 Lx 10GbE controllers that not only fulfill bandwidth-demanding applications but also support iSER to offload CPU workloads with boosted virtualization performance, while PCIe expansion allows for installing graphics cards to empower video surveillance, virtualization and AI applications. The performance-driven TS-1683XU-RP provides you with advanced business-ready features, including software-defined SSD extra over-provisioning, software-defined networking & virtual switch, and much more.
-
DDR4 ECC memory detects and then corrects single-bit memory errors, demonstrating high reliability for crucial applications.
-
Two 10GbE SFP+ SmartNIC ports with iSER support accelerate large file sharing, intensive data transfer, and VMware virtualization applications.
-
PCIe expandability allows for graphics cards or 40GbE/ 25GbE/ 10GbE adapters to increase application performance.
-
Supports VMware®, Citrix®, Microsoft® Hyper-V® and Windows Server® 2016 virtualization with reliability and cost-efficiency.
-
Software-defined SSD extra over-provisioning combats write amplification and optimizes SSD random write speeds for IOPS-demanding applications.
-
Comprehensive security management, providing a security portal for your NAS and helping you to stay informed of NAS status at all times.
Intel® Xeon® E processor, extraordinary performance
The TS-1683XU-RP features an Intel® Xeon® E-2124 quad-core 3.3 GHz processor (burst up to 4.3 GHz), 16 GB DDR4 ECC memory (upgradable to 64 GB), and a redundant power supply, delivering server-grade performance and dependable reliability for rugged enterprise IT environments as a cost-efficient NAS solution. Besides 4 Gigabit RJ45 LAN ports, the TS-1683XU-RP comes with two 10GbE SFP+ SmartNIC LAN ports to provide a significant performance boost.
ECC memory forestalls data corruption to assure reliability
The Intel® Xeon® E based TS-1683XU-RP uses ECC memory that can detect and correct single-bit memory errors as they occur to prevent downtime and data loss, which is essential for always-on, mission-critical, server-grade applications. The TS-1683XU-RP supports dual-channel DDR4 memory in four Long-DIMM slots. When using paired memory modules, the TS-1683XU-RP can leverage the power of dual-channel architecture to boost performance. You also customize the memory configuration (supports up to 64 GB RAM) of the TS-1683XU-RP for greater performance to tackle dynamically-changing workloads such as virtualization.
Server-grade hardware: Sturdy and expandable
The TS-1683XU-RP features outstanding hardware and expandable architecture, enabling optimum performance and flexibility to fulfill business needs in performance and application diversification.
- Experience unmatched performance, built-in security and remote management capabilities with Intel Xeon 3.30 ghz processor
- Optimize business network's performance with 10 Gigabit Ethernet connectivity
- Through RAID levels (0, 1, 5, 6, 10, 50, 60, hot spare, jbod), RAID provides data reliability, fault tolerance and improves overall performance
Product Type: SAN/NAS Storage System
Country Of Origin: Taiwan
Product Series: TS-x83XU
Rack Height: 3U
Brand Name: QNAP
Form Factor: Rack-mountable
Manufacturer: QNAP Systems
Product Model: TS-1683XU-RP-E2124-16G
Product Name: TS-1683XU-RP-E2124-16G SAN/NAS Storage System
Manufacturer Part Number: TS1683XURPE212416GUS
Manufacturer Website Address: http://www.qnap.com
Package Contents:
- TS-1683XU-RP-E2124-16G SAN/NAS Storage System
- 2 x Ethernet Cables
- 2 x Power Cords
- 64 x Flat Head Screws (for 3.5" HDD)
- 64 x Flat Head Screws (for 2.5" HDD)
- Quick Installation Guide (QIG)
Limited Warranty: 3 Year
Weight (Approximate): 30.34 lb
