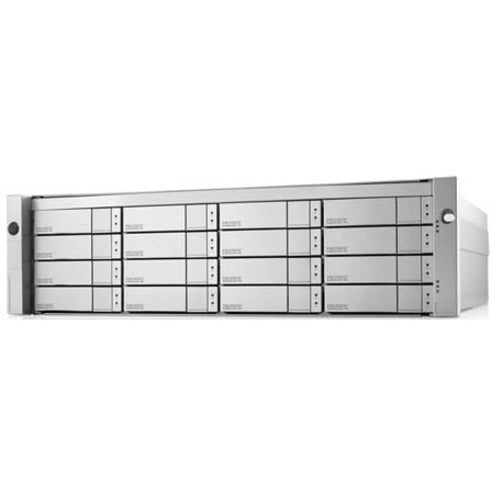

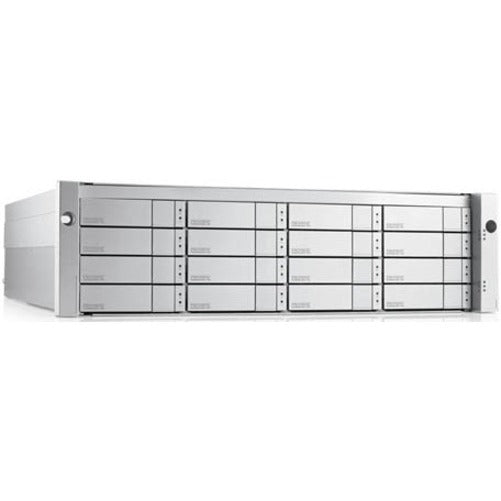

Promise VTrak J5600sD Drive Enclosure - 12Gb/s SAS Host Interface - 3U Rack-mountable
Affordable Enterprise-Level Storage
The VTrak J5000 Series delivers an affordable high performance SAS solution with advanced enterprise level reliability and functionality. The four external 12 Gb/s SAS ports per I/O module provide the connectivity for large capacity solutions requiring multiple cascaded JBODs, and high bandwidth solutions requiring speed. It features fully redundant I/O modules, power supplies and cooling units, combined with a cable-less system design, providing exceptional data availability even during component failures for the enterprise environment.
Supports Hybrid HDD/SSD Arrays
Fully backward compatible with 6 Gb/s SAS/SATA devices, users have the ability to deploy 3 Gb/s, 6 Gb/s, and 12 Gb/s SAS/SATA HDDs and SSDs in the J5000 Series. Efficient power supplies provide up to 90% power efficiency, which improves TCO by conserving power, reducing heat output, and improving cooling costs. The internal 12 Gb/s SAS expander-based architecture also allows for transparent access to each drive, enabling full utilization of the power management features built into modern hard drives.
Increased Performance To Optimize Datacenters
The VTrak J5000 Series moves data at incredible speeds, allowing you to optimize your datacenter. Administrators can deploy with the fastest SAS bus speed with 12 Gb/s HDDs or SSDs. These systems are fully backward compatible with 6 Gb/s SAS/SATA drives, yet are still able to optimize the full port bandwidth of 12 Gb/s to the host. Flash arrays allow you to optimize speed for key enterprise apps that require utmost performance. The internal 12 Gb/s SAS expander-based architecture allows for data to transfer faster with greater redundancy protection.
- VTrak J5000 Series 12 Gb/s SAS subsystems deliver a high performance SAS solution with advanced enterprise level reliability and functionality
- 16 hot-swappable 3.5" (LFF) drive bays in a robust 3U chassis
- Supports SAS and SATA drives simultaneously and is compatible with leading SAS & SATA drives, HBAs, and RAID controllers

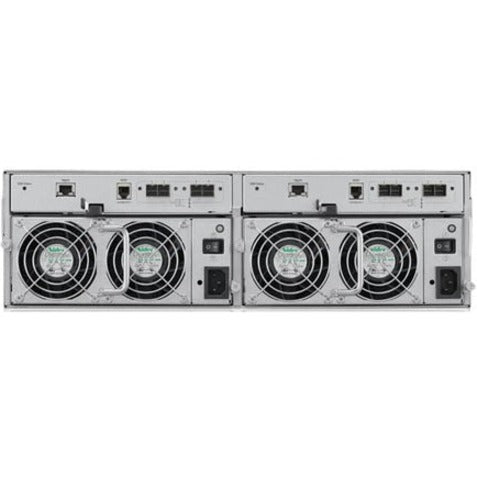

- Dual active/active SAS JBOD I/O modules provide redundant data paths to ensure data availability and redundant hot-swappable Field Replaceable Units (FRUs)
- Flexible wide-port configuration: Four x4 wide ports, two x8 wide ports or one x16 wide port per IOM and SES-2 compliant enclosure management
Product Type: Drive Enclosure
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country Of Origin: Taiwan
Product Series: J5000
Rack Height: 3U
Brand Name: Promise
Form Factor: Rack-mountable
Manufacturer: Promise Technology
Product Model: J5600sD
Product Name: VTrak J5600sD Drive Enclosure
Product Line: VTrak
Manufacturer Part Number: J5600SDQS14
Manufacturer Website Address: http://www.promise.com
Limited Warranty: 3 Year
Weight (Approximate): 84.44 lb
