36" X 24" X 16" Nema 3 Enclosure 2 With Fans Al362416N3-Ft2

OVERVIEW

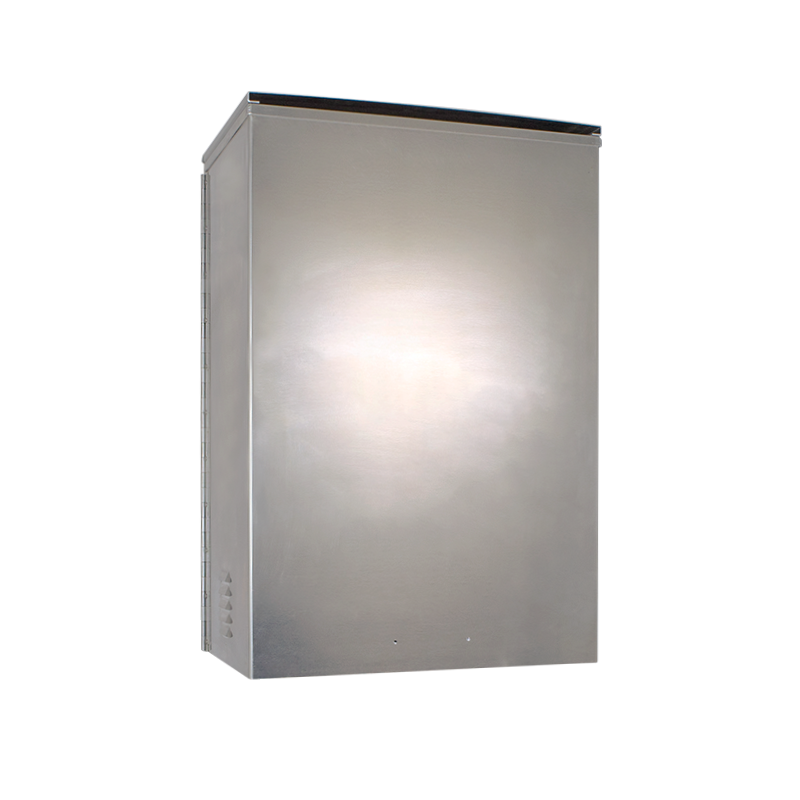

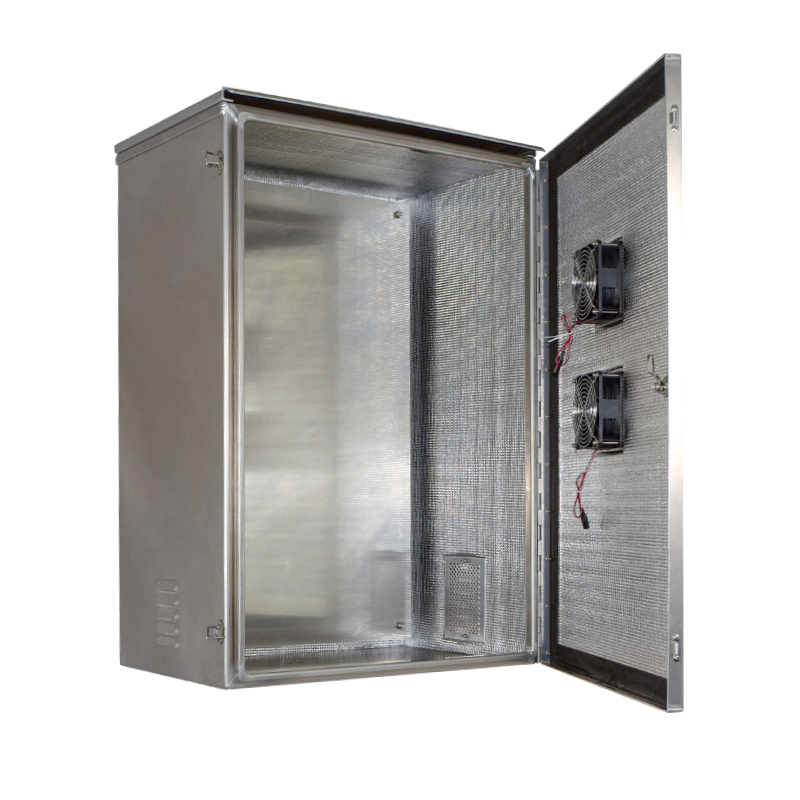

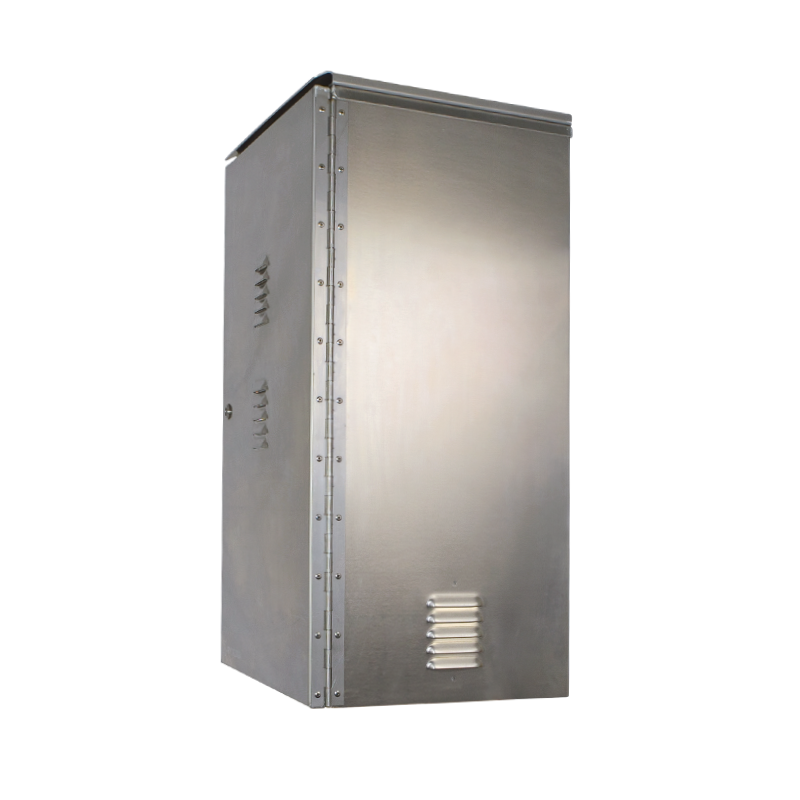

36″ x 24″ x 16″ NEMA 3 weatherproof enclosure is manufactured from 5052 Aluminum. This construction resists rusting and corrosion making it ideal for use for marine applications as well as other rugged environments. Each enclosure includes a sunshade, airflow vents with screens, insulation, a heavy-duty piano hinge, dual door latches, triangular cam lock, and universal mounting brackets. These brackets allow for installers to mount the enclosure directly to a wall (flush mount), or mount to a pole using banding brackets (optional accessory). A removable back-plate allows for items to be installed vertically and assembled outside of the enclosure. Temperature control available with an optional thermostatic fan, heater, or both depending on your needs. This model includes two thermostat/fan combinations for temperature control.

Applications: The AL362416N3-FT2 is commonly found in data centers, guarding gates, housing controls, along river and ocean fronts, on docks, in boat storage facilities or marinas, commercial areas, and more.

SPECIFICATIONS

RESOURCES

PDF Spec Sheet – Download
