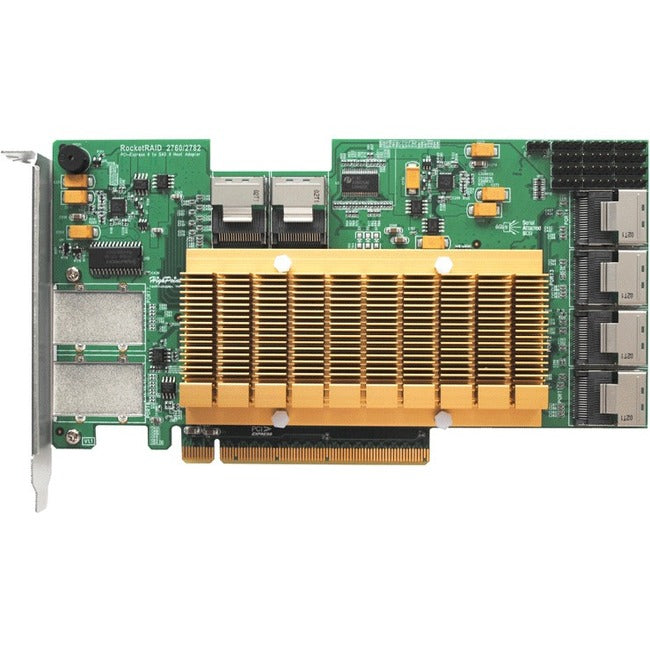

HighPoint RocketRAID 2782 Controller Card
Available with up to 32 dedicated ports, RocketRAID 2700 series PCI-Express 2.0 x16 SAS RAID HBA's provide maximum port count and deliver a connectivity bandwidth up to 19,200 MB/s; ideal for a wide-range of high-performance and high-density storage applications.
HighPoint Turbo-RAID Technology: For over a decade, HighPoint has strived to take the cost and complexity out of RAID. We were the first to introduce affordable RAID 5 solutions to the storage marketplace, for both SMB and consumer applications. HighPoint Turbo RAID Products and Solutions are powered by our industry proven RAID stack, which leverages the powerful system resources and robust 2nd generation PCIe x8 host interface of today's modern computing platforms.
RocketRAID 2700 x16 HBA's support a wide-range of storage configurations including RAID 0, 1, 5, 10, 50, & JBOD.
Complete, Flexible Upgrade Paths: RocketRAID 2700 HBA's are fully backwards compatible with SAS/SATA 3Gb/s devices, PCI-Express 1.0 and 2.0 motherboards, and are compliant with all major operating systems including Windows, Linux, FreeBSD & Mac OS X. RAID arrays can be freely moved to any other RocketRAID 2700 HBA. Upgrading, scaling and expanding storage has never been easier.
Simple and Easy Storage Expansion: RocketRAID 2700 series HBA's allow customers to expand capacity and convert existing RAID arrays from one level to another without having to start from scratch: your data remains intact and accessible during the transition! OCE (Online Capacity Expansion) and ORLM (Online RAID Level Migration) features are provided by HighPoint's comprehensive and intuitive web-based user interface, which is available for all major operating systems including Mac OS X, Windows 7, 8, 8.1, 10, Linux Distributions and FreeBSD.
- Global Hot Spare Disk support
- RAID Initialization Background/Foreground/Quick
- Online Capacity Expansion (OCE)
- Online RAID Level Migration (ORLM)
- Online Array Roaming
- Storage Configurations Support Details: Direct Attached
- Multiple RAID Partitions supported: Support up to 4 RAID partition per disk
- Redundant RAID Configurations
- Storage Health Inspector
- Flash ROM for Upgradeable BIOS
Product Type: SAS Controller
Product Series: 2700
Brand Name: HighPoint
Form Factor: Plug-in Card
Manufacturer: HighPoint Technologies, Inc
Product Model: 2782
Product Name: RocketRAID 2782 Controller Card
Product Line: RocketRAID
Manufacturer Part Number: RR2782
Manufacturer Website Address: http://www.highpoint-tech.com
Packaged Quantity: 1
Platform Supported: Linux
Package Contents:
- RocketRAID 2782 Controller Card
- 1 x Quick Installation Guide
Weight (Approximate): 9.28 oz
