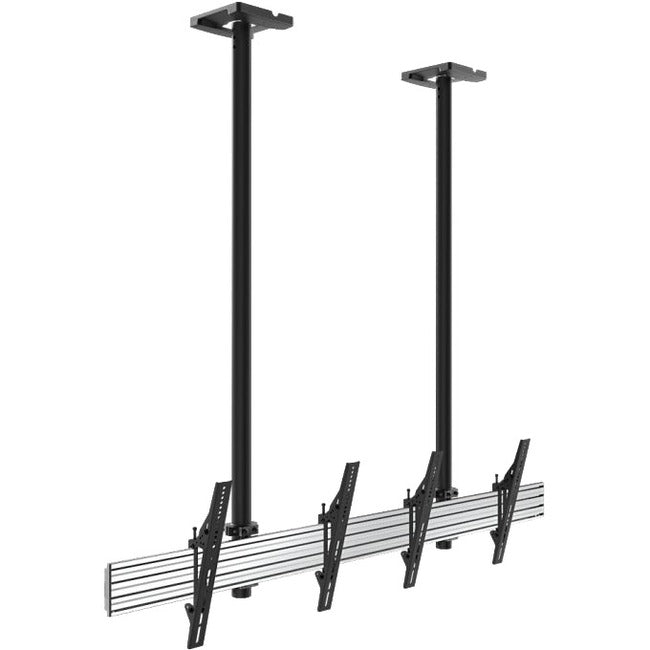

Atdec ceiling menu board tilt 2x1 600x400mm
2x1 ceiling menu board mount (68.9" rail, 59.05" pole), tilting angle. Max load per display: 110lb
The ADBS-2X1-17T2C is a pre-configured mounting solution for digital menu boards. The mounting brackets support displays up to 110lb and are attached to a 68.9" horizontal mounting rail, with the added convenience of tilting mechanism.
- Max weight per screen: 110lb
- Landscape orientation
- Universal VESA: up to 400mm
- Horizontal mounting rail: 68.9"
- Material: Aluminum/Steel
- Pole: 59.05"
- Warranty: 10 years
The ADBS-2X1-17T2C solution is part of the Atdec Digital Signage modular family and consists of the following individual components:
- 1 x ADB-R175-S 68.9" Mounting Rail
- 2 x ADB-PC pole to Ceiling or Floor Attachment Fixture
- 2 x ADB-P150-B 59.05" long 1.97" diameter Pole
- 2 x ADB-RPJ Rail Pole Joiner
- 2 x ADB-B400T VESA 400 Tilting Bracket (set of two)
- Can withstand a maximum weight of 220 lb
- Supports the screen size of 55"
- Suits the monitors with 400 x 400 mounting hole pattern
Product Type: Ceiling Mount
Vesa Mount Standard: 600 x 400
Product Material: Steel
Brand Name: Atdec
Manufacturer: Atdec Pty Ltd
Product Name: 2x1 Ceiling Menu Board Mount (68.9" rail, 59.05" pole), Tilting Angle
Manufacturer Part Number: ADBS-2X1-17T2C
Manufacturer Website Address: http://www.atdec.com
Package Contents:
- 1 x ADB-R175-S 68.9" Mounting Rail
- 2 x ADB-PC pole to Ceiling or Floor Attachment Fixture
- 2 x ADB-P150-B 59.05" long 1.97" diameter Pole
- 2 x ADB-RPJ Rail Pole Joiner
- 2 x ADB-B400T VESA 400 Tilting Bracket (set of two)
Limited Warranty: 10 Year
