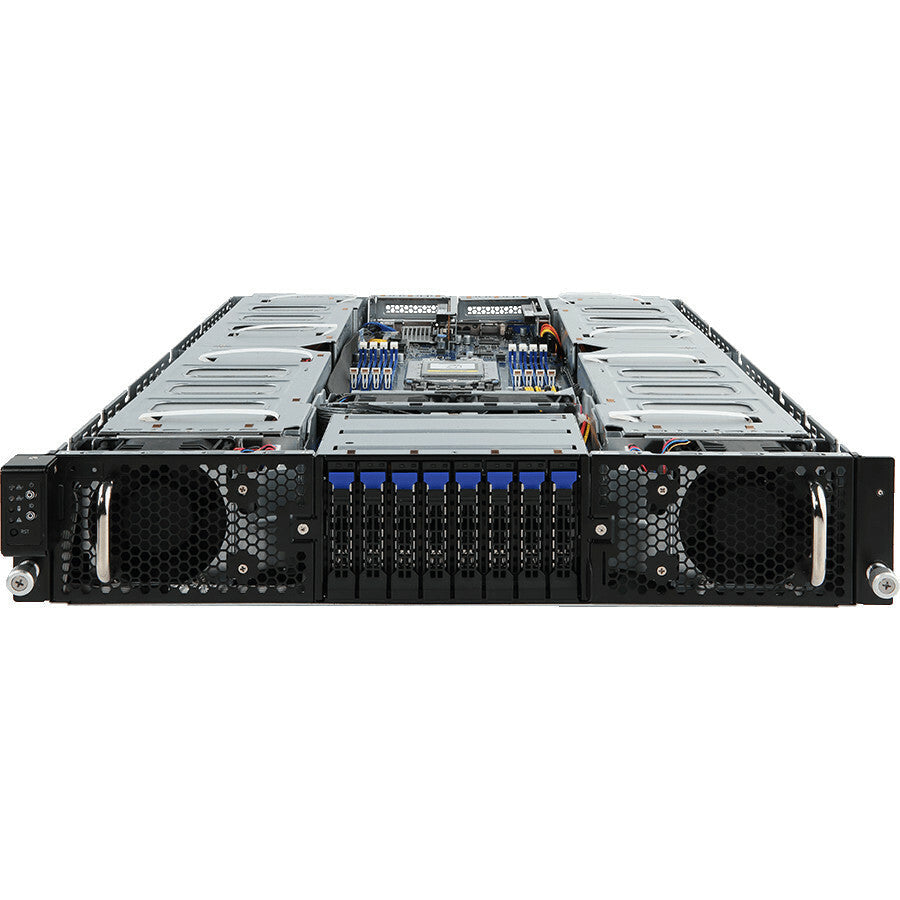

Gigabyte G291-Z20 Barebone System - 2U Rack-mountable - Socket SP3 - 1 x Processor Support
- Supports up to 8 x double slot GPU cards
- AMD EPYC™ 7000 series processor family
- 8-Channel RDIMM/LRDIMM DDR4, 8 x DIMMs
- 2 x SFP+ 10Gb/s LAN ports (Mellanox® ConnectX-4)
- 1 x Dedicated management port
- 8 x 2.5" hot-swappable HDD/SSD bays
- 2 x M.2 with PCIe Gen3 x4/x2 interface
- 8 x PCIe Gen3 expansion slots for GPUs
- 2 x PCIe x16 half-length low-profile slots for add-on cards
- Aspeed® AST2500 remote management controller
- Dual 2200W 80 PLUS Platinum redundant/hot-swap power supply
- Optimized performance with Mellanox Infiniband EDR and Ethernet 100G products
AMD EPYC™
The New x86 Option
AMD's return to the CPU segment delivers a whole new value proposition to the x86 world. Built on GIGABYTE's extensive design expertise across a range of chipset platforms, this AMD EPYC™ platform is already receiving acclaim for its high specification:
- Memory
- I/O
- Network connectivity
This platform is intended as an alternative for builders in the x86 space and packs a real punch in flexibility and expansion options.
CPU Key Features
Compute
32 cores
Memory
8 channels
I/O
128 PCIe lanes
Power
Regulated per core
Security
Integrated Custom Security
-
Memory Optimization
Memory speed of up to 2666MHz (at 1DPC)
Total memory capacity of 2TB supported -
PCIe Lanes
Up to 128 lanes in both 1P and 2P offerings providing the highest expandability options of any x86 platform -
Cores / Power
CPU power is managed at the core level, meaning that power is allocated only for specific workload needs -
Security
Proprietary AMD security on chip
Comprehensive I/O
Both single- and dual-socket CPUs come equipped with 128x PCIe lanes, providing extensive I/O options. This is a huge improvement in I/O vs. incumbent x86 offerings.
Increased I/O allows for flexibility in extending your storage, networking or compute to a level previously unattainable with standard server motherboards.
In addition, the integrated nature of the processor - designed as a system-on-chip (SoC) - means that there is no need for a separate PCH and less additional switches needed for expansion lanes.
High Density HPC
Supports 8 x Computing Cards
Able to support up to 8 double slot GPGPU or co-processor cards, the G291 enables world-leading HPC within a 2U chassis. The G291 is ideal for HPC applications such as real time analytics, programs in scientific simulation and modeling, engineering, visualization & rendering, data mining, and much more.
NVIDIA® Tesla® V100 Support
GIGABYTE's AMD EPYC server systems and motherboards are fully compatible and qualified to use with NVIDIA®'s Tesla® V100 GPU, the world's most advanced data center GPU ever built to accelerate AI, HPC, and graphics. Powered by NVIDIA's Volta™ architecture and with 640 Tensor Cores, Tesla® V100 is the world's first GPU to break the 100 teraflops (TFLOPS) barrier of deep learning performance - enabling data scientists, researchers, and engineers to tackle challenges that were once impossible.
High-Speed Networking
GIGABYTE offers 10Gb across dual ports on-board, ensuring that users can get the most out of their system and are well equipped for today's traffic demands. The server's network performance is boosted with full-line rate throughput and CPU overhead is reduced, leaving the EPYC to focus on the real compute tasks.
- Perform computational tasks effectively accrediting the EPYC processor
- DDR4 SDRAM compatible slot - Install memory that synchronizes electrical and clock signals for an efficient data throughput
- Optimize business network's performance with 10 Gigabit Ethernet connectivity
- Connect USB-enabled devices via 2 USB ports
- With Serial ATA/600 interface get superb reliability and high-speed data transfer
Product Type: Barebone System
Environmentally Friendly: Yes
Environmental Certification: RoHS
Rack Height: 2U
Brand Name: Gigabyte
Form Factor: Rack-mountable
Manufacturer: GIGABYTE Technology, Inc
Product Model: G291-Z20
Product Name: G291-Z20 (rev. 100) Barebone System
Manufacturer Part Number: G291-Z20
Manufacturer Website Address: http://www.gigabyte.us
Packaged Quantity: 1
Package Contents:
- G291-Z20 (rev. 100) Barebone System
- 1 x CPU Heatsinks
- 1 x Rail kit
Limited Warranty: 1 Year
Weight (Approximate): 66.14 lb
