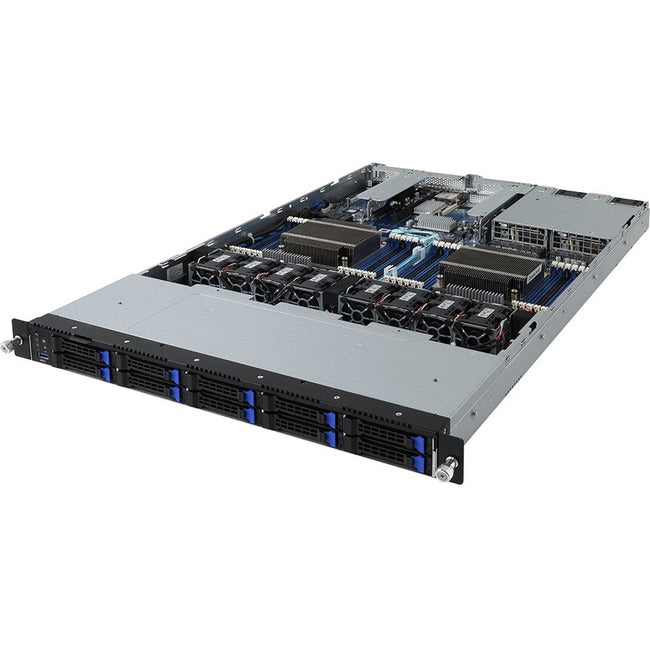

Gigabyte R181-T90 1U Rack Server - 2 x Cavium ThunderX2 CN9975 2 GHz - Serial ATA/600, 12Gb/s SAS Controller
Bringing ARM into the Server World
Presenting a genuine alternative to x86 for your next server deployment. The ThunderX2® is the 64-bit ARMv8 SoC that offers an unprecedented level of integration and industry leading performance, with custom fully out-of-order cores, single and dual socket configurations, very high memory bandwidth, large memory capacity, integrated I/O, server class virtualization and RAS features, and extensive power management. The ThunderX2® further accelerates adoption of ARM servers for mainstream cloud and HPC applications by providing the next level of computing performance and ecosystem readiness.
ThunderX2® CPU Key Features
CPU Cores
- Fully out of order, 1 / 2 / 4 threads per core
- Up to 2.5 GHz in normal mode, up to 3 GHz in turbo mode
- 3X single thread performance compared to ThunderX®
Memory Optimization
- Memory speed up to 2666MHz
- Up to 16 DIMMS per socket, up to 4 TB of memory per system in dual socket configuration
Advanced Power Management
- On-chip management engine for dynamic voltage and frequency scaling across the chip
- Full turbo mode support
Flexible IO
- Integrated 56 lanes of PCIe Gen3 interfaces, x1, x4, x8 and x16 support, 14 integrated PCIe controllers
- Integrated SATA v3, GPIOs, USB interfaces
Advanced Server Class RAS Features
- Covering memory, CPU, cache, CCPI2 and PCIe interfaces
A Real x86 Alternative
- Performance of ThunderX2 is on par with x86 for many general purpose data center applications, excellent price / performance ratio
- A wide ARM server ecosystem now exists including many of the most popular platforms for HPC, cloud & telecommunications applications.
- Allows for a seamless front end / back end connection using the same system architecture to millions of ARM handheld and IoT devices
- Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
- RAID provides data reliability, fault tolerance and improves overall performance through RAID levels (0, 1, 10, 1E)
- 2 x 1200 W power supply unit (PSU) included
Product Type: Server
Environmentally Friendly: Yes
Environmental Certification: RoHS
Rack Height: 1U
Brand Name: Gigabyte
Form Factor: Rack
Manufacturer: GIGABYTE Technology, Inc
Product Model: R181-T90
Product Name: R181-T90 (rev. 100) 1U 10-Bay ARM Server System
Manufacturer Part Number: R181-T90
Manufacturer Website Address: http://www.gigabyte.us
Packaged Quantity: 1
Package Contents:
- R181-T90 (rev. 100) 1U 10-Bay ARM Server System
- 1 x Tool-less Rail kit
Weight (Approximate): 30.42 lb
