2Port Video Splitter W/ Support,Up To 1280 X 1024

Aten VS92A VGA Switchbox

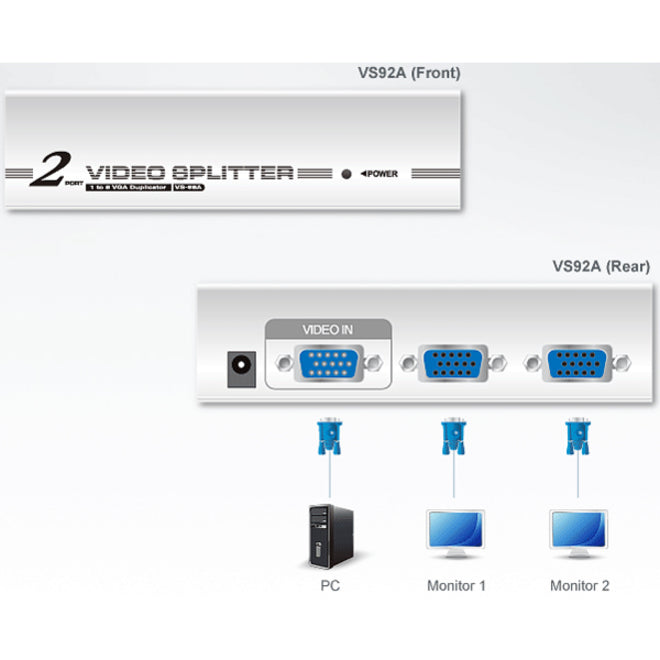

The Video Separator is a signal booster and splitter that is used to take video input from a single source and direct it to two video outputs for monitors using analog signals. The signal boost obtained by using the VS92A allows you to not only split the signal but to extend the distance so that you can send the signal to about 210 feet. (Your average VGA card, combined with a standard VGA cable, can send a clear VGA signal approximately 25 feet.) This makes public broadcasts from a single computer very feasible. If you want to display the same information on many monitors at once, such as in a classroom environment, or at a demonstration, this product performs incredibly well.

• All metal casing


• Supports VGA, XGA, SVGA, UXGA,WUXGA and multisync monitors


• DDC, DDC2, DDC2B Compatible (Port 1 only)


• Superior video quality - 1920 x 1440@60Hz


• Supports 350 MHz bandwidth


• Long-distance transmission - up to 30 m


• Cascadable to 3 levels - provides up to 8 video signals

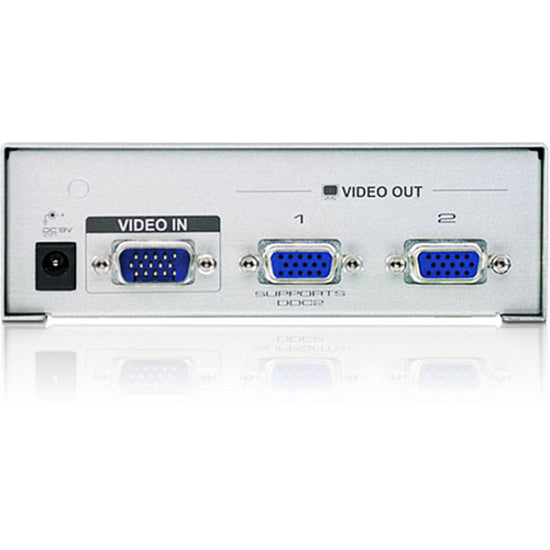

• One video input to 2 video outputs

Product Type: Video Switchbox
Brand Name: ATEN
Manufacturer: ATEN Technology Inc
Product Model: VS92A
Product Name: VS92A VGA Switchbox
Manufacturer Part Number: VS92A
Manufacturer Website Address: http://www.aten.com/us/en/
Package Contents:

• 1 x VS-92A


• 1 x DC 9V Power Adapter


• 1 x User Manual

Weight (Approximate): 11.20 oz
