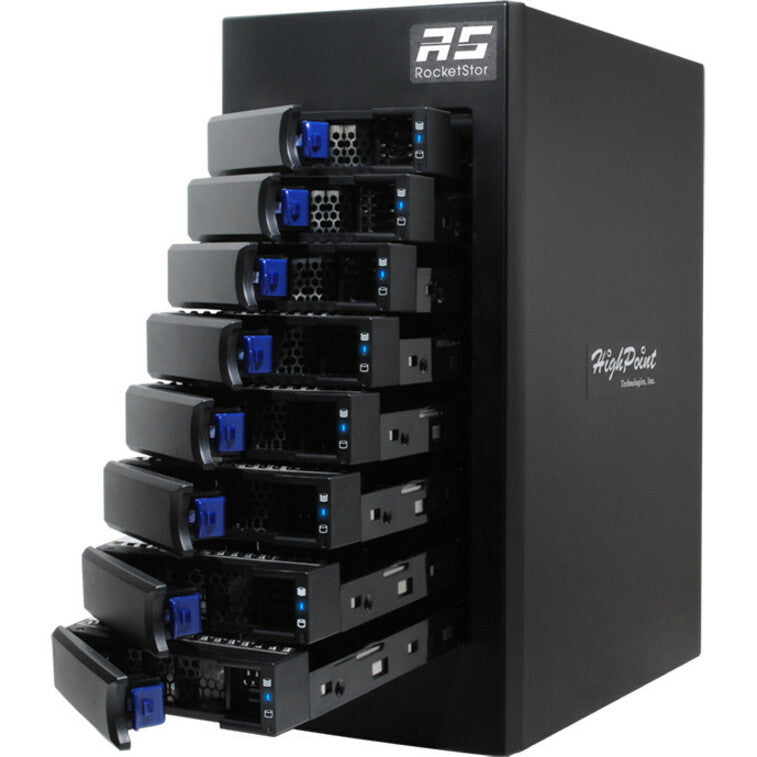

HighPoint 2nd Generation Thunderbolt 3 40Gb/s Hardware RAID Storage Enclosure
- 2x Thunderbolt™ USB-C Ports featuring 40Gb/s Speed bandwidth
- Performance up to 2,700MB/s
- Integrated SAS/SATA Hardware RAID Technology
- Storage Capacity up to 8x 10TB or Larger Spindle HDD
- High-Speed Storage up to 8x SSD
- Blazing Fast, Consistent, & Smooth Data Transfer for large block size Applications
- Enhanced Storage Cooling Solution
- Refined 2nd Generation Chassis Design eases Maintenance
Streamlined RAID Management for Professionals
Each RocketStor 6628A RAID Enclosure includes our newly redesigned, easy to use web-based management utility. The built-in Array Configuration Wizard allows users of any experience level to create any type of RAID array in three easy steps; simply select your RAID level, pick your drives and go! Creating arrays has never been easier!
Optional Advanced Management Features allow customers to fine tune RAID arrays for specific projects, with options to specify block size, enable DV Mode for digital media projects, designate spare disks for recovery, and schedule routine automated maintenance sessions with Email notification to keep one abreast of changing storage conditions while outside of the work environment.
Fast, Consistent, & Smooth Data Transfer for large block size Applications
The RocketStor 6628A 2nd Generation Series Thunderbolt™ 3 RAID enclosures feature the latest iteration of HighPoint's industry proven Hardware RAID stack, which features substantial refinements to both transfer performance and stability for professional storage applications. RocketStor 6628A benefits from streamlined performance and highly stable transfers for large block size applications such as video production and editing, media streaming and content creation.
Enhanced Storage Cooling Solution
The ability to manage the high-levels of heat generated by pronged, sustained I/O sessions on today's high-capacity hard disks is a prime concern when choosing the right RAID enclosure solution. RocketStor 6628 Series RAID enclosures seamlessly integrate LED's, audible alarms, and superior cooling apparatus to ensure your storage investments and the critical data they host stay cool, healthy and productive. Proactive monitoring systems intelligently adjust fan speed on the fly to eject waste heat from the chassis and prolong the life of today's high-capacity SAS and SATA hard drives.
High-Speed, Big Data or All-In-One: Your Choice!
RocketStor 6628 Series RAID enclosures are significantly more versatile that conventional external storage solutions, which rely on pre-packaged storage comprised solely of drives of the same speed and capacity. Customers are free mix and match disks of different capacities and speed levels to meet the needs of any application; SSD's for Maximum Performance, HDD's for Mass Storage, or a combination of both for tasks that call for high-speed workspace and archiving capability.
Equipped with the latest Thunderbolt™ 3 USB-C technology, the RocketStor 6628A can deliver 40Gbps transfer rates. Projects utilizing 4K DPX 16 bit footage require approximately 1,790MB/s of transfer performance; the RocketStor 6628A is capable of supporting full 4K uncompressed video production, In addition, if the source is ProRes 444, the RocketStor 6628A can support over 5 individual streams!
Safeguard Your Storage Investments
The RocketStor 6628A seamlessly integrates LED features, an audible alarm, and intelligent cooling apparatus to ensure your storage investments stay healthy and accessible.
Product Type: DAS Storage System
Environmentally Friendly: Yes
Environmental Certification: REACH
Brand Name: HighPoint
Form Factor: Tower
Manufacturer: HighPoint Technologies, Inc
Product Model: RS6628A
Product Name: 2nd Generation Thunderbolt 3 40Gb/s Hardware RAID Storage Enclosure
Product Line: RocketStor
Manufacturer Part Number: RS6628A
Manufacturer Website Address: http://www.highpoint-tech.com
Packaged Quantity: 1

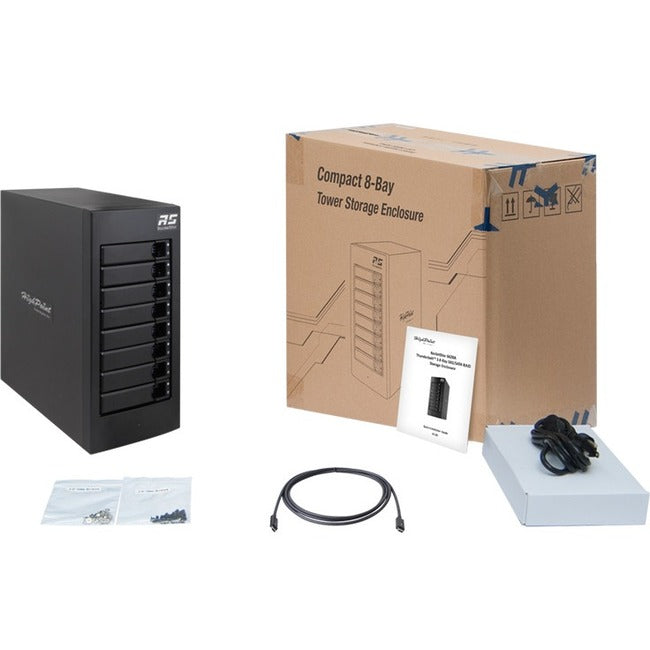

Package Contents:
- 2nd Generation Thunderbolt 3 40Gb/s Hardware RAID Storage Enclosure

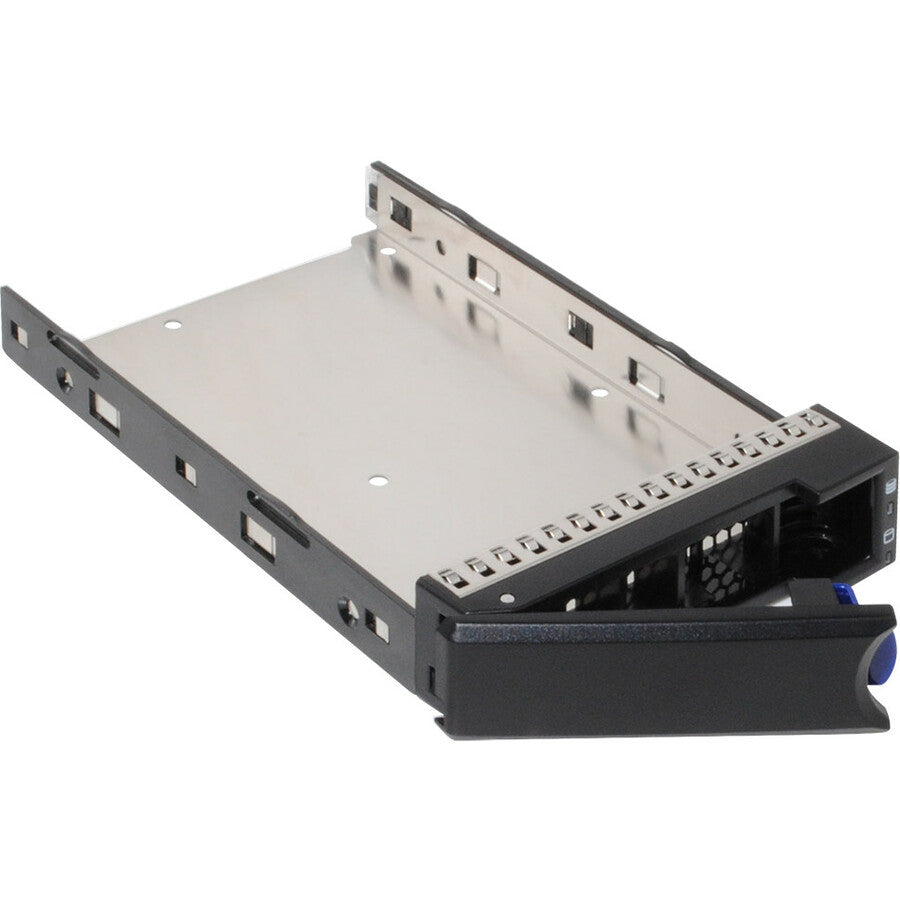

- 8 x Drive Trays
- 1 x Thunderbolt™ 40Gb/s Cable (2 meters)
- 1 x UL Power Cord
- 32 x 3.5" HDD Mounting Screws
- 32 x 2.5" SSD Mounting Screws
- 1 x Quick Installation Guide
Limited Warranty: 3 Year
Weight (Approximate): 12.90 lb
