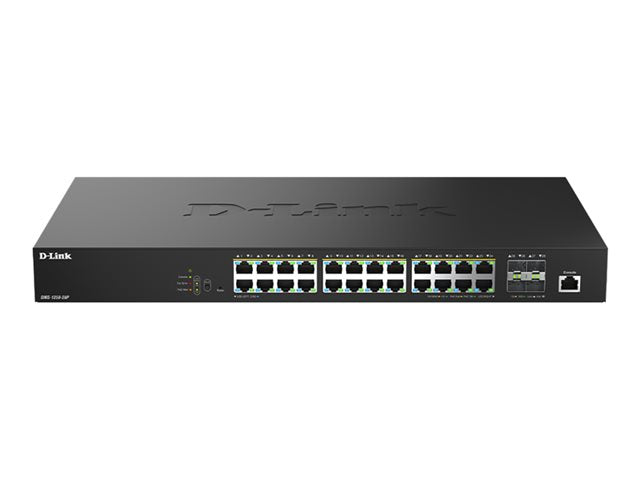

The DMS-1250-28P is a 28-port Layer 2 Smart PoE switch designed for growing businesses that need high-speed connectivity, robust PoE power, and centralized management. Built by D-LINK SYSTEMS, it combines enterprise-grade reliability with streamlined control for scalable networks.
-
24 x 2.5G PoE Ports: Downlink PoE connectivity for cameras, phones, and access points directly from the switch.
-
4 x 10G SFP+ Uplinks: High-speed fiber uplinks for fast aggregation to core switches or data centers.
-
475W Total PoE Budget: Ample power to support a diverse mix of PoE devices without external injectors.
-
6kV Surge Protection: Built-in protection on all 2.5G ports to safeguard connected hardware.
-
LACP 802.3ad: Link Aggregation for increased throughput and redundancy across connections.
-
Static Routing: Efficient inter-VLAN routing to optimize East-West traffic without extra routing hardware.
-
Loopback Detection: Proactively prevents network loops and minimizes downtime.
-
STP/RSTP/MSTP: Advanced spanning tree protocols for scalable, loop-free network topologies.
-
AAA Support (RADIUS/TACACS+): Centralized authentication to strengthen access control and security policies.
-
D-Link Safeguard Engine: Integrated security features to mitigate malware and network threats at the edge.
-
Nuclias Network Controller Compatibility: Centralized, efficient management and provisioning across multiple sites.
-
Enterprise-Grade Management: Robust, scalable administration designed for growing networks and IT teams.
The DMS-1250-28P is engineered to simplify growth without compromising security or performance. Power-hungry devices such as IP cameras and VoIP phones can be deployed more freely thanks to the broad PoE budget, while 2.5G performance keeps bandwidth-intensive applications responsive. With LACP, STP variants, and loop-detection, networks stay resilient under load or during topology changes. Centralized security and management—via RADIUS/TACACS+ and Nuclias—mean IT teams can enforce policy consistently and scale operations as the network expands.
Specifications
-
Model: DMS-1250-28P
-
Ports: 24 x 2.5G PoE (IEEE 802.3af/at/bt) + 4 x 10G SFP+ uplinks
-
PoE Budget: 475W total
-
Surge Protection: 6kV on all 2.5G ports
-
Switching & Routing: Layer 2 with Static Routing, LACP, Loopback Detection, STP/RSTP/MSTP
-
Security & Management: AAA (RADIUS/TACACS+), D-Link Safeguard Engine, Nuclias Network Controller compatibility
-
Ideal For: Enterprises seeking scalable, secure, and manageable PoE switching
Frequently Asked Questions
-
How many devices can the switch power with its PoE budget?
Up to 475W total PoE, supporting a mix of PoE/PoE+ devices such as cameras, phones, and APs, depending on individual device power needs.
-
What uplink options does the switch offer?
It provides four 10G SFP+ uplinks for high-speed aggregation and fiber connectivity.
-
Can I manage this switch centrally?
Yes. It is compatible with Nuclias Network Controller for centralized provisioning, monitoring, and policy enforcement.
-
Does it include security features to protect the network?
Yes. It includes AAA support (RADIUS/TACACS+), D-Link Safeguard Engine, and robust STP variants to maintain secure and stable operations.
-
Is this switch suitable for multi-site enterprise deployments?
Absolutely. Its combination of high-speed PoE, scalable L2 features, centralized management, and security makes it well-suited for growing corporate networks.
