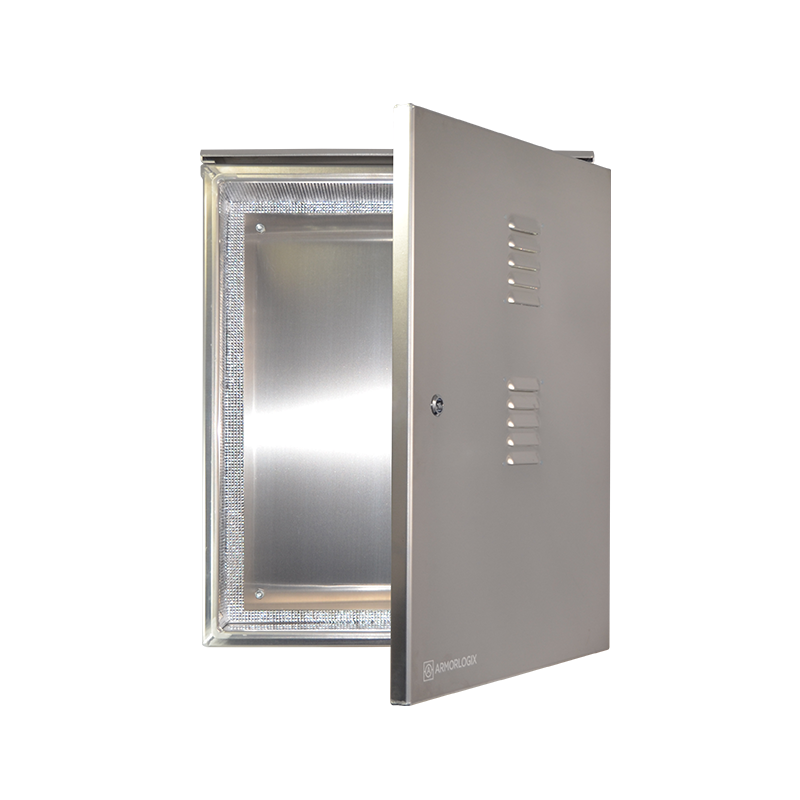

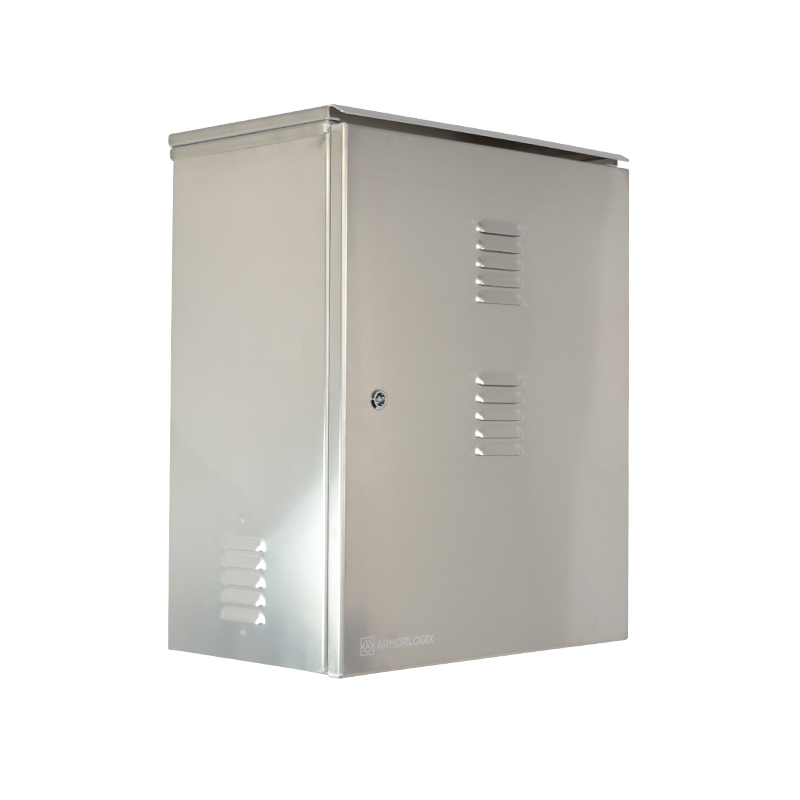

27″ X 22″ X 13″ NEMA 3 ENCLOSURE WITH 2 FANS AL272213N3-FT2

Constructed For Indoor & Outdoor Application
Durable 1/8” 5052 Aluminum Construction
Weathertight 1/4″ Rubber Door Seals
Screened Vents On Sides & Door
Adjustable / Removable Equipment Mounting Plate
Security Lock with Key
A pair of Wall / Pole Enclosure Mount Plates are included

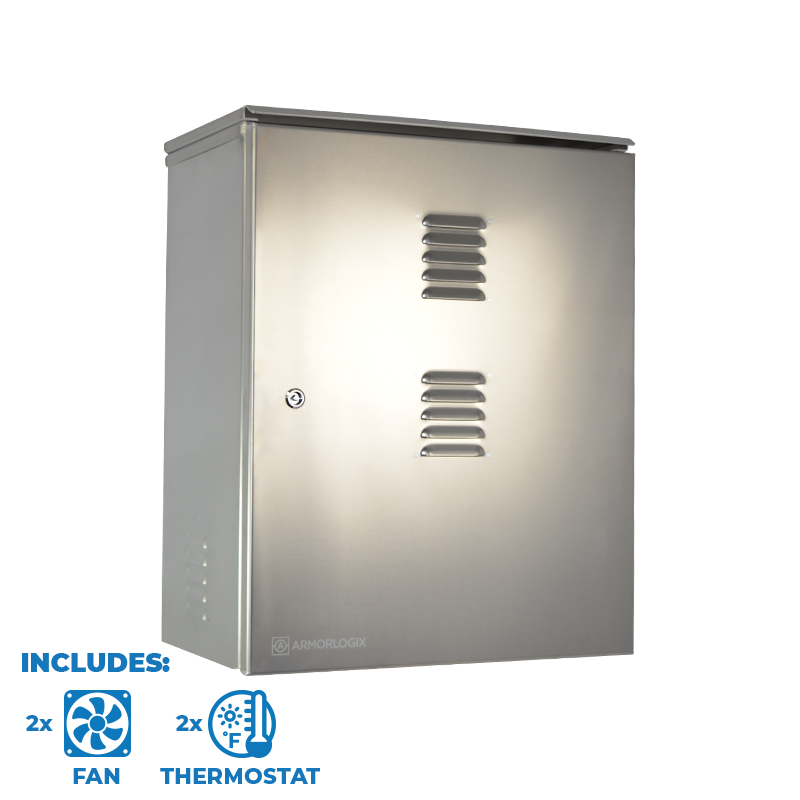

Includes two installed temperature-controlled thermostatic fan

OVERVIEW

27″ x 22″ x 13″ NEMA 3 weatherproof enclosure is manufactured from 5052 Aluminum. This construction resists rusting and corrosion making it ideal for use for marine applications as well as other rugged environments. Each enclosure includes a sunshade, airflow vents with screens, insulation, triangular cam lock, and universal mounting brackets. These brackets allow for installers to mount the enclosure directly to a wall (flush mount), or mount to a pole using banding brackets (optional accessory). A removable back-plate allows for items to be installed vertically and assembled outside of the enclosure. This model includes two thermostat/fan combinations for temperature control.

Applications: The AL272213N3-FT2 is commonly found in data centers, guarding gates, housing controls, along river and ocean fronts, on docks, in boat storage facilities or marinas, commercial areas, and more.

SPECIFICATIONS

Material		1/8" 5052 Aluminum
NEMA Rating		3
Mounting Brackets		Universal Wall / Pole Brackets - Bands not included (x2)
Door Seals		1/4" Weather Tight Neoprene
Equipment Mounting Plate		1 (19" × 25")
Security Lock		Yes (2x keys included)
Dimensions: External		22” W x 27.875” H x 14.125” D
Dimensions: Internal Max		21.625” W x 26.625” H x 13.5” D
Dimensions: Internal Min		21.625” W x 26.625” H x 10.125” D
Weight		52 lbs.

RESOURCES

PDF Spec Sheet – Download
