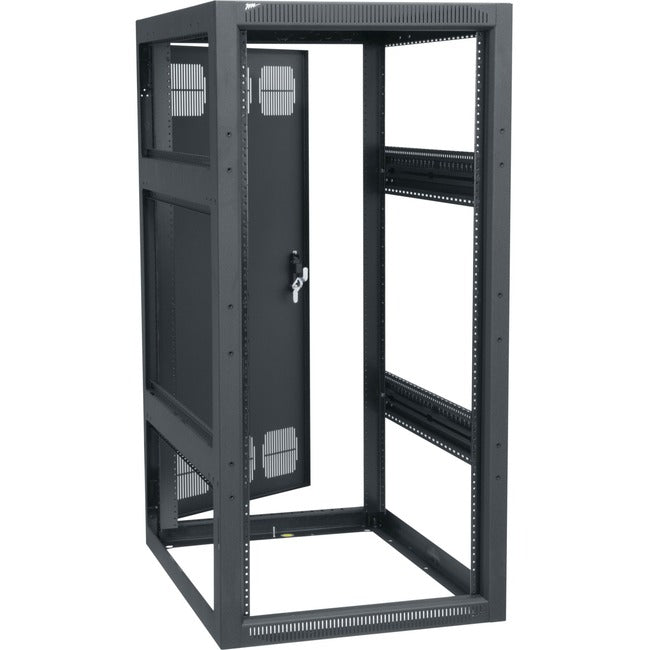

Middle Atlantic BGR Series Rack, 25 RU, 27"D
Why is BGR the #1 AV Enclosure? The BGR is designed to hold 20% more weight but be lighter than its predecessors. It offers more space efficiency for equipment mounting and cable management with Lever Lock™. It has options designed for system future proofing without disturbing the existing system. BGR is designed for today and tomorrow's AV applications and with multiple form factors it supports multi-rack systems, single rack systems or a mobile systems.
- The 23" width gives you extra room in "no-man's land" for front-to-back cable management and for mounting small devices on Lever Lock™ freeing up valuable rackspace.

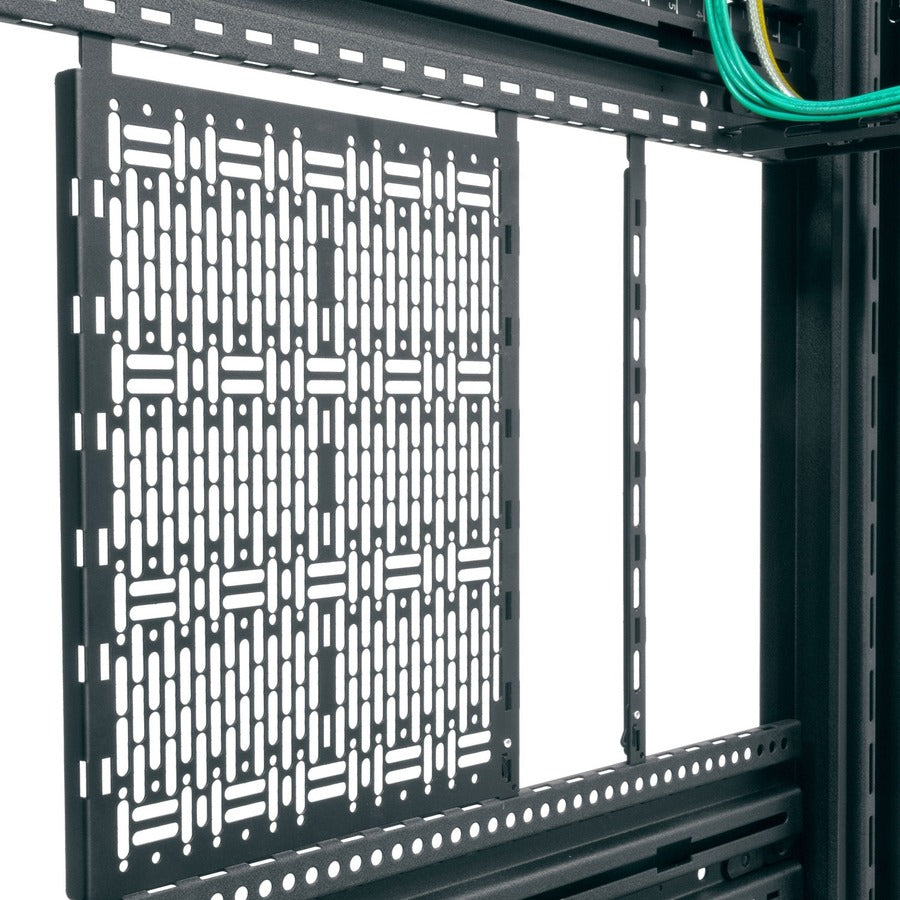

- All BGRs are now equipped with the revolutionary Forward rackrail giving you the ability to use Forward blank panels, vent panels, horizontal cable mgmt. and vertical cable mgmt.
- Innovative side lacing on the Forward rear rackrail provides flexibility for internal cabling and accepts the Forward vertical cable management products (coming soon).
- Breakthrough design provides high strength without extra weight
- UL 1678, Seismic and OSHPD OPM Certified

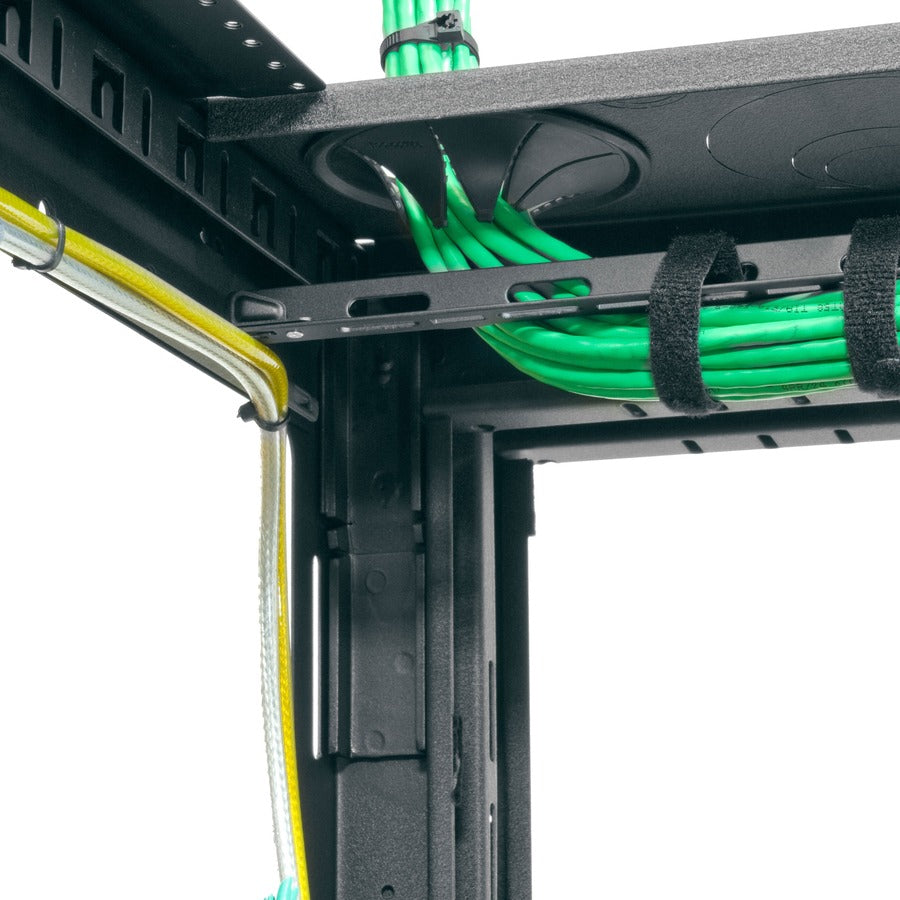

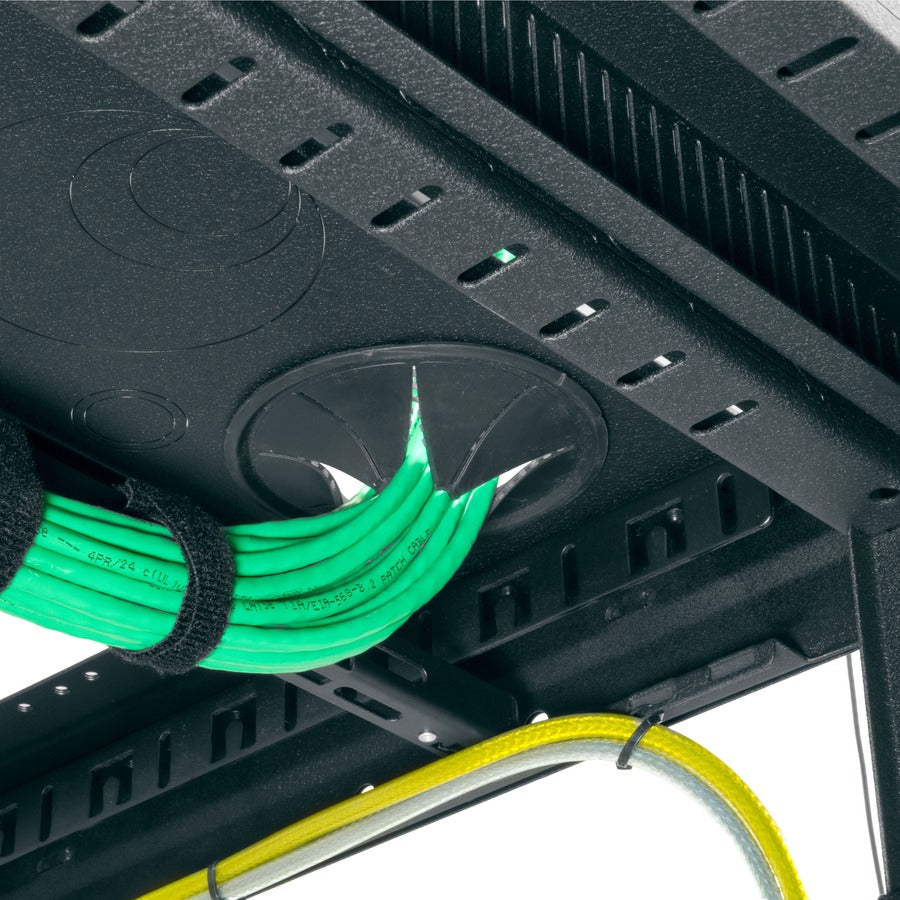

- Wide open top and bottom offer many cabling and cooling options
- Accepts extender bay to add 3" of useable depth to the front or rear of the enclosure

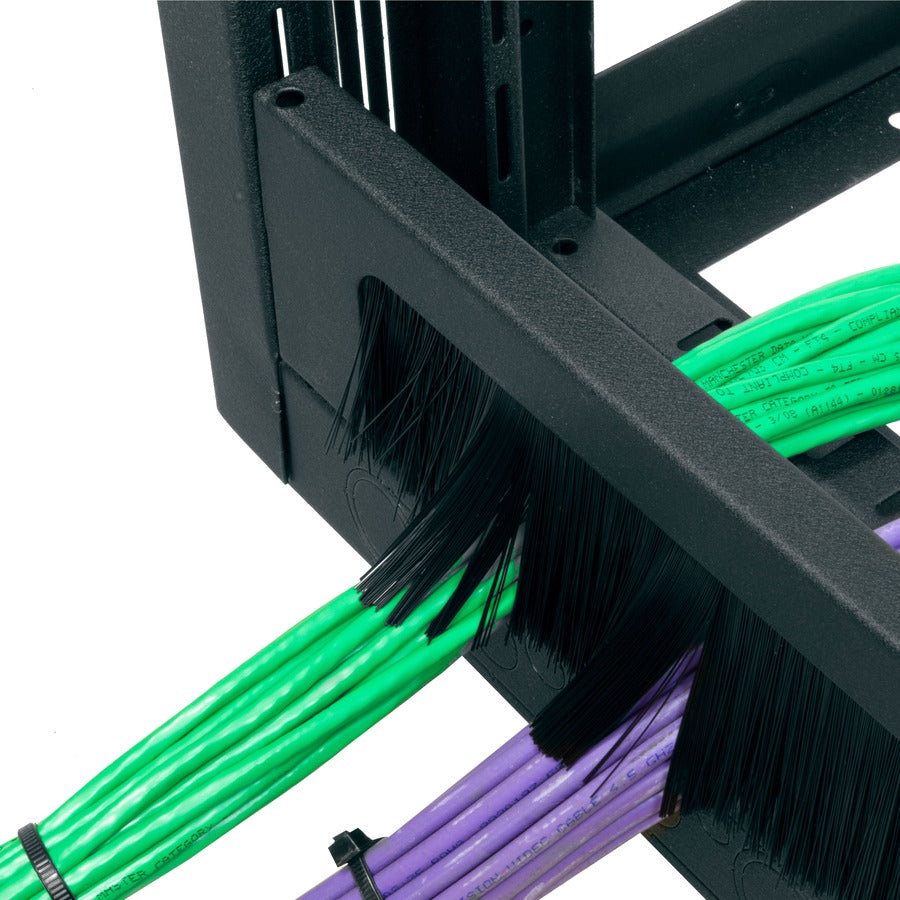

- Accepts brush grommet rear door kit for a large cable passage without fishing
- Pre-threaded ganging holes allow ganging while enclosure is fully loaded

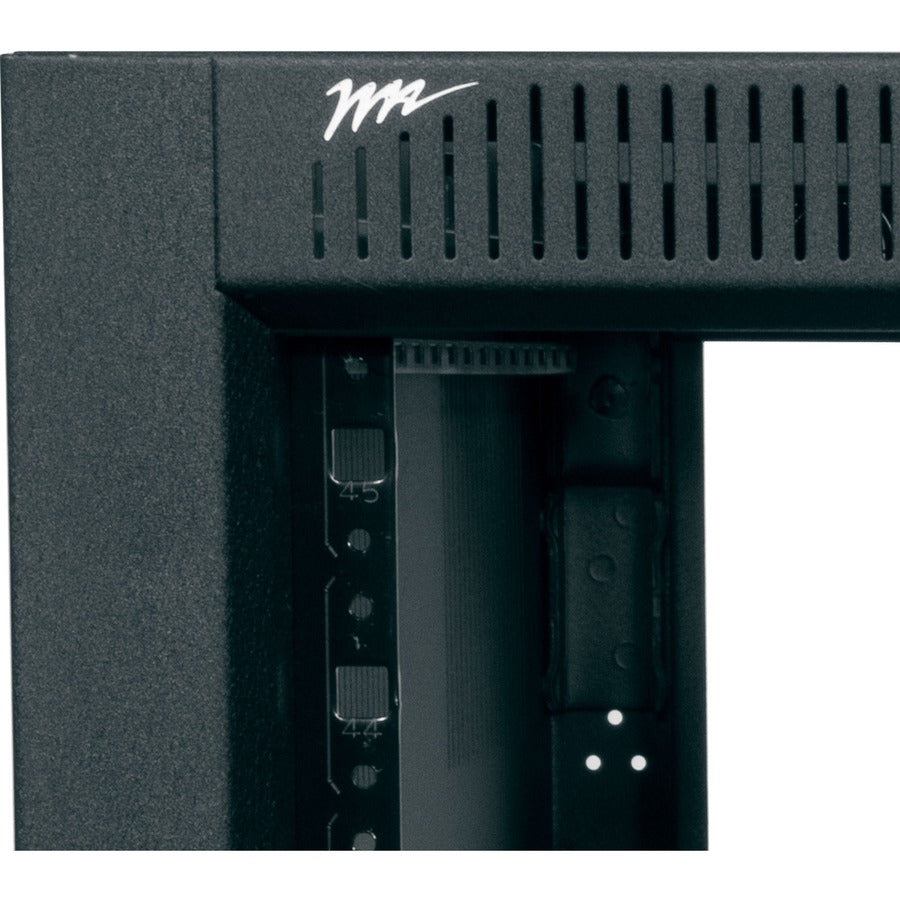

- Standard front and rear adjustable 10-32 threaded rackrail with numbered spaces
- Includes standard vented rear door that accepts optional fans
Product Type: Rack Cabinet
Environmentally Friendly: Yes
Environmental Certification: ECO PASSPORT
Rack Depth: 24.40"
Product Color: Black Powder Coat
Product Material: Steel
Product Series: BGR
Rack Width: 19"
Rack Height: 25U
Brand Name: Middle Atlantic
Form Factor: Floor Standing
Manufacturer: Legrand Group
Product Model: BGR-2527
Product Name: BGR Series Rack, 25 RU, 27"D
Manufacturer Part Number: BGR-2527
Manufacturer Website Address: http://www.legrand.us
Limited Warranty: Lifetime
