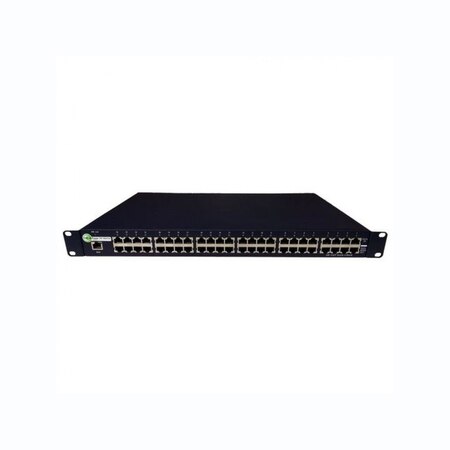

Tycon Power TP-MS324 PoE Injector
The TP-MS3xx series of rack mount mid span POE power sources are used for supplying POE and data to multiple devices from a central location such as an operations room. The POE devices feature a separate data-in port coupled with a data out/POE port. The POE function is fully IEEE802.3af compliant.
The included PC software allows for configuration of the individual ports and for displaying port status. Connecting to a PC is easy with the included RS232 cable. Ports can be configured for forced POE output (Passive POE) or IEE802.3af detection. POE DC Voltage (48V) is supplied on pins 4,5 (V+) and 7,8 (V-). Maximum power output per rack mount unit is 400W. The individual outputs are overload and short circuit protected.
Product Type: PoE Injector
Certifications & Standards:
- IEEE 802.3af
- IEEE802.3
- IEEE802.3u
- IEEE802.3ab
Brand Name: Tycon Power
Compatibility:
- Wireless Access Points
- Client Devices
- IP Phones
- Security Camera Systems
Length: 16.9"
Manufacturer: Tycon Power Systems
Product Model: TP-MS324
Product Name: TP-MS324 PoE Injector
Manufacturer Part Number: TP-MS324
Manufacturer Website Address: http://www.tyconpower.com
Package Contents:
- TP-MS324 PoE Injector
- US Power Cord
Limited Warranty: 2 Year
Weight (Approximate): 10.14 lb
