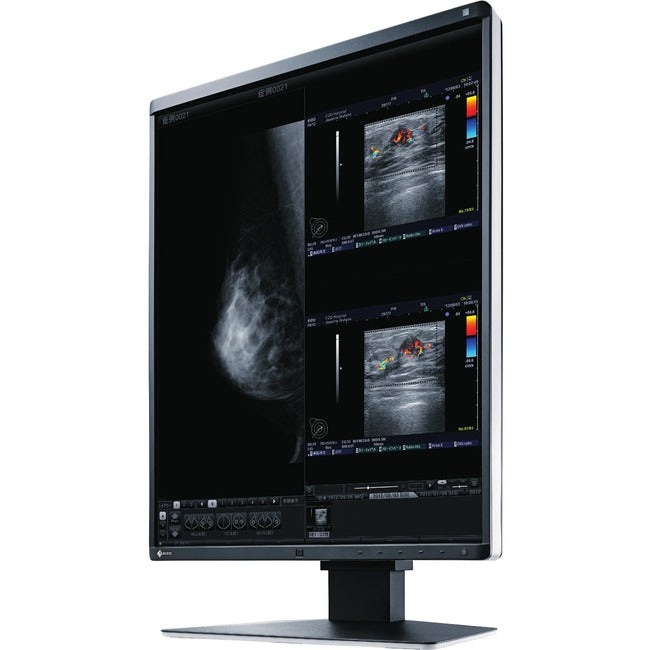

This 5MP medical monitor is perfect for radiologists and imaging professionals who need precise breast imaging visualization and mammography interpretation. Our RadiForce RX560 solution delivers:
-
Medical grade color display that ensures accurate diagnostic imaging
-
Mammography compliance meeting FDA 510(k) and IEC 62563-1 standards
-
5MP resolution clarity providing exceptional detail for breast imaging interpretation
-
Advanced AR coating technology for reduced reflection and enhanced visibility
Key Features
-
5MP native resolution optimized for detailed breast imaging diagnostics
-

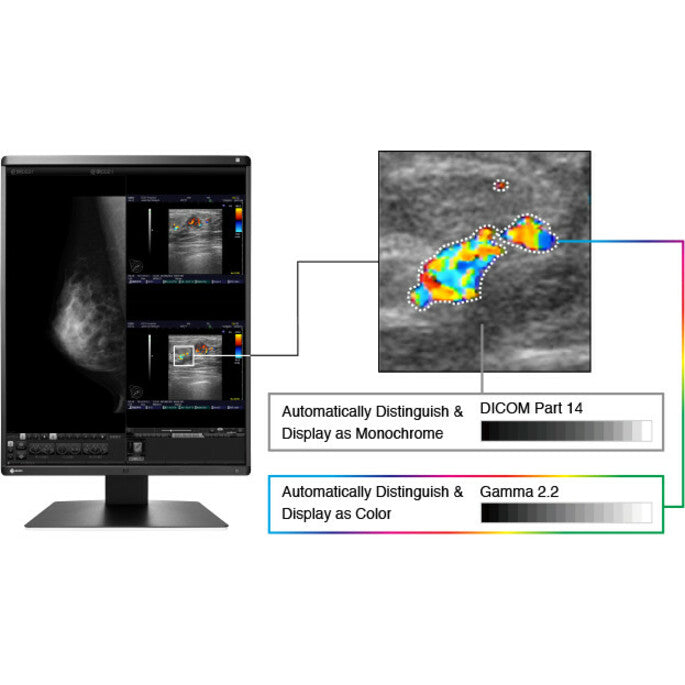

Medical grade color display with DICOM GSDF calibration

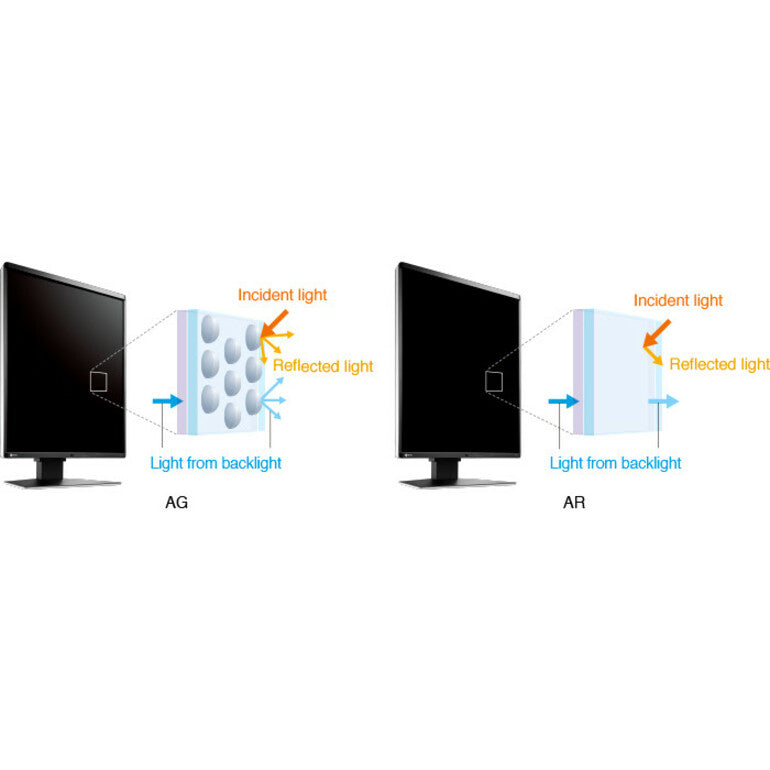

- Advanced anti-reflective coating reducing ambient light interference

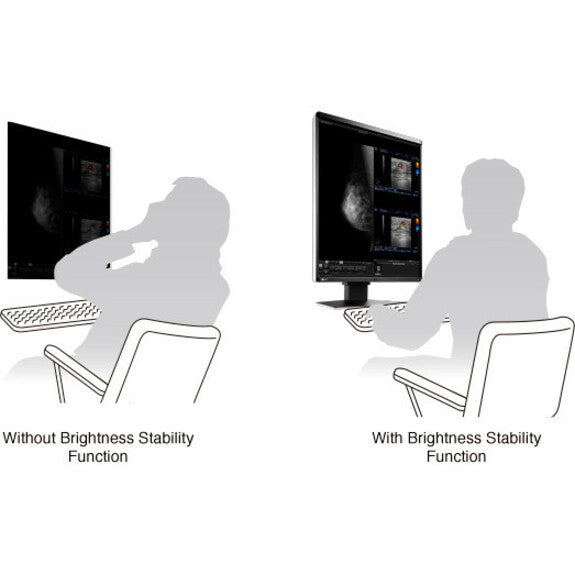

- Consistent mammography imaging performance with stable brightness over time
-
Radiology workstation compatibility supporting PACS integration
-
Energy-efficient LED backlight with extended lifespan
-

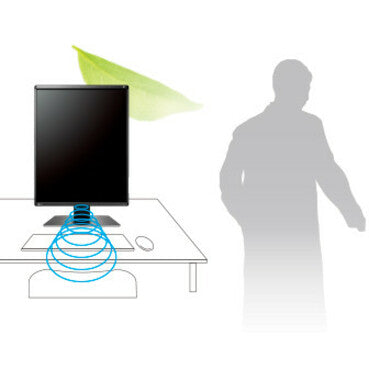

Ergonomic design features for extended diagnostic sessions
Technical Specifications
| Manufacturer |
EIZO INC |
| Model Number |
RX560-BK |
| Type |
5MP Medical Color Display |
| Screen Size |
21.3 inches |
| Resolution |
2048 x 2560 (5MP) |
| Panel Type |
IPS with AR coating |
| Brightness |
400 cd/m² (calibrated) |
| Contrast Ratio |
1400:1 |
| Color Gamut |
99% sRGB coverage |

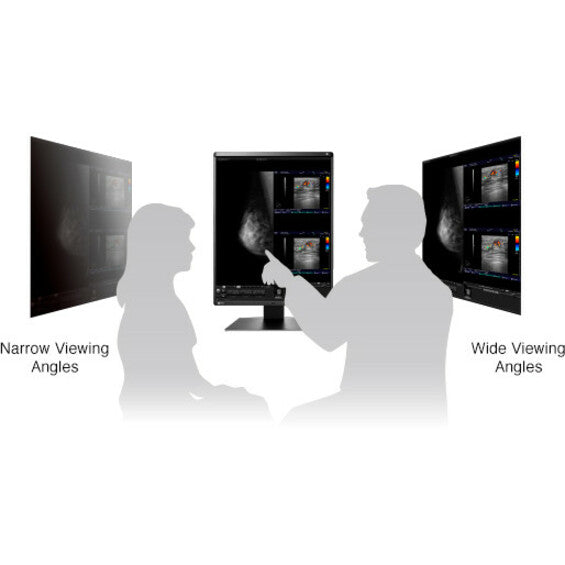

| Viewing Angle |
178° horizontal/vertical |
| Response Time |
30ms (gray to gray) |
| Interfaces |
DisplayPort, DVI-D, USB |
| Certifications |
FDA 510(k), CE, IEC 62563-1 |
| Warranty |
5-year manufacturer warranty |
Target Use Cases
-
Breast imaging interpretation for mammography screening programs
-
Digital mammography review in radiology departments
-
Breast MRI evaluation for comprehensive breast imaging
-
Tomosynthesis interpretation for 3D mammography analysis
-
Multi-modality breast imaging workflow optimization
-
Radiology training programs for medical education
Frequently Asked Questions
Q: What makes this 5MP medical monitor ideal for breast imaging applications?
A: The RX560 features specialized mammography calibration with DICOM GSDF compliance and 5MP resolution — perfect for detailed breast tissue visualization and diagnostic accuracy.
Q: Is this medical monitor compatible with existing mammography workstations?
A: Yes, it's engineered for seamless PACS integration with DisplayPort and DVI-D connectivity. The monitor supports standard medical imaging protocols used in breast imaging centers.
Q: How does the AR coating benefit mammography interpretation?
A: The advanced anti-reflective coating reduces ambient light interference and screen glare, enabling clearer visualization of subtle breast tissue details critical for accurate diagnosis.
Q: Does this color display meet medical imaging regulatory requirements?
A: Yes. The RX560 holds FDA 510(k) clearance and IEC 62563-1 certification, ensuring medical grade performance standards for diagnostic breast imaging applications.
