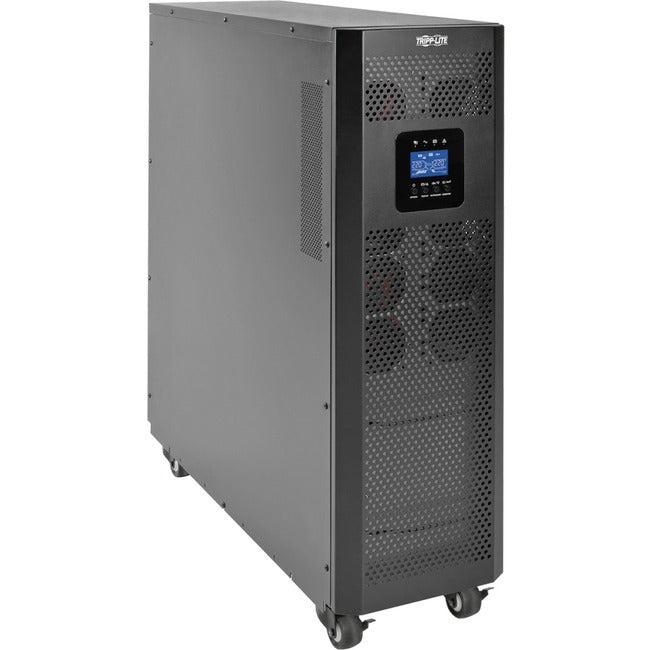

Tripp Lite SmartOnline SVT20KX 20kVA Tower UPS
The SVT20KX SmartOnline® SVTX Series 3-Phase 380/400/415V 20kVA 18kW On-Line Double-Conversion UPS with IGBT technology provides battery backup and AC power protection against power disturbances that can damage electronics or destroy data. It's recommended for critical IT or corporate infrastructure, telecom, LAN/WAN, security and emergency, financial and light industrial applications.
The SVT20KX's Voltage and Frequency Independent (VFI) design allows continuous operation at any supported voltage at either 50 or 60 Hz. Zero transfer time to battery mode ensures no disruption to the attached loads. Automatic and Manual Bypass keeps connected equipment powered even during overloads and UPS maintenance.
IGBT inverter technology produces output power with less than 2% total harmonic distortion (THD) to keep connected equipment functioning at its peak. A 3:1 crest factor safely supports a variety of loads, even those with wildly fluctuating power demands.

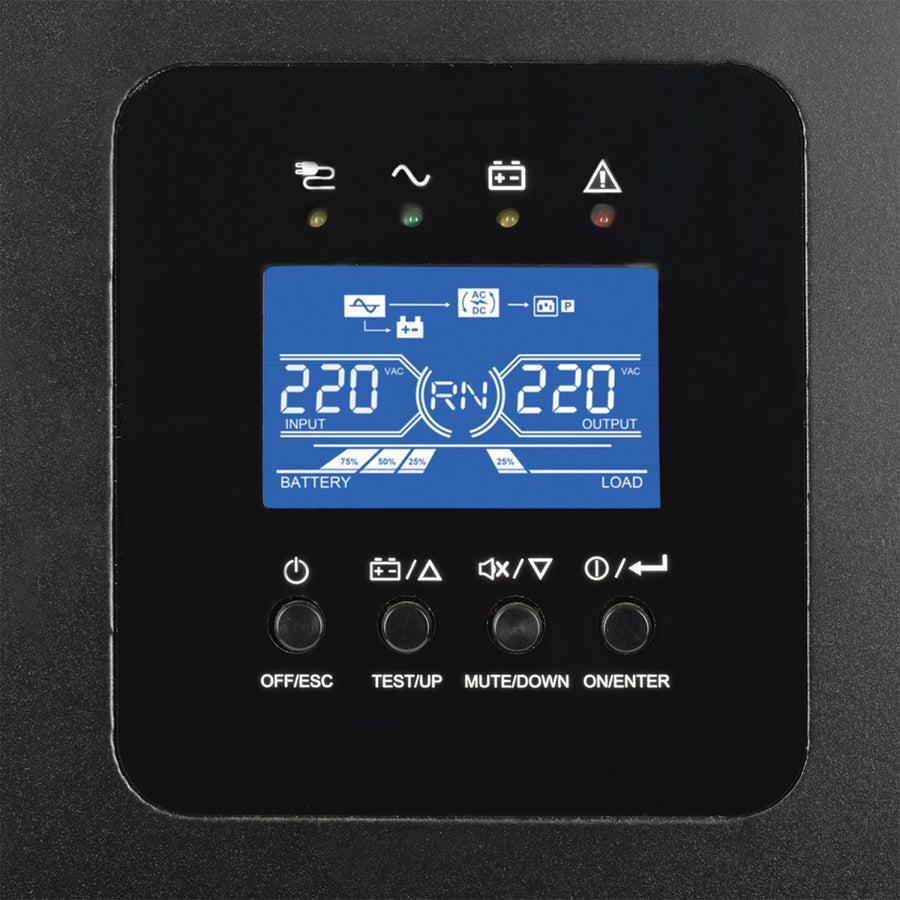

Managing the SVT20KX is simplified through the interactive front-panel LCD interface, which displays critical operating conditions and diagnostic data, such as load levels, available runtime, alarm status, battery charge, and voltage and frequency values. Four LEDs indicate bypass, line, battery and fault modes. A serial port allows connection to Tripp Lite's free local shutdown agent. A built-in card slot supports WEBCARDLX or RELAYCARDSV for network interface and remote monitoring and control. The SVT20KX's reduced size and small footprint save valuable space.
- Expandable runtime with optional external battery packs, such as Tripp Lite's BP240V135
- Zero transfer time suitable for advanced network applications
- Supports half load for 11 min. and full load for 4 min.
- Reliable Battery Backup with Expandable Runtime
- Selectable 380/400/415V output voltage
- Wide input voltage window(305-478V) minimizes battery use and prolongs battery life
- High 0.9 power factor offers 20kVA/18kW output capacity, allowing for more connected devices
- +/-1% output voltage regulation in online and battery modes
- Provides fully regulated sine wave AC output for critical telecom, network, security, financial, corporate and light industrial applications
- VFI True On-Line Double-Conversion 3-Phase UPS System
Product Type: Dual Conversion Online UPS
Environmentally Friendly: Yes
Environmental Certification: RoHS
Product Series: SVTX
Brand Name: Tripp Lite
Form Factor: Tower
Manufacturer: Tripp Lite by Eaton
Product Model: SVT20KX
Product Name: SmartOnline SVT20KX 20kVA Tower UPS
Product Line: SmartOnline
Manufacturer Part Number: SVT20KX
Manufacturer Website Address: http://www.tripplite.com

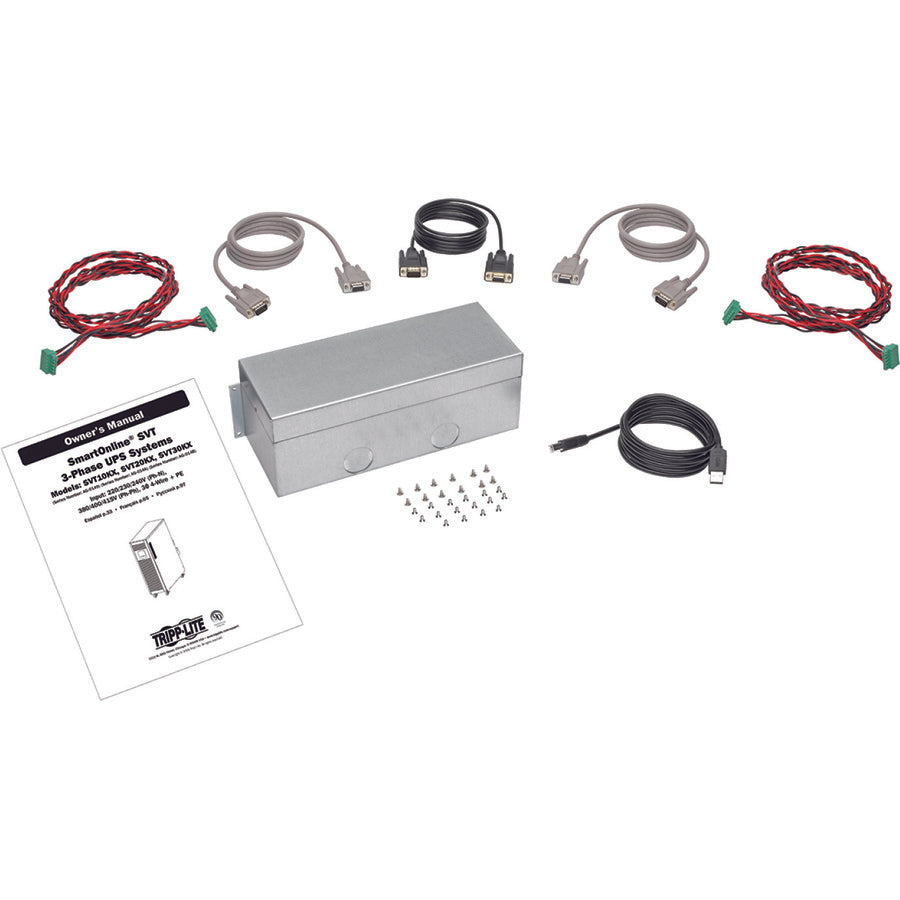

Package Contents:
- SmartOnline SVT20KX 20kVA Tower UPS
- 2 x RS-232 Cables
- 6-pin Current Sharing Cable
- Owner's Manual
Limited Warranty: 1 Year
Weight (Approximate): 392 lb
