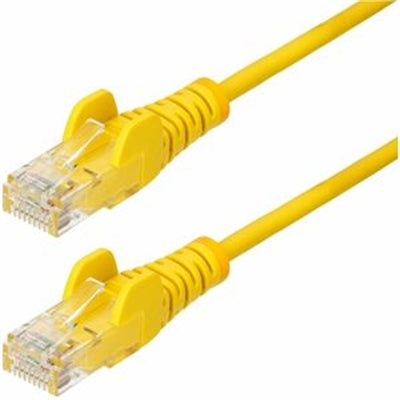

20ft Yellow Slim CAT6 Ethernet Cable, Snagless, 100W PoE
The 20ft Yellow Slim CAT6 Ethernet Cable delivers professional-grade network connectivity with enhanced power delivery capabilities. Engineered for demanding environments, this snagless CAT6 patch cord combines a compact slim profile with robust 100W PoE support, making it ideal for high-density server racks, data centers, and enterprise installations. The LSZH (Low Smoke Zero Halogen) jacket ensures fire safety compliance, while 28AWG bare copper wire provides superior signal integrity and durability for mission-critical applications.
Key Features
-
100W PoE Support — Delivers full power delivery for PoE+ devices without signal degradation
-
Snagless Design — Protective boot prevents cable snagging during installation and removal
-
Slim Profile — Compact construction fits easily in tight cable management spaces and high-density patch panels
-
LSZH Jacket — Low Smoke Zero Halogen material meets fire safety standards for commercial and industrial use
-
28AWG Bare Copper Wire — Enhanced conductivity and flexibility for reliable data transmission
-
UTP Construction — Unshielded twisted pair for cost-effective, high-performance networking
-
20ft Length — Ideal for medium-distance runs between network equipment and wall outlets
-
RJ45 Connectors — Industry-standard connectors ensure compatibility with all CAT6-rated devices
Technical Specifications
| Specification |
Details |
| Part Number |
N6PAT20YLS |
| Cable Type |
CAT6 Unshielded Twisted Pair (UTP) |
| Length |
20 feet |
| Color |
Yellow |
| Conductor |
28AWG Bare Copper |
| Jacket Material |
LSZH (Low Smoke Zero Halogen) |
| Connectors |
Slim RJ45 (Snagless) |
| PoE Support |
100W PoE/PoE+ |
| Data Rate |
Up to 10 Gbps |
| Frequency |
250 MHz |
| Impedance |
100 Ohms |
| Fire Rating |
LSZH Compliant |
Frequently Asked Questions
What is the maximum PoE power this cable supports?
This CAT6 Ethernet cable supports up to 100W PoE (Power over Ethernet), making it suitable for high-power devices such as IP cameras, wireless access points, and PoE+ switches. The 28AWG bare copper conductor ensures minimal power loss over the 20ft distance.
Is this slim CAT6 cable suitable for data centers?
Yes, the slim profile and snagless design make this patch cord ideal for high-density data center environments. The LSZH jacket provides fire safety compliance required in commercial installations, while the compact form factor maximizes cable management efficiency in crowded patch panels.
Can I use this yellow Ethernet cable in outdoor or industrial settings?
The LSZH jacket provides enhanced fire safety, but for outdoor use, consider cables with UV-resistant jackets. This cable is optimized for indoor commercial, industrial, and data center environments where fire code compliance is essential.
What makes the snagless design important for network installations?
The snagless connector boot protects the cable from damage during installation and removal, reducing downtime and extending cable lifespan. This feature is particularly valuable in high-traffic patch panel areas where cables are frequently connected and disconnected.
