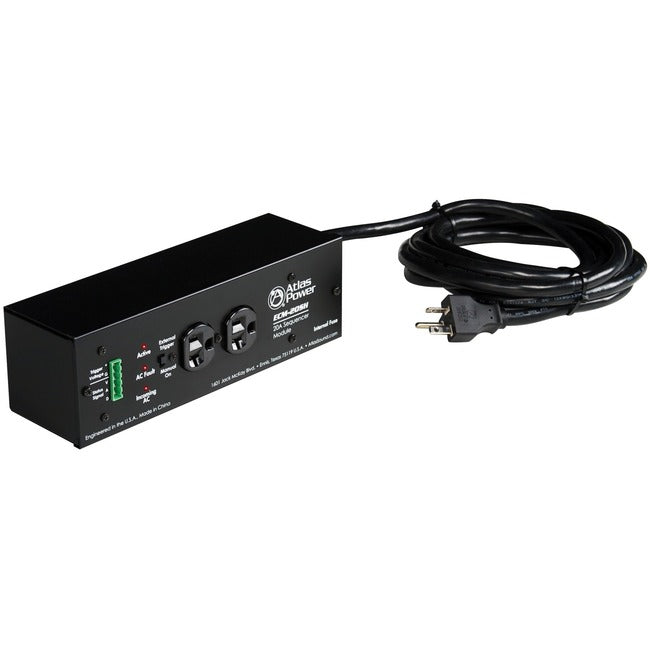

Atlas Sound 20A Single Housing Power Conditioner and AC Spike Suppressor
The Atlas Power ECM-20SH is a 120V 60Hz AC, 20A Single Housing (SH) Power Conditioner and AC Spike Suppressor that is designed to be used as a standalone unit or in conjunction with an Atlas Power Sequence controller, ECS-6RM or the ECS-3, up to 1000ft away.
The ECM-20SH features noise filtering for removing unwanted Radio Frequency Interference (RFI) and EMI filters to reduce noise from Electromagnetic Interference (EMI) caused by items such as electric motors or switching power supplies. If an AC spike or surge occurs, the ECM-20SH also incorporates Clamping Suppression technology to prevent the unwanted energy from getting into your AV system. Other features include a Manual Bypass Switch, Incoming AC presence LED, Active LED and an AC Fault indicator. When interfaced with the ECS-6RM Sequencer controller, Extreme Voltage Shutdown Circuitry (EVS) is active, along with Voltage and Current status readings.
- Active Outlet LED
- RoHS Compliant
- Manual Bypass Switch
- Fuse Protection @ 20A Slow Blow
- AC Fault Indicator
- Extreme Voltage Shutdown (EVS) Below 102V or Above 132V AC Line
- Spike & Surge Suppression
- 2 Outlets, 20A
- Radio Frequency and Electromagnetic Interference Filtering
Product Type: Line Conditioner
Environmentally Friendly: Yes
Environmental Certification: RoHS
Cord Length: 9 ft
Brand Name: Atlas Sound
Manufacturer: Atlas Sound LP.
Product Model: ECM-20SH
Product Name: 20A Single Housing Power Conditioner and AC Spike Suppressor
Manufacturer Part Number: ECM-20SH
Manufacturer Website Address: http://www.atlassound.com
Limited Warranty: 1 Year
Weight (Approximate): 5.50 lb
