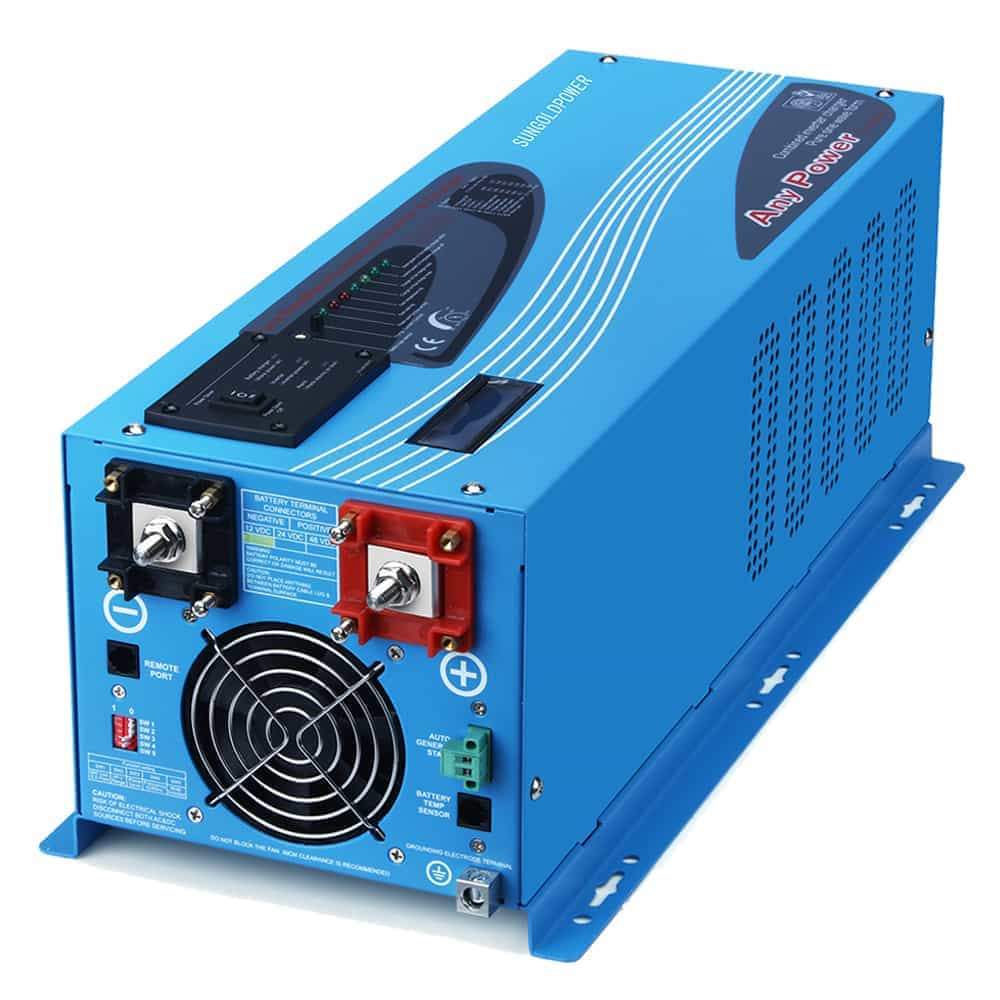

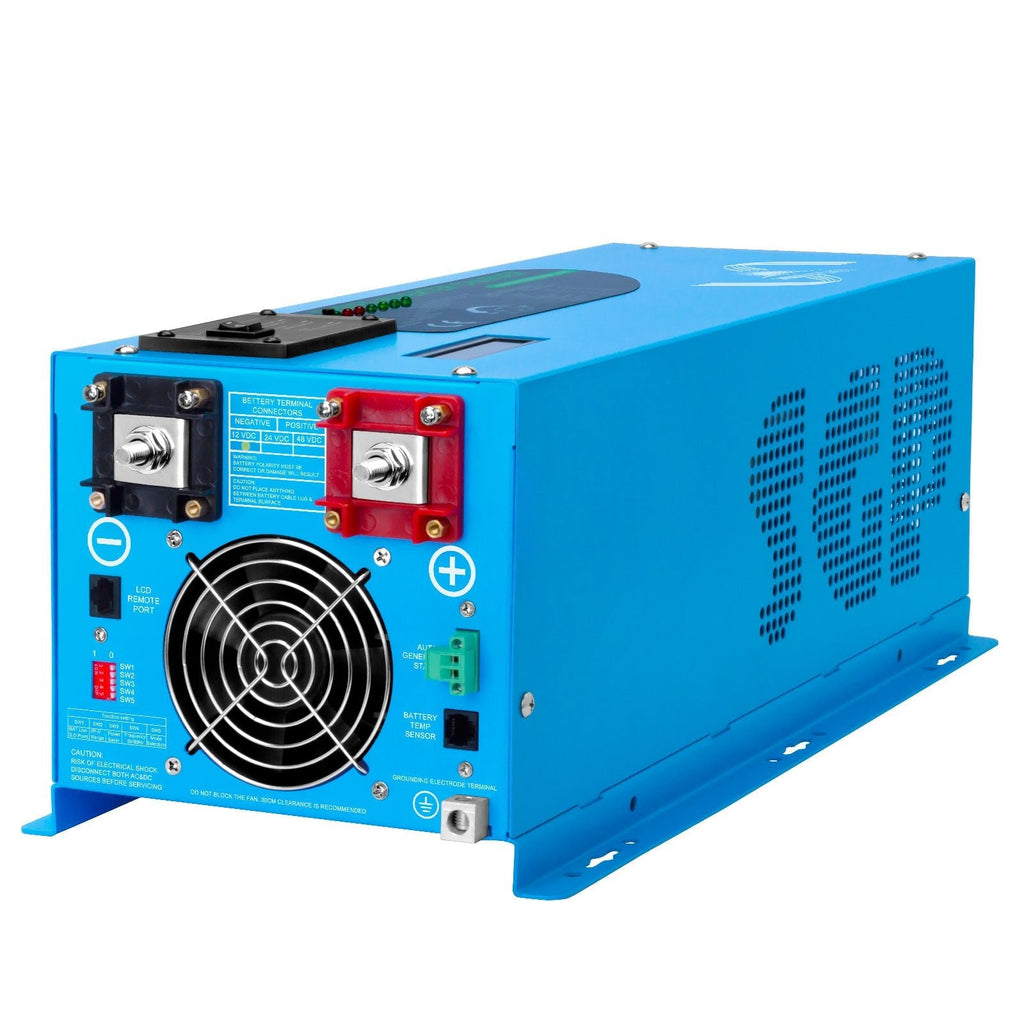

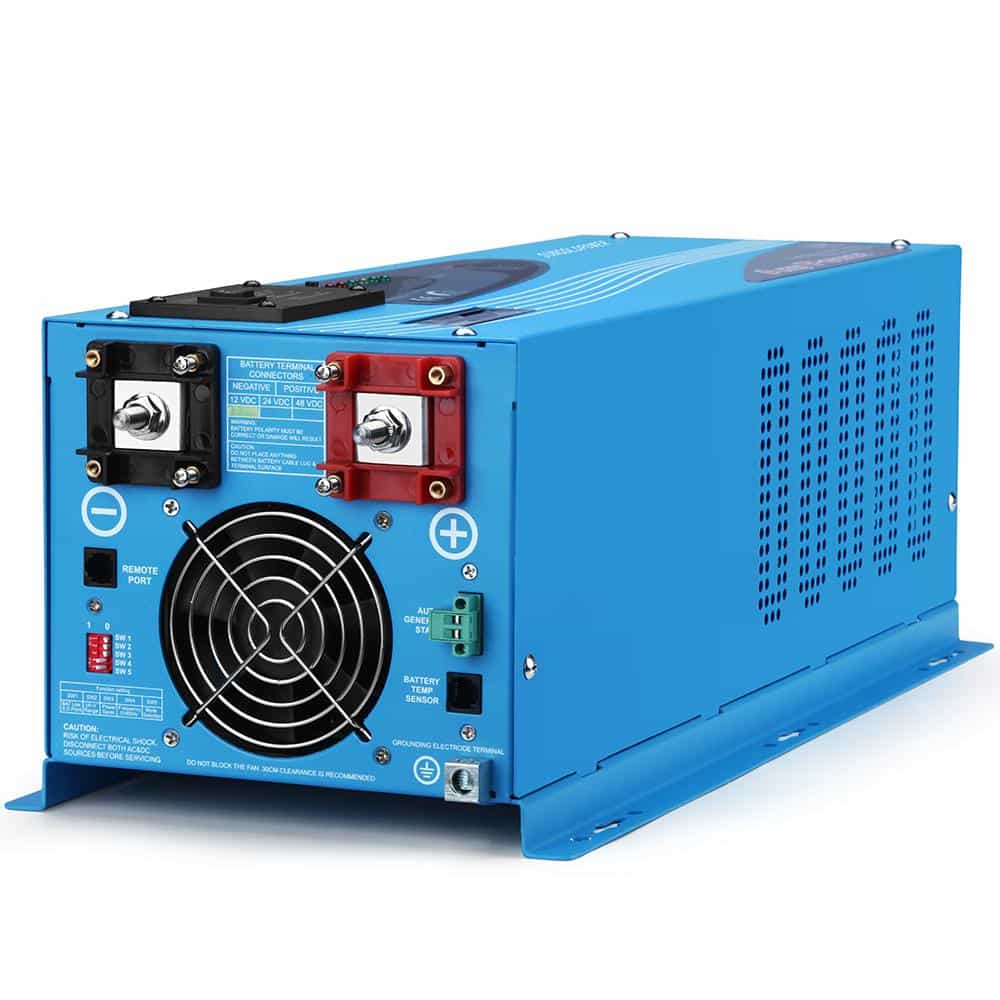

2000W DC 12V Pure Sine Wave Inverter With Charger

Highlight:

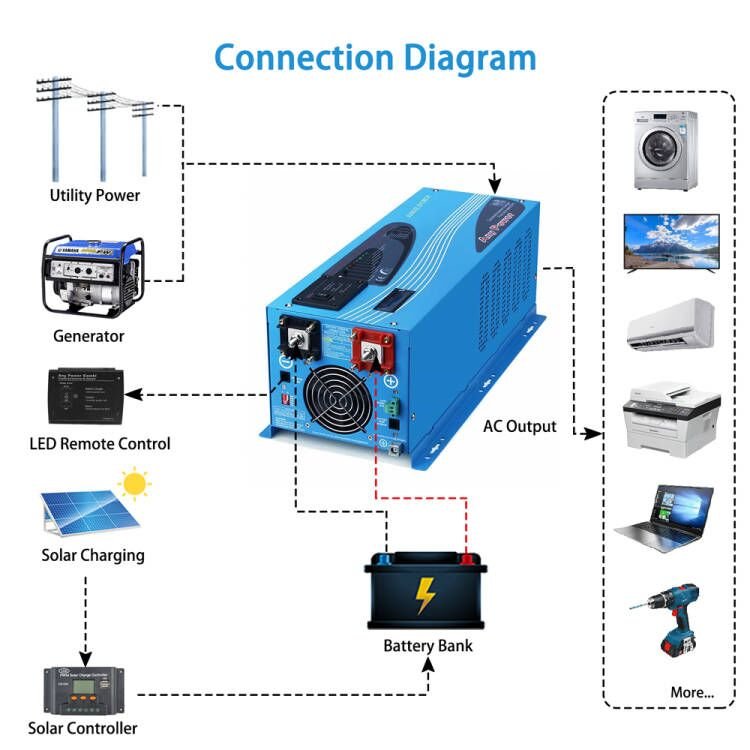

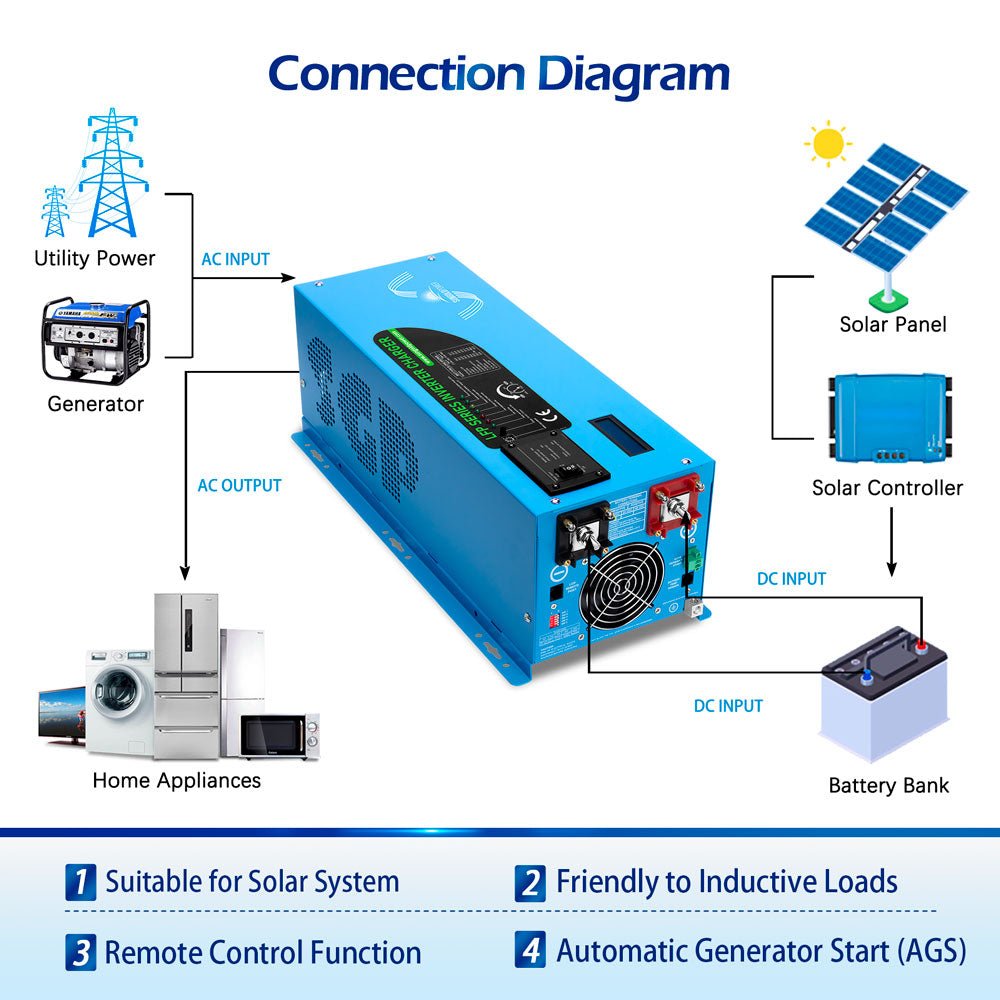

• ★ This LFP Series 2000 Watt Pure Sine Wave Inverter is a combination of an inverter, battery charger, and AC auto-transfer switch. Low frequency, low Idle Current, BTS cable, remote control.

• ★ This 2000 watt inverter charger requires 120VAC input and can provide 120VAC output power for the appliances, and it can output 50 or 60Hz via the SW4.

• ★ AC/Battery Priority: Our inverter is designed with AC priority by default, you can choose the battery priority by SW5 switch.

• ★ Adjustable Charging Current: The max charge current can be adjusted from 0%-100% via a liner switch.

• ★ Auto Gen Start: The inverter can start up a generator when the battery voltage goes low, and turn the generator off after battery charging is finished.

Features

Main Features:

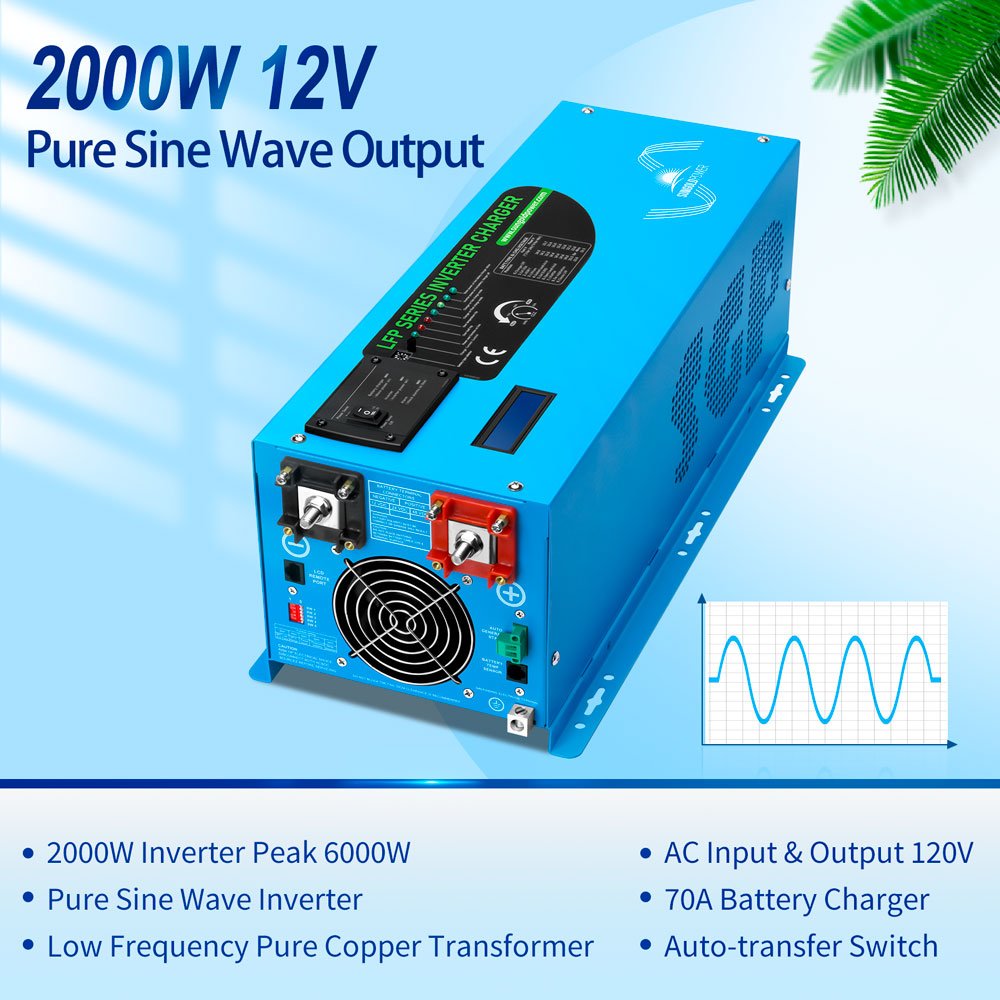

• 2000W LFP Low-Frequency Pure Sine Inverter With Charger.
• AC/Battery Priority Selector.
• Automatic Generator Start.
• GFCI Socket, Safety and Convenient.
• The low-frequency inverter can power all kinds of appliances.

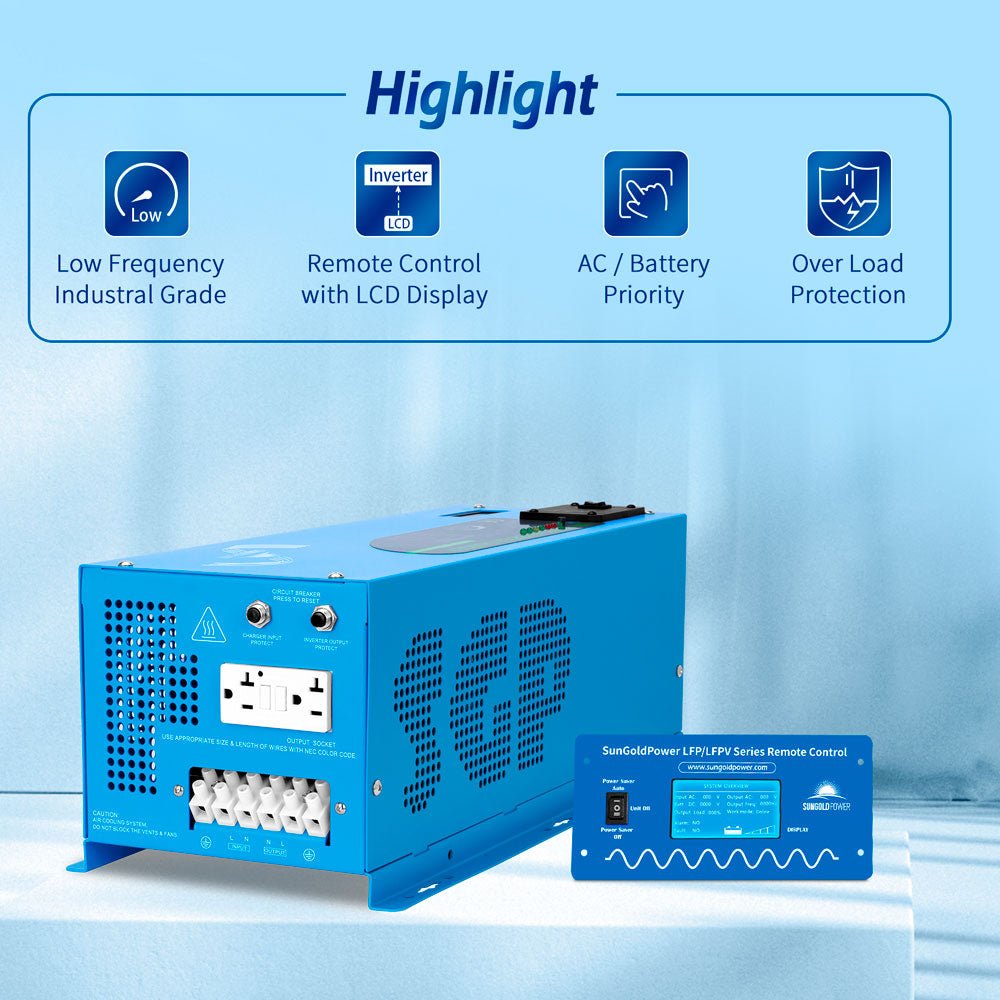

• LCD Display, Remote Control, BTS including.
• Low Idle Consumption.

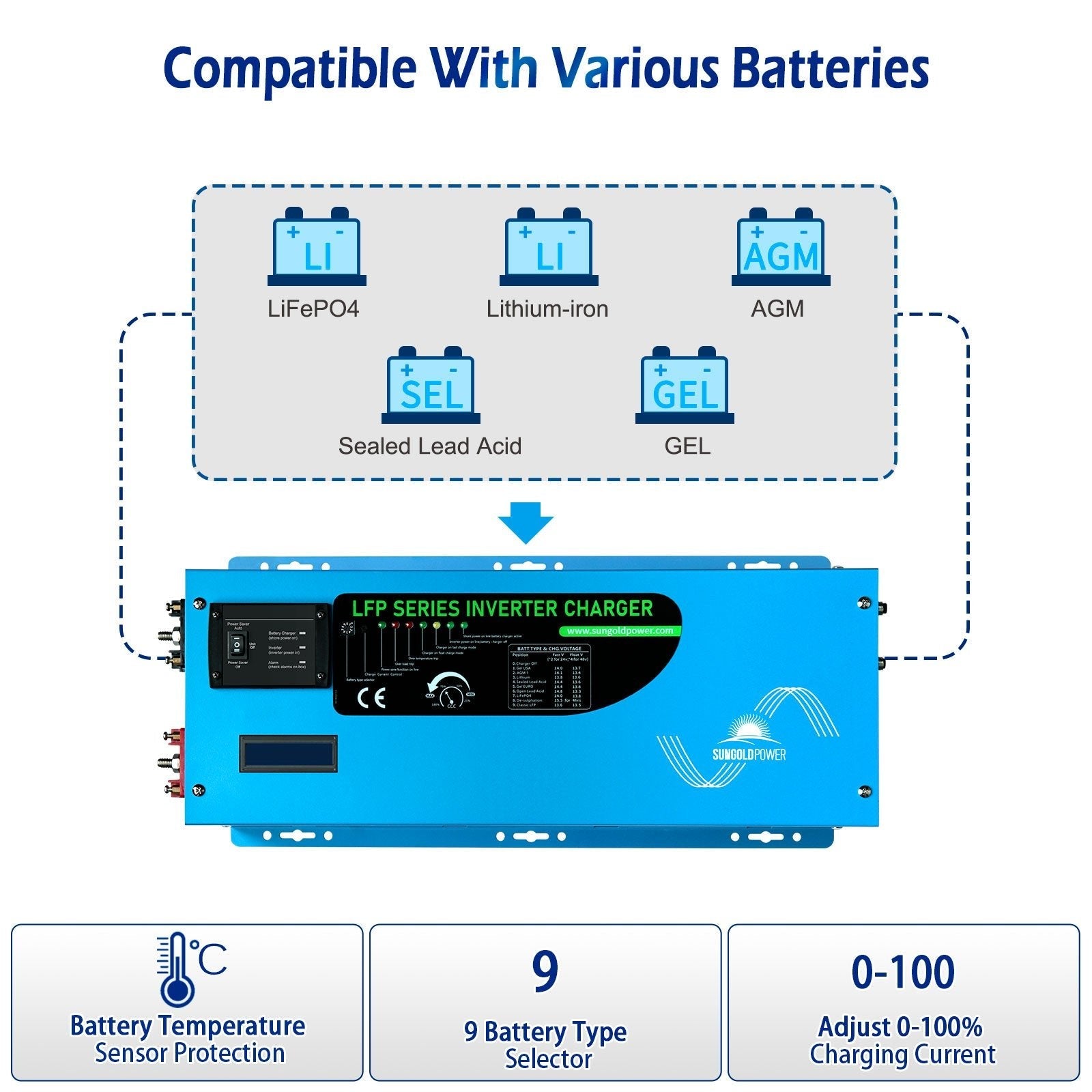

• 7 battery type settings for the charger.
• Multi Stage Smart charger 70+/-5A, the charger can be disabled.
• 10 msec typical transfer time.

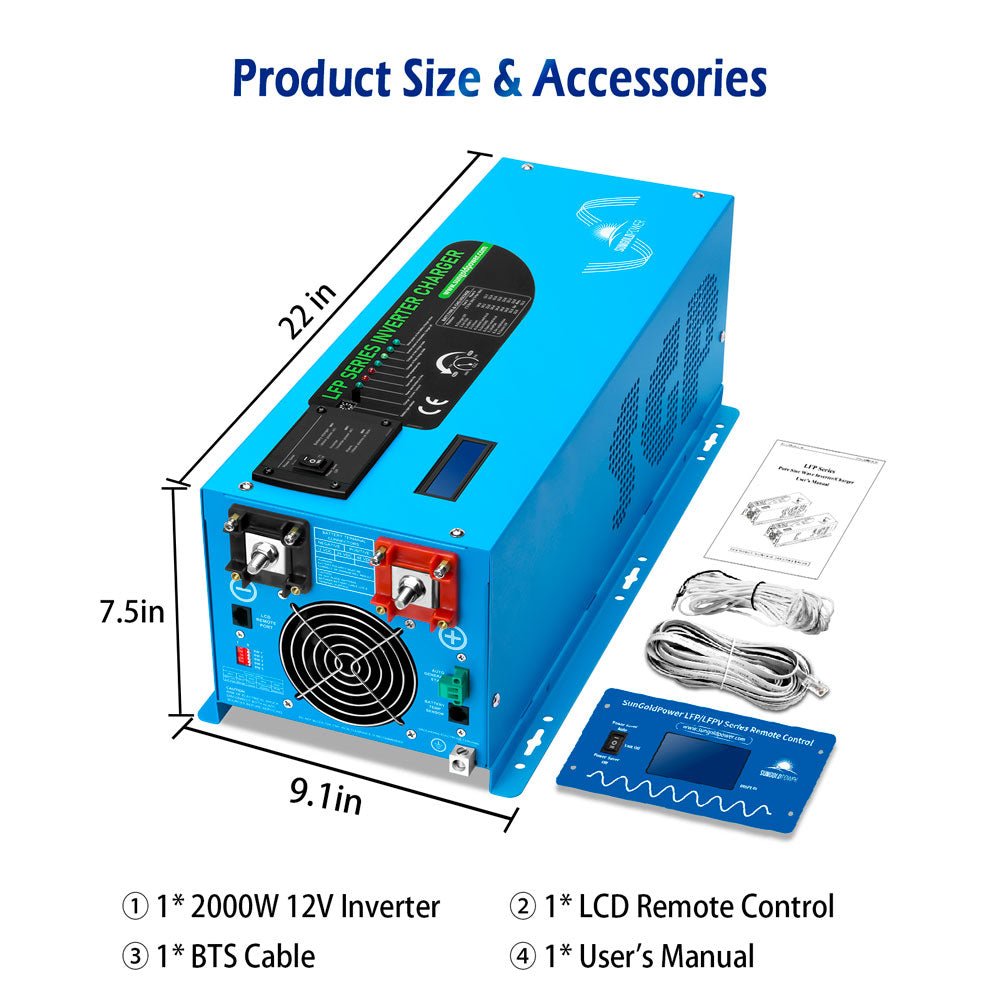

Packaging:

• 2000W 12V Low-Frequency Pure Sine Inverter
• English Manual
• Remote Control
• BTS Cable
• Unit Weight: 53LB
• Unit Size: 17.4 x 9.5 x 7.8 inch
• Shipping Weight: 57LB
• Shipping Size: 23 x 12.6 x 12.0 inch

Specification

Inverter Output:

• Continuous Output Power: 2000W
• Surge Rating: 6000W (20 Seconds)
• Output: 120VAC, 60hz
• Output Wave: Pure Sine Wave (bypass mode)
• Typical Transfer Time: 10ms (MAX)
• Nominal Efficiency: >88%

DC Input:

• Nominal Input Voltage: 12.0Vdc
• Minimum Start Voltage: 10.0Vdc
• Low Battery Alarm: 10.5Vdc-11.0Vdc
• Low battery Trip: 10.0Vdc-10.5Vdc (select by SW1)
• High Voltage Alarm: 16.0Vdc
• Low battery Voltage Restart: 13Vdc
• Idle Consumption: 25W
• Power Saver Mode Idle Consumption: 12W

AC Charger:

• Charger Rate: 70+/-5A
• AC input Range (Grid or Generator): 90V-135VAC/100V-135VAC (select by SW2);
• Over Charge Protection Shutdown:15.7V
• Selectable Charge Setting: off 0%-100%
• 3-step intelligent battery charger

User Manual

Download LFP Series Pure Sine Wave Inverter/Charger User's Manual

FAQ

Frequently Questions Answer

1. What is the standby/idle current draw of the inverter on 12V?

    Dear Customer, the standby current is 2A for this product, thanks.

2. What gauge wire should be used for the chassis ground?

    Dear Customer, it requires AWG1/0 wire, thanks.

3. In battery priority, when the battery is depleted, it will switch to AC/charger mode? When the battery is recharged, it will switch back to the battery/inverter?

    Dear Customer, it's the same as you described.
