Name: 2 in 1 out 8K HDMI Switch with Audio Extraction, EDID management, HDR10+ & Dolby Vision (BK-21)
Brand: OREI
SKU: BK-21
Price: 36.00 CAD
Availability: InStock

2 in 1 out 8K HDMI Switch with Audio Extraction, EDID management, HDR10+ & Dolby Vision (BK-21)

Roll over image to zoom in Click on image to zoom

OREI BK-21: 2x1 8K HDMI Switcher with Audio Extraction

Key Features:

HDMI 2.1 and HDCP 2.3 compliant
Support 48Gbps video bandwidth

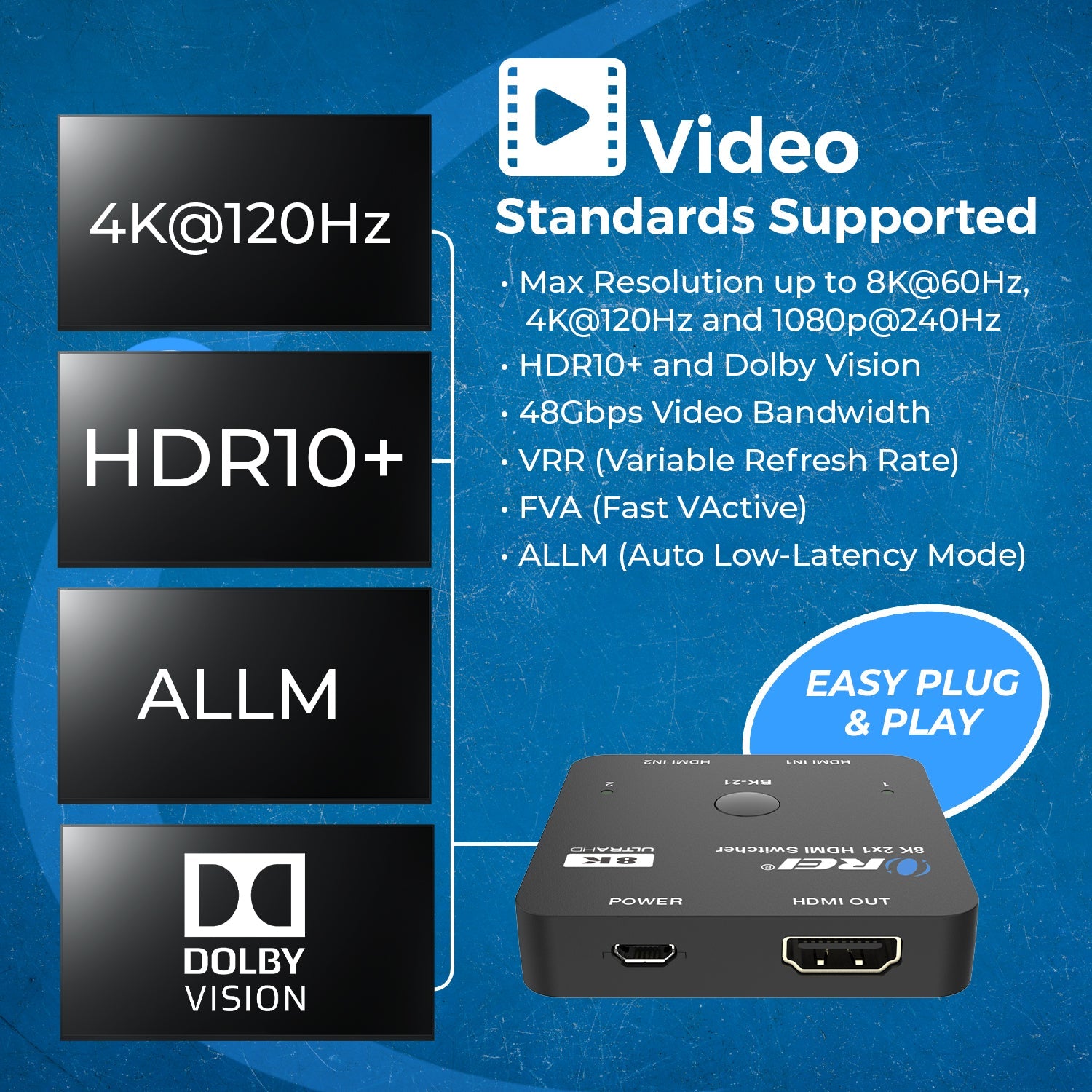

8K@60Hz 4:4:4 8/10/12bit, 8K@60Hz 4:2:0 12-bit, 8K@30Hz 4:4:4 10-bit, 4K@120Hz 4:4:4 10-bit video support
Support HDR, HDR10, HDR10+, Dolby Vision, HLG pass through
VRR, FVA, ALLM support
Support HDMI audio formats: LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
2x1 switch output, auto switch supported
Built-in Equalizer and Driver
Auto EDID management
Compact design for easy and flexible installation

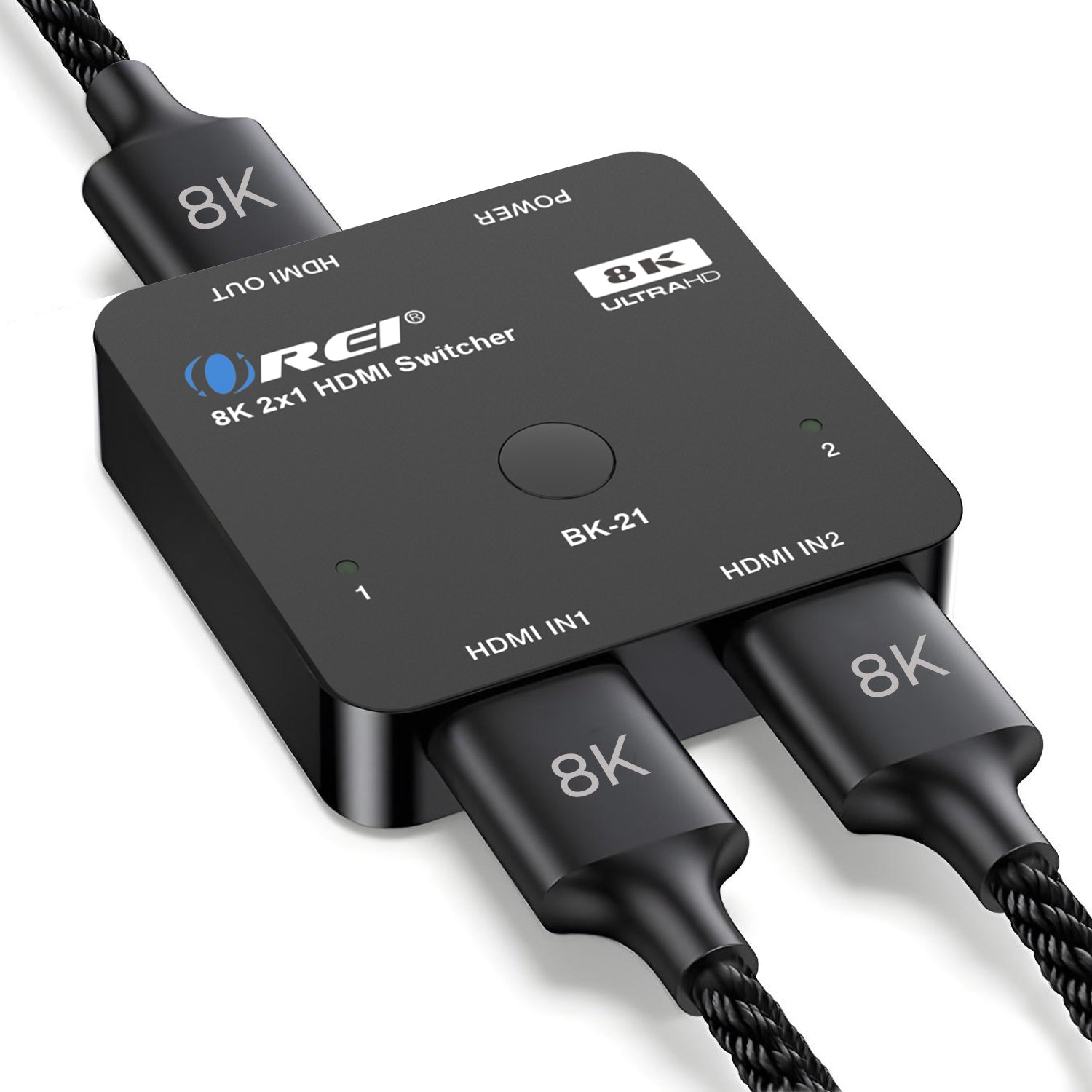

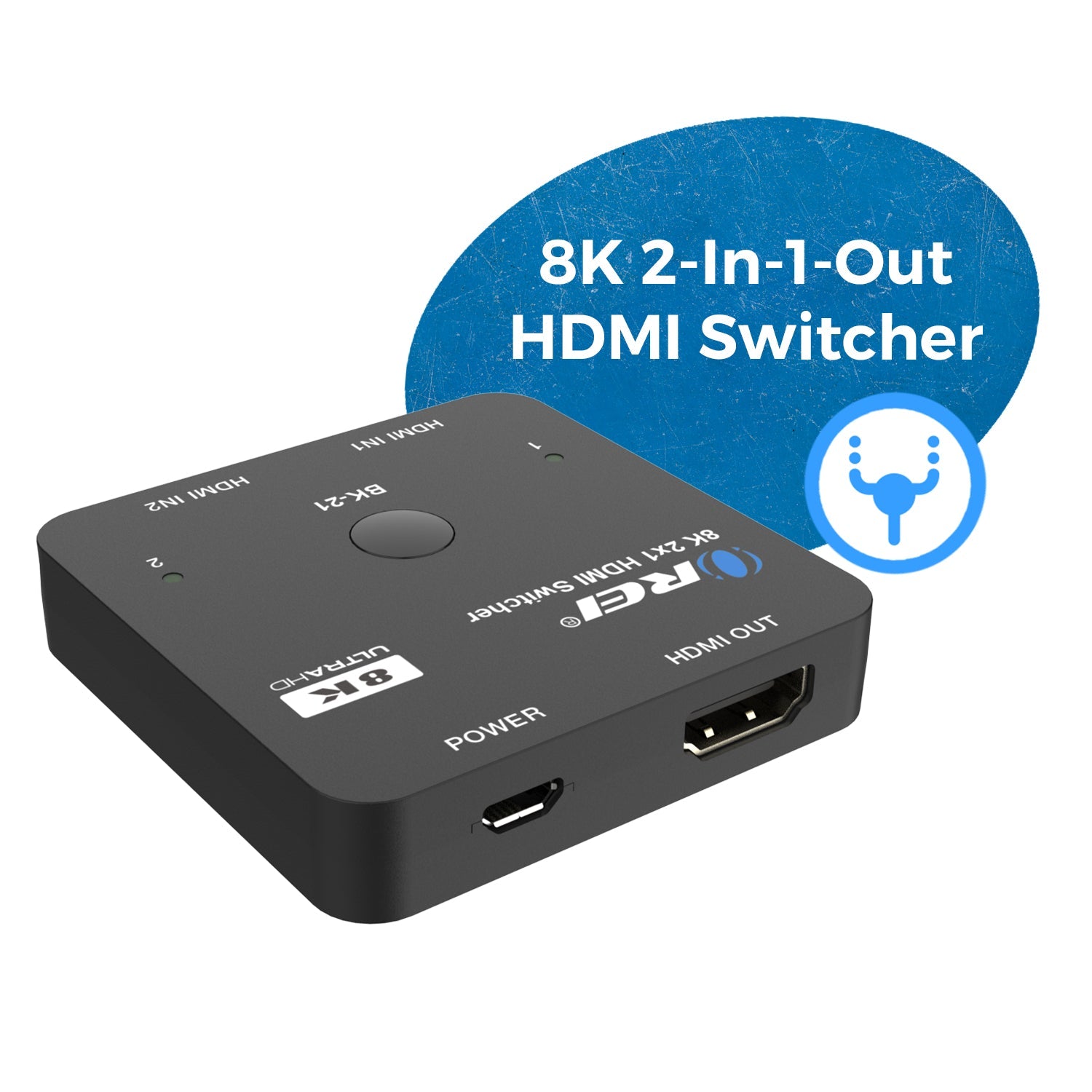

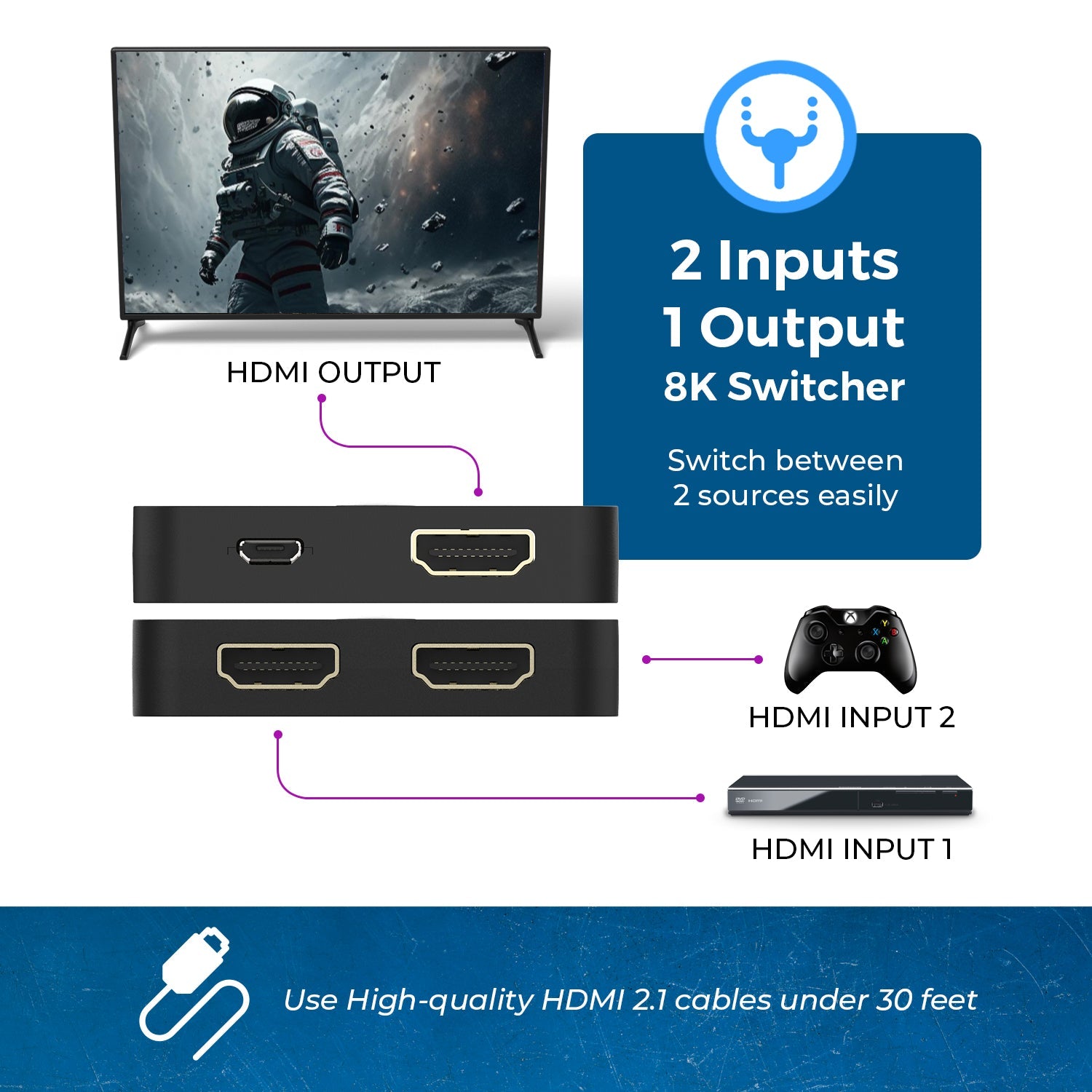

The BK-21 HDMI switch allows you to connect and switch between 2 media sources on a single display. It is HDMI 2.1 and HDCP 2.3 compliant, supporting resolutions up to 8K@60Hz and 4K@120Hz with a 48Gbps video bandwidth. It offers automatic switching and manual switching via the button on top. It supports HDR10+ and Dolby Vision. With support for Variable Refresh Rate (VRR), Auto-Low Latency Mode (ALLM), and Fast VActive (FVA), this product is ideal for gamers.

[shortdes]

2 in 1 out HDMI switch 8K
Video resolutions up to 8K@60 or 4K@120Hz
Support for EDID, HDR10+, Dolby Vision & more

[/shortdes]

[tab]

CONNECTIVITY

	INPUT:	2 × HDMI [Type A, 19-pin female]
		1 × HDMI [Type A, 19-pin female]

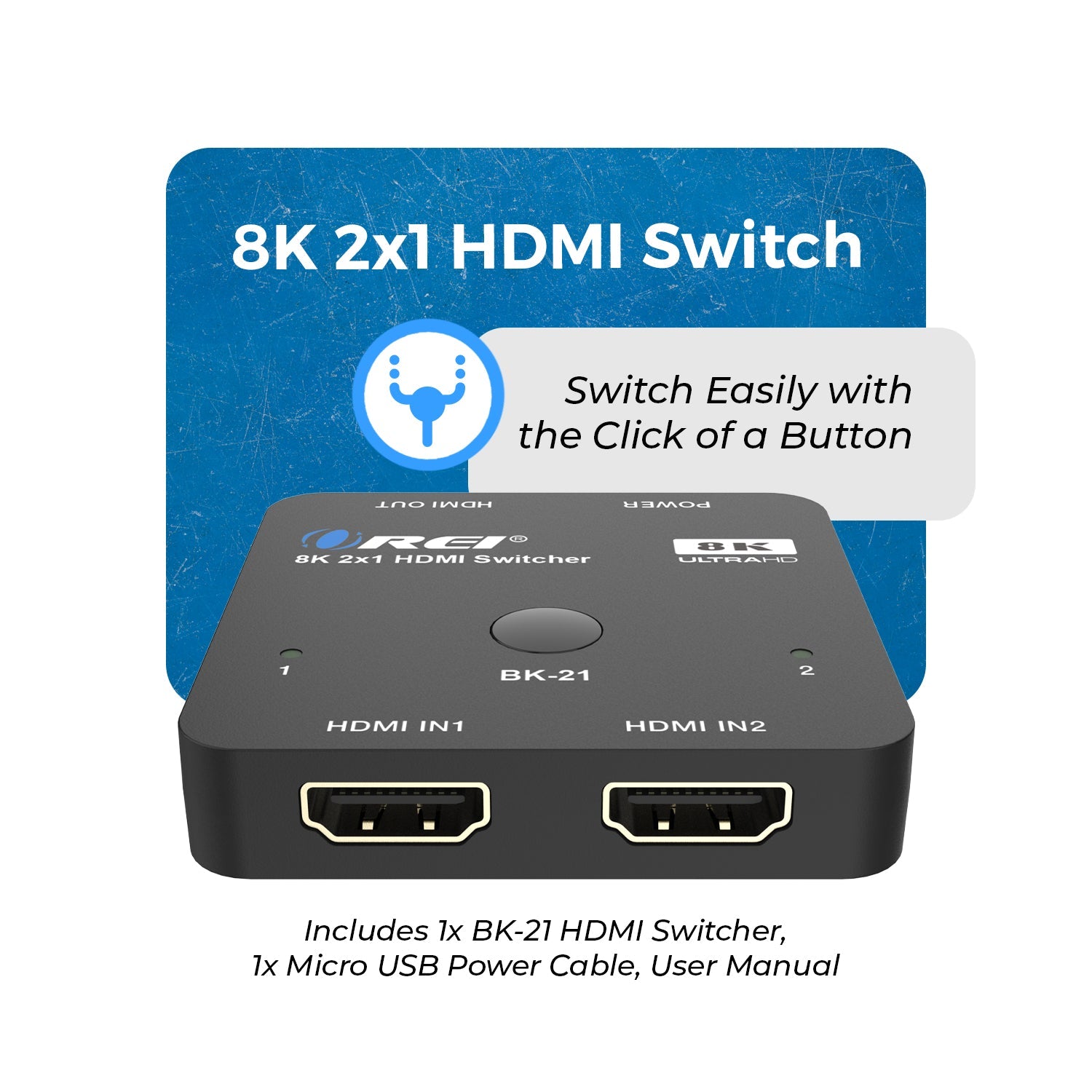

PACKAGE CONTENTS

1x BK-21 HDMI Splitter

1x Micro-USB power cable

User Manual

SUPPORTED HDMI CABLES

HDMI 2.1

We recommend using high quality HDMI 2.1 cables under 30 feet for optimum performance

EXTENDING DISTANCE

8K@60Hz:

6.6 Feet

VIDEO OUTPUT

Video Bandwidth:	48Gbps FRL & 18 Gbps TMDS
Video Resolutions:	Up to 8K@60Hz 4:4:4 or 4K@120Hz 4:4:4

ADDITIONAL FEATURES

CEC:	No
ARC:	No
USB KVM:	No
PoC/PoE:	No
IR Control:	No
Downmix:	No
Downscale:	No
Over IP:	No
HDBaseT:	No
RS-232:	No

AUDIO SUPPORT

HDMI Audio Formats:

LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD

COMPLIANCES

HDMI Compliance	HDMI 2.1
HDCP Compliance	HDCP 2.3

POWER

Power Consumption:	1.25W (Max)
Power Supply:	Output: USB DC 5V

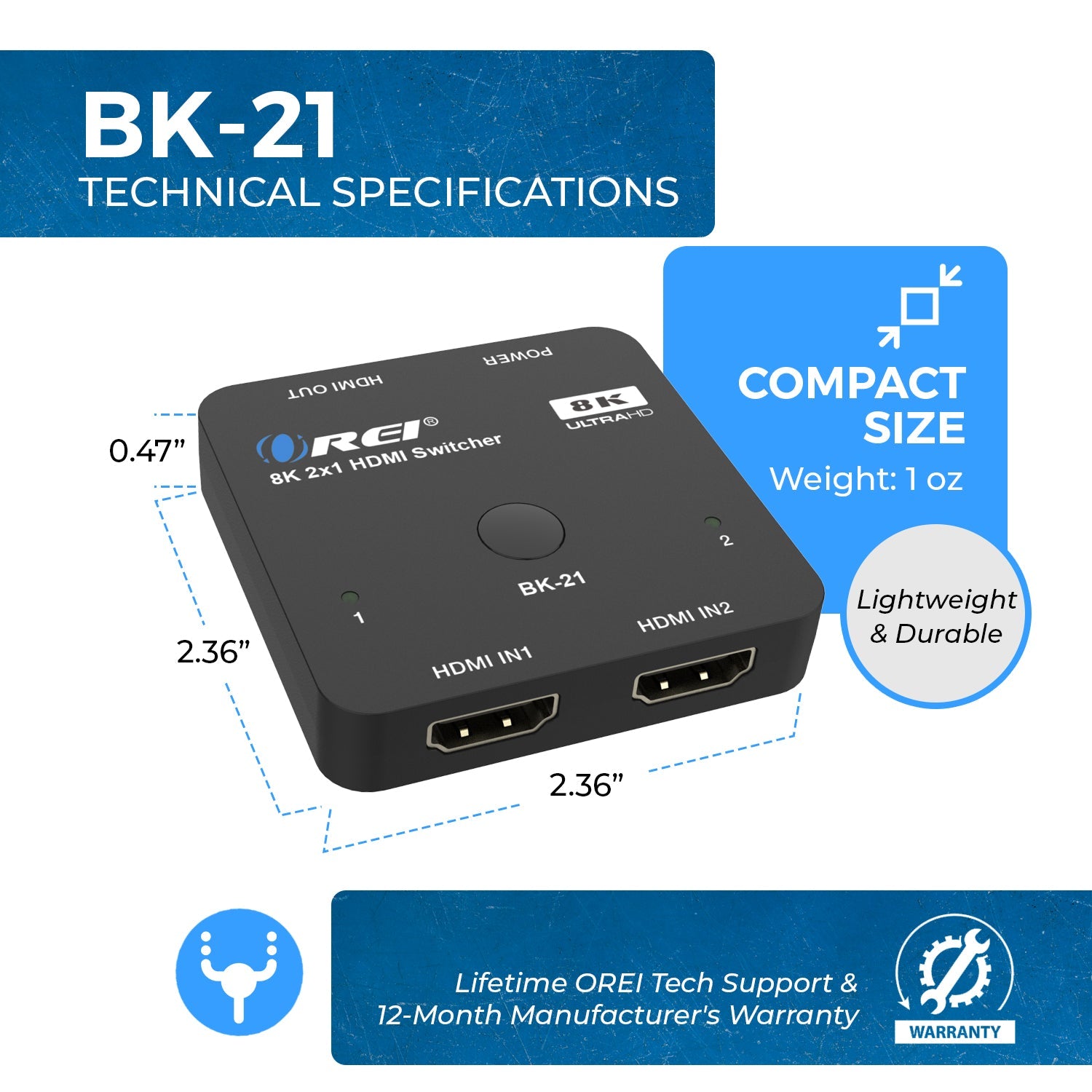

DIMENSIONS & WEIGHT

	Length:	60mm / 2.36in
	Width:	60mm / 2.36in
	Height:	12mm / 0.47in
	Weight:	31g / 1.09oz

PROPERTIES

Color:	Black
Housing:	Metal Enclosure

WARRANTY

1-Year Manufacturer's Warranty

[/tab]

[tab1]

FAQs

Our splitters will not work with capture cards due to the HDCP encryption on the output

Our HDMI splitter will duplicate or "mirror" a single HDMI source on two HDMI displays. Both displays will show the same video and audio simultaneously

Our splitter does not support extend mode. It only supports mirror/duplicate screen function, each screen will show the same picture

Yes, the power adapter does support 220V

You can use standard HDMI cables up to 15 feet and high quality cables up to 30 feet.

However, you can use fiber optic active HDMI cables up to 200 feet. If it's not a high-quality cable then you may lose the signal in some instances.

No, the HDMI splitters do not support CEC because most customers do not want all the TV's to turn ON as soon as the source is turned on.

[/tab1]

General Information

UPC	850031132252

Canada: Prices in CAD. Ships nationwide in 2–5 business days. GST/HST/PST calculated at checkout. Shipping policy.
