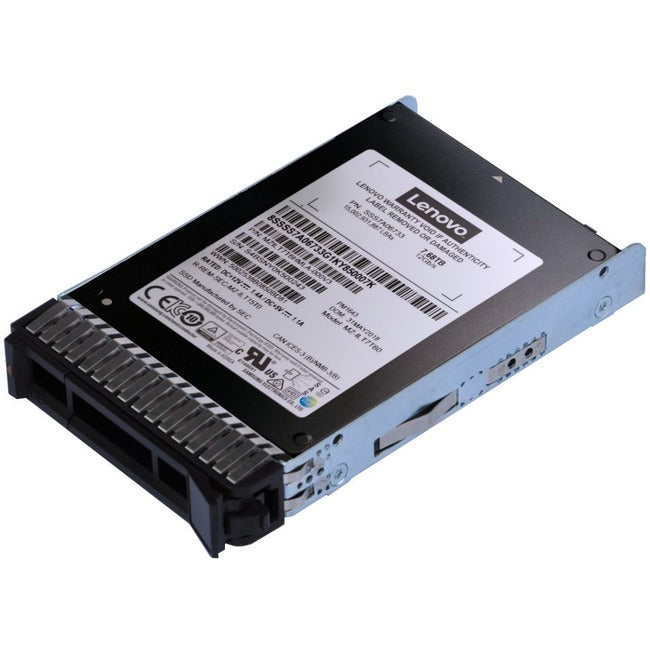

Lenovo PM1643a 7.68 TB Solid State Drive - 2.5" Internal - SAS (12Gb/s SAS) - Read Intensive
The PM1643a Entry SAS 12Gb solid-state drives (SSDs) from Lenovo provide high-performance, reliable storage solutions for high-capacity enterprise applications. Designed for dense storage and with a 12 Gb SAS interface, these drives feature all the capacity and performance that is needed to replace large numbers of 15K rpm and 10K rpm spinning disks, and consolidate storage into tightly packed server configurations.
- Enterprise-grade SSD suitable for read-intensive workloads
- Based on Samsung 64-layer V-NAND technology and TLC flash memory
- Endurance of 1 drive-write per day (DWPD) over 5 years
- 2.5-inch or 3.5-inch industry standard form factor with hot-swap tray
- SAS 12 Gbps interface
- Single port host interface
- Protect data integrity from unexpected power loss with Samsung's advanced power-loss protection architecture
- Supports Self-Monitoring, Analysis and Reporting Technology (S.M.A.R.T)
- End-to-end data protection
- Support 16 Initiator with Tag Command Queuing (TCQ) Command Set with a queue-depth of up to 128 commands
Product Type: Solid State Drive
Environmentally Friendly: Yes
Environmental Certification: RoHS
Product Series: PM1643a
Brand Name: Lenovo
Drive Type: Internal
Compatibility:
Lenovo Servers:
- ST550 (7X09/7X10)
- SR530 (7X07/7X08)
- SR550 (7X03/7X04)
- SR570 (7Y02/7Y03)
- SR590 (7X98/7X99)
- SR630 (7X01/7X02)
- SR650 (7X05/7X06)
- SR635 (7Y98/7Y99)
- SR655 (7Y00/7Z01)
- SR850 (7X18/7X19)
- SR850P (7D2F/2D2G)
- SR860 (7X69/7X70)
- SR950 (7X11/12/13)
- SD530 (7X21)
- SN550 (7X16)
- SN850 (7X15)
Form Factor: 2.5"
Manufacturer: Lenovo Group Limited
Product Name: ThinkSystem 2.5" PM1643a 7.68TB Entry SAS 12Gb Hot Swap SSD
Device Supported: Server
Hot Swappable: Yes
Manufacturer Part Number: 4XB7A17055
Manufacturer Website Address: http://www.lenovo.com/us/en/
Limited Warranty: 1 Year
Weight (Approximate): 5.57 oz
