SIIG 1x8 HDMI Splitter Over Cat6 Extender with Loopout, IR, ARC & RS-232
Multiple Connectivity Ports

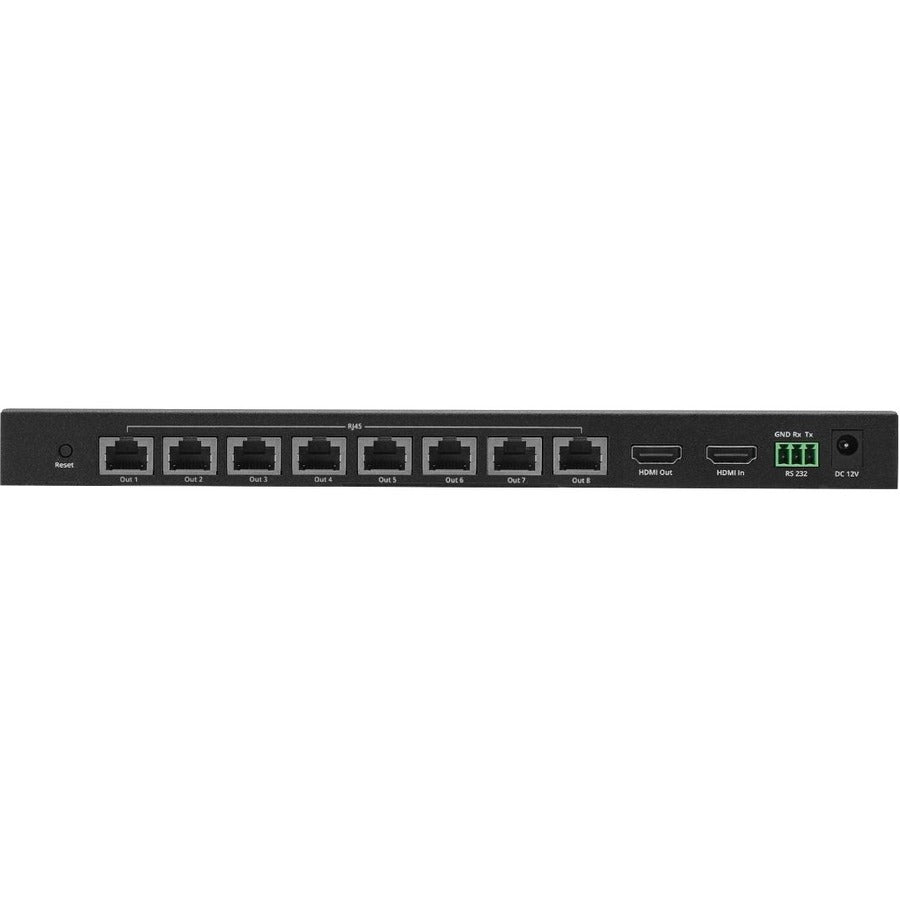

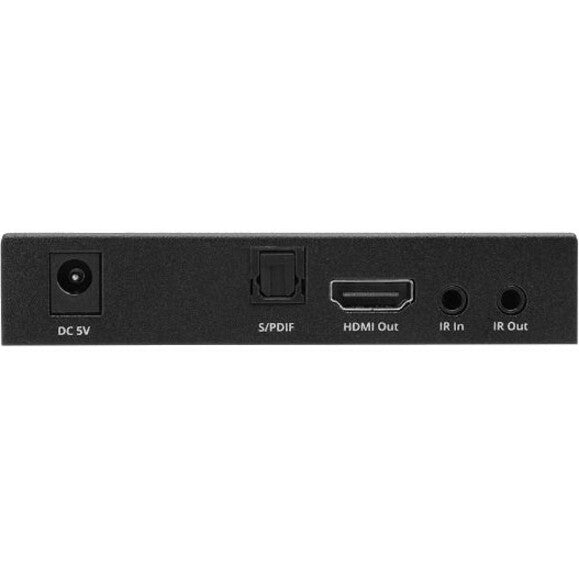

Comes with one HDMI video input port, one HDMI video loop-out port, eight HDMI video output ports, sixteen RJ45 network ports, nine 3.5mm IR emitter ports, nine 3.5mm IR receiver ports, eight S/PDIF ports, one RS-232 terminal block, one DIP switch, nine reset buttons, eight audio slide switches, one DC power jack (12V/2A) for TX, eight DC power jacks (5V/2A) for RXs
Applications
- Meeting room
- Lecture hall
- Educational facilities
- Multimedia education
- Home theater
- Restaurant
- Shopping center
- Library
- Show room
- 4K HDMI Extension - Easily extends UHD 4K@60Hz HDMI signals up to 230ft (70m) over economical Cat6/7 cabling to up to 8 displays
- Advanced Transmission Technology - Unique ultra-high-definition video digital transmission and connection extender technology, can extend and transmit 4K@60Hz YUV 4:4:4 video and audio, with zero latency, HDR

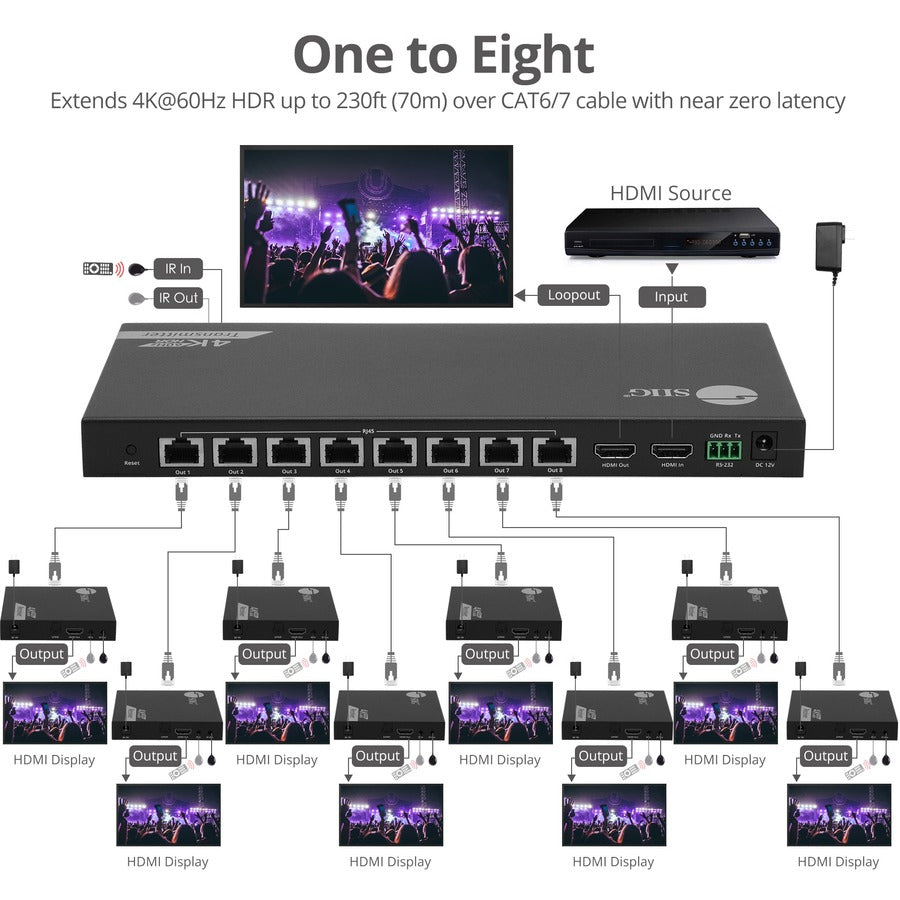

- HDMI Loopout + Extend 8 Displays - Supports one HDMI loop-out for additional local display connections and extender 8 receivers for HDTV or Projector via Cat6/7 cable

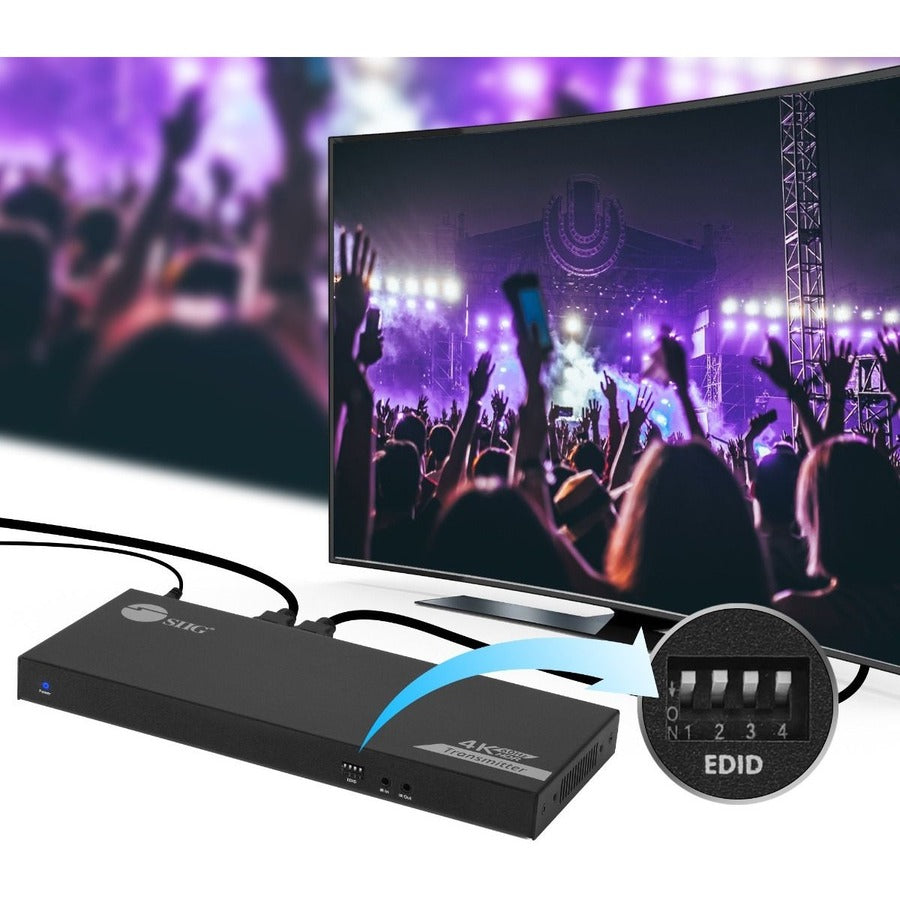

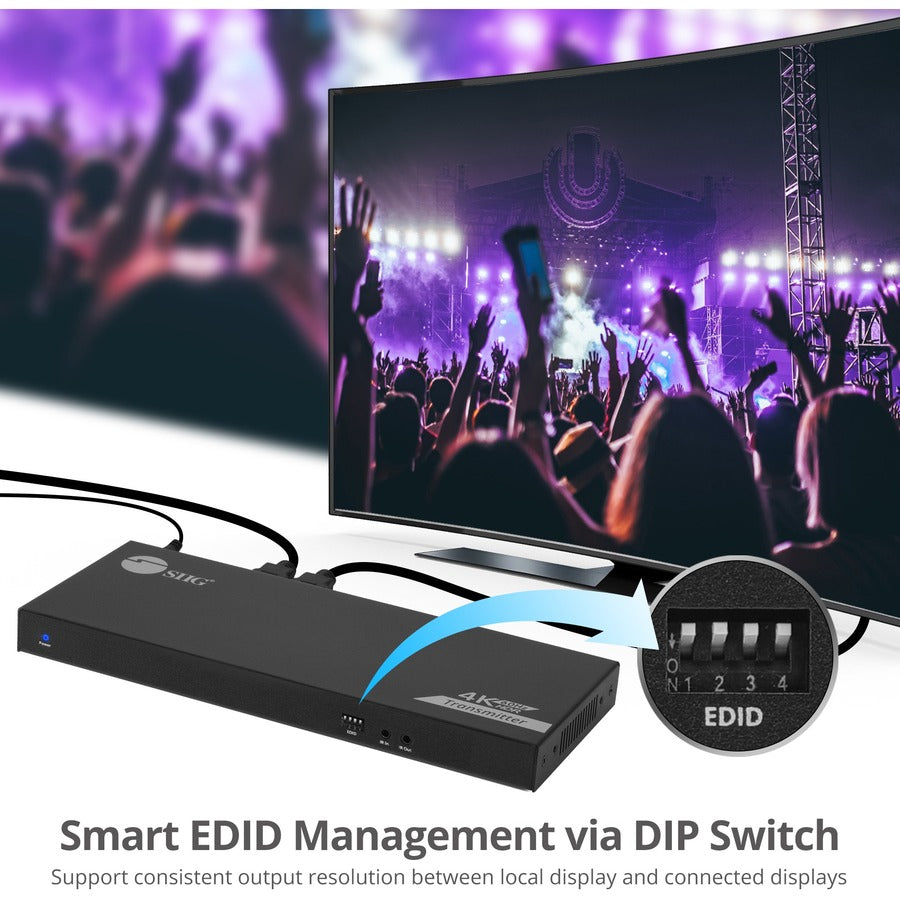

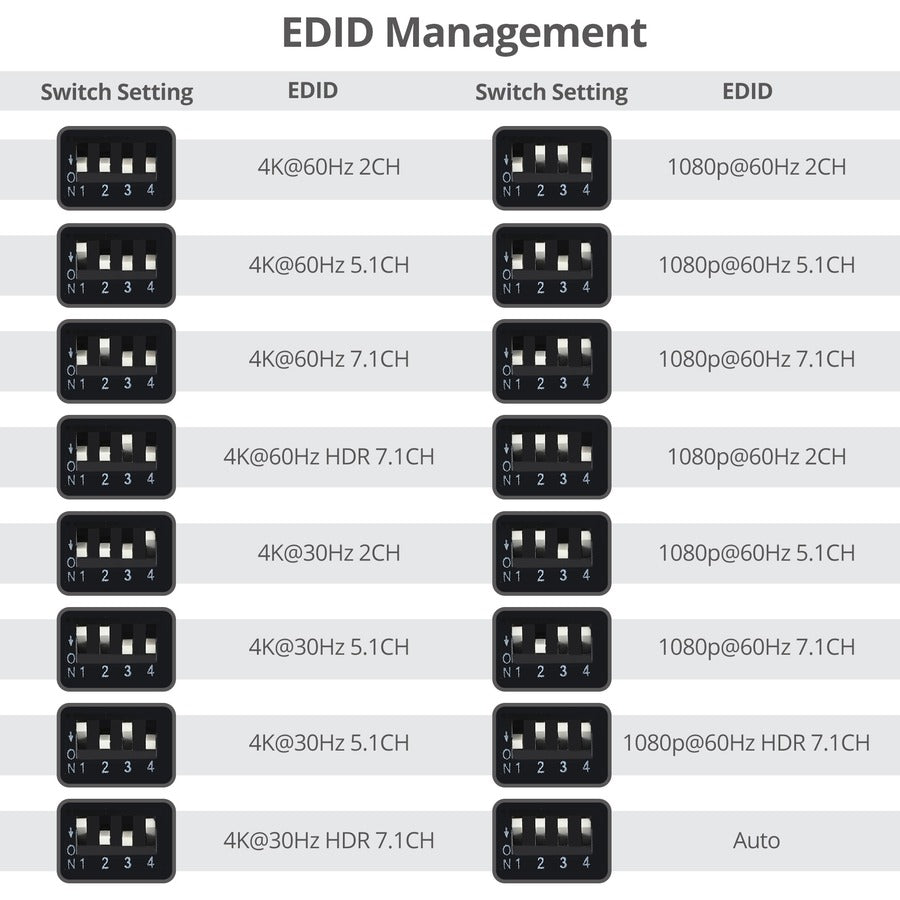

- EDID Management - Support EDID management capability to controls the resolution output to the display(s)

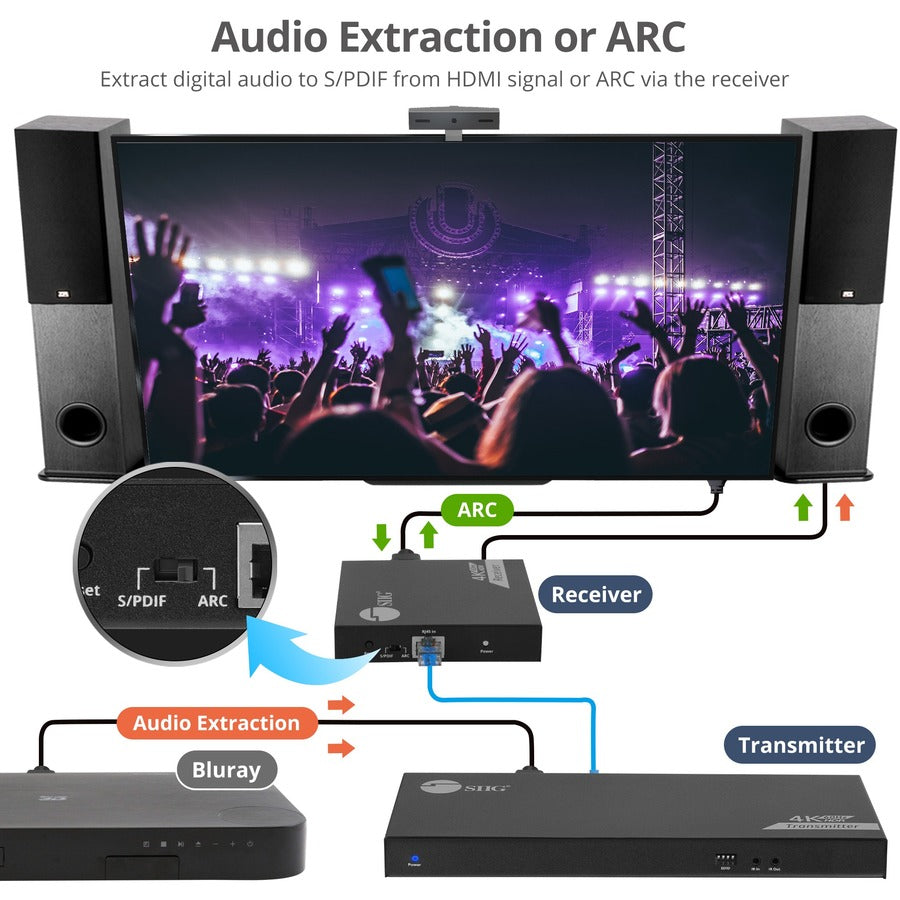

- Audio Extraction - Extracts digital audio from the HDMI signal and routes it through the receiver's digital S/PDIF port via PCM2, Dolby 5.1, DTS 5.1 audio signal
- IR Control - Built-in bi-directional IR provides full remote control capabilities, control the HDMI source device at the remote display location and vice versa
- ARC and Audio Extraction - Through the Toslink connection of the Receiver (RX)
- RS-232 Control - Support RS-232 command control in the Transmitter
- Protection - Lightning Protection, Surge Protection, ESD Protection
- High Quality Wall mount Design - High quality metal housing improve heat dissipation and ensure system stability during long hours of operation
Product Type: Video Extender Transmitter/Receiver
Environmentally Friendly: Yes
Environmental Certification: RoHS

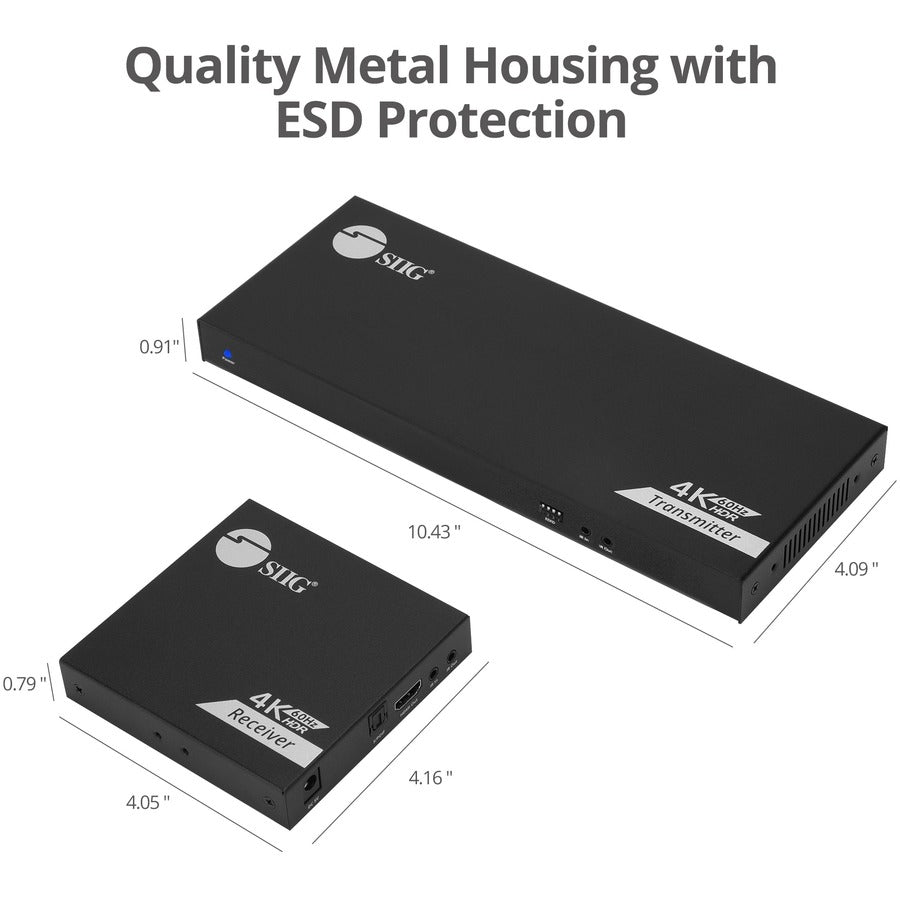

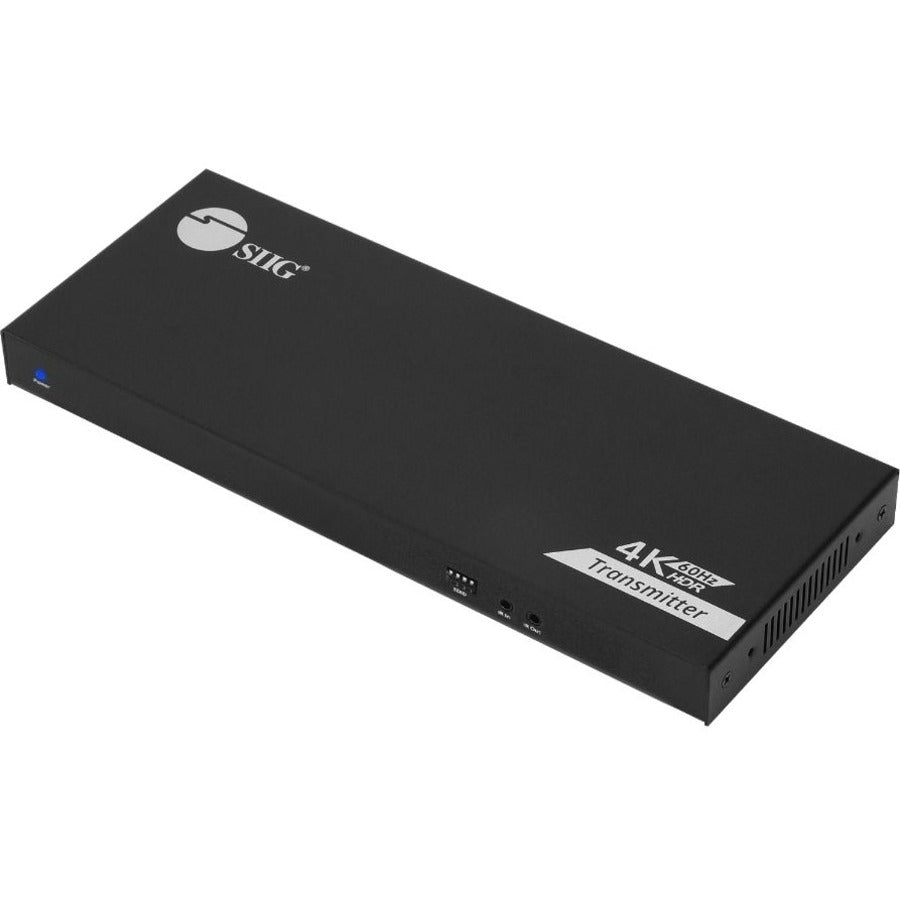

Transmitter Height: 0.91"
Transmitter Width: 10.39"
Transmitter Depth: 4.72"

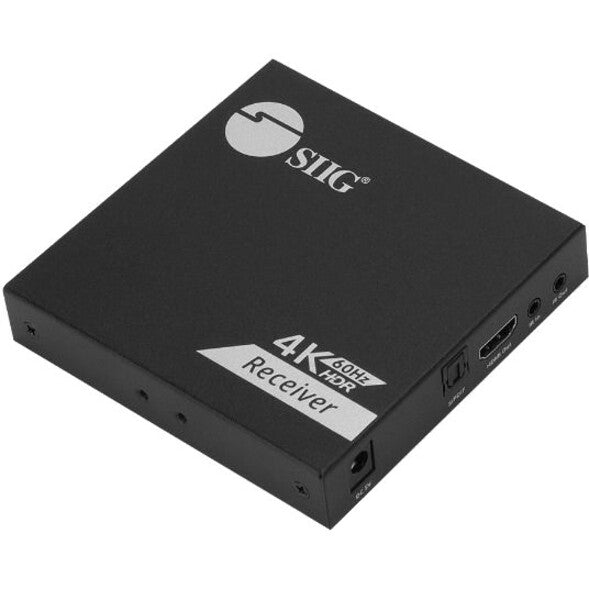

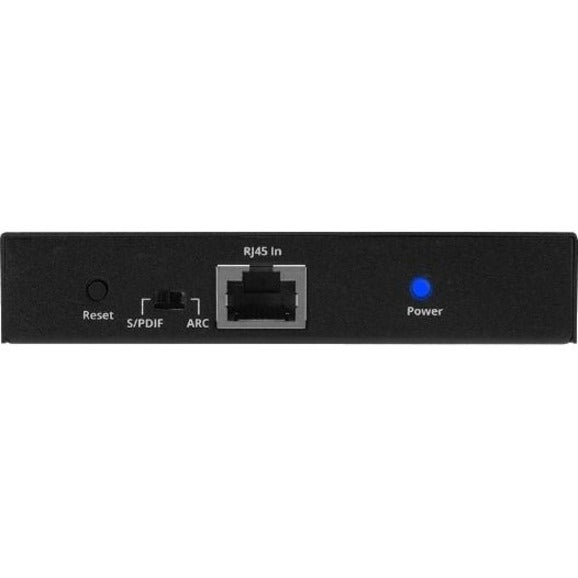

Receiver Height: 0.79"
Receiver Width: 4.15"
Receiver Depth: 4.04"
Transmitter Weight (Approximate): 1.61 lb
Receiver Weight (Approximate): 8.64 oz
Product Color: Black
Brand Name: SIIG
Manufacturer: SIIG, Inc
Product Name: 1x8 HDMI Splitter Over Cat6 Extender with Loopout, IR, ARC & RS-232
Manufacturer Part Number: CE-H27B11-S1
Manufacturer Website Address: http://www.siig.com

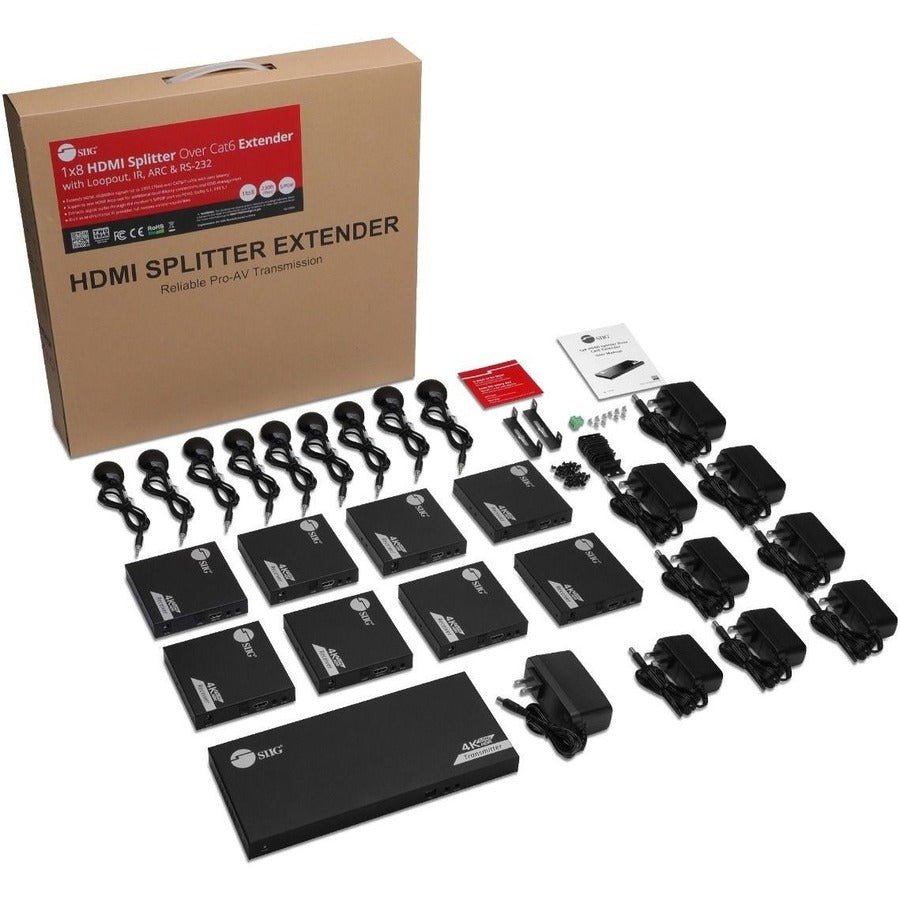

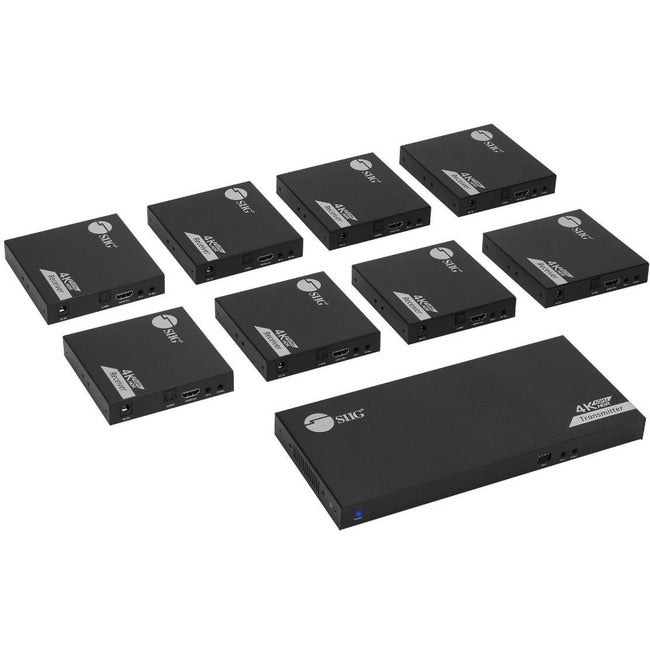

Package Contents:
- 1 x Transmitter
- 8 x Receiver
- 9 x Power Adapter
- 1 x IR Blaster extension cable
- 8 x IR Receiver extension cable
- Terminal block
- Mounting kit
- User Manual
Limited Warranty: 2 Year
