LPCM 7.1, Dolby True HD, and DTS-HD Master Audio support
Advanced EDID management with dip switch to toggle between 2 presets:
STD: Set the output to 1080p@60Hz
TV: Copy the EDID of the display connected to OUT1

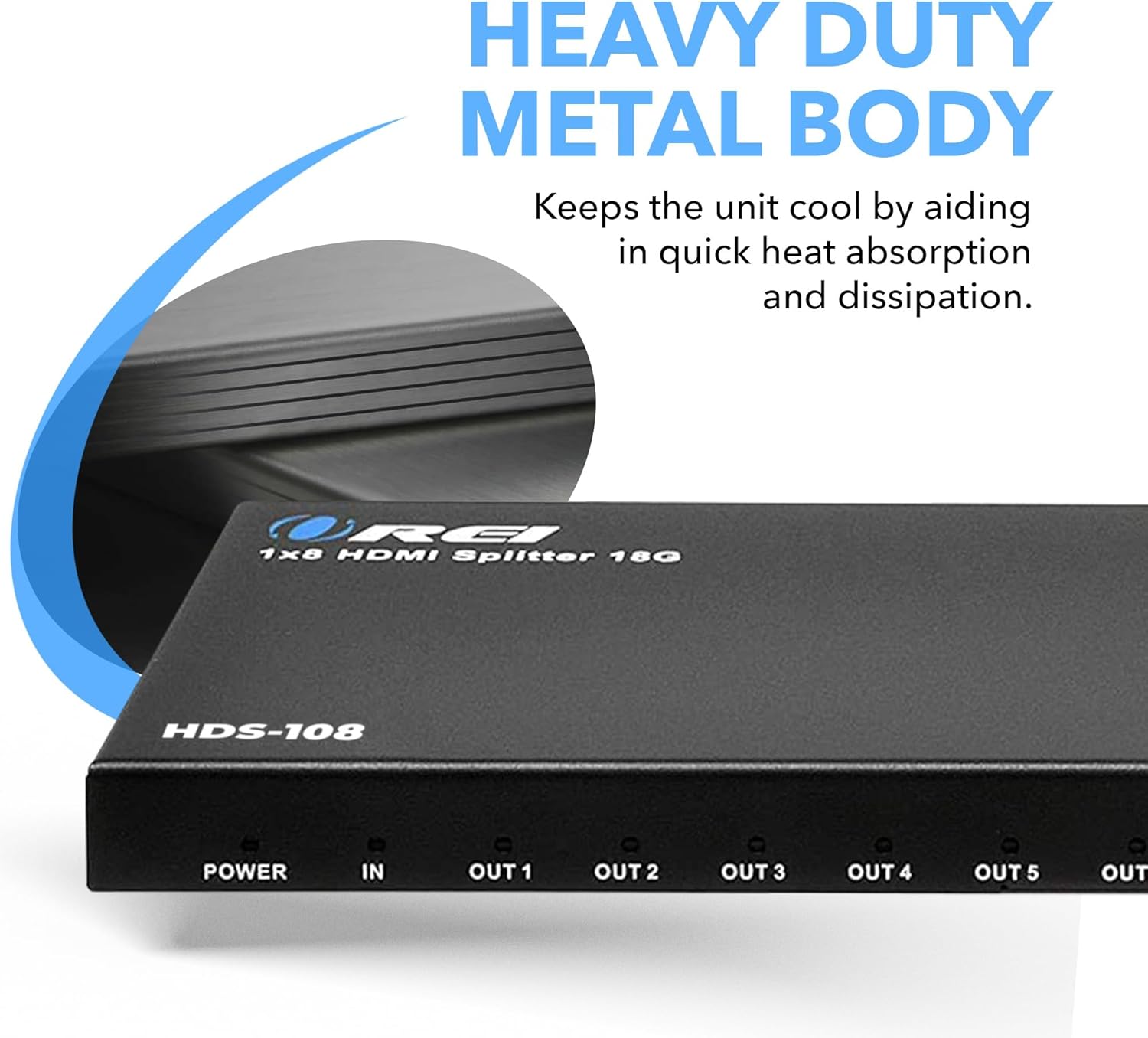

Robust build with an easy plug and play installation

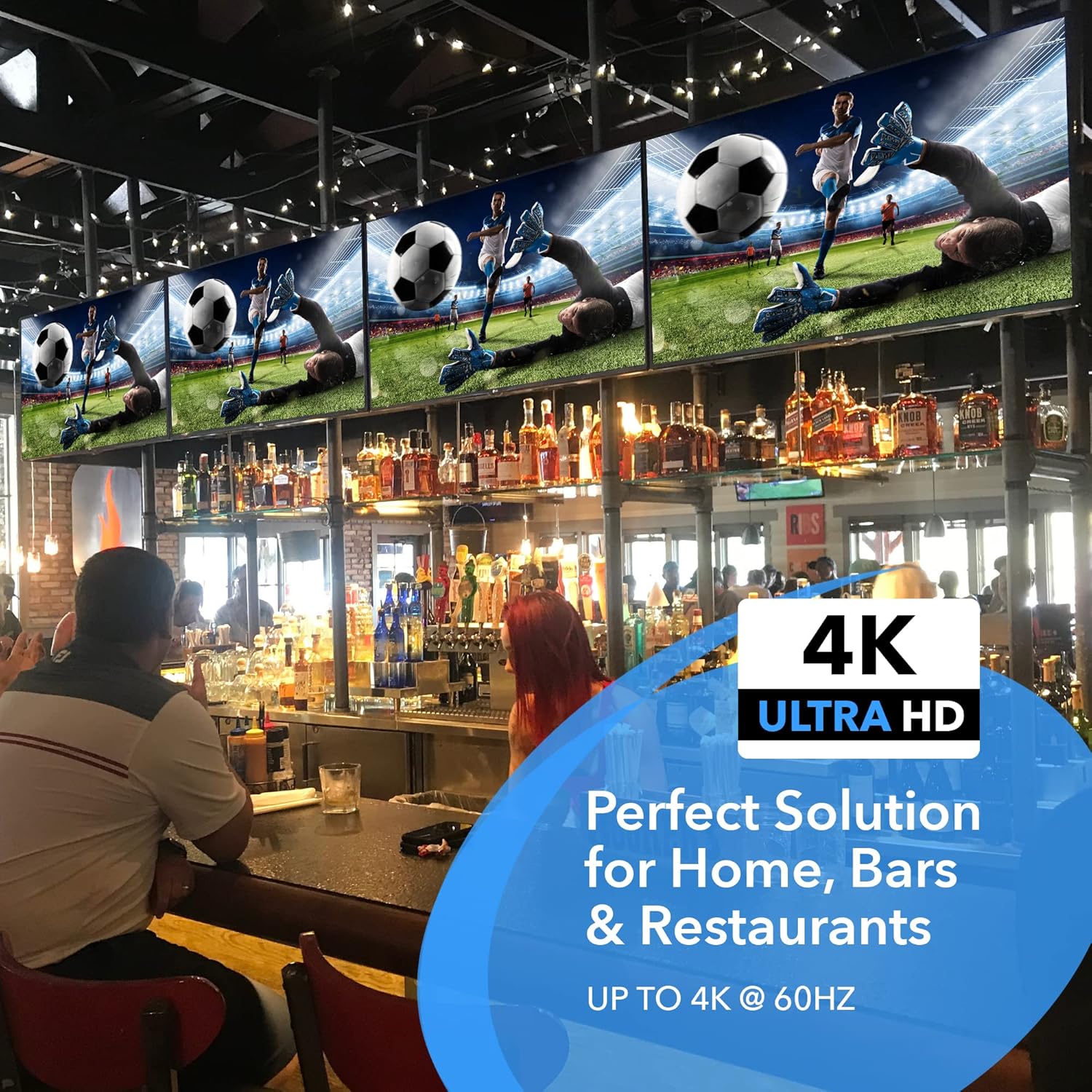

Perfect for commercial and personal setups

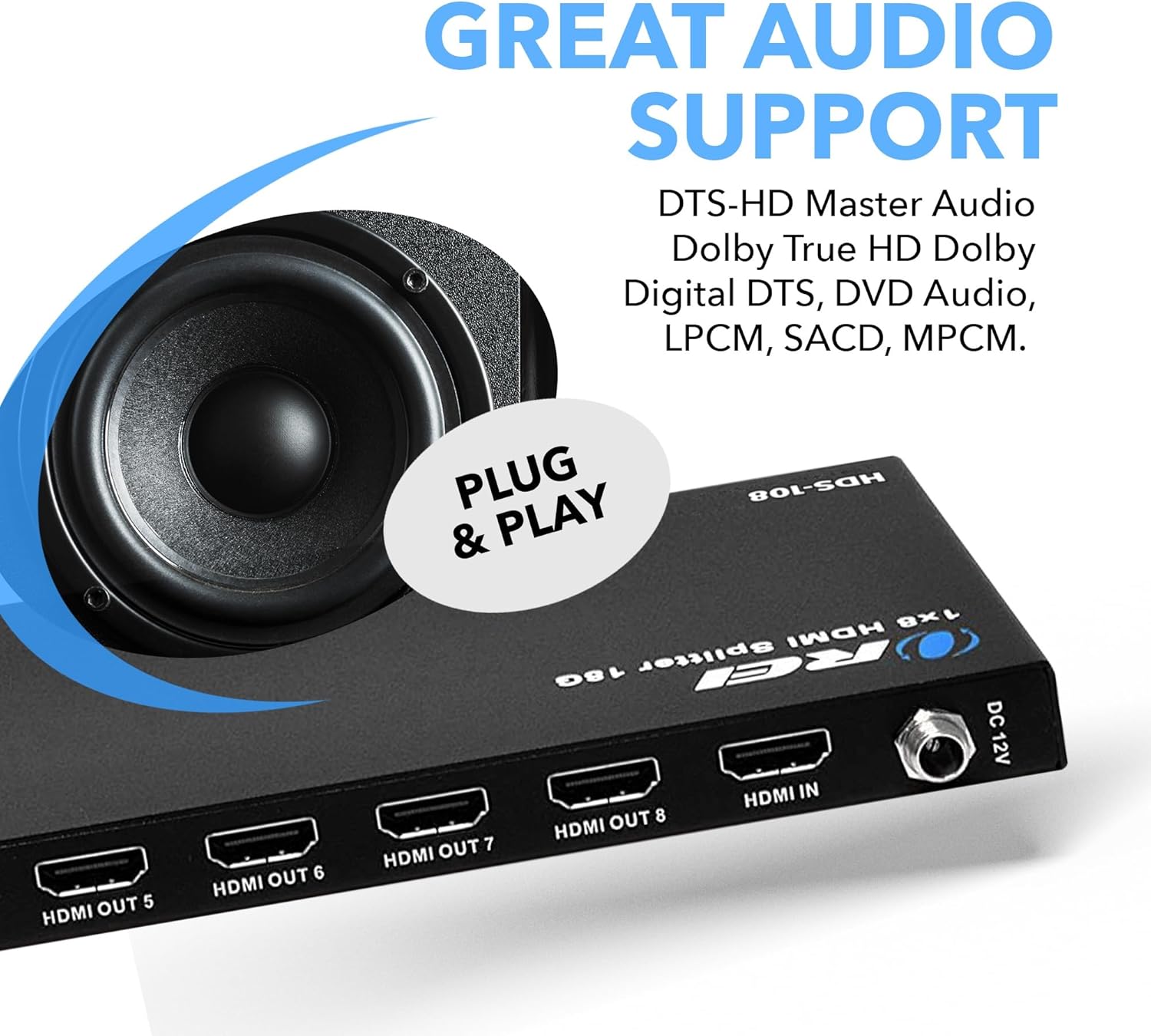

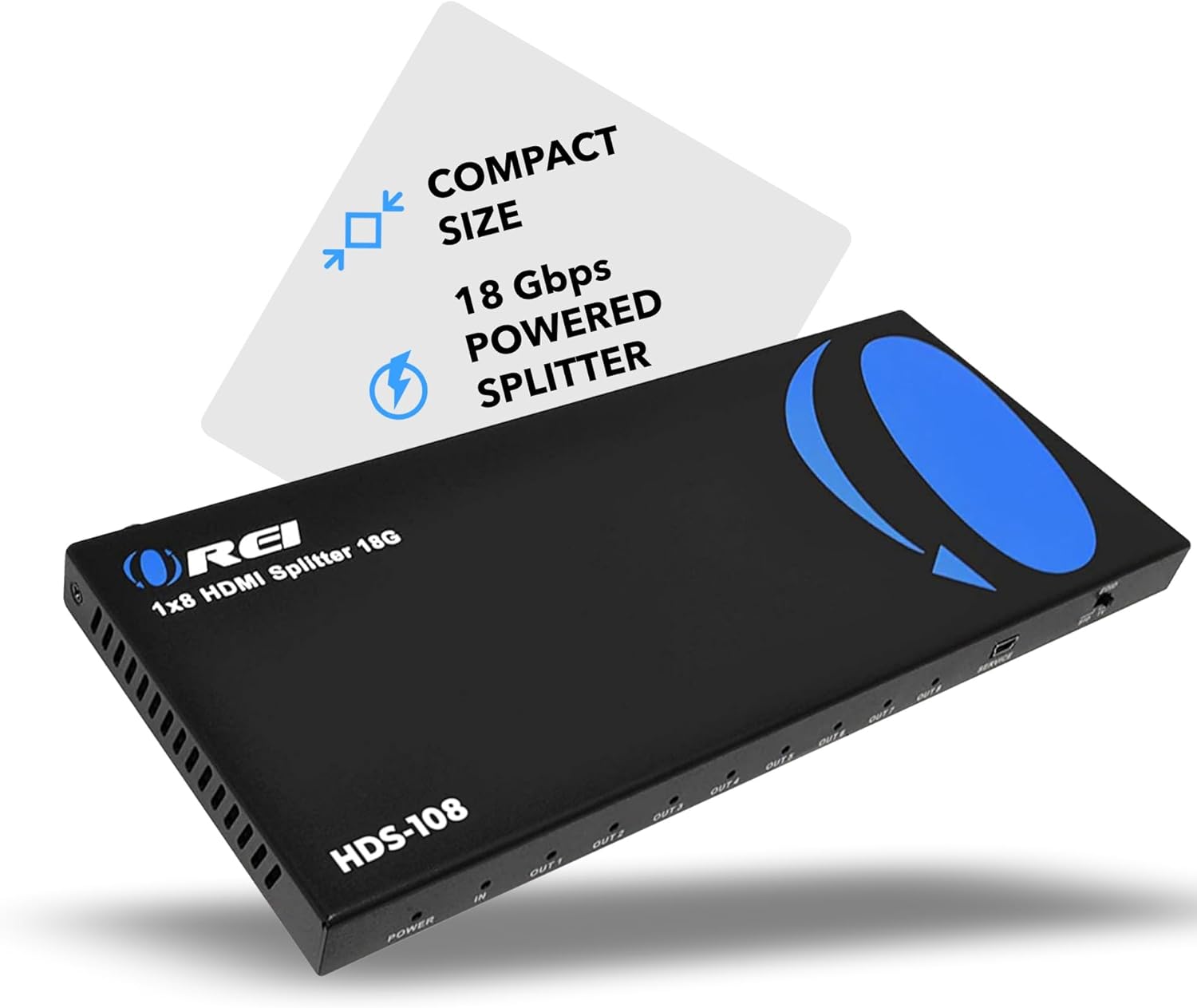

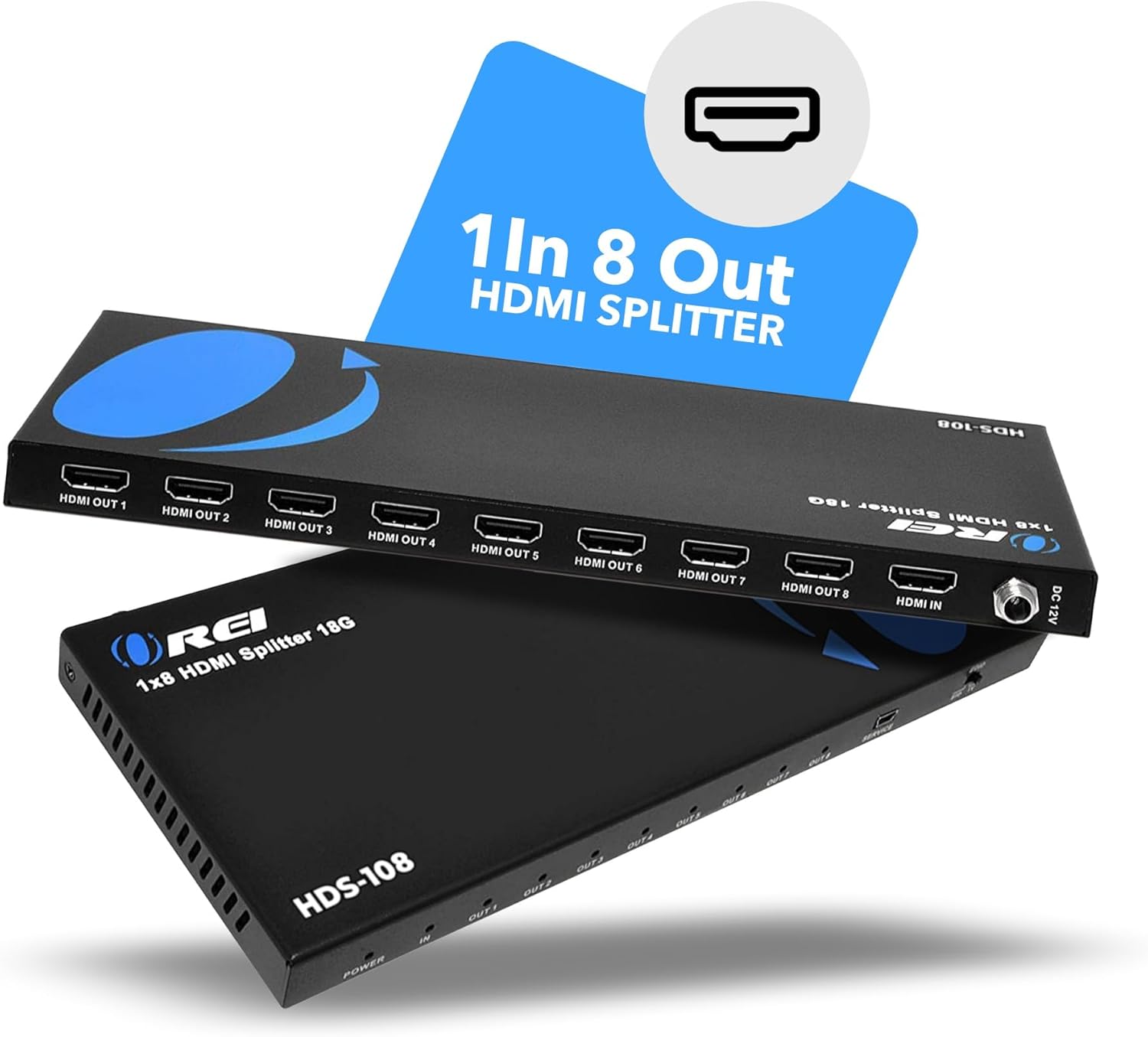

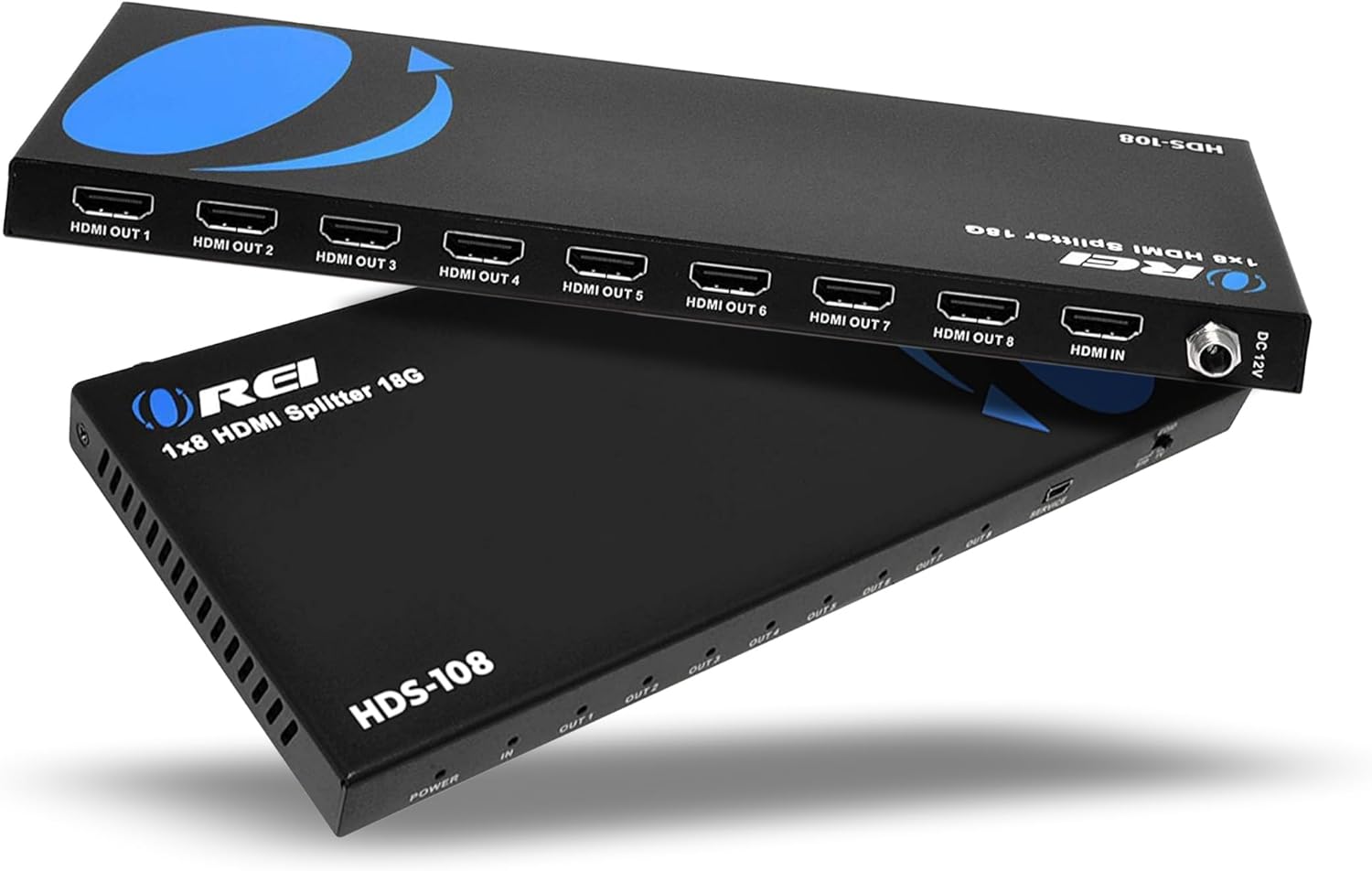

The OREI HDS-108 is a 1 in 8 HDMI splitter that can take any HDMI input and display it across 8 displays (mirrored). It is HDMI 2.0 and HDCP 2.2 compliant with a video bandwidth of up to 18Gbps. It supports video resolutions up to 4K@30Hz with 3D support for up to 1080p@60Hz. Advanced EDID management with DIP switch. It supports audio pass-through for the following audio formats LPCM, Dolby-AC3, DTS7.1, DSD/Dolby TrueHD/DTS-HD master audio, and others. Robust build with an easy plug and play installation. Perfect for commercial and personal setups requiring 1 HDMI source displayed across up to 8 displays.
[tab]
CONNECTIVITY
INPUT:
1 × HDMI [Type A, 19-pin female]
OUTPUT:
8 × HDMI [Type A, 19-pin female]
CONTROL:
1× SERVICE [Mini-USB B, Update port]
PACKAGE CONTENTS
1x UHDS-104 HDMI Splitter
1x Power Adapter
User Manual
SUPPORTED HDMI CABLES
HDMI 2.0/2.1
We recommend using high-quality HDMI 2.0/2.1 cables under 30 feet for optimum performance
Our splitters will not work with capture cards due to the HDCP encryption on the output

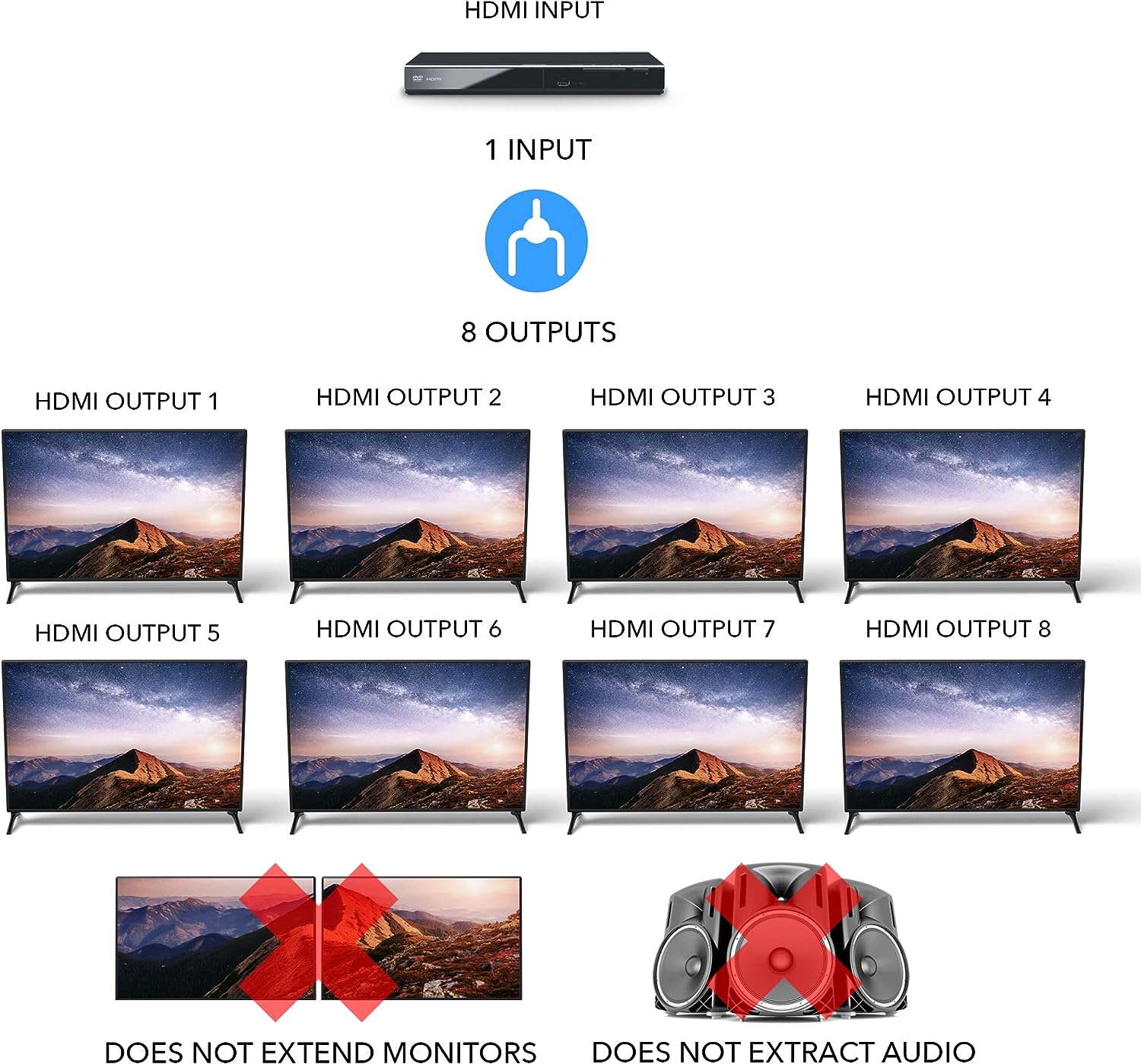

Our HDMI splitter will duplicate or "mirror" a single HDMI source on two HDMI displays. Both displays will show the same video and audio simultaneously
Our splitter does not support extend mode. It only supports mirror/duplicate screen function, each screen will show the same picture
Yes, the power adapter does support 220V
You can use standard HDMI cables up to 15 feet and high quality cables up to 30 feet.
However, you can use fiber optic active HDMI cables up to 200 feet. If its not a high quality cable then you may lose the signal in some instances.
No, the HDMI splitters do not support CEC because most customers do not want all the TV's to turn ON as soon as the source is turned ON.
The output resolution support up to 4K@30Hz,1080P@120Hz,and 1080P 3D@60Hz.
DTS-HD/Dolby-true-HD/LPCM 7.1/DTS/Dolby-AC3/DSD
It supports HDMI 2.0
[/tab1]
General Information
UPC
683258999809
