DTS HD, Dolby TrueHD lossless digital audio compliant
No loss transmission with amplifier and equalizer function
Distribute the same HDMI signal to up to 4 HDMI display devices
Few sample applications:
The OREI UHD-PRO108 is a reliable distribution amplifier-powered splitter that will take HDMI signal up to 4Kx2K@60Hz, 1080p 3D and duplicate the signal to up to 2 HDMI displays simultaneously, creating an impressive lossless image or audio transmission via HDMI cable.
Compact, durable and easy to set up and operate. Ideal for trade show, conference room, lecture halls, bedroom, living room, kitchen room and backyard. Please note that this splitter will duplicate the source to the four output displays. It can’t be used to extend a desktop for PC or a laptop. If the connected displays do not support the same resolution then the splitter will lower the output resolution to the next best resolution supported by both displays and same goes with the audio signal. We recommend using this splitter with high-quality HDMI cables 30 feet or less.
EDID management switch – Set on COPY to copy the supported audio signal from HDMI output 1 to the HDMI output 4 display. Set on AUTO to automatically detect and send the same audio signal supported by both displays.
Resolutions: Up to ultra HD 4Kx2K@60Hz with 12bit, support 4Kx2K@30Hz with 24bit YCBCR 4:2:2. Deep Color up to 4K x 2K (3840 x 2160 @60Hz), 1080P (1920 x 1080@60Hz) & 3D Support.
Support All Audio: LPCM 7.1CH. Dolby TrueHD, and DTS-HD Master Audio Power Adapter: DC 5V/1A
[tab]
AUDIO AND VIDEO
Inputs:
1 × HDMI Type A (19-pin female)
Output Ports:
8 × HDMI Type A (19-pin female)

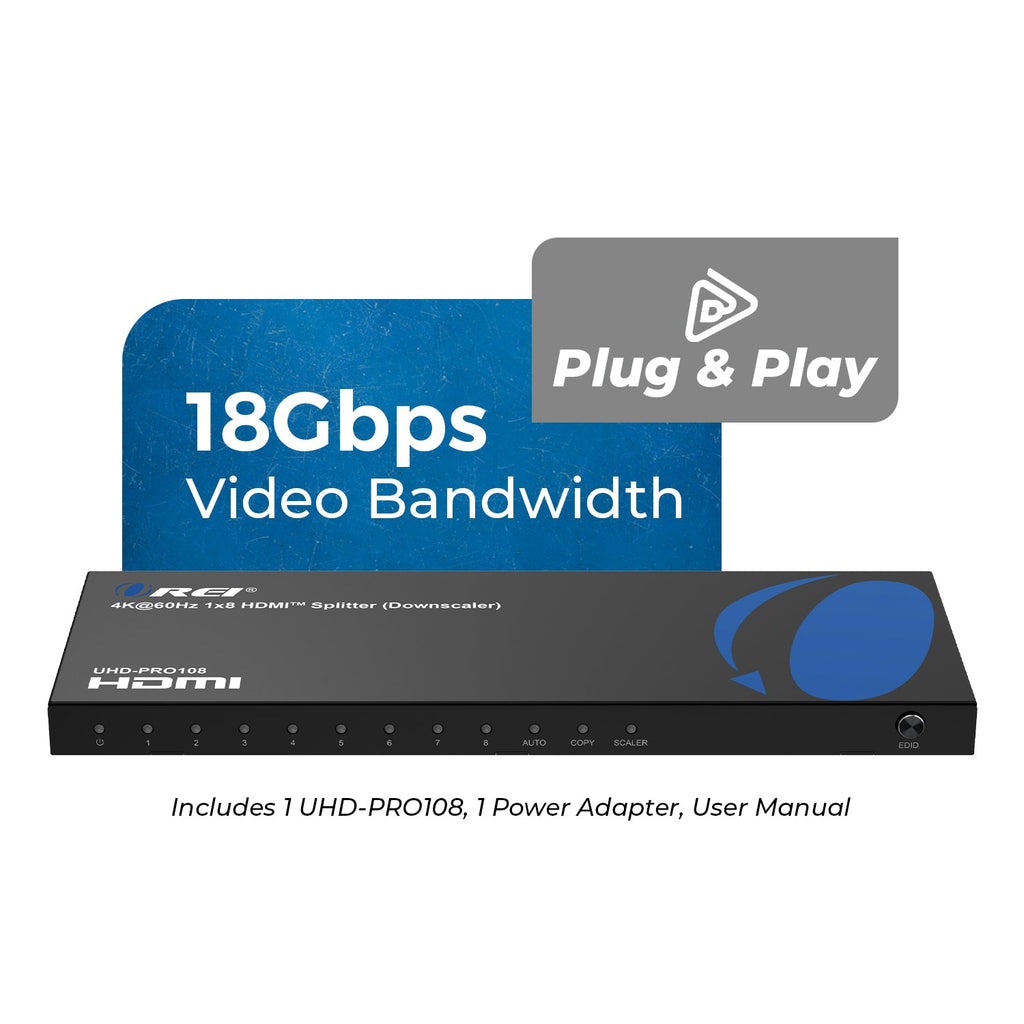

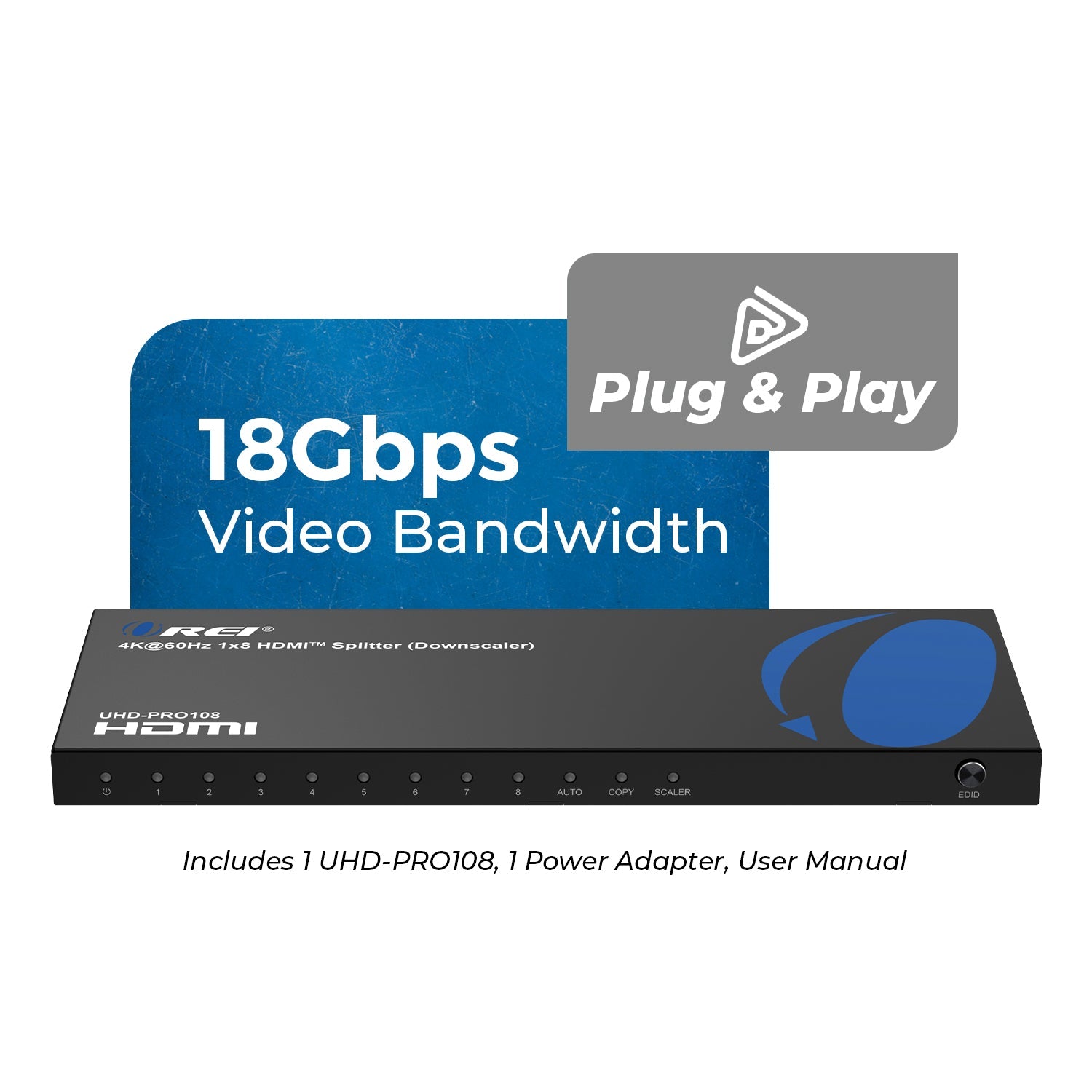

Video Bandwidth:
18 Gbps
Video Resolution:
4K@60Hz (4096x2160), 1080P@60Hz (1920x1080)
Color Space:
RGB, YCbCr 4:4:4, YCbCr 4:2:2 (A mode no support), YCbCr 4:2:0
Our splitters will not work with capture cards due to the HDCP encryption on the output
Our HDMI splitter will duplicate or "mirror" a single HDMI source on two HDMI displays. Both displays will show the same video and audio simultaneously
Our splitter does not support extend mode. It only supports mirror/duplicate screen function, each screen will show the same picture
Yes, the power adapter does support 220V
You can use standard HDMI cables up to 15 feet and high quality cables up to 30 feet.
However, you can use fiber optic active HDMI cables up to 200 feet. If its not a high quality cable then you may lose the signal in some instances.
No, the HDMI splitters do not support CEC because most customers do not want all the TV's to turn ON as soon as the source is turned ON.

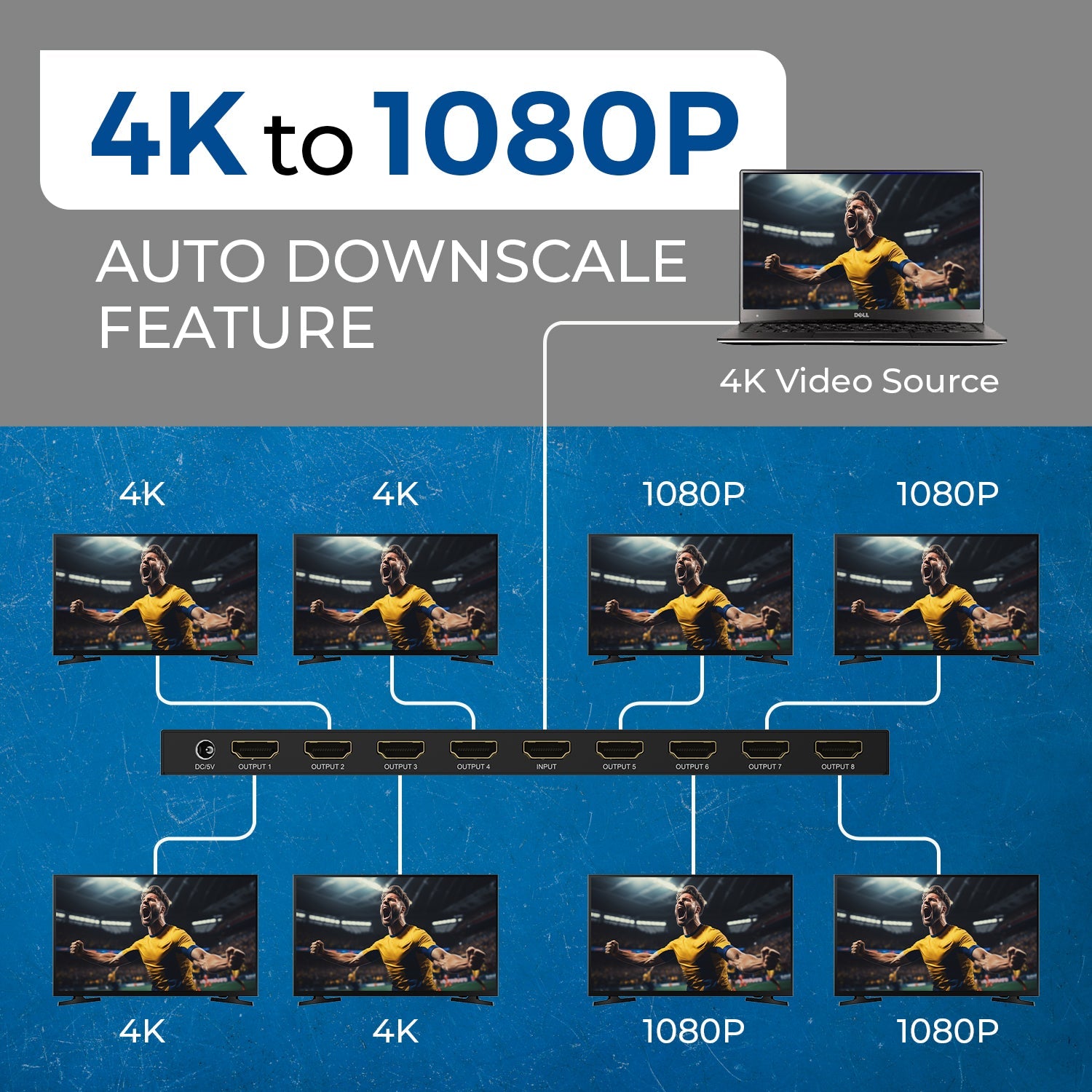

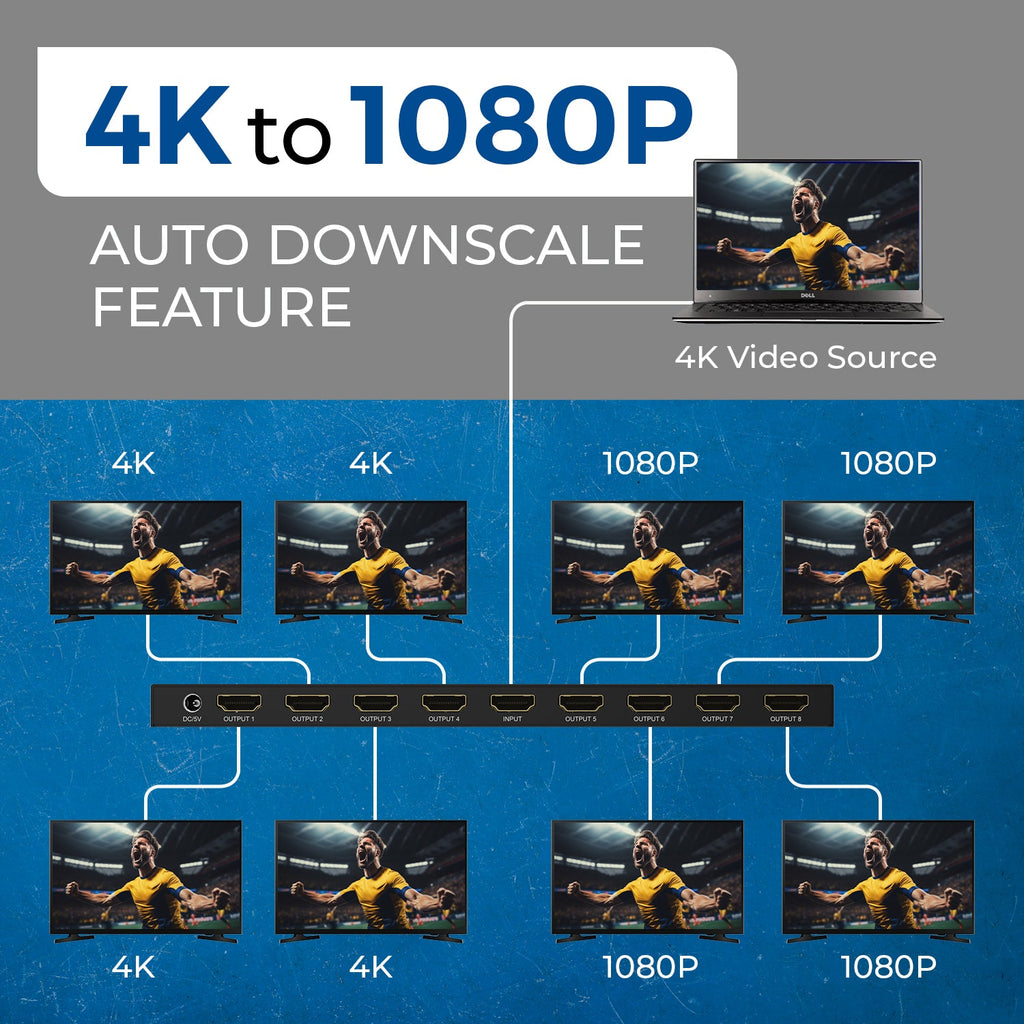

Yes, it does support auto downscale from 4K to 1080p
It supports HDCP 2.2
Yes
[/tab1]
[shortdes]

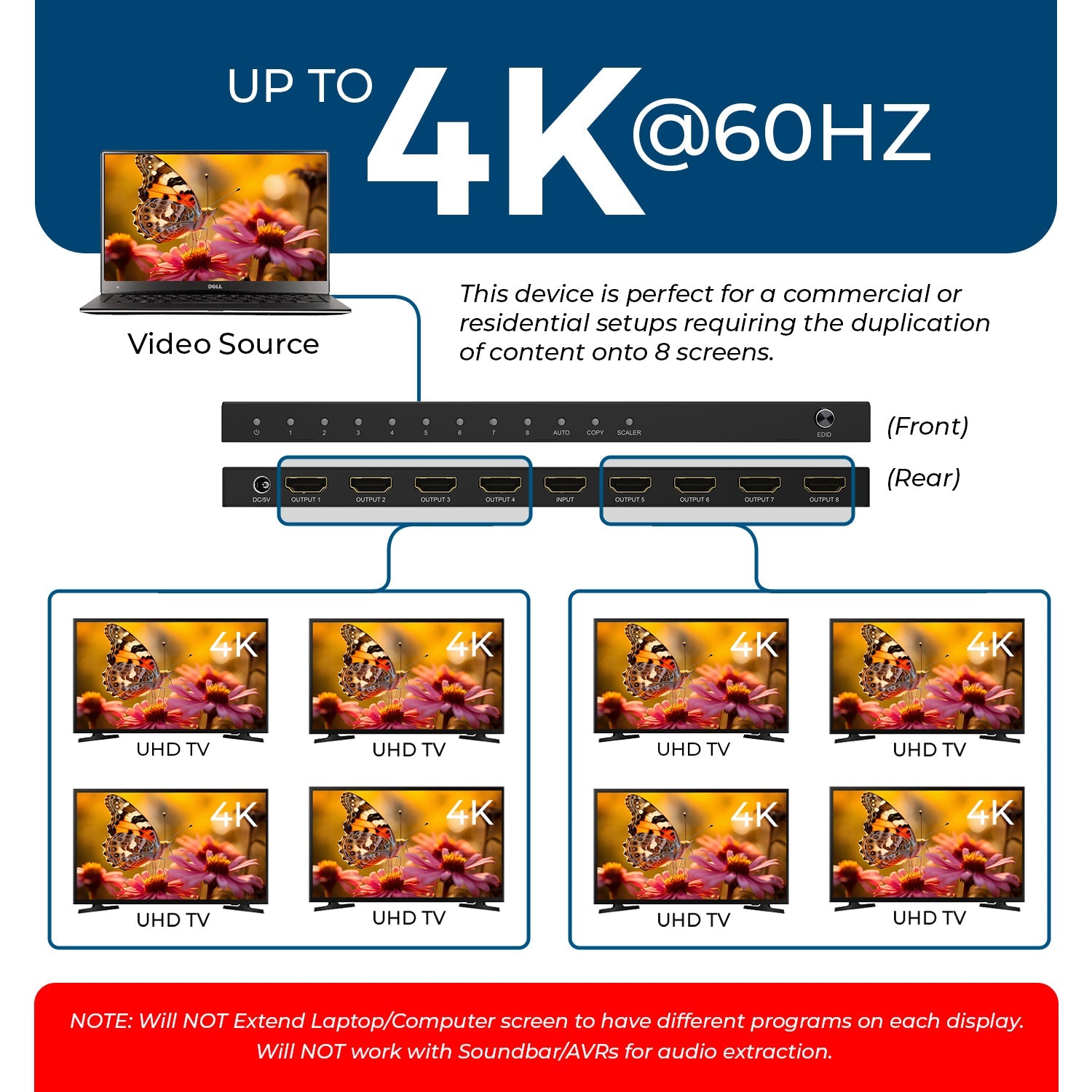

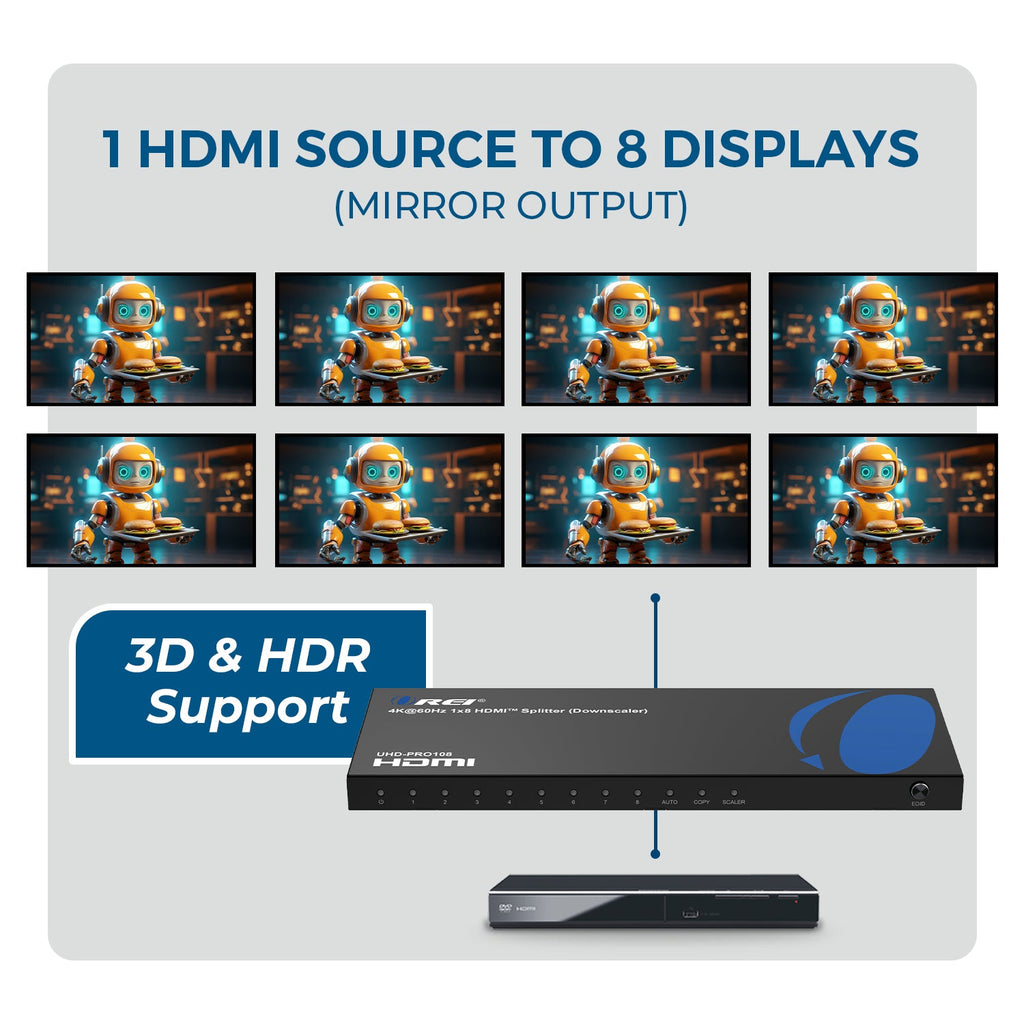

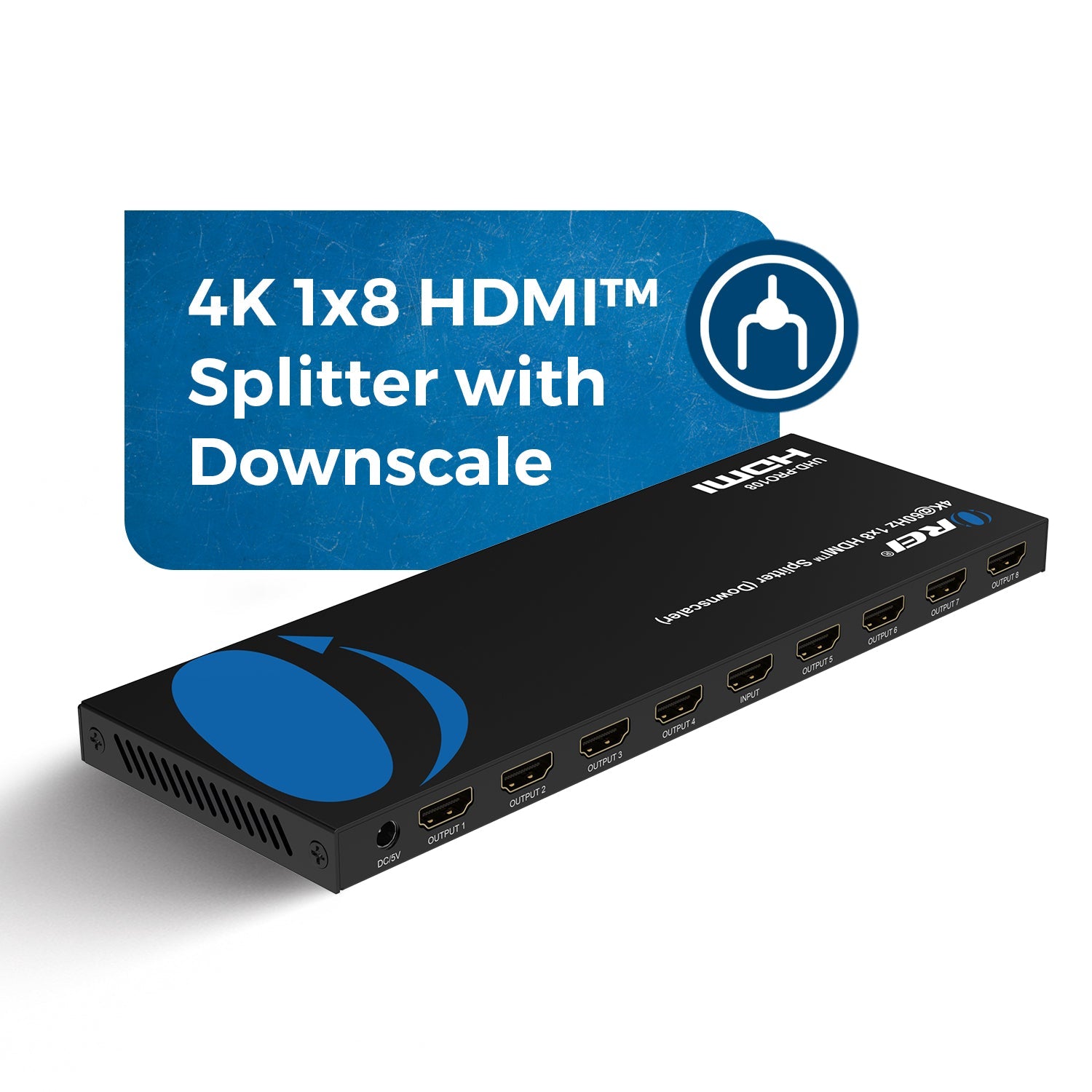

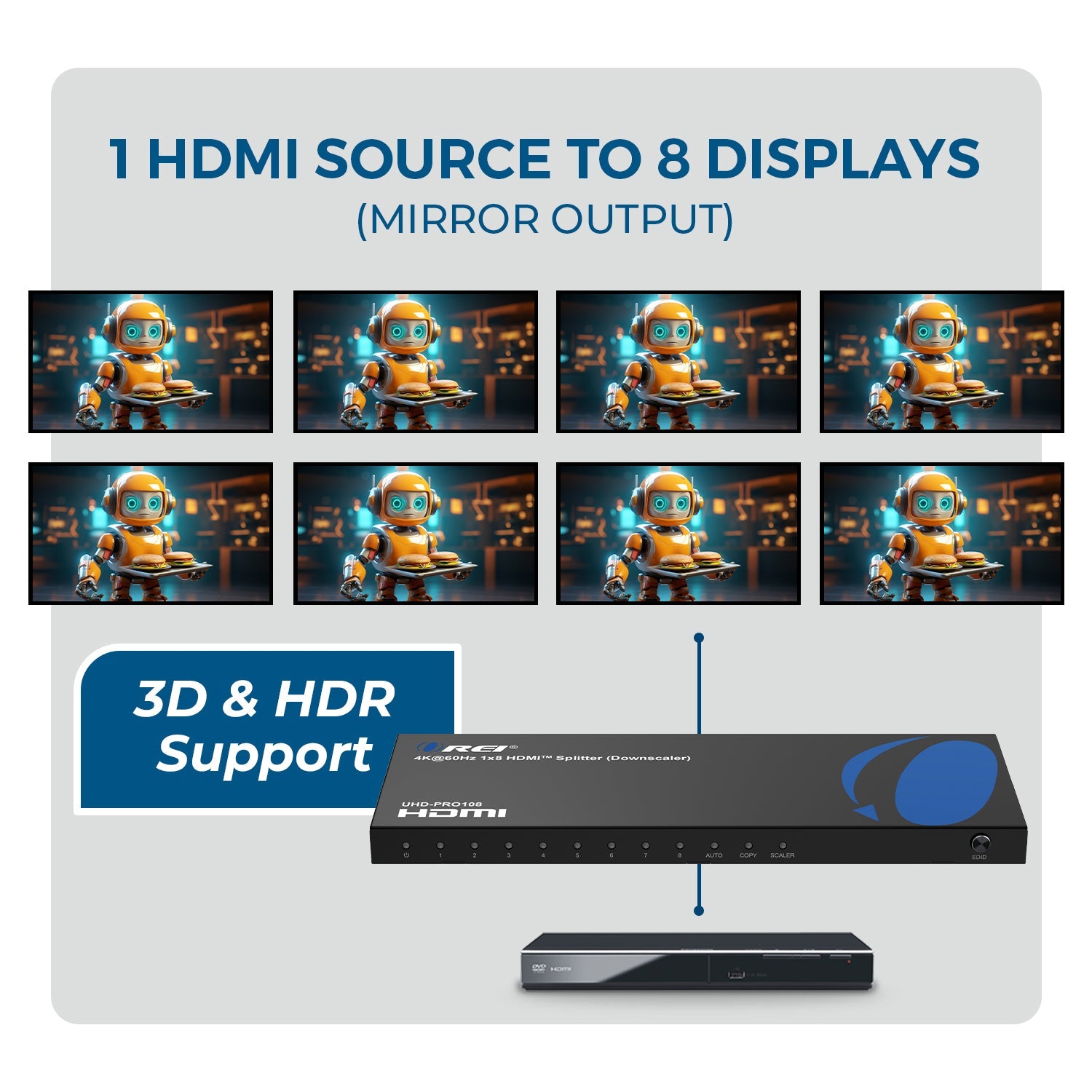

Split 1 HDMI Source to 8 identical displays - 3D Support
Video resolution upto 4K@60Hz - 4K > 1080p downscaling function
Dolby Vision, HDR - EDID Control
Compliance: HDMI 2.0 - HDCP 2.2
[/shortdes]
General Information
UPC
850031132351
