Name: 1x4 HDMI Splitter with Power Adapter : 1-in 4-out, EDID (HDS-104)
Brand: OREI
SKU: HDS-104
Price: 48.00 CAD
Availability: InStock

1x4 HDMI Splitter with Power Adapter : 1-in 4-out, EDID (HDS-104)

Roll over image to zoom in Click on image to zoom

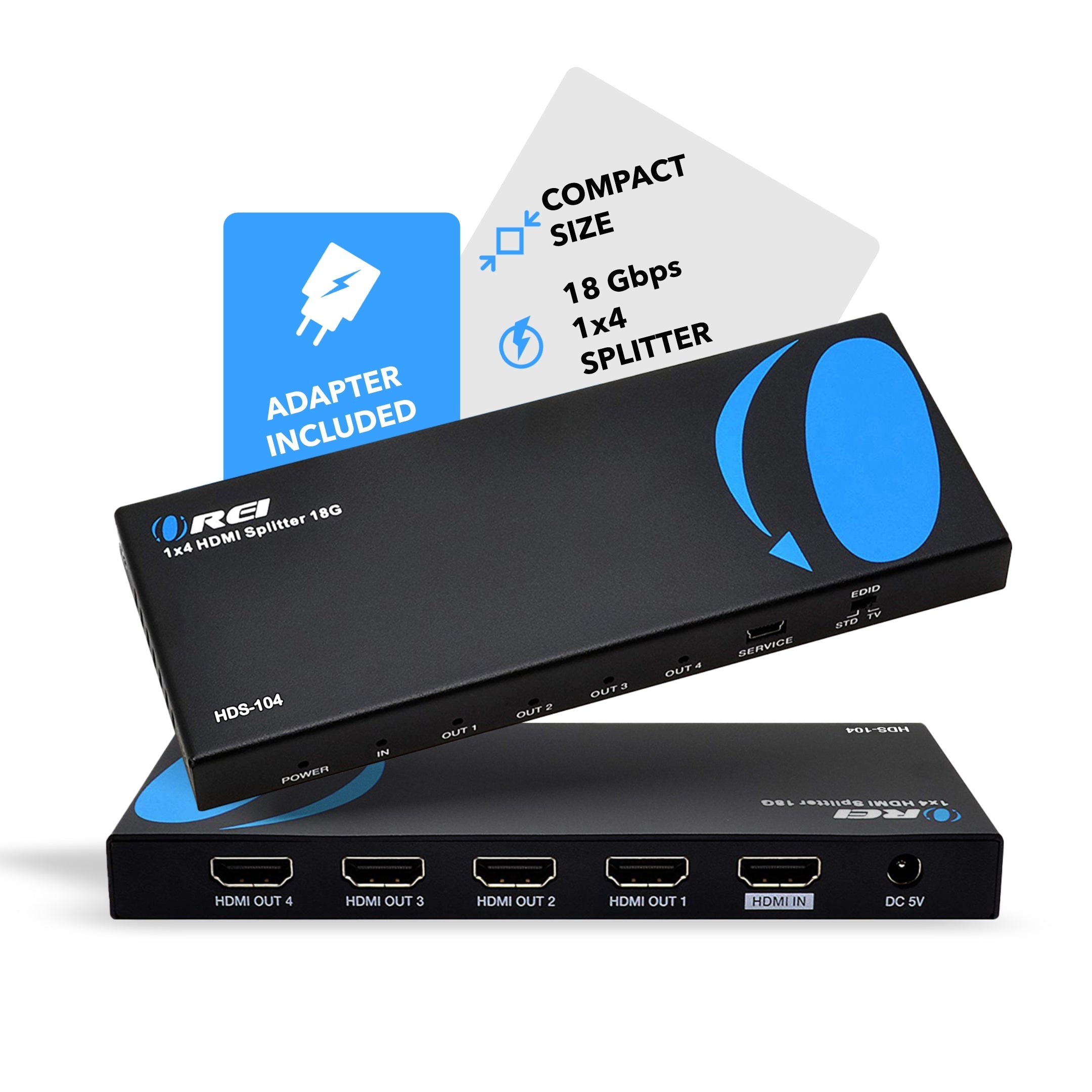

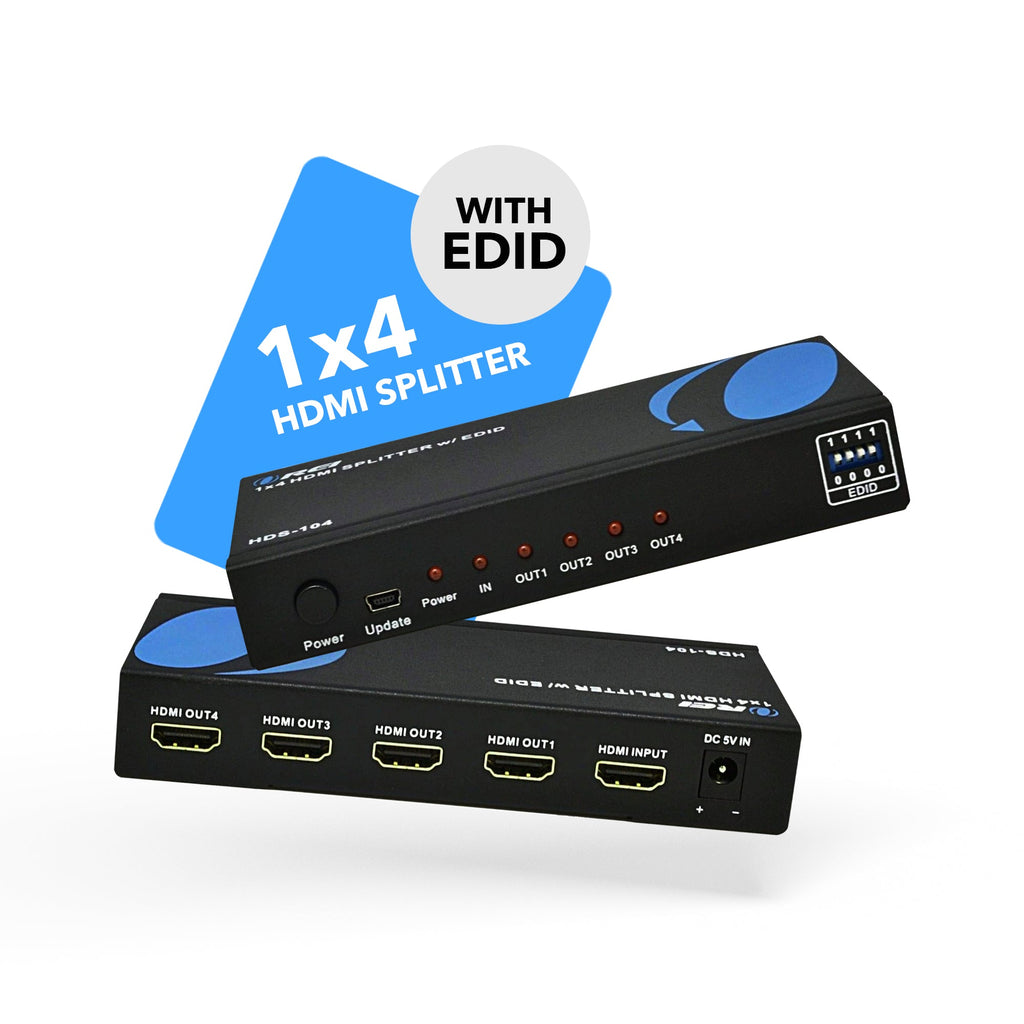

OREI HDS -104: 1 Input 4 Output HDMI Splitter

Key Features:

HDMI 1.4 and HDCP 1.4 compliant
Video resolution up to 4K@30Hz
2.97Gbps video bandwidth
Audio formats - LPCM 7.1, Dolby TrueHD, DTS-HD and DSD
3D video support at 1080p@60Hz
EDID management
Small size and plug-and-play setup

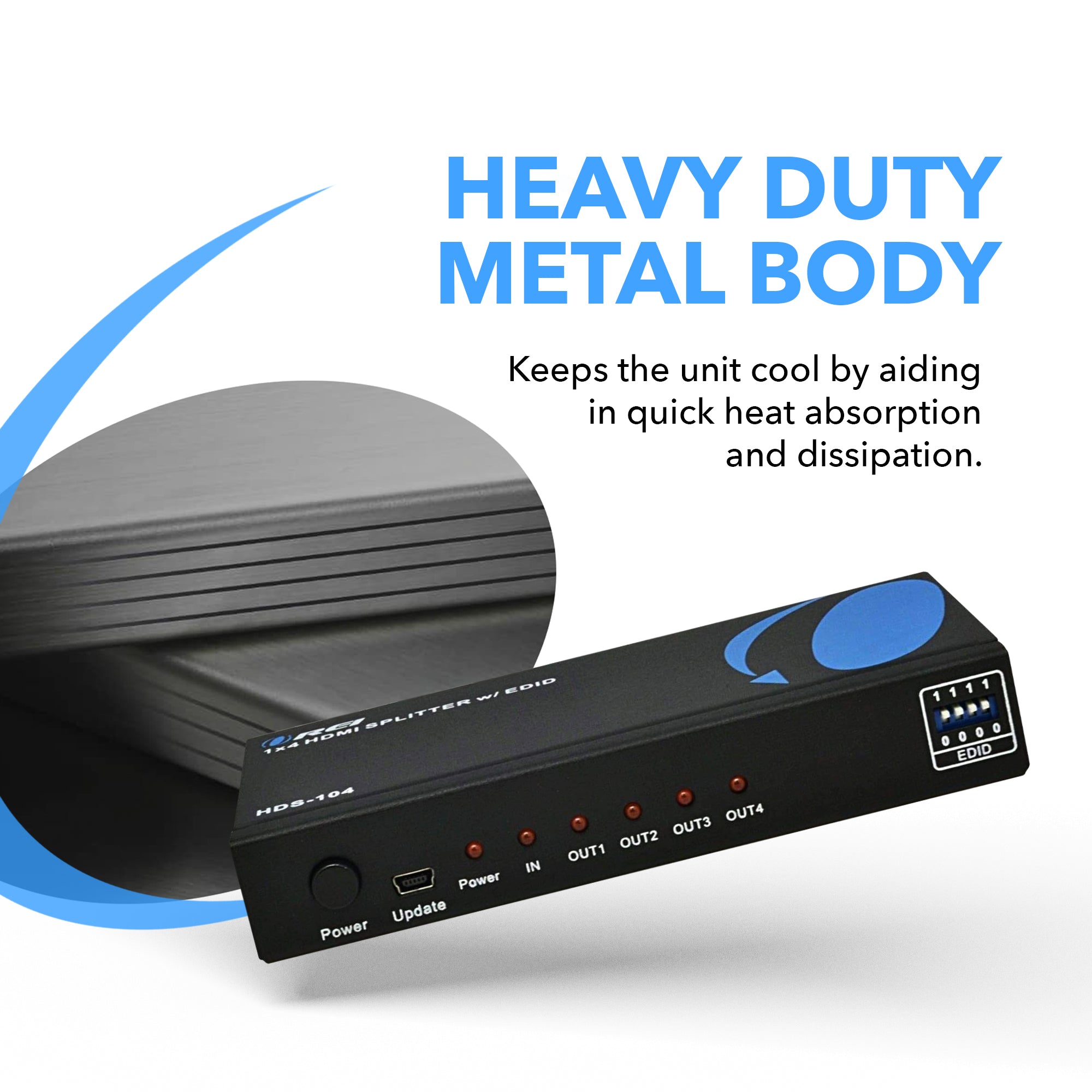

The OREI HDS-104 HDMI splitter is a reliable device for splitting an audio/video signal to 4 outputs. It supports video resolutions up to 4K@30Hz while being HDMI 1.4 and HDCP 1.4 compliant. It also supports 2.97Gbps video bandwidth while also supporting audio formats such as DTS-HD/Dolby-true-HD/LPCM 7.1/DTS/Dolby-AC3/DSD. It features dip switches for EDID management. The device is perfect for a commercial or residential setup requiring the duplication of content onto 4 screens.

Please note that this HDMI splitter will duplicate the source to the four output displays. It can’t be used to extend a desktop for PC or a laptop. If the connected displays do not support the same resolution then the HDMI splitter will lower the output resolution to the next best resolution supported by both displays. We recommend using this HDMI splitter with high quality HDMI cables 30 feet or less.

[tab]

AUDIO AND VIDEO

Input:	1 × HDMI Type A (19-pin female)
Output:	4 × HDMI Type A (19-pin female)
Video Bandwidth:	2.97 Gbps
Video Resolution:	4K x 2K@30Hz, 1080P@120Hz, 1080P 3D@60Hz
Color Space:	YUV 4:2:2, YUV 4:4:4, YUV 4:2:0, RGB

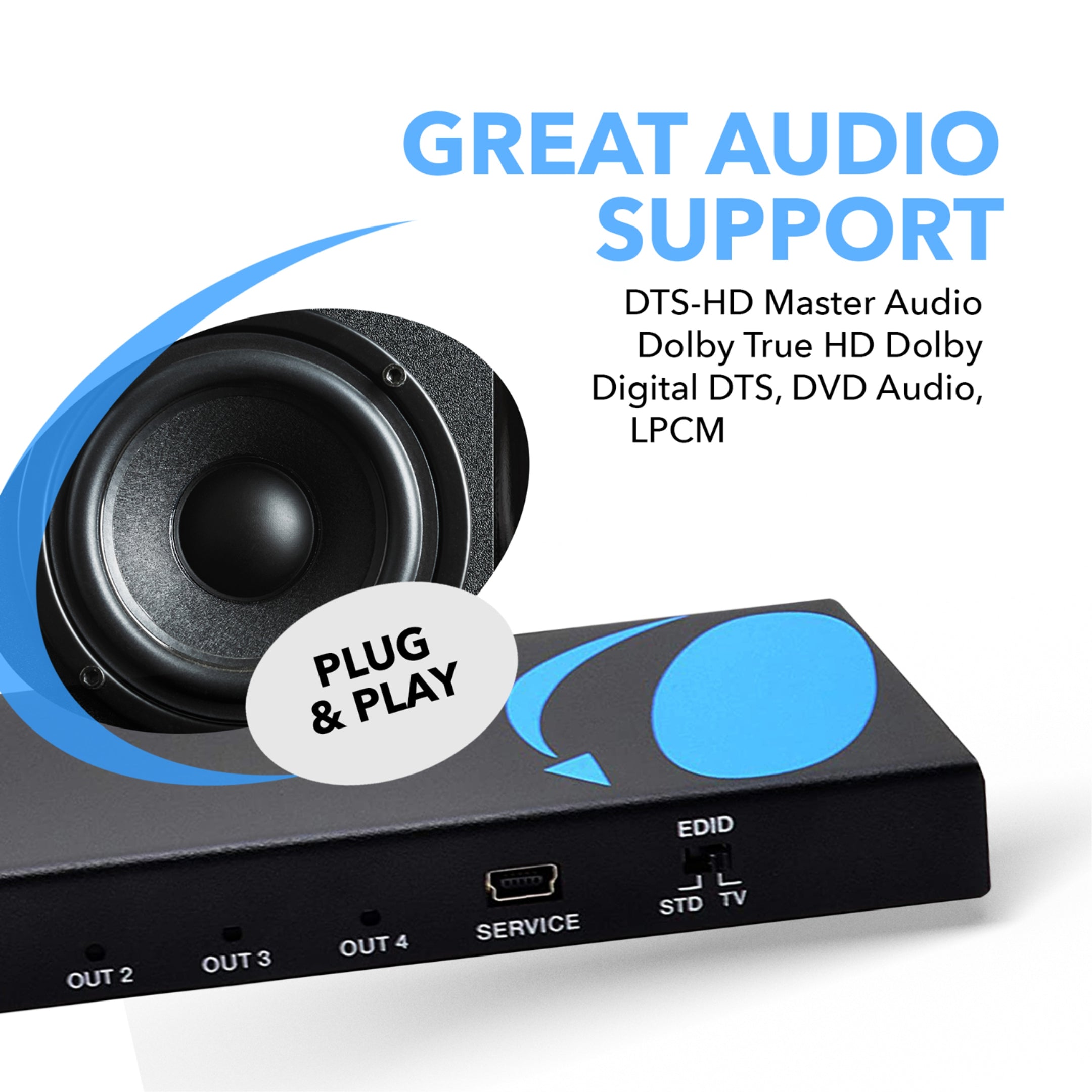

HDMI Audio Formats:	DTS-HD, Dolby-true-HD, LPCM 7.1, DTS, Dolby-AC3, DSD

COMMUNICATION AND CONTROL

HDMI Compliance	HDMI 1.4a
HDCP Compliance	HDCP 1.4

POWER

Power Supply:	DC 5V
Power Consumption:	5W

ENVIRONMENTAL

Operating Temperature:	0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature:	-20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity:	20 ~ 90% RH (Non-condensing)

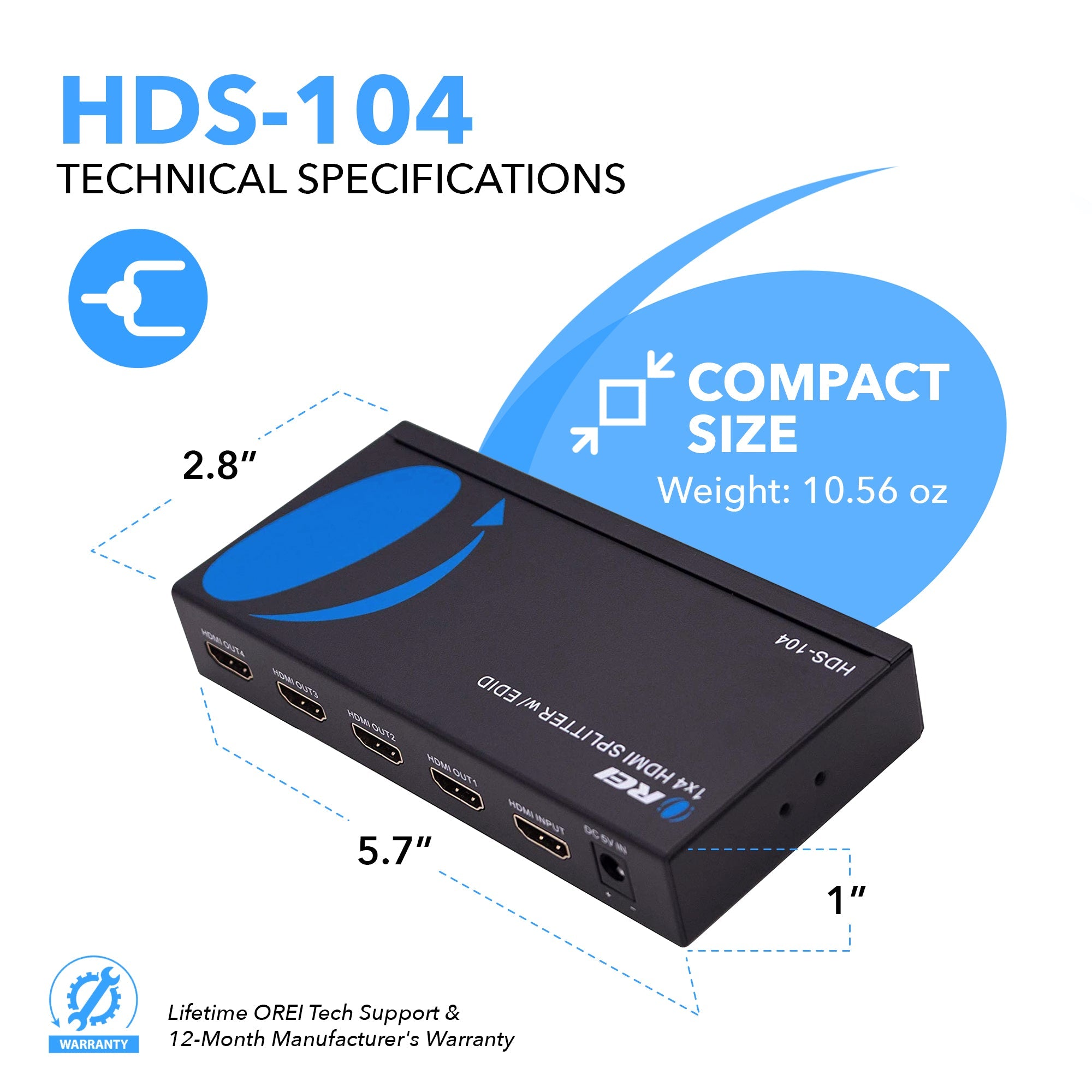

DIMENSIONS & WEIGHT

Height:	25 mm
Width:	70 mm
Depth:	145 mm
Weight:	300 g

REGULATORY

REGULATORY:

CE | FCC | RoHS

PACKAGE CONTENTS

1 × HDS-104 1×4 HDMI Splitter

1 × Power Adapter

1 × User Manual

Warranty

1 - Year Manufacturer's Warranty

[/tab]

[tab1]

FAQs

Our splitters will not work with capture cards due to the HDCP encryption on the output

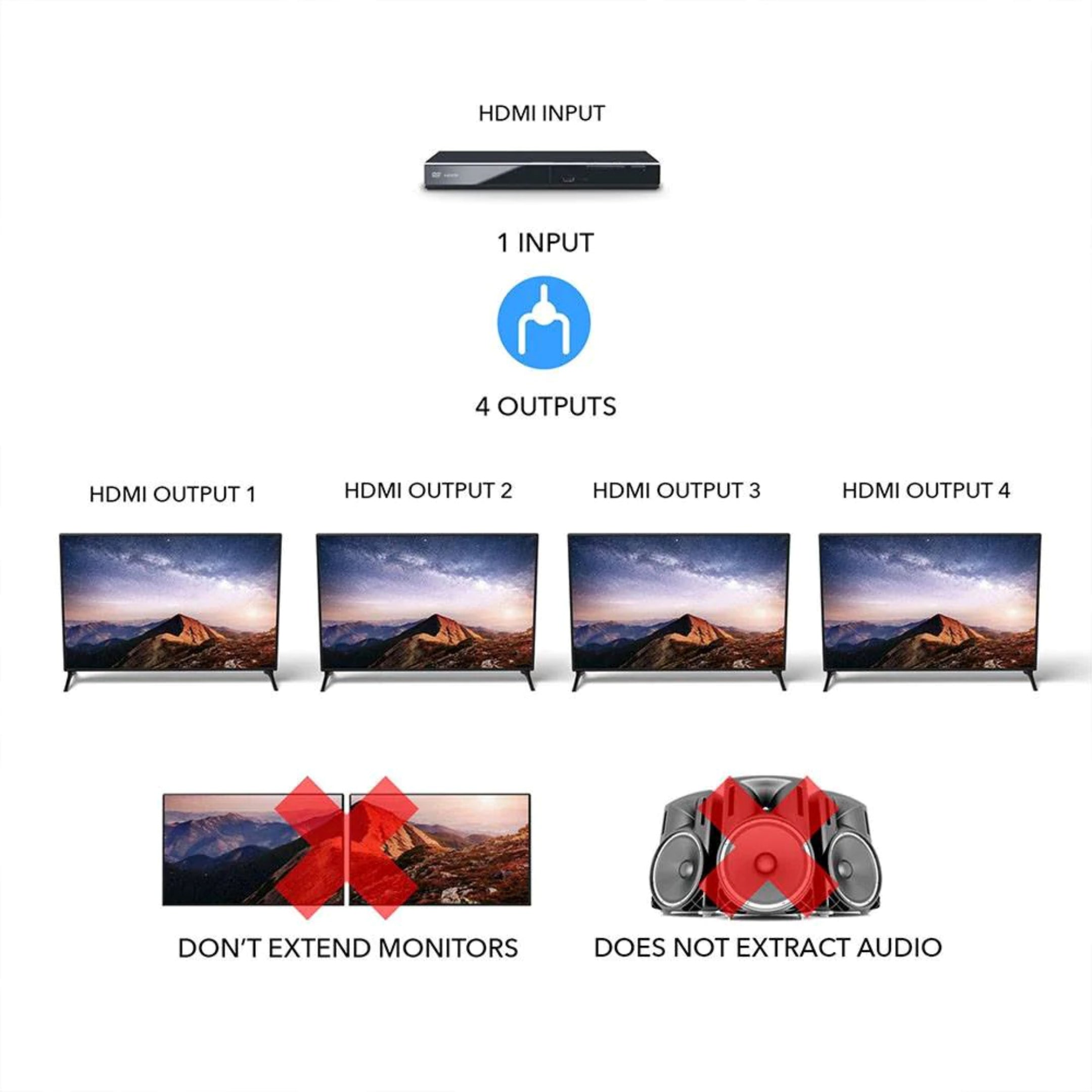

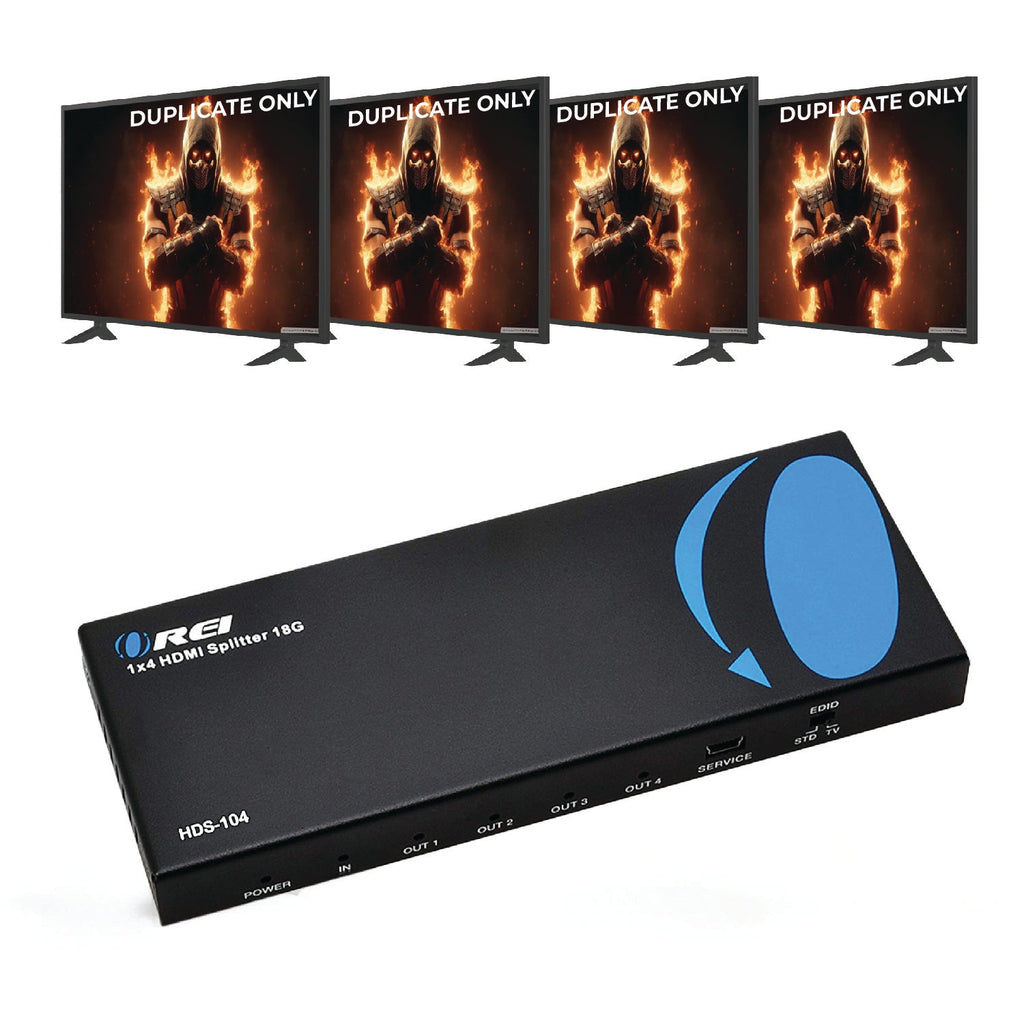

Our HDMI splitter will duplicate or "mirror" a single HDMI source on two HDMI displays. Both displays will show the same video and audio simultaneously

Our splitter does not support extend mode. It only supports mirror/duplicate screen function, each screen will show the same picture

Yes, the power adapter does support 220V

You can use standard HDMI cables up to 15 feet and high quality cables up to 30 feet.

However, you can use fiber optic active HDMI cables up to 200 feet. If its not a high quality cable then you may lose the signal in some instances.

No, the HDMI splitters do not support CEC because most customers do not want all the TV's to turn ON as soon as the source is turned ON.

The output resolution support up to 4K x 2K@30Hz,1080P@120Hz,and 1080P 3D@60Hz.

DTS-HD/Dolby-true-HD/LPCM 7.1/DTS/Dolby-AC3/DSD

It supports HDMI 1.4A

[/tab1]

[shortdes]

Split 1 HDMI Source to 4 identical displays - 3D Support
Video resolutions up to 4Kx2K@30Hz, 1080P@120Hz - Multiple EDID Control
Compliance: HDMI 1.4a - HDCP 1.4

[/shortdes]
